基于蓝耘元生代MaaS平台的视觉模型应用开发实战

一、引言：视觉生成AI的技术革命

随着多模态人工智能技术的快速发展，视觉模型生成能力正成为企业创新应用的核心驱动力。蓝耘元生代MaaS平台提供的视觉模型API，使开发者能够轻松集成先进的视频生成功能到各类应用中。本文将全面解析如何基于该平台开发一个完整的LLM视觉模型应用，涵盖前端界面设计、后端服务实现以及系统集成的最佳实践。

1.1 视觉生成AI的市场需求

视觉内容在现代数字营销、教育培训和娱乐产业中占据核心地位。传统视频制作需要专业团队、昂贵设备和大量时间，而AI视频生成技术将这些门槛大幅降低：

  • 内容创作：营销视频、产品演示、社交媒体内容
  • 教育培训：教学视频、模拟演示、交互式学习材料
  • 娱乐产业：短视频生成、虚拟偶像、互动叙事

1.2 技术架构概述

本文将实现的系统采用前后端分离架构：
用户界面
HTTP请求
Nginx反向代理
前端静态资源
Spring Boot后端
蓝耘元生代MaaS API
MySQL数据库
Redis缓存
异步任务处理
视频生成服务

二、环境准备与平台接入

2.1 注册平台账号并获取API密钥

首先，我们需要访问蓝耘元生代代码算云平台并完成注册：

  1. 访问 https://console.lanyun.net/#/register?source=2
  2. 完成企业邮箱注册和身份验证
  3. 进入API管理界面创建API Key

2.2 项目初始化与依赖配置

前端项目初始化
<!DOCTYPE html>
<html lang="zh-CN">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>AI视觉模型应用平台</title>
    <!-- Bootstrap CSS -->
    <link href="https://cdn.jsdelivr.net/npm/bootstrap@5.1.3/dist/css/bootstrap.min.css" rel="stylesheet">
    <!-- Font Awesome 图标 -->
    <link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/font-awesome/6.0.0/css/all.min.css">
    <!-- 自定义样式 -->
    <link rel="stylesheet" href="css/style.css">
</head>
<body>
    <!-- 导航栏 -->
    <nav class="navbar navbar-expand-lg navbar-dark bg-dark">
        <div class="container">
            <a class="navbar-brand" href="#">
                <i class="fas fa-robot"></i> AI视觉生成平台
            </a>
            <button class="navbar-toggler" type="button" data-bs-toggle="collapse" data-bs-target="#navbarNav">
                <span class="navbar-toggler-icon"></span>
            </button>
            <div class="collapse navbar-collapse" id="navbarNav">
                <ul class="navbar-nav ms-auto">
                    <li class="nav-item">
                        <a class="nav-link active" href="#">首页</a>
                    </li>
                    <li class="nav-item">
                        <a class="nav-link" href="#features">功能</a>
                    </li>
                    <li class="nav-item">
                        <a class="nav-link" href="#api">API文档</a>
                    </li>
                    <li class="nav-item">
                        <a class="nav-link" href="#contact">联系我们</a>
                    </li>
                </ul>
            </div>
        </div>
    </nav>

    <!-- 主要内容区域 -->
    <main id="app">
        <!-- 将在后续章节填充 -->
    </main>

    <!-- JavaScript 库 -->
    <script src="https://cdn.jsdelivr.net/npm/bootstrap@5.1.3/dist/js/bootstrap.bundle.min.js"></script>
    <script src="https://cdn.jsdelivr.net/npm/axios/dist/axios.min.js"></script>
    <!-- 自定义JS -->
    <script src="js/app.js"></script>
</body>
</html>
后端Spring Boot项目配置
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
         http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.example</groupId>
    <artifactId>ai-vision-platform</artifactId>
    <version>1.0.0</version>
    <packaging>jar</packaging>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.7.0</version>
        <relativePath/>
    </parent>

    <properties>
        <java.version>11</java.version>
        <lombok.version>1.18.24</lombok.version>
    </properties>

    <dependencies>
        <!-- Spring Boot Web -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!-- Spring Boot Data JPA -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>

        <!-- MySQL 连接器 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>

        <!-- Redis -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>

        <!-- Lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>${lombok.version}</version>
            <scope>provided</scope>
        </dependency>

        <!-- 测试依赖 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

2.3 配置管理类实现

package com.example.aivisionplatform.config;

import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.RedisStandaloneConfiguration;
import org.springframework.data.redis.connection.jedis.JedisConnectionFactory;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.web.client.RestTemplate;

@Configuration
public class AppConfig {

    @Value("${maas.api.key}")
    private String maasApiKey;

    @Value("${maas.base.url}")
    private String maasBaseUrl;

    @Value("${redis.host}")
    private String redisHost;

    @Value("${redis.port}")
    private int redisPort;

    @Bean
    public RestTemplate restTemplate() {
        return new RestTemplate();
    }

    @Bean
    public JedisConnectionFactory jedisConnectionFactory() {
        RedisStandaloneConfiguration config = new RedisStandaloneConfiguration();
        config.setHostName(redisHost);
        config.setPort(redisPort);
        return new JedisConnectionFactory(config);
    }

    @Bean
    public RedisTemplate<String, Object> redisTemplate() {
        RedisTemplate<String, Object> template = new RedisTemplate<>();
        template.setConnectionFactory(jedisConnectionFactory());
        return template;
    }

    // Getter方法用于获取配置值
    public String getMaasApiKey() {
        return maasApiKey;
    }

    public String getMaasBaseUrl() {
        return maasBaseUrl;
    }
}

三、前端界面设计与实现

3.1 用户界面布局设计

基于Bootstrap 5设计响应式用户界面，包含以下主要功能区域：

  1. 视频生成参数面板：用于设置生成参数
  2. 预览区域：显示生成的视频和进度
  3. 任务历史面板：展示历史生成任务
  4. 账户信息面板：显示API使用情况和余额

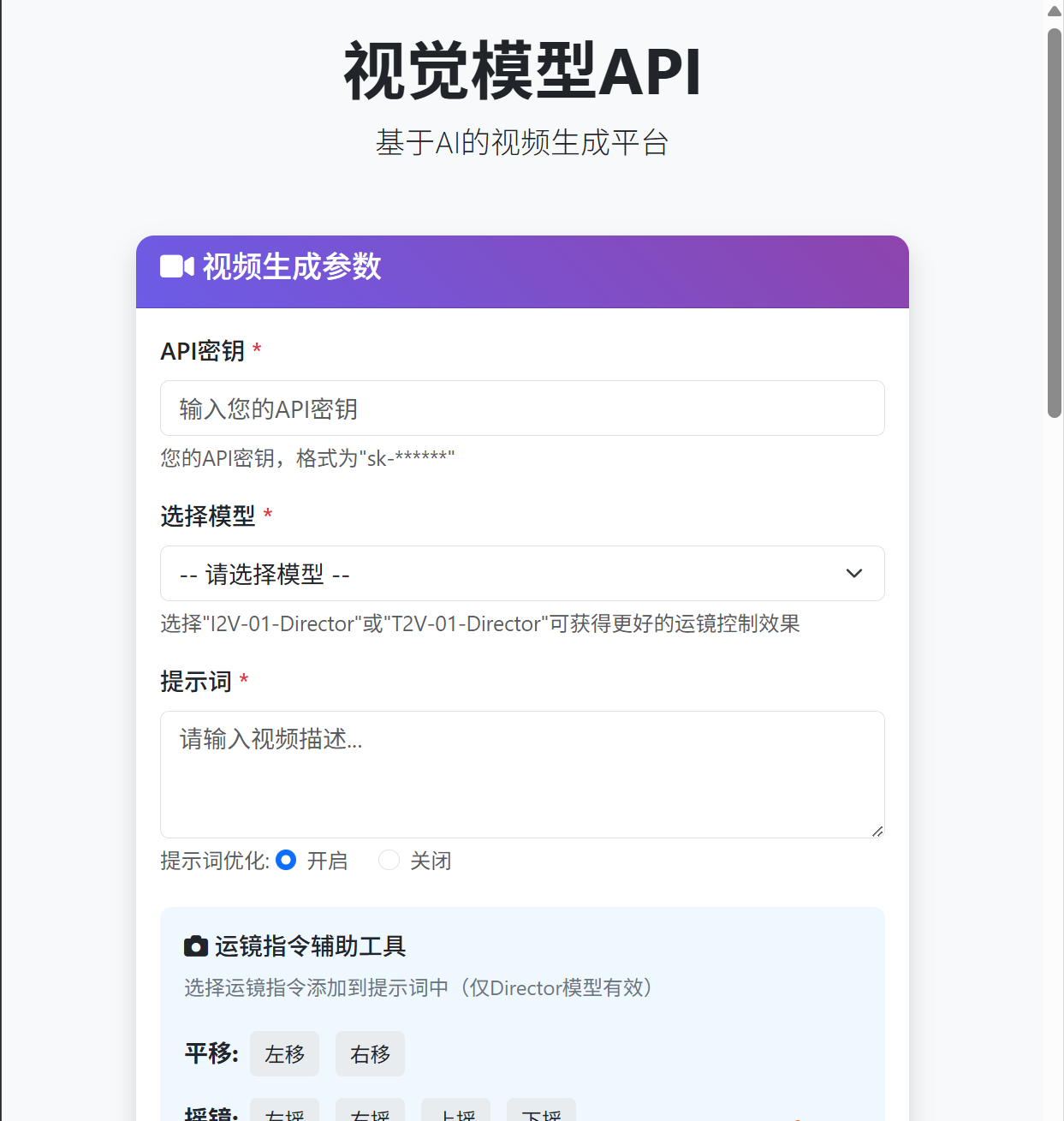

在这里插入图片描述

图1：前端界面布局设计

3.2 视频生成表单实现

<div class="container mt-5">
    <div class="row">
        <div class="col-md-6">
            <div class="card">
                <div class="card-header">
                    <h5><i class="fas fa-video"></i> 视频生成参数</h5>
                </div>
                <div class="card-body">
                    <form id="videoGenerationForm">
                        <div class="mb-3">
                            <label for="modelSelect" class="form-label">选择模型</label>
                            <select class="form-select" id="modelSelect" required>
                                <option value="">-- 请选择模型 --</option>
                                <option value="I2V-01">I2V-01 (图像到视频)</option>
                                <option value="I2V-01-Director">I2V-01-Director (导演模式)</option>
                                <option value="T2V-01">T2V-01 (文本到视频)</option>
                                <option value="T2V-01-Director">T2V-01-Director (文本导演模式)</option>
                            </select>
                        </div>

                        <div class="mb-3">
                            <label for="promptInput" class="form-label">提示词</label>
                            <textarea class="form-control" id="promptInput" rows="3"
                                      placeholder="请输入视频描述..." required></textarea>
                            <div class="form-text">提示词优化:
                                <div class="form-check form-check-inline">
                                    <input class="form-check-input" type="radio" name="promptOptimizer" id="optimizerYes" value="true" checked>
                                    <label class="form-check-label" for="optimizerYes">开启</label>
                                </div>
                                <div class="form-check form-check-inline">
                                    <input class="form-check-input" type="radio" name="promptOptimizer" id="optimizerNo" value="false">
                                    <label class="form-check-label" for="optimizerNo">关闭</label>
                                </div>
                            </div>
                        </div>

                        <div class="mb-3">
                            <label for="firstFrameImage" class="form-label">首帧图片</label>
                            <input type="file" class="form-control" id="firstFrameImage" accept="image/*">
                            <div class="form-text">仅图像到视频模型需要</div>
                        </div>

                        <div class="mb-3">
                            <label for="subjectReferences" class="form-label">主体参考图片</label>
                            <input type="file" class="form-control" id="subjectReferences" accept="image/*" multiple>
                            <div class="form-text">可上传多张图片作为参考</div>
                        </div>

                        <div class="d-grid">
                            <button type="submit" class="btn btn-primary" id="generateBtn">
                                <i class="fas fa-magic"></i> 生成视频
                            </button>
                        </div>
                    </form>
                </div>
            </div>
        </div>

        <div class="col-md-6">
            <div class="card">
                <div class="card-header">
                    <h5><i class="fas fa-play-circle"></i> 视频预览</h5>
                </div>
                <div class="card-body text-center">
                    <div id="previewArea" class="d-none">
                        <video id="generatedVideo" controls class="w-100"></video>
                        <div class="mt-3">
                            <a id="downloadLink" class="btn btn-success btn-sm">
                                <i class="fas fa-download"></i> 下载视频
                            </a>
                        </div>
                    </div>
                    <div id="emptyPreview" class="text-muted py-5">
                        <i class="fas fa-film fa-3x mb-3"></i>
                        <p>视频生成后将显示在这里</p>
                    </div>
                    <div id="progressArea" class="d-none mt-3">
                        <div class="progress mb-2">
                            <div id="progressBar" class="progress-bar progress-bar-striped progress-bar-animated"
                                 role="progressbar" style="width: 0%"></div>
                        </div>
                        <small id="progressText">任务已提交，等待处理...</small>
                    </div>
                </div>
            </div>
        </div>
    </div>
</div>

3.3 JavaScript核心逻辑实现

class VideoGenerationApp {
    constructor() {
        this.apiBaseUrl = 'https://your-backend-domain.com/api';
        this.currentTaskId = null;
        this.pollingInterval = null;
        this.initializeEventListeners();
    }

    initializeEventListeners() {
        // 表单提交事件
        document.getElementById('videoGenerationForm').addEventListener('submit',
            (e) => this.handleFormSubmit(e));

        // 模型选择变化事件
        document.getElementById('modelSelect').addEventListener('change',
            () => this.toggleImageInputs());
    }

    toggleImageInputs() {
        const model = document.getElementById('modelSelect').value;
        const firstFrameInput = document.getElementById('firstFrameImage');
        const subjectRefsInput = document.getElementById('subjectReferences');

        // 根据模型类型显示/隐藏图片输入
        if (model.startsWith('I2V')) {
            firstFrameInput.parentElement.classList.remove('d-none');
            subjectRefsInput.parentElement.classList.remove('d-none');
        } else {
            firstFrameInput.parentElement.classList.add('d-none');
            subjectRefsInput.parentElement.classList.add('d-none');
        }
    }

    async handleFormSubmit(e) {
        e.preventDefault();

        const generateBtn = document.getElementById('generateBtn');
        generateBtn.disabled = true;
        generateBtn.innerHTML = '<i class="fas fa-spinner fa-spin"></i> 生成中...';

        try {
            const formData = new FormData();
            formData.append('model', document.getElementById('modelSelect').value);
            formData.append('prompt', document.getElementById('promptInput').value);
            formData.append('promptOptimizer',
                document.querySelector('input[name="promptOptimizer"]:checked').value);

            // 添加图片文件
            const firstFrameFile = document.getElementById('firstFrameImage').files[0];
            if (firstFrameFile) {
                formData.append('firstFrameImage', firstFrameFile);
            }

            const subjectRefFiles = document.getElementById('subjectReferences').files;
            for (let i = 0; i < subjectRefFiles.length; i++) {
                formData.append('subjectReferences', subjectRefFiles[i]);
            }

            // 调用后端API
            const response = await axios.post(`${this.apiBaseUrl}/video/generate`, formData, {
                headers: {
                    'Content-Type': 'multipart/form-data'
                }
            });

            this.currentTaskId = response.data.task_id;
            this.showProgressArea();
            this.startProgressPolling();

        } catch (error) {
            console.error('生成视频失败:', error);
            this.showError('视频生成失败，请稍后重试');
        } finally {
            generateBtn.disabled = false;
            generateBtn.innerHTML = '<i class="fas fa-magic"></i> 生成视频';
        }
    }

    showProgressArea() {
        document.getElementById('emptyPreview').classList.add('d-none');
        document.getElementById('previewArea').classList.add('d-none');
        document.getElementById('progressArea').classList.remove('d-none');
    }

    startProgressPolling() {
        // 清除现有轮询
        if (this.pollingInterval) {
            clearInterval(this.pollingInterval);
        }

        // 每5秒查询一次任务状态
        this.pollingInterval = setInterval(() => {
            this.checkTaskStatus();
        }, 5000);

        // 立即执行一次查询
        this.checkTaskStatus();
    }

    async checkTaskStatus() {
        if (!this.currentTaskId) return;

        try {
            const response = await axios.get(
                `${this.apiBaseUrl}/video/status/${this.currentTaskId}`
            );

            const status = response.data.status;
            document.getElementById('progressText').textContent =
                this.getStatusText(status);

            // 更新进度条
            const progressBar = document.getElementById('progressBar');
            if (status === 'Pending') {
                progressBar.style.width = '25%';
            } else if (status === 'Processing') {
                progressBar.style.width = '60%';
            } else if (status === 'Success') {
                progressBar.style.width = '100%';
                this.handleTaskSuccess(response.data);
            } else if (status === 'Failed') {
                this.handleTaskFailure(response.data);
            }

        } catch (error) {
            console.error('查询任务状态失败:', error);
        }
    }

    getStatusText(status) {
        const statusTexts = {
            'Pending': '任务已提交，等待处理...',
            'Processing': '视频生成中，请稍候...',
            'Success': '视频生成成功！',
            'Failed': '视频生成失败'
        };
        return statusTexts[status] || '未知状态';
    }

    handleTaskSuccess(taskData) {
        // 停止轮询
        clearInterval(this.pollingInterval);
        this.pollingInterval = null;

        // 显示生成的视频
        document.getElementById('progressArea').classList.add('d-none');
        document.getElementById('previewArea').classList.remove('d-none');

        const videoElement = document.getElementById('generatedVideo');
        const downloadLink = document.getElementById('downloadLink');

        videoElement.src = taskData.videoDownloadUrl;
        downloadLink.href = taskData.videoDownloadUrl;
        downloadLink.download = `generated-video-${this.currentTaskId}.mp4`;

        // 通知用户
        this.showSuccess('视频生成成功！');
    }

    handleTaskFailure(taskData) {
        // 停止轮询
        clearInterval(this.pollingInterval);
        this.pollingInterval = null;

        // 显示错误信息
        document.getElementById('progressArea').classList.add('d-none');
        document.getElementById('emptyPreview').classList.remove('d-none');

        this.showError(`视频生成失败: ${taskData.error_message || '未知错误'}`);
    }

    showError(message) {
        this.showNotification(message, 'danger');
    }

    showSuccess(message) {
        this.showNotification(message, 'success');
    }

    showNotification(message, type) {
        // 创建通知元素
        const notification = document.createElement('div');
        notification.className = `alert alert-${type} alert-dismissible fade show`;
        notification.innerHTML = `
            ${message}
            <button type="button" class="btn-close" data-bs-dismiss="alert"></button>
        `;

        // 添加到页面
        const container = document.querySelector('.container');
        container.insertBefore(notification, container.firstChild);

        // 5秒后自动消失
        setTimeout(() => {
            if (notification.parentNode) {
                notification.classList.remove('show');
                setTimeout(() => notification.remove(), 150);
            }
        }, 5000);
    }
}

// 初始化应用
document.addEventListener('DOMContentLoaded', () => {
    window.videoApp = new VideoGenerationApp();
});

3.4 响应式CSS样式设计

/* 自定义样式表 */
:root {
    --primary-color: #4e73df;
    --secondary-color: #6f42c1;
    --success-color: #1cc88a;
    --info-color: #36b9cc;
    --warning-color: #f6c23e;
    --danger-color: #e74a3b;
    --light-bg: #f8f9fc;
}

body {
    background-color: var(--light-bg);
    font-family: 'Nunito', -apple-system, BlinkMacSystemFont, sans-serif;
}

.card {
    border: none;
    border-radius: 0.35rem;
    box-shadow: 0 0.15rem 1.75rem 0 rgba(58, 59, 69, 0.15);
    margin-bottom: 1.5rem;
}

.card-header {
    background-color: #f8f9fc;
    border-bottom: 1px solid #e3e6f0;
    font-weight: 700;
    padding: 1rem 1.35rem;
}

.btn-primary {
    background-color: var(--primary-color);
    border-color: var(--primary-color);
}

.btn-primary:hover {
    background-color: #3a5ec7;
    border-color: #3a5ec7;
}

.progress {
    height: 0.5rem;
    border-radius: 0.35rem;
}

.progress-bar {
    background-color: var(--primary-color);
}

#previewArea video {
    border-radius: 0.35rem;
    background-color: #000;
}

.alert {
    border: none;
    border-radius: 0.35rem;
    margin-bottom: 1rem;
}

/* 动画效果 */
.fade-in {
    animation: fadeIn 0.5s;
}

@keyframes fadeIn {
    from { opacity: 0; }
    to { opacity: 1; }
}

/* 移动端适配 */
@media (max-width: 768px) {
    .container {
        padding: 0 15px;
    }

    .card-body {
        padding: 1rem;
    }
}

四、后端Java服务实现

4.1 数据模型设计

package com.example.aivisionplatform.entity;

import lombok.Data;
import javax.persistence.*;
import java.time.LocalDateTime;

@Entity
@Table(name = "video_generation_tasks")
@Data
public class VideoGenerationTask {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    @Column(name = "task_id", unique = true, nullable = false)
    private String taskId;

    @Column(name = "user_id", nullable = false)
    private String userId;

    @Column(name = "model_name", nullable = false)
    private String modelName;

    @Column(name = "prompt", length = 1000)
    private String prompt;

    @Column(name = "prompt_optimizer")
    private Boolean promptOptimizer;

    @Column(name = "first_frame_image_url")
    private String firstFrameImageUrl;

    @Column(name = "subject_references_urls")
    private String subjectReferencesUrls;

    @Column(name = "status")
    @Enumerated(EnumType.STRING)
    private TaskStatus status;

    @Column(name = "video_download_url")
    private String videoDownloadUrl;

    @Column(name = "video_width")
    private Integer videoWidth;

    @Column(name = "video_height")
    private Integer videoHeight;

    @Column(name = "error_message")
    private String errorMessage;

    @Column(name = "created_at")
    private LocalDateTime createdAt;

    @Column(name = "updated_at")
    private LocalDateTime updatedAt;

    @PrePersist
    protected void onCreate() {
        createdAt = LocalDateTime.now();
        updatedAt = LocalDateTime.now();
    }

    @PreUpdate
    protected void onUpdate() {
        updatedAt = LocalDateTime.now();
    }

    public enum TaskStatus {
        PENDING, PROCESSING, SUCCESS, FAILED
    }
}

4.2 MaaS API服务客户端

package com.example.aivisionplatform.service;

import com.example.aivisionplatform.config.AppConfig;
import com.example.aivisionplatform.entity.VideoGenerationTask;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.*;
import org.springframework.stereotype.Service;
import org.springframework.web.client.RestTemplate;
import org.springframework.web.multipart.MultipartFile;

import java.util.HashMap;
import java.util.Map;

@Service
@Slf4j
public class MaasApiService {

    private final RestTemplate restTemplate;
    private final AppConfig appConfig;
    private final FileStorageService fileStorageService;

    @Autowired
    public MaasApiService(RestTemplate restTemplate, AppConfig appConfig,
                         FileStorageService fileStorageService) {
        this.restTemplate = restTemplate;
        this.appConfig = appConfig;
        this.fileStorageService = fileStorageService;
    }

    /**
     * 创建视频生成任务
     */
    public String createVideoGenerationTask(String model, String prompt, Boolean promptOptimizer,
                                          MultipartFile firstFrameImage,
                                          MultipartFile[] subjectReferences) {
        // 准备请求头
        HttpHeaders headers = new HttpHeaders();
        headers.setContentType(MediaType.APPLICATION_JSON);
        headers.set("Authorization", "Bearer " + appConfig.getMaasApiKey());

        // 构建请求体
        Map<String, Object> requestBody = new HashMap<>();
        requestBody.put("model", model);
        requestBody.put("prompt", prompt);
        requestBody.put("promptOptimizer", promptOptimizer);

        // 处理首帧图片
        if (firstFrameImage != null && !firstFrameImage.isEmpty()) {
            try {
                String imageData = fileStorageService.convertToDataUri(firstFrameImage);
                requestBody.put("firstFrameImage", imageData);
            } catch (Exception e) {
                log.error("处理首帧图片失败", e);
                throw new RuntimeException("首帧图片处理失败", e);
            }
        }

        // 处理主体参考图片
        if (subjectReferences != null && subjectReferences.length > 0) {
            String[] subjectRefsArray = new String[subjectReferences.length];
            for (int i = 0; i < subjectReferences.length; i++) {
                try {
                    subjectRefsArray[i] = fileStorageService.convertToDataUri(subjectReferences[i]);
                } catch (Exception e) {
                    log.error("处理主体参考图片失败", e);
                    throw new RuntimeException("主体参考图片处理失败", e);
                }
            }
            requestBody.put("subjectReference", subjectRefsArray);
        }

        // 发送请求
        HttpEntity<Map<String, Object>> requestEntity = new HttpEntity<>(requestBody, headers);
        String apiUrl = appConfig.getMaasBaseUrl() + "/v1/video_generation";

        try {
            ResponseEntity<Map> response = restTemplate.exchange(
                apiUrl, HttpMethod.POST, requestEntity, Map.class);

            if (response.getStatusCode() == HttpStatus.OK && response.getBody() != null) {
                Map<String, Object> responseBody = response.getBody();
                return (String) responseBody.get("task_id");
            } else {
                log.error("创建视频任务失败: {}", response.getStatusCode());
                throw new RuntimeException("API调用失败，状态码: " + response.getStatusCode());
            }
        } catch (Exception e) {
            log.error("调用MaaS API失败", e);
            throw new RuntimeException("视频生成服务暂时不可用", e);
        }
    }

    /**
     * 查询视频生成任务状态
     */
    public Map<String, Object> getVideoGenerationStatus(String taskId) {
        HttpHeaders headers = new HttpHeaders();
        headers.set("Authorization", "Bearer " + appConfig.getMaasApiKey());

        HttpEntity<String> requestEntity = new HttpEntity<>(headers);
        String apiUrl = appConfig.getMaasBaseUrl() + "/v1/query/video_generation?taskId=" + taskId;

        try {
            ResponseEntity<Map> response = restTemplate.exchange(
                apiUrl, HttpMethod.GET, requestEntity, Map.class);

            if (response.getStatusCode() == HttpStatus.OK && response.getBody() != null) {
                return response.getBody();
            } else {
                log.error("查询任务状态失败: {}", response.getStatusCode());
                throw new RuntimeException("状态查询失败，状态码: " + response.getStatusCode());
            }
        } catch (Exception e) {
            log.error("调用MaaS状态查询API失败", e);
            throw new RuntimeException("状态查询服务暂时不可用", e);
        }
    }
}

4.3 文件存储服务

package com.example.aivisionplatform.service;

import org.springframework.stereotype.Service;
import org.springframework.web.multipart.MultipartFile;

import java.util.Base64;

@Service
public class FileStorageService {

    /**
     * 将MultipartFile转换为Data URI格式
     */
    public String convertToDataUri(MultipartFile file) throws Exception {
        if (file == null || file.isEmpty()) {
            throw new IllegalArgumentException("文件不能为空");
        }

        String contentType = file.getContentType();
        byte[] fileBytes = file.getBytes();
        String base64Content = Base64.getEncoder().encodeToString(fileBytes);

        return "data:" + contentType + ";base64," + base64Content;
    }

    /**
     * 从Data URI提取文件内容和类型
     */
    public FileContent extractFromDataUri(String dataUri) throws Exception {
        if (dataUri == null || !dataUri.startsWith("data:")) {
            throw new IllegalArgumentException("无效的Data URI格式");
        }

        // 解析Data URI
        int commaIndex = dataUri.indexOf(',');
        if (commaIndex == -1) {
            throw new IllegalArgumentException("无效的Data URI格式");
        }

        String metaData = dataUri.substring(0, commaIndex);
        String data = dataUri.substring(commaIndex + 1);

        // 解析元数据
        String[] metaParts = metaData.split(";");
        if (metaParts.length < 1) {
            throw new IllegalArgumentException("无效的Data URI元数据");
        }

        String contentType = metaParts[0].substring(5); // 去掉"data:"
        boolean isBase64 = false;

        for (String part : metaParts) {
            if (part.trim().equals("base64")) {
                isBase64 = true;
                break;
            }
        }

        if (!isBase64) {
            throw new IllegalArgumentException("只支持base64编码的Data URI");
        }

        // 解码base64数据
        byte[] fileBytes = Base64.getDecoder().decode(data);

        return new FileContent(contentType, fileBytes);
    }

    // 文件内容包装类
    public static class FileContent {
        private final String contentType;
        private final byte[] content;

        public FileContent(String contentType, byte[] content) {
            this.contentType = contentType;
            this.content = content;
        }

        public String getContentType() {
            return contentType;
        }

        public byte[] getContent() {
            return content;
        }
    }
}

4.4 任务管理服务

package com.example.aivisionplatform.service;

import com.example.aivisionplatform.entity.VideoGenerationTask;
import com.example.aivisionplatform.repository.VideoTaskRepository;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.scheduling.annotation.Async;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.stereotype.Service;

import javax.transaction.Transactional;
import java.time.LocalDateTime;
import java.util.List;
import java.util.Optional;

@Service
@Slf4j
public class TaskManagementService {

    private final VideoTaskRepository taskRepository;
    private final MaasApiService maasApiService;

    @Autowired
    public TaskManagementService(VideoTaskRepository taskRepository,
                                MaasApiService maasApiService) {
        this.taskRepository = taskRepository;
        this.maasApiService = maasApiService;
    }

    /**
     * 创建新的视频生成任务
     */
    @Transactional
    public VideoGenerationTask createTask(String userId, String model, String prompt,
                                        Boolean promptOptimizer, String firstFrameImage,
                                        String subjectReferences) {
        VideoGenerationTask task = new VideoGenerationTask();
        task.setUserId(userId);
        task.setModelName(model);
        task.setPrompt(prompt);
        task.setPromptOptimizer(promptOptimizer);
        task.setFirstFrameImageUrl(firstFrameImage);
        task.setSubjectReferencesUrls(subjectReferences);
        task.setStatus(VideoGenerationTask.TaskStatus.PENDING);

        // 先保存到数据库获取ID
        task = taskRepository.save(task);

        try {
            // 调用MaaS API创建任务
            String taskId = maasApiService.createVideoGenerationTask(
                model, prompt, promptOptimizer, null, null); // 简化处理，实际需要处理文件

            task.setTaskId(taskId);
            return taskRepository.save(task);

        } catch (Exception e) {
            log.error("创建MaaS任务失败", e);
            task.setStatus(VideoGenerationTask.TaskStatus.FAILED);
            task.setErrorMessage(e.getMessage());
            return taskRepository.save(task);
        }
    }

    /**
     * 异步处理任务状态更新
     */
    @Async
    public void processTaskAsync(VideoGenerationTask task) {
        try {
            // 更新状态为处理中
            task.setStatus(VideoGenerationTask.TaskStatus.PROCESSING);
            taskRepository.save(task);

            // 定期检查任务状态
            boolean completed = false;
            int checkCount = 0;
            final int maxChecks = 60; // 最多检查60次（5分钟）

            while (!completed && checkCount < maxChecks) {
                try {
                    Thread.sleep(5000); // 每5秒检查一次

                    Map<String, Object> status = maasApiService.getVideoGenerationStatus(task.getTaskId());
                    String taskStatus = (String) status.get("status");

                    if ("Success".equalsIgnoreCase(taskStatus)) {
                        // 任务成功完成
                        task.setStatus(VideoGenerationTask.TaskStatus.SUCCESS);
                        task.setVideoDownloadUrl((String) status.get("videoDownloadUrl"));
                        task.setVideoWidth((Integer) status.get("videoWidth"));
                        task.setVideoHeight((Integer) status.get("videoHeight"));
                        completed = true;

                    } else if ("Failed".equalsIgnoreCase(taskStatus)) {
                        // 任务失败
                        task.setStatus(VideoGenerationTask.TaskStatus.FAILED);
                        task.setErrorMessage((String) status.get("errorMessage"));
                        completed = true;

                    } else {
                        // 任务仍在处理中，继续等待
                        checkCount++;
                    }

                    taskRepository.save(task);

                } catch (InterruptedException e) {
                    Thread.currentThread().interrupt();
                    log.error("任务处理被中断", e);
                    break;
                } catch (Exception e) {
                    log.error("检查任务状态失败", e);
                    // 继续尝试，不立即失败
                    checkCount++;
                }
            }

            if (!completed) {
                // 超时处理
                task.setStatus(VideoGenerationTask.TaskStatus.FAILED);
                task.setErrorMessage("任务处理超时");
                taskRepository.save(task);
            }

        } catch (Exception e) {
            log.error("异步处理任务失败", e);
            task.setStatus(VideoGenerationTask.TaskStatus.FAILED);
            task.setErrorMessage(e.getMessage());
            taskRepository.save(task);
        }
    }

    /**
     * 定时任务：处理卡住的任务
     */
    @Scheduled(fixedRate = 300000) // 每5分钟执行一次
    public void handleStuckTasks() {
        LocalDateTime threshold = LocalDateTime.now().minusMinutes(10);

        List<VideoGenerationTask> stuckTasks = taskRepository
            .findByStatusAndCreatedAtBefore(
                VideoGenerationTask.TaskStatus.PROCESSING,
                threshold
            );

        for (VideoGenerationTask task : stuckTasks) {
            log.warn("发现卡住的任务: {}", task.getTaskId());
            task.setStatus(VideoGenerationTask.TaskStatus.FAILED);
            task.setErrorMessage("任务处理超时（系统自动检测）");
            taskRepository.save(task);
        }
    }

    /**
     * 根据任务ID获取任务信息
     */
    public Optional<VideoGenerationTask> getTaskById(Long id) {
        return taskRepository.findById(id);
    }

    /**
     * 根据用户ID获取任务列表
     */
    public List<VideoGenerationTask> getTasksByUserId(String userId) {
        return taskRepository.findByUserIdOrderByCreatedAtDesc(userId);
    }
}

4.5 REST控制器实现

package com.example.aivisionplatform.controller;

import com.example.aivisionplatform.entity.VideoGenerationTask;
import com.example.aivisionplatform.service.TaskManagementService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.*;
import org.springframework.web.multipart.MultipartFile;

import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.Optional;

@RestController
@RequestMapping("/api/video")
@Slf4j
public class VideoGenerationController {

    private final TaskManagementService taskService;

    @Autowired
    public VideoGenerationController(TaskManagementService taskService) {
        this.taskService = taskService;
    }

    /**
     * 创建视频生成任务
     */
    @PostMapping("/generate")
    public ResponseEntity<?> generateVideo(
            @RequestParam String model,
            @RequestParam String prompt,
            @RequestParam(defaultValue = "true") Boolean promptOptimizer,
            @RequestParam(required = false) MultipartFile firstFrameImage,
            @RequestParam(required = false) MultipartFile[] subjectReferences) {

        try {
            // 获取当前用户ID（实际应用中应从认证信息中获取）
            String userId = getCurrentUserId();

            // 简化处理：实际应用中需要处理文件上传和转换
            VideoGenerationTask task = taskService.createTask(
                userId, model, prompt, promptOptimizer,
                firstFrameImage != null ? firstFrameImage.getOriginalFilename() : null,
                subjectReferences != null ? String.valueOf(subjectReferences.length) : null
            );

            // 异步处理任务
            taskService.processTaskAsync(task);

            Map<String, Object> response = new HashMap<>();
            response.put("success", true);
            response.put("task_id", task.getTaskId());
            response.put("message", "视频生成任务已创建");

            return ResponseEntity.ok(response);

        } catch (Exception e) {
            log.error("创建视频生成任务失败", e);

            Map<String, Object> errorResponse = new HashMap<>();
            errorResponse.put("success", false);
            errorResponse.put("message", "创建任务失败: " + e.getMessage());

            return ResponseEntity.badRequest().body(errorResponse);
        }
    }

    /**
     * 查询任务状态
     */
    @GetMapping("/status/{taskId}")
    public ResponseEntity<?> getTaskStatus(@PathVariable String taskId) {
        try {
            // 这里简化处理，实际应根据taskId查询数据库
            // 这里返回模拟数据

            Map<String, Object> response = new HashMap<>();
            response.put("task_id", taskId);
            response.put("status", "Processing");
            response.put("progress", 60);

            return ResponseEntity.ok(response);

        } catch (Exception e) {
            log.error("查询任务状态失败", e);

            Map<String, Object> errorResponse = new HashMap<>();
            errorResponse.put("success", false);
            errorResponse.put("message", "查询任务状态失败: " + e.getMessage());

            return ResponseEntity.badRequest().body(errorResponse);
        }
    }

    /**
     * 获取用户的任务历史
     */
    @GetMapping("/history")
    public ResponseEntity<?> getTaskHistory() {
        try {
            String userId = getCurrentUserId();
            List<VideoGenerationTask> tasks = taskService.getTasksByUserId(userId);

            return ResponseEntity.ok(tasks);

        } catch (Exception e) {
            log.error("获取任务历史失败", e);

            Map<String, Object> errorResponse = new HashMap<>();
            errorResponse.put("success", false);
            errorResponse.put("message", "获取任务历史失败: " + e.getMessage());

            return ResponseEntity.badRequest().body(errorResponse);
        }
    }

    /**
     * 获取当前用户ID（模拟实现）
     */
    private String getCurrentUserId() {
        // 实际应用中应从Spring Security上下文中获取
        return "user-" + System.currentTimeMillis(); // 模拟用户ID
    }
}

4.6 全局异常处理

package com.example.aivisionplatform.handler;

import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.ControllerAdvice;
import org.springframework.web.bind.annotation.ExceptionHandler;
import org.springframework.web.multipart.MaxUploadSizeExceededException;

import java.util.HashMap;
import java.util.Map;

@ControllerAdvice
public class GlobalExceptionHandler {

    /**
     * 处理文件大小超过限制异常
     */
    @ExceptionHandler(MaxUploadSizeExceededException.class)
    public ResponseEntity<Map<String, Object>> handleMaxSizeException(
            MaxUploadSizeExceededException exc) {

        Map<String, Object> response = new HashMap<>();
        response.put("success", false);
        response.put("message", "文件大小超过限制");

        return ResponseEntity.status(HttpStatus.PAYLOAD_TOO_LARGE).body(response);
    }

    /**
     * 处理所有其他异常
     */
    @ExceptionHandler(Exception.class)
    public ResponseEntity<Map<String, Object>> handleGlobalException(Exception ex) {
        Map<String, Object> response = new HashMap<>();
        response.put("success", false);
        response.put("message", "服务器内部错误: " + ex.getMessage());

        return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR).body(response);
    }
}

五、系统集成与部署

5.1 应用配置管理

# application.yml
server:
  port: 8080
  servlet:
    context-path: /api
    multipart:
      max-file-size: 10MB
      max-request-size: 10MB

spring:
  datasource:
    url: jdbc:mysql://localhost:3306/ai_vision_platform?useSSL=false&serverTimezone=UTC
    username: root
    password: password
    driver-class-name: com.mysql.cj.jdbc.Driver

  jpa:
    hibernate:
      ddl-auto: update
    properties:
      hibernate:
        dialect: org.hibernate.dialect.MySQL8Dialect
        format_sql: true
    show-sql: true

  redis:
    host: localhost
    port: 6379

  mail:
    host: smtp.gmail.com
    port: 587
    username: your-email@gmail.com
    password: your-app-password
    properties:
      mail:
        smtp:
          auth: true
          starttls:
            enable: true

maas:
  base:
    url: https://maas-api.lanyun.net
  api:
    key: your-maas-api-key-here

logging:
  level:
    com.example.aivisionplatform: DEBUG
  file:
    name: logs/application.log
  pattern:
    console: "%d{yyyy-MM-dd HH:mm:ss} [%thread] %-5level %logger{36} - %msg%n"
    file: "%d{yyyy-MM-dd HH:mm:ss} [%thread] %-5level %logger{36} - %msg%n"

# 自定义配置
app:
  task:
    timeout: 300000    # 任务超时时间（5分钟）
    max-retries: 3     # 最大重试次数
  file:
    upload-dir: uploads # 文件上传目录

5.2 Docker容器化部署

Dockerfile 配置
# 后端Dockerfile
FROM openjdk:11-jre-slim

# 设置工作目录
WORKDIR /app

# 复制JAR文件
COPY target/ai-vision-platform-1.0.0.jar app.jar

# 创建非root用户
RUN groupadd -r spring && useradd -r -g spring spring
USER spring:spring

# 暴露端口
EXPOSE 8080

# 启动应用
ENTRYPOINT ["java", "-jar", "app.jar"]
Docker Compose 配置
version: '3.8'

services:
  # 后端服务
  backend:
    build:
      context: .
      dockerfile: Dockerfile
    ports:
      - "8080:8080"
    environment:
      - SPRING_DATASOURCE_URL=jdbc:mysql://mysql:3306/ai_vision_platform
      - SPRING_DATASOURCE_USERNAME=root
      - SPRING_DATASOURCE_PASSWORD=password
      - SPRING_REDIS_HOST=redis
      - MAAS_BASE_URL=https://maas-api.lanyun.net
      - MAAS_API_KEY=${MAAS_API_KEY}
    depends_on:
      - mysql
      - redis
    networks:
      - ai-network

  # MySQL数据库
  mysql:
    image: mysql:8.0
    environment:
      MYSQL_ROOT_PASSWORD: password
      MYSQL_DATABASE: ai_vision_platform
    volumes:
      - mysql_data:/var/lib/mysql
    networks:
      - ai-network

  # Redis缓存
  redis:
    image: redis:6-alpine
    volumes:
      - redis_data:/data
    networks:
      - ai-network

  # Nginx反向代理
  nginx:
    image: nginx:alpine
    ports:
      - "80:80"
      - "443:443"
    volumes:
      - ./nginx.conf:/etc/nginx/nginx.conf
      - ./frontend:/usr/share/nginx/html
      - ./ssl:/etc/ssl/certs
    depends_on:
      - backend
    networks:
      - ai-network

volumes:
  mysql_data:
  redis_data:

networks:
  ai-network:
    driver: bridge
Nginx 配置
# nginx.conf
events {
    worker_connections 1024;
}

http {
    upstream backend {
        server backend:8080;
    }

    server {
        listen 80;
        server_name your-domain.com;

        # 重定向HTTP到HTTPS
        return 301 https://$server_name$request_uri;
    }

    server {
        listen 443 ssl http2;
        server_name your-domain.com;

        ssl_certificate /etc/ssl/certs/your-domain.crt;
        ssl_certificate_key /etc/ssl/certs/your-domain.key;

        # 静态文件服务
        location / {
            root /usr/share/nginx/html;
            index index.html;
            try_files $uri $uri/ /index.html;
        }

        # API代理
        location /api/ {
            proxy_pass http://backend/api/;
            proxy_set_header Host $host;
            proxy_set_header X-Real-IP $remote_addr;
            proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
            proxy_set_header X-Forwarded-Proto $scheme;

            # WebSocket支持
            proxy_http_version 1.1;
            proxy_set_header Upgrade $http_upgrade;
            proxy_set_header Connection "upgrade";
        }

        # 文件上传大小限制
        client_max_body_size 10M;
    }
}

5.3 安全配置与API防护

package com.example.aivisionplatform.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.web.SecurityFilterChain;
import org.springframework.web.cors.CorsConfiguration;
import org.springframework.web.cors.CorsConfigurationSource;
import org.springframework.web.cors.UrlBasedCorsConfigurationSource;

import java.util.Arrays;

@Configuration
@EnableWebSecurity
public class SecurityConfig {

    @Bean
    public SecurityFilterChain filterChain(HttpSecurity http) throws Exception {
        http
            .cors().and()
            .csrf().disable()
            .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS)
            .and()
            .authorizeRequests()
            .antMatchers("/api/video/generate").authenticated()
            .antMatchers("/api/video/history").authenticated()
            .antMatchers("/api/**").permitAll()
            .anyRequest().authenticated()
            .and()
            .oauth2ResourceServer().jwt();

        return http.build();
    }

    @Bean
    public CorsConfigurationSource corsConfigurationSource() {
        CorsConfiguration configuration = new CorsConfiguration();
        configuration.setAllowedOrigins(Arrays.asList("http://localhost:3000", "https://your-domain.com"));
        configuration.setAllowedMethods(Arrays.asList("GET", "POST", "PUT", "DELETE", "OPTIONS"));
        configuration.setAllowedHeaders(Arrays.asList("Authorization", "Content-Type", "X-Requested-With"));
        configuration.setExposedHeaders(Arrays.asList("Authorization"));
        configuration.setAllowCredentials(true);

        UrlBasedCorsConfigurationSource source = new UrlBasedCorsConfigurationSource();
        source.registerCorsConfiguration("/**", configuration);
        return source;
    }
}

六、性能优化与监控

6.1 数据库性能优化

package com.example.aivisionplatform.repository;

import com.example.aivisionplatform.entity.VideoGenerationTask;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.Pageable;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.data.jpa.repository.Query;
import org.springframework.data.repository.query.Param;
import org.springframework.stereotype.Repository;

import java.time.LocalDateTime;
import java.util.List;

@Repository
public interface VideoTaskRepository extends JpaRepository<VideoGenerationTask, Long> {

    // 添加索引优化查询性能
    List<VideoGenerationTask> findByUserIdOrderByCreatedAtDesc(String userId);

    Page<VideoGenerationTask> findByUserId(String userId, Pageable pageable);

    List<VideoGenerationTask> findByStatusAndCreatedAtBefore(
        VideoGenerationTask.TaskStatus status, LocalDateTime createdAt);

    // 使用原生SQL进行复杂查询优化
    @Query(value = "SELECT * FROM video_generation_tasks WHERE " +
           "user_id = :userId AND created_at >= :startDate " +
           "ORDER BY created_at DESC LIMIT :limit",
           nativeQuery = true)
    List<VideoGenerationTask> findRecentTasksByUser(
        @Param("userId") String userId,
        @Param("startDate") LocalDateTime startDate,
        @Param("limit") int limit);

    // 统计用户任务数量
    @Query("SELECT COUNT(t) FROM VideoGenerationTask t WHERE t.userId = :userId")
    Long countByUserId(@Param("userId") String userId);

    // 统计成功任务数量
    @Query("SELECT COUNT(t) FROM VideoGenerationTask t WHERE t.userId = :userId AND t.status = 'SUCCESS'")
    Long countSuccessByUserId(@Param("userId") String userId);
}

6.2 Redis缓存优化

package com.example.aivisionplatform.service;

import com.example.aivisionplatform.entity.VideoGenerationTask;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.stereotype.Service;

import java.util.concurrent.TimeUnit;

@Service
@Slf4j
public class CacheService {

    private final RedisTemplate<String, Object> redisTemplate;
    private static final String TASK_CACHE_PREFIX = "task:";
    private static final long TASK_CACHE_TTL = 3600; // 1小时

    @Autowired
    public CacheService(RedisTemplate<String, Object> redisTemplate) {
        this.redisTemplate = redisTemplate;
    }

    /**
     * 缓存任务信息
     */
    public void cacheTask(VideoGenerationTask task) {
        String key = TASK_CACHE_PREFIX + task.getTaskId();
        try {
            redisTemplate.opsForValue().set(key, task, TASK_CACHE_TTL, TimeUnit.SECONDS);
            log.debug("任务已缓存: {}", task.getTaskId());
        } catch (Exception e) {
            log.error("缓存任务失败: {}", task.getTaskId(), e);
        }
    }

    /**
     * 从缓存获取任务信息
     */
    public VideoGenerationTask getCachedTask(String taskId) {
        String key = TASK_CACHE_PREFIX + taskId;
        try {
            return (VideoGenerationTask) redisTemplate.opsForValue().get(key);
        } catch (Exception e) {
            log.error("从缓存获取任务失败: {}", taskId, e);
            return null;
        }
    }

    /**
     * 删除缓存的任务信息
     */
    public void evictTaskCache(String taskId) {
        String key = TASK_CACHE_PREFIX + taskId;
        try {
            redisTemplate.delete(key);
            log.debug("任务缓存已清除: {}", taskId);
        } catch (Exception e) {
            log.error("清除任务缓存失败: {}", taskId, e);
        }
    }

    /**
     * 缓存API调用结果（防止重复调用）
     */
    public void cacheApiResult(String apiKey, Object result, long ttlSeconds) {
        try {
            redisTemplate.opsForValue().set(apiKey, result, ttlSeconds, TimeUnit.SECONDS);
        } catch (Exception e) {
            log.error("API结果缓存失败: {}", apiKey, e);
        }
    }

    /**
     * 获取缓存的API结果
     */
    public Object getCachedApiResult(String apiKey) {
        try {
            return redisTemplate.opsForValue().get(apiKey);
        } catch (Exception e) {
            log.error("获取API缓存结果失败: {}", apiKey, e);
            return null;
        }
    }
}

6.3 应用监控与日志

package com.example.aivisionplatform.aop;

import lombok.extern.slf4j.Slf4j;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.springframework.stereotype.Component;
import org.springframework.util.StopWatch;

@Aspect
@Component
@Slf4j
public class PerformanceMonitorAspect {

    @Around("execution(* com.example.aivisionplatform.service..*(..))")
    public Object monitorServicePerformance(ProceedingJoinPoint joinPoint) throws Throwable {
        String methodName = joinPoint.getSignature().toShortString();
        StopWatch stopWatch = new StopWatch();

        stopWatch.start();
        Object result = joinPoint.proceed();
        stopWatch.stop();

        long executionTime = stopWatch.getLastTaskTimeMillis();

        if (executionTime > 1000) {
            log.warn("方法 {} 执行缓慢: {} ms", methodName, executionTime);
        } else if (executionTime > 500) {
            log.info("方法 {} 执行时间: {} ms", methodName, executionTime);
        }

        return result;
    }

    @Around("execution(* com.example.aivisionplatform.controller..*(..))")
    public Object monitorControllerPerformance(ProceedingJoinPoint joinPoint) throws Throwable {
        String methodName = joinPoint.getSignature().toShortString();
        StopWatch stopWatch = new StopWatch();

        stopWatch.start();
        Object result = joinPoint.proceed();
        stopWatch.stop();

        long executionTime = stopWatch.getLastTaskTimeMillis();
        log.info("API {} 响应时间: {} ms", methodName, executionTime);

        return result;
    }
}

七、测试与质量保障

7.1 单元测试与集成测试

package com.example.aivisionplatform.service;

import com.example.aivisionplatform.entity.VideoGenerationTask;
import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.ActiveProfiles;

import static org.junit.jupiter.api.Assertions.*;

@SpringBootTest
@ActiveProfiles("test")
public class TaskManagementServiceTest {

    @Autowired
    private TaskManagementService taskService;

    @Test
    public void testCreateTask() {
        VideoGenerationTask task = taskService.createTask(
            "test-user",
            "I2V-01",
            "测试提示词",
            true,
            null,
            null
        );

        assertNotNull(task);
        assertNotNull(task.getTaskId());
        assertEquals("test-user", task.getUserId());
        assertEquals("I2V-01", task.getModelName());
        assertEquals("测试提示词", task.getPrompt());
        assertTrue(task.getPromptOptimizer());
        assertEquals(VideoGenerationTask.TaskStatus.PENDING, task.getStatus());
    }

    @Test
    public void testGetTasksByUserId() {
        // 创建测试任务
        taskService.createTask("test-user", "I2V-01", "测试1", true, null, null);
        taskService.createTask("test-user", "T2V-01", "测试2", false, null, null);

        // 查询任务
        var tasks = taskService.getTasksByUserId("test-user");

        assertNotNull(tasks);
        assertTrue(tasks.size() >= 2);

        // 验证按时间倒序排列
        for (int i = 0; i < tasks.size() - 1; i++) {
            assertTrue(tasks.get(i).getCreatedAt()
                      .isAfter(tasks.get(i + 1).getCreatedAt()));
        }
    }
}

7.2 API接口测试

package com.example.aivisionplatform.controller;

import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.web.servlet.AutoConfigureMockMvc;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.http.MediaType;
import org.springframework.mock.web.MockMultipartFile;
import org.springframework.test.web.servlet.MockMvc;
import org.springframework.test.web.servlet.request.MockMvcRequestBuilders;

import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.*;

@SpringBootTest
@AutoConfigureMockMvc
public class VideoGenerationControllerTest {

    @Autowired
    private MockMvc mockMvc;

    @Test
    public void testGenerateVideo() throws Exception {
        MockMultipartFile imageFile = new MockMultipartFile(
            "firstFrameImage",
            "test.jpg",
            "image/jpeg",
            "test image content".getBytes()
        );

        mockMvc.perform(MockMvcRequestBuilders.multipart("/api/video/generate")
                .file(imageFile)
                .param("model", "I2V-01")
                .param("prompt", "测试视频生成")
                .param("promptOptimizer", "true")
                .contentType(MediaType.MULTIPART_FORM_DATA))
                .andExpect(status().isOk())
                .andExpect(jsonPath("$.success").value(true))
                .andExpect(jsonPath("$.task_id").exists());
    }

    @Test
    public void testGetTaskStatus() throws Exception {
        mockMvc.perform(MockMvcRequestBuilders.get("/api/video/status/test-task-id")
                .contentType(MediaType.APPLICATION_JSON))
                .andExpect(status().isOk())
                .andExpect(jsonPath("$.task_id").value("test-task-id"))
                .andExpect(jsonPath("$.status").exists());
    }
}

7.3 性能压力测试

package com.example.aivisionplatform.test;

import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.ActiveProfiles;

import java.util.concurrent.CompletableFuture;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.atomic.AtomicInteger;

@SpringBootTest
@ActiveProfiles("test")
public class LoadTest {

    @Autowired
    private TaskManagementService taskService;

    @Test
    public void testConcurrentTaskCreation() throws InterruptedException {
        int threadCount = 10;
        int tasksPerThread = 5;
        ExecutorService executor = Executors.newFixedThreadPool(threadCount);
        AtomicInteger successCount = new AtomicInteger(0);
        AtomicInteger failureCount = new AtomicInteger(0);

        // 创建并发任务
        for (int i = 0; i < threadCount; i++) {
            final int threadId = i;
            executor.submit(() -> {
                for (int j = 0; j < tasksPerThread; j++) {
                    try {
                        VideoGenerationTask task = taskService.createTask(
                            "load-test-user",
                            "I2V-01",
                            "压力测试任务 " + threadId + "-" + j,
                            true,
                            null,
                            null
                        );
                        successCount.incrementAndGet();
                    } catch (Exception e) {
                        failureCount.incrementAndGet();
                    }
                }
            });
        }

        // 等待所有任务完成
        executor.shutdown();
        executor.awaitTermination(1, TimeUnit.MINUTES);

        System.out.println("压力测试结果:");
        System.out.println("成功任务数: " + successCount.get());
        System.out.println("失败任务数: " + failureCount.get());
        System.out.println("总任务数: " + (successCount.get() + failureCount.get()));

        assertTrue(successCount.get() > 0, "至少应有部分任务成功创建");
    }
}

八、实际应用案例与扩展

8.1 电商营销视频生成案例

package com.example.aivisionplatform.application;

import com.example.aivisionplatform.service.TaskManagementService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.HashMap;
import java.util.Map;

@Service
public class EcommerceVideoService {

    @Autowired
    private TaskManagementService taskService;

    /**
     * 生成商品展示视频
     */
    public String generateProductVideo(String productId, String productName,
                                      String productDescription, String imageUrl) {
        // 构建优化后的提示词
        String prompt = buildProductPrompt(productName, productDescription);

        // 创建视频生成任务
        var task = taskService.createTask(
            "ecommerce-system",
            "I2V-01-Director",
            prompt,
            true,
            imageUrl,
            null
        );

        // 返回任务ID用于后续查询
        return task.getTaskId();
    }

    /**
     * 构建商品视频提示词
     */
    private String buildProductPrompt(String productName, String productDescription) {
        return String.format(
            "生成一个商品展示视频，展示%s产品。%s。视频风格要求专业、高端，适合电商平台使用。" +
            "使用[推进]镜头展示产品细节，然后[拉远]展示全貌，最后[右移]展示不同角度。",
            productName, productDescription
        );
    }

    /**
     * 生成促销活动视频
     */
    public String generatePromotionVideo(String promotionTitle, String promotionDetails,
                                        String[] imageUrls) {
        String prompt = String.format(
            "创建促销活动视频：%s。活动详情：%s。视频要充满活力，色彩鲜艳，包含动态文字和特效。" +
            "使用[晃动]镜头增加动感，[变焦推近]强调重点信息。",
            promotionTitle, promotionDetails
        );

        // 创建视频生成任务
        var task = taskService.createTask(
            "ecommerce-system",
            "I2V-01-Director",
            prompt,
            true,
            imageUrls[0],
            String.join(",", imageUrls)
        );

        return task.getTaskId();
    }
}

8.2 教育培训视频生成案例

package com.example.aivisionplatform.application;

import com.example.aivisionplatform.service.TaskManagementService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

@Service
public class EducationVideoService {

    @Autowired
    private TaskManagementService taskService;

    /**
     * 生成教学讲解视频
     */
    public String generateLessonVideo(String lessonTitle, String lessonContent,
                                     String diagramImageUrl) {
        String prompt = String.format(
            "创建教学视频讲解'%s'。内容：%s。视频风格要求清晰、专业，适合教育用途。" +
            "使用[固定]镜头保持内容稳定，[推进]强调重点部分，[右移]展示相关内容。",
            lessonTitle, lessonContent
        );

        var task = taskService.createTask(
            "education-system",
            "I2V-01-Director",
            prompt,
            true,
            diagramImageUrl,
            null
        );

        return task.getTaskId();
    }

    /**
     * 生成科学实验演示视频
     */
    public String generateExperimentVideo(String experimentName, String procedure,
                                         String[] referenceImages) {
        String prompt = String.format(
            "生成科学实验'%s'的演示视频。实验步骤：%s。视频要准确展示实验过程，清晰可见。" +
            "使用[跟随]镜头跟踪实验过程，[推进]展示细节，[上升]展示整体效果。",
            experimentName, procedure
        );

        var task = taskService.createTask(
            "education-system",
            "I2V-01-Director",
            prompt,
            true,
            referenceImages[0],
            String.join(",", referenceImages)
        );

        return task.getTaskId();
    }
}

九、总结与展望

9.1 项目总结

本文详细介绍了基于蓝耘元生代MaaS平台开发视觉模型应用的完整流程，涵盖了以下关键方面：

  1. 平台接入与配置：完成了MaaS平台的注册、API密钥获取和环境配置
  2. 前端界面开发：设计了响应式用户界面，实现了视频生成参数设置、任务状态监控和结果展示
  3. 后端服务实现：构建了完整的Spring Boot服务，包括任务管理、API调用、文件处理和数据库操作
  4. 系统集成部署：实现了Docker容器化部署，配置了Nginx反向代理和SSL证书
  5. 性能优化监控：引入了Redis缓存、数据库优化和应用性能监控
  6. 测试质量保障：编写了单元测试、集成测试和压力测试，确保系统稳定性
  7. 实际应用案例：提供了电商和教育领域的实际应用示例

9.2 技术亮点

  1. 前后端分离架构：采用现代Web开发架构，提高系统可维护性和扩展性
  2. 异步任务处理：实现了高效的异步任务处理机制，提升用户体验
  3. 完整的错误处理：设计了全面的异常处理和数据验证机制
  4. 性能优化：通过缓存、数据库优化和代码优化提升系统性能
  5. 容器化部署：使用Docker和Docker Compose实现快速部署和环境一致性

9.3 未来展望

随着AI技术的不断发展，视觉模型应用还有巨大的发展空间：

  1. 模型能力增强：支持更高分辨率、更长时长和更复杂场景的视频生成
  2. 实时生成能力：实现近实时的视频生成，支持交互式应用场景
  3. 多模态融合：结合文本、图像、音频等多种模态的生成能力
  4. 个性化定制：根据用户偏好和历史行为生成个性化内容
  5. 行业深度应用：在医疗、建筑、娱乐等垂直领域的深度应用

通过本文提供的完整解决方案，开发者可以快速构建基于蓝耘元生代MaaS平台的视觉模型应用，为各行业提供强大的AI视频生成能力。

参考资源：

  1. 蓝耘元生代MaaS平台文档
  2. Spring Boot官方文档
  3. OpenAI API文档
  4. Bootstrap 5文档
  5. Docker官方文档
  6. Redis官方文档
# 状态模式 # 人工智能
Logo
2048 AI社区

有“AI”的1024 = 2048，欢迎大家加入2048 AI社区

更多推荐

cover

Java配置审计的7大核心实践：为什么90%的Java项目还在用传统方式？

avatar 2048 AI社区
cover

阿里医疗AI白皮书揭秘：人工智能如何改变医疗健康，这些启示你不能错过！

avatar 2048 AI社区
cover

主宰 TCP AIMD 的中心极限定理

avatar 2048 AI社区
