Applies To

All Users

Summary

sqlplus connection to ADW/ATP Database fails with following error:

Command Executed

sqlplus <username>/<password>@<Alias>

Error Reported

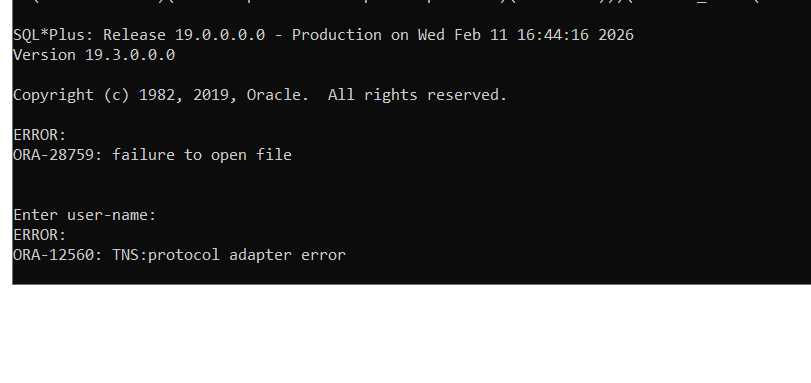

ORA-28759: failure to open file

Solution

1. Extract the wallet zip file downloaded from ADW/ATP administration page and copy the sqlnet.ora to the path defined for environment variable TNS_ADMIN or copy to ORACLE_HOME/network/admin

2. Correct the WALLET_LOCATION value in sqlnet.ora of the client. If wallet location is D:\walletdownload\wallet, then sqlnet.ora should have the following location:

              WALLET_LOCATION = (SOURCE = (METHOD = file) (METHOD_DATA = (DIRECTORY="D:\walletdownload\wallet")))

Attachments :

Cause

 Error ORA-28759 could occur due to any of the following reasons

1. sqlnet.ora not copied to the correct path
2. Wallet location in sqlnet.ora file is not correct

•  Hi Ivan,

  Did you set the wallet_root to /etc/ORACLE/WALLETS/ 这个是TDE需要的

  If so then that will be the one that is read.



• Jorg, Pallavi,

  Sorry for my late answer. No, I've not set wallet_root. Is wallet_root needed for a tcps connection? I think it is needed for TDE.

  wallet_root is defined in the database but for a tcps sqlplus connection this is not needed???这个是TDE需要的

  And it is a PDB. As I said the tcps doe work fine in my case but I had to copy it to

  /etc/ORACLE/WALLETS/oracle

  regards,



• Thanks. I've placed the

  SSL_CLIENT_AUTHENTICATION = FALSE

  WALLET_LOCATION =
  (SOURCE =
  (METHOD = FILE)
  (METHOD_DATA =
  (DIRECTORY = /u01/app/network/admin/Wallet)
  )
  )

  Settings in the listener.ora file on the db server and I works fine now. I had the placed only in the sqlnet.ora file. No wallet_root created.

  regards,

  Ivan

Configuring and enabling SSL connection

I'm trying to configure an SSL connection (DB version 11.2.0.1.0).Both client and server are on the same maschine.

My listener.ora, sqlnet.ora, tnsnames.ora files are:

---listener.ora
SID_LIST_LISTENER =
  (SID_LIST =
    (SID_DESC =
      (SID_NAME = CLRExtProc)
      (ORACLE_HOME = ...\product\11.2.0\dbhome_1)
      (PROGRAM = extproc)
      (ENVS = "EXTPROC_DLLS=ONLY:...\product\11.2.0\dbhome_1\bin\oraclr11.dll")
    )
  )

SSL_CLIENT_AUTHENTICATION = TRUE

LISTENER =
  (DESCRIPTION_LIST =
    (DESCRIPTION =
      (ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC1521))
    )
    (DESCRIPTION =
      (ADDRESS = (PROTOCOL = TCP)(HOST = localhost)(PORT = 1521))
    )
    (DESCRIPTION =
      (ADDRESS = (PROTOCOL = TCPS)(HOST = localhost)(PORT = 2484))
    )
  )

ADR_BASE_LISTENER = ...\app\pachowicz

WALLET_LOCATION =
  (SOURCE =
    (METHOD = FILE)
    (METHOD_DATA =
      (DIRECTORY = ...\product\11.2.0\dbhome_1\BIN\owm\wallets\pachowicz)
    )
  )


---sqlnet.ora
SQLNET.AUTHENTICATION_SERVICES= (BEQ, TCPS, NTS)

SSL_VERSION = 0

NAMES.DIRECTORY_PATH= (TNSNAMES, EZCONNECT)

SSL_CLIENT_AUTHENTICATION = TRUE

WALLET_LOCATION =
  (SOURCE =
    (METHOD = FILE)
    (METHOD_DATA =
      (DIRECTORY = ...\product\11.2.0\dbhome_1\BIN\owm\wallets\pachowicz)
    )
  )

SSL_SERVER_DN_MATCH=OFF

ADR_BASE = ...\product\11.2.0\dbhome_1\log


---tnsnames.ora
ORCL =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCP)(HOST = localhost)(PORT = 1521))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = orcl)
    )
  )

ORCLSSL =
  (DESCRIPTION =
    (ADDRESS = (PROTOCOL = TCPS)(HOST = localhost)(PORT = 2484))
    (CONNECT_DATA =
      (SERVER = DEDICATED)
      (SERVICE_NAME = orcl)
    )
  )


While trying to execute 'connect/@orclssl' using sqlplus (client, server is on the same maschine) I get:

ORA-28860 - fatal SSL error.

I ran a trace and the first result was:

...
Opening file ...\product\11.2.0\dbhome_1\localhost_orcl\sysman\config\server\ewallet.p12 with READ ONLY permissions
(3308) nziropen: entry
(3308) nzdfo_open: entry
(3308) snzdfo_open_file: entry
Opening file ...\product\11.2.0\dbhome_1\localhost_orcl\sysman\config\server\cwallet.sso with READ ONLY permissions
File Open/Close error
File Open/Close error
rio open failed with error 28759
...
and later
...
(3308) nzospLog: entry
[Hash Input] length = 42
[Raw read] length = 5
[Raw read] length = 1414
(3308) nzospLog: entry
[SSL READ] length = 1419
*** ssl_DecodeRecord failed: returned [0x81010004] CIC_ERR_SMALL_BUFFER
(3308) nzospLog: entry

which shows the wallet was taken from a different location. I copied both ewallet.p12 and cwallet.sso files to '..\config\server'
but then I got :

...
Could not open wallet from file:...:\app\pachowicz\product\11.2.0\dbhome_1\localhost_orcl\sysman\config\server: NZ error 29106
(3160) nztwOpenWallet: exit

Any suggestions on how to work around ORA-28860 exception?

Answers

• Hi,
  Refer below Note.
  Note.843500.1 SSL/TCPS Connection Is Failing With ORA-28860

  Regards,

• Thanks,
  I installed Oracle Database on two machines and followed the example in 401251.1 note, PRECISELY.
  Plus (note 843500.1):

  If the requirement is to turn on the client authentication then :
  1. Set SSL_CLIENT_AUTHENTICATION=TRUE on the database server's SQLNET.ORA
  2. Set SSL_CLIENT_AUTHENTICATION=FALSE on the database server's LISTENER.ORA
  3. Do not set this parameter on client's SQLNET.ORA
  If the SSL authentication is not needed then do not set this parameter at all.

  I generated client and server keys:

  --server
  orapki wallet create -wallet ./server_wallet -auto_login -pwd Welcome1
  orapki wallet add -wallet ./server_wallet -dn "CN=server" -keysize 512 -self_signed -validity 365 -pwd Welcome1
  orapki wallet export -wallet ./server_wallet -dn "CN=server" -cert server_ca.cert

  --client
  orapki wallet create -wallet ./client_wallet -auto_login -pwd Welcome2
  orapki wallet add -wallet ./client_wallet -dn "CN=adam" -keysize 512 -self_signed -validity 365 -pwd Welcome2
  orapki wallet export -wallet ./client_wallet -dn "CN=adam" -cert client_ca.cert

  imported them:
  --client
  orapki wallet add -wallet ./client_wallet -trusted_cert -cert server_ca.cert -pwd Welcome2
  --server
  orapki wallet add -wallet ./server_wallet -trusted_cert -cert client_ca.cert -pwd Welcome1

  Set the wallet location in sqlnet.ora:

  WALLET_LOCATION =
    (SOURCE =
     (METHOD = FILE)
     (METHOD_DATA =
     (DIRECTORY = ...product\11.2.0\dbhome_1\client_wallet)
     )
    )

  tnsnames.ora:

  LCRO =
    (DESCRIPTION =
      (ADDRESS_LIST =
       (ADDRESS = (PROTOCOL = TCPS)(HOST = xx.xxx.x.xx)(PORT = 1522))
      )
      (CONNECT_DATA =
       (SERVICE_NAME = LCRO)
      )
     )

  tnsping lcro is successful.

  Executing sqlplus /@lcro produces ORA-01017: invalid username/password; logon denied

  The user at the server side was created:

  create user adam identified externally as 'CN=adam';

  Statements:

  alter system set remote_os_authent=FALSE scope=spfile;
  alter system set os_authent_prefix='' scope=spfile;

  were called on both client and sever, and both databases were restarted.

  I also set SSL_SERVER_DN_MATCH=No in client's sqlnet.ora.

  Net tracing produces simililar results, that is:

  ...\product\11.2.0\dbhome_1\localhost_orcl\sysman\config\server\ewallet.p12
  ...\product\11.2.0\dbhome_1\localhost_orcl\sysman\config\server\cwallet.sso

  are being opend regardless of sqlnet.ora WALLET_LOCATION. Why?

  Copying files from client_wallet to that location gives the same result as before.

  Any additional hints?

• Dec 7, 2011 8:50AM

  You may try setting TNS_ADMIN variable to explicitly to point to the SQLNET.ora that holds the WALLET_LOCATION.

  Regards,

  Saurabh Manroy

• Thanks.
  I tried by it didn't work either.

  When I deleted certificates from ./client_wallet and ran tnsping for the lcro SSL connection it threw
  TNS-12560: TNS:protocol adapter error. That is a good sign meaning my cerificates are used.

  I think the problem is somewhere else. It's like there is no match for 'adam' user at the server side
  with the indentification in the client certificate:

  certificates for the client:
  orapki wallet create -wallet ./client_wallet -auto_login -pwd Welcome2
  orapki wallet add -wallet ./client_wallet -dn "cn=adam" -keysize 512 -self_signed -validity 365 -pwd Welcome2
  orapki wallet export -wallet ./client_wallet -dn "cn=adam" -cert client_ca.cert

  client_ca.cert is imported at the server side:
  orapki wallet add -wallet ./server_wallet -trusted_cert -cert client_ca.cert -pwd Welcome1

  user at the server side is created:
  create user adam identified externally as 'cn=adam';
  grant create session to adam;

  client listener.ora has:
  SSL_CLIENT_AUTHENTICATION = FALSE

  client sqlnet.ora has:
  SSL_VERSION = 0
  WALLET_LOCATION =
    (SOURCE =
     (METHOD = FILE)
     (METHOD_DATA =
     (DIRECTORY = ...\product\11.2.0\dbhome_1\client_wallet)
     )
    )
  SSL_SERVER_DN_MATCH=No

  client tnsnames.ora has:
  LCRO =
    (DESCRIPTION =
      (ADDRESS_LIST =
       (ADDRESS = (PROTOCOL = TCPS)(HOST = xx.xxx.x.xx)(PORT = 1522))
      )
      (CONNECT_DATA =
       (SERVICE_NAME = LCRO)
      )
     )

  server listener.ora has:
  LISTENER =
    (DESCRIPTION_LIST =
      (DESCRIPTION =
        (ADDRESS = (PROTOCOL = IPC)(KEY = EXTPROC1521))
      )
      (DESCRIPTION =
        (ADDRESS = (PROTOCOL = TCP)(HOST = xx.xxx.x.xx)(PORT = 1521))
      )
      (DESCRIPTION =
        (ADDRESS = (PROTOCOL = TCPS)(HOST = xx.xxx.x.xx3)(PORT = 1522))
      )
    )
  WALLET_LOCATION =
    (SOURCE=
     (METHOD=File)
      (METHOD_DATA=
       (DIRECTORY=D:\oracle\11g\product\11.2.0\dbhome_1\server_wallet)))
  SSL_CLIENT_AUTHENTICATION=FALSE

  server sqlnet.ora has:
  SQLNET.AUTHENTICATION_SERVICES= (NTS, BEQ, TCPS)
  SSL_VERSION = 0
  SSL_CLIENT_AUTHENTICATION = TRUE
  WALLET_LOCATION =
    (SOURCE =
     (METHOD = FILE)
      (METHOD_DATA =
       (DIRECTORY =

  \oracle\11g\product\11.2.0\dbhome_1\server_wallet)
      )
     )

  on both client and server:
  alter system set remote_os_authent=FALSE scope=spfile;
  alter system set os_authent_prefix='' scope=spfile;

  and I still get ORA-01017 invalid username password logon denied when calling sqlplus /@lcro

  any more hints?

• Problem solved.
  It was a trivial mistake. Certificates generated for the client where with the OS user name not 'adam'.
  Creating a DB user with a name that maches client OS user fixes the problem.

  Thanks for your help, though.
