最近学习多模态大模型，做了一个项目，供大家参考一起学习。
如果喜欢的话可以给我一个star嘛，谢谢大家！
github链接：https://github.com/wolfvoid/FMU-Agent/

👁️ FMU-Agent

Fine-Grained Multimodal Understanding Agent with MLLM & SAM2

A Real-time, Intent-Driven Visual Agent featuring “Spotlight” Prompting and Self-Verification.

---

🚀 Introduction (项目简介)

FMU-Agent 是一个具备细粒度空间感知能力的实时多模态智能体。用户可以通过点击图像中的任意物体或输入文本指令，获得精准的描述生成与目标定位服务。

针对现有 MLLM 在微小物体定位和复杂指代上的不足，FMU-Agent 引入了创新的 “Spotlight”（聚光灯）视觉提示算法，并结合 SAM2 的实时分割能力与 vLLM 的高吞吐推理，实现了毫秒级的视觉交互体验。

不同于传统的“看图说话”，FMU-Agent 具备 System 2 级别的自我反思能力，通过 推理时循环验证 (Inference-Time Cycle-Verification) 机制，显著降低了空间幻觉。

✨ Key Features (核心特性)

• 👆 Click-to-Chat (点击即交互): 结合 SAM2，实现对任意细粒度物体的实时分割与多轮深度对话。
• 🔍 Text-to-Box (意图驱动定位): 支持显式指令（如 “Find: the red cup”），精准定位并绘制目标 BBox。
• 🎨 Spotlight Visual Prompting: 独创的“背景压暗+真值保留+白色轮廓”算法，解决传统红膜遮挡纹理的问题。
• 🛡️ Cycle-Consistency Verification: 推理时自动反向验证（Text $\to$ Box $\to$ IoU），拦截幻觉输出。
• ⚡ Decoupled Architecture: 前端 (Gradio)、视觉 (SAM2)、推理 (vLLM) 三层解耦，支持多 GPU 流水线部署。

---

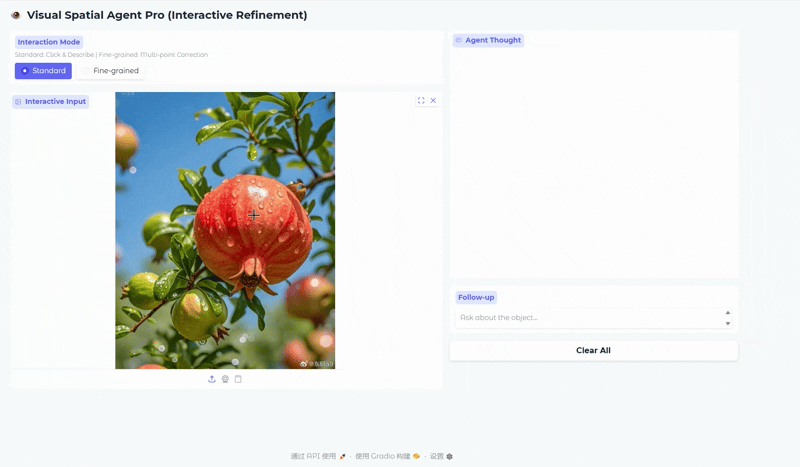

🎞️ Demo (演示)

任务 1：细粒度文本生成 (Image Captioning)

任务 2：内容精确定位 (Grounding)

🧠 Methodology (算法原理)

1. Spotlight Visual Prompting (聚光灯提示)

传统的 Overlay（红色半透明掩膜）会改变物体像素颜色，导致模型将红色物体误判为粉色。FMU-Agent 采用 Spotlight Mode：

• Dimming: 背景亮度降低 50%，形成强对比。
• Fidelity: 目标区域保留 100% 原始像素，零颜色污染。
• Indicator: 绘制 1px 极细白色轮廓，作为非语义的人工边界指示。

2. Cycle-Consistency Verification (闭环验证)

FMU-Agent 在推理阶段引入自我博弈机制：

1. Generate: 用户点击 $\to$ 生成描述 $T$。
2. Reverse: 将 $T$ 输入模型 $\to$ 预测坐标 $B_{pred}$。
3. Verify: 计算 $B_{pred}$ 与原始 Mask $M$ 的交并比 $\text{IoU}(B_{pred},M)$。
4. Decision: 若 $\text{IoU}<Threshold$，标记为低置信度或触发重生成。

---

🛠️ Architecture (系统架构)

FMU-Agent 采用三层解耦架构以最大化吞吐量：

📊 Data Preparation (数据准备)

We use COCO 2017 Val set for evaluation, you can also use other datasets. Download COCO 2017 Val images and annotations:

# Download COCO 2017 Val Set
wget http://images.cocodataset.org/zips/val2017.zip
wget http://images.cocodataset.org/annotations/annotations_trainval2017.zip
# or you can use a python script to download
python tools/download_coco.py

We provide the Spotlight Data Engine used to train FMU-Agent. To reproduce our training data:

# Generate Spotlight-Augmented COCO Dataset
python tools/prepare_finetune_data.py \
    --coco_dir ./coco/val2017 \
    --output_dir ./dataset/spotlight_images

Note: This script requires an OpenAI API Key for GPT-4o distillation.

🛠️ Fine-Tuning (微调)

We use LLaMA-Factory for efficient and easy-to-use fine-tuning. Follow the steps below to fine-tune the model on your own dataset.

1. Installation

If you haven’t installed LLaMA-Factory yet, please set it up first:

git clone https://github.com/hiyouga/LLaMA-Factory.git
cd LLaMA-Factory
pip install -e .[metrics]

2. Prepare Dataset

LLaMA-Factory requires a specific data format (Alpaca or ShareGPT style) and a registry entry in dataset_info.json.

Step 1: Format your data For Vision-Language tasks, we recommend the ShareGPT format. Save your data as data/my_custom_data.json:

    [
        {
            "id": "identity_0",
            "conversations": [
            {
                "from": "user",
                "value": "<image>Describe this image."
            },
            {
                "from": "assistant",
                "value": "This is a detailed description of the image..."
            }
            ],
            "images": [
            "/path/to/image_01.jpg"
            ]
        }
    ]

Step 2: Register your dataset Edit LLaMA-Factory/data/dataset_info.json and append your dataset definition:

    "my_custom_dataset": {
        "file_name": "my_custom_data.json",
        "formatting": "sharegpt",
        "columns": {
            "messages": "conversations",
            "images": "images"
        }
    }

3. Start Training
   Use the following command to start LoRA fine-tuning. We provide a sample script scripts/finetune.sh for reference.

Note:

• Ensure --template matches your base model (e.g., qwen2_vl).

• Adjust --per_device_train_batch_size and --gradient_accumulation_steps based on your GPU memory.

• If you encounter OOM (Out of Memory), try enabling DeepSpeed Zero2 or Zero3 by adding --deepspeed examples/deepspeed/ds_z2_config.json.

• Once training is complete, refer to the Merge LoRA weights section to merge the adapter into the base model.

🗓️ Roadmap

• [✅] Release Inference Code & Gradio Demo
• [✅] Release “Spotlight” Data Generation Script
• Release Pre-trained LoRA Weights

🖊️ Citation

If you find this project useful, please cite:

@misc{fmu-agent2026,
  title={FMU-Agent: Fine-Grained Multimodal Understanding Agent with MLLM & SAM2},
  author={wolf void},
  year={2026},
  publisher={GitHub},
  journal={GitHub repository},
  howpublished={\url{https://github.com/wolfvoid/FMU-Agent}}
}

📄 License

This project is licensed under the Apache 2.0 License. Based on Qwen3-VL and SAM2.
