使用如下参数切换模型经常测试

single_fc模型下的测试图如下所示

1. single_fc（单层全连接模型）
   · 结构：最简单的模型，只有一个全连接层
   特点：参数少、计算快，但准确率较低，主要用于初步测试

(fingerprint_input)
v
[MatMul]<-(weights)
v
[BiasAdd]<-(bias)
v

使用如下参数进行训练
Training these words: yes,no,up,down,left,right,on,off,stop,go
Training steps in each stage: 12000,3000
Learning rate in each stage: 0.001,0.0001
Total number of training steps: 15000

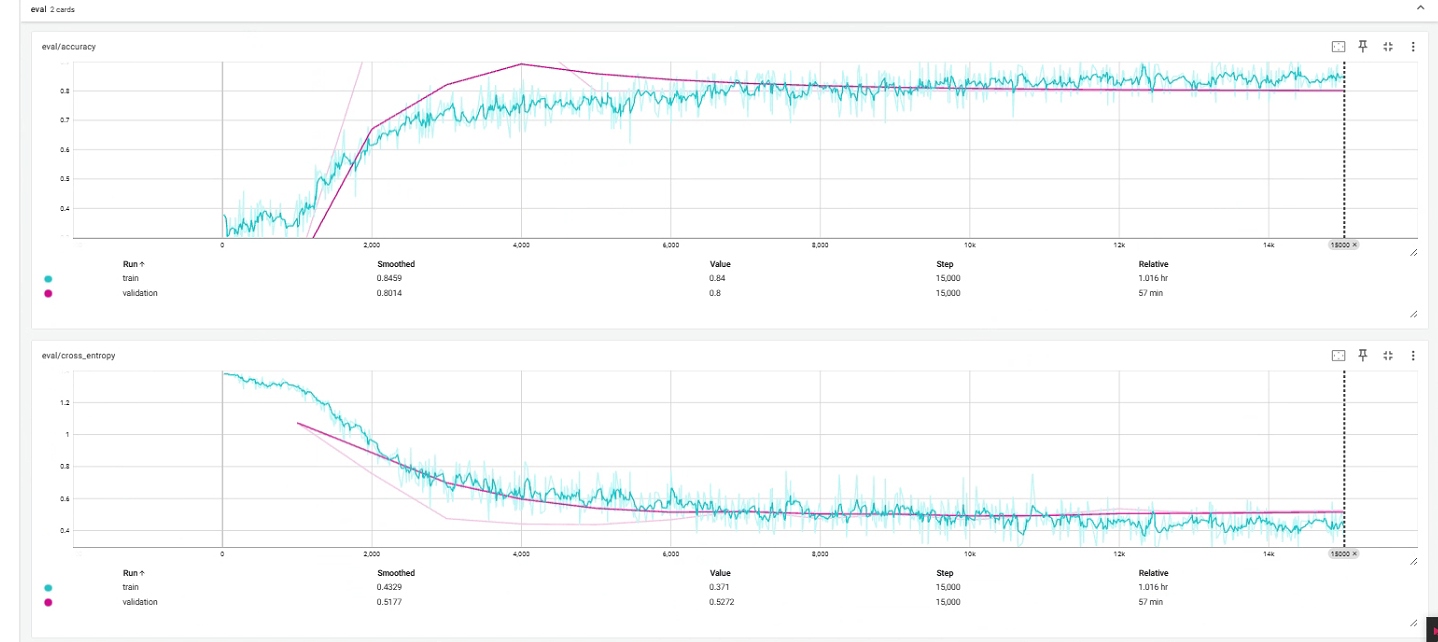

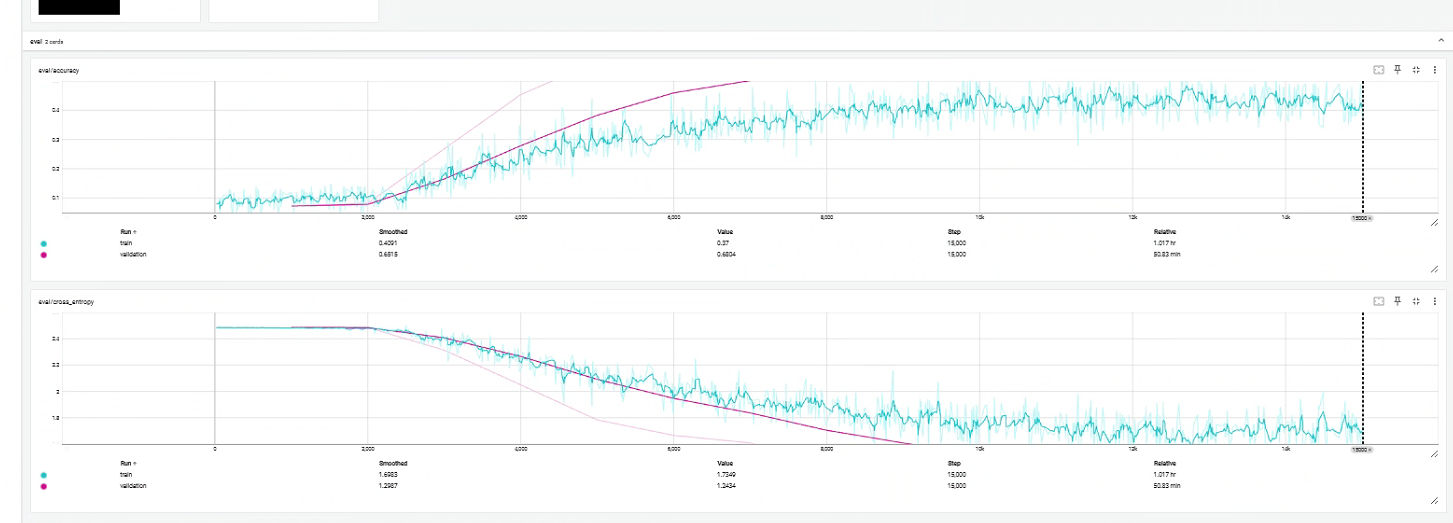

训练过程

最终结果
WARNING:tensorflow:Final test accuracy = 55.6% (N=4726)
W1016 10:43:00.902996 21228 train.py:315] Final test accuracy = 55.6% (N=4726)

使用如下参数进行训练
Training these words: yes,no
Training steps in each stage: 12000,3000
Learning rate in each stage: 0.001,0.0001
Total number of training steps: 15000

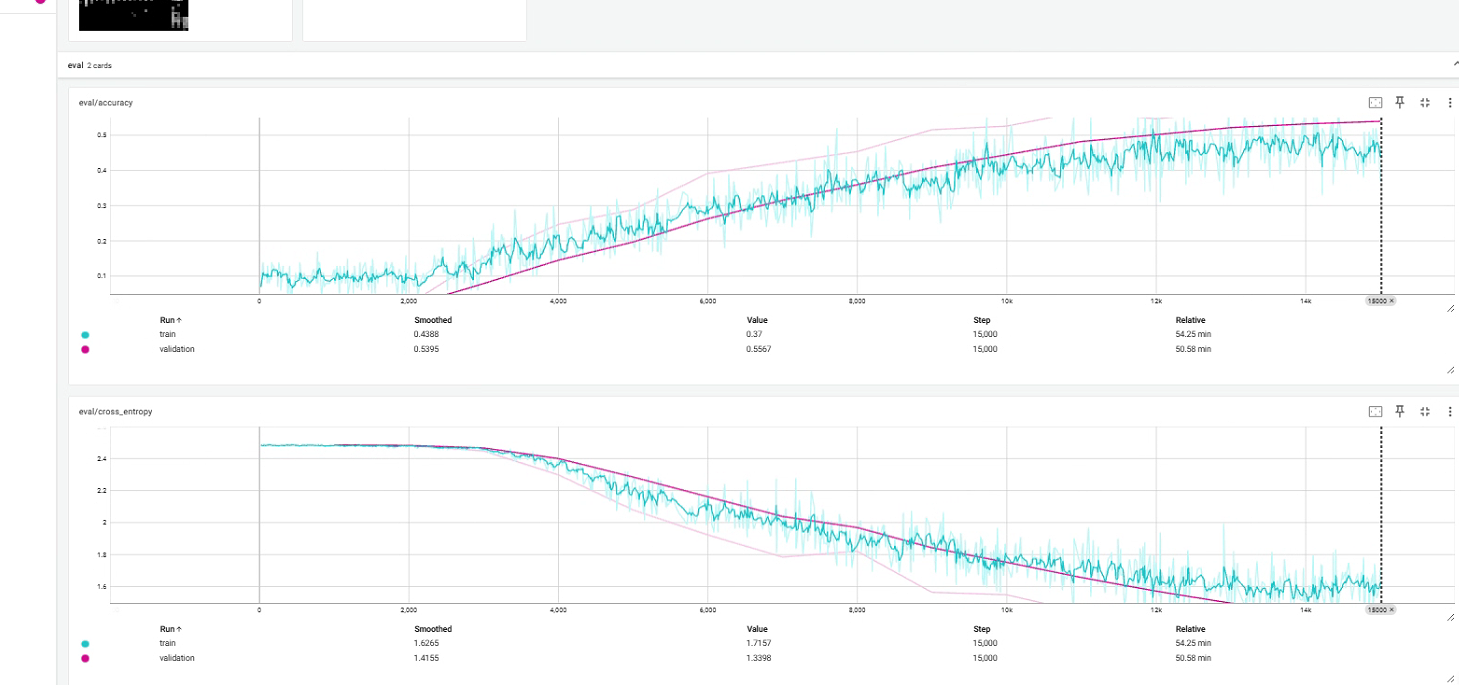

训练过程

最终结果
WARNING:tensorflow:Final test accuracy = 82.8% (N=1236)
W1020 19:13:59.910334 37564 train.py:315] Final test accuracy = 82.8% (N=1236)

conv 模型下的测试图如下所示

conv（标准卷积模型）
结构：包含两个卷积层的CNN模型
特点：基于论文《Convolutional Neural Networks for Small-footprint Keyword Spotting》，准确率较高但计算量大
(fingerprint_input)
v
[Conv2D]<-(weights)
v
[BiasAdd]<-(bias)
v
[Relu]
v
[MaxPool]
v
[Conv2D]<-(weights)
v
[BiasAdd]<-(bias)
v
[Relu]
v
[MaxPool]
v
[MatMul]<-(weights)
v
[BiasAdd]<-(bias)
v
使用如下参数进行训练
Training these words: yes,no,up,down,left,right,on,off,stop,go
Training steps in each stage: 12000,3000
Learning rate in each stage: 0.001,0.0001
Total number of training steps: 15000

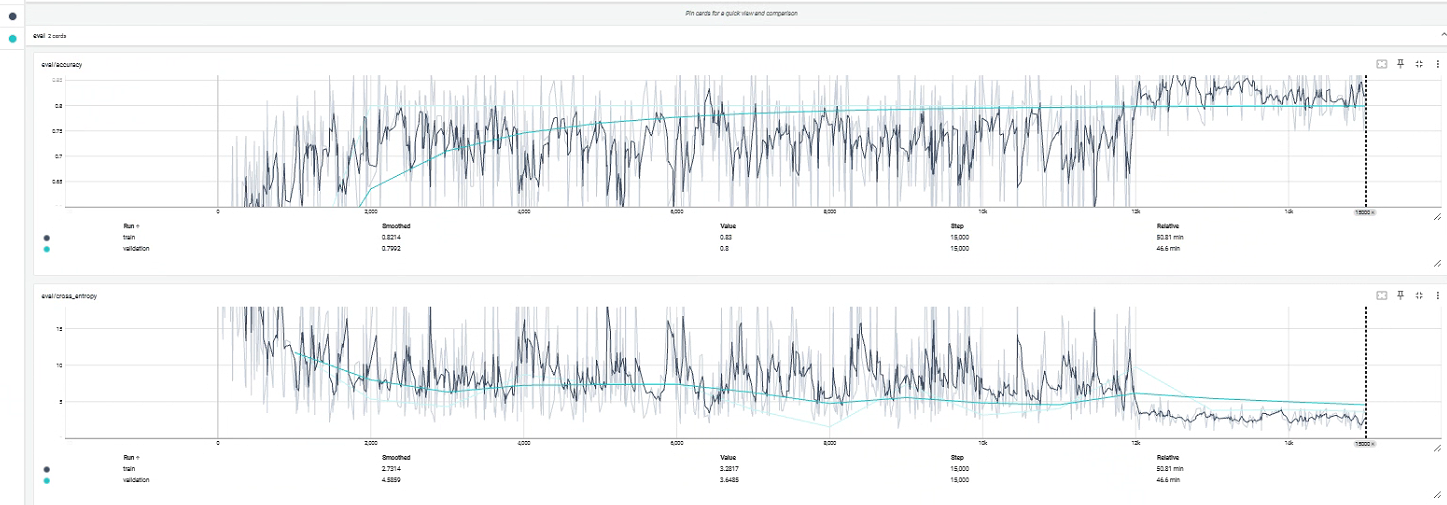

训练过程

最终结果
WARNING:tensorflow:Final test accuracy = 85.7% (N=4726)
W1016 14:43:10.853354 5356 train.py:315] Final test accuracy = 85.7% (N=4726)

使用如下参数进行训练
Training these words: yes,no
Training steps in each stage: 12000,3000
Learning rate in each stage: 0.001,0.0001
Total number of training steps: 15000

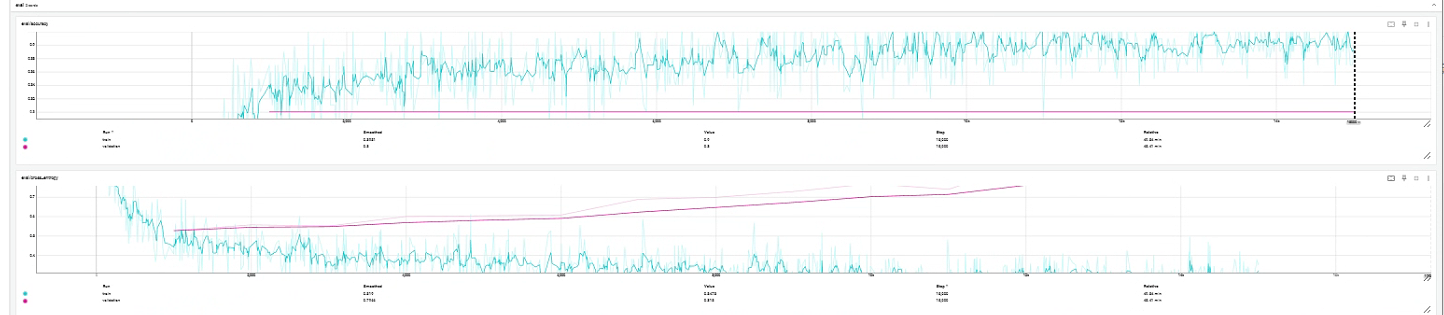

训练过程

最终结果
WARNING:tensorflow:Final test accuracy = 94.1% (N=1236)
W1022 22:44:29.322014 46336 train.py:315] Final test accuracy = 94.1% (N=1236)

low_latency_conv 模型下的测试图如下所示

3. low_latency_conv（低延迟卷积模型）
   结构：简化版CNN，减少计算需求
   特点：同样是基于上述论文的"cnn-one-fstride4"网络，计算量较少但准确率略低
   (fingerprint_input)
   v
   [Conv2D]<-(weights)
   v
   [BiasAdd]<-(bias)
   v
   [Relu]
   v
   [MatMul]<-(weights)
   v
   [BiasAdd]<-(bias)
   v
   [MatMul]<-(weights)
   v
   [BiasAdd]<-(bias)
   v
   [MatMul]<-(weights)
   v
   [BiasAdd]<-(bias)
   v
   使用如下参数进行训练
   Training these words: yes,no,up,down,left,right,on,off,stop,go
   Training steps in each stage: 12000,3000
   Learning rate in each stage: 0.001,0.0001
   Total number of training steps: 15000

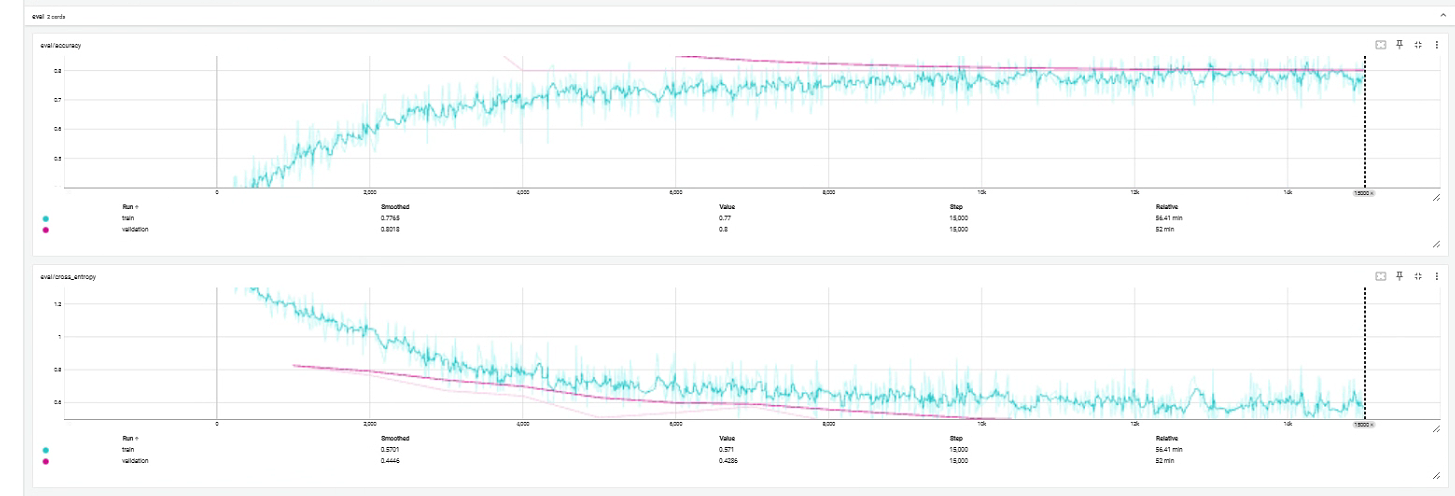

   训练过程


最终结果
WARNING:tensorflow:Final test accuracy = 53.9% (N=4726)
W1016 16:29:01.481791 20368 train.py:315] Final test accuracy = 53.9% (N=4726)

使用如下参数进行训练
Training these words: yes,no
Training steps in each stage: 12000,3000
Learning rate in each stage: 0.001,0.0001
Total number of training steps: 15000
训练过程

最终结果
WARNING:tensorflow:Final test accuracy = 87.4% (N=1236)
W1023 10:37:53.300418 15284 train.py:315] Final test accuracy = 87.4% (N=1236)

low_latency_svdf 模型下的测试图如下所示

结构：基于SVDF（Singular Value Decomposition Factorization）的模型
特点：基于《Compressing Deep Neural Networks using a Rank-Constrained Topology》论文，显著减少参数和计算量，但准确率相对较低

(fingerprint_input)
v
[SVDF]<-(weights)
v
[BiasAdd]<-(bias)
v
[Relu]
v
[MatMul]<-(weights)
v
[BiasAdd]<-(bias)
v
[MatMul]<-(weights)
v
[BiasAdd]<-(bias)
v
[MatMul]<-(weights)
v
[BiasAdd]<-(bias)
v
使用如下参数进行训练
Training these words: yes,no,up,down,left,right,on,off,stop,go
Training steps in each stage: 12000,3000
Learning rate in each stage: 0.001,0.0001
Total number of training steps: 15000

这个数据看起来有些异常，不确定
将 input_shape[-1].value 改为 input_shape[-1]
将 input_shape.shape[-1].value 改为 input_shape[-1]
修改版本问题有影响。

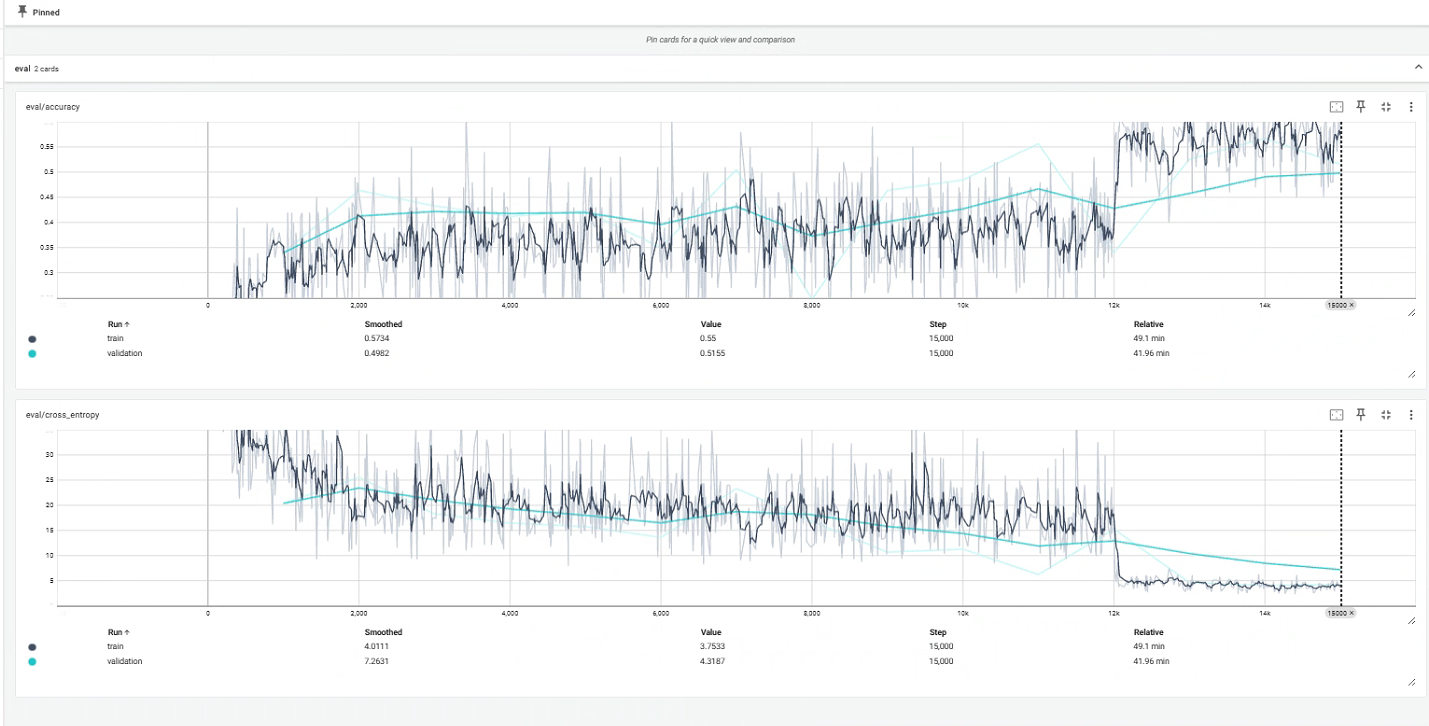

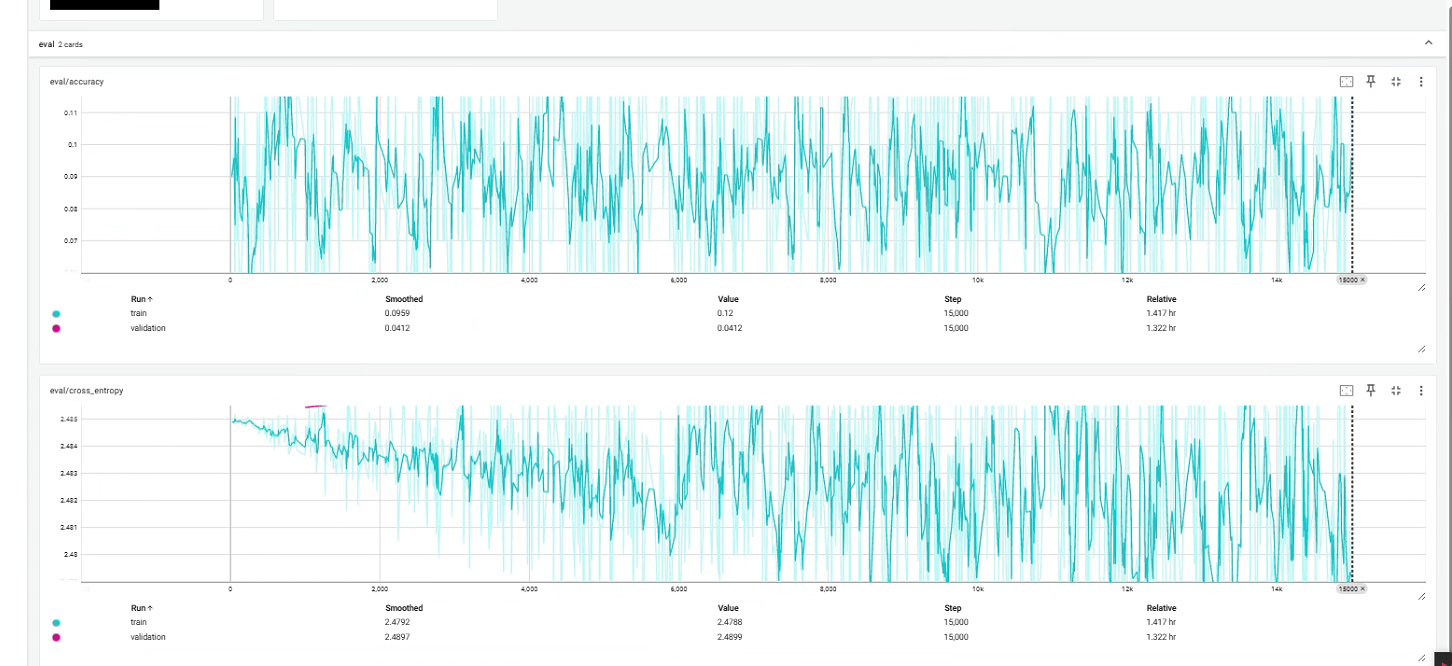

训练过程

训练结果
WARNING:tensorflow:Final test accuracy = 8.9% (N=4726)
W1016 19:11:04.803660 19944 train.py:315] Final test accuracy = 8.9% (N=4726)

使用如下参数进行训练
Training these words: yes,no,
Training steps in each stage: 12000,3000
Learning rate in each stage: 0.001,0.0001
Total number of training steps: 15000

训练过程

训练结果
WARNING:tensorflow:Final test accuracy = 33.9% (N=1236)
W1023 12:07:28.382571 580 train.py:315] Final test accuracy = 33.9% (N=1236)

tiny_conv 模型下的测试图如下所示

. tiny_conv（微型卷积模型）
结构：专为微控制器设计的轻量化CNN
特点：内存占用小（<20KB工作内存，<32KB闪存），准确率一般但适合始终运行的唤醒词检测
(fingerprint_input)
v
[Conv2D]<-(weights)
v
[BiasAdd]<-(bias)
v
[Relu]
v
[MatMul]<-(weights)
v
[BiasAdd]<-(bias)
v

使用如下参数进行训练
Training these words: yes,no,up,down,left,right,on,off,stop,go
Training steps in each stage: 12000,3000
Learning rate in each stage: 0.001,0.0001
Total number of training steps: 15000

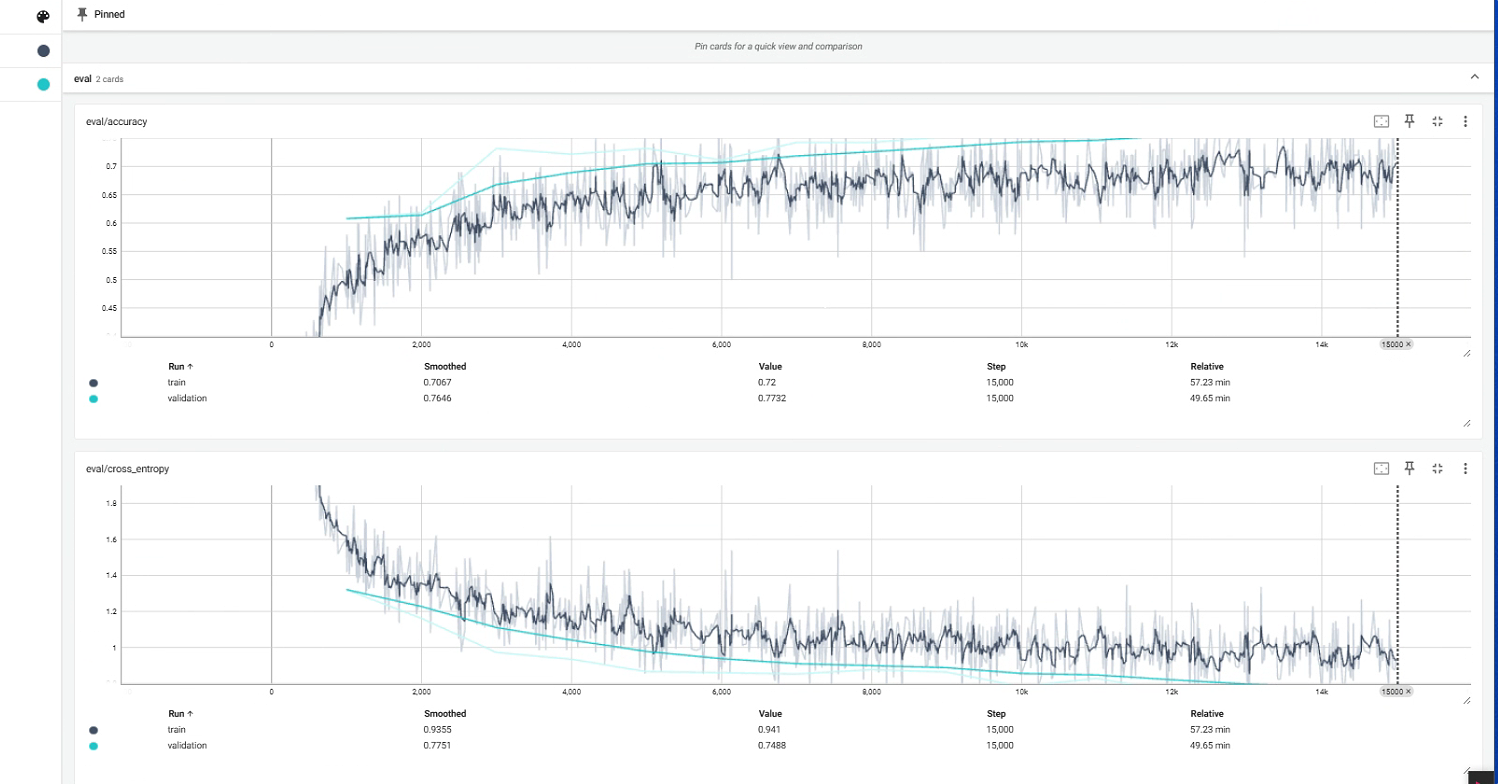

训练过程

训练结果
WARNING:tensorflow:Final test accuracy = 74.7% (N=4726)
W1017 10:33:50.421761 9012 train.py:315] Final test accuracy = 74.7% (N=4726)

使用如下参数进行训练
Training these words: yes,no,
Training steps in each stage: 12000,3000
Learning rate in each stage: 0.001,0.0001
Total number of training steps: 15000

训练过程

训练结果
WARNING:tensorflow:Final test accuracy = 91.9% (N=1236)
W1029 19:51:05.339041 66008 train.py:315] Final test accuracy = 91.9% (N=1236)

tiny_embedding_conv 模型下的测试图如下所示

tiny_embedding_conv（微型嵌入卷积模型）
结构：多层轻量化CNN
特点：同样面向资源受限设备，比tiny_conv稍复杂，但保持低内存占用
(fingerprint_input)
v
[Conv2D]<-(weights)
v
[BiasAdd]<-(bias)
v
[Relu]
v
[Conv2D]<-(weights)
v
[BiasAdd]<-(bias)
v
[Relu]
v
[Conv2D]<-(weights)
v
[BiasAdd]<-(bias)
v
[Relu]
v
[MatMul]<-(weights)
v
[BiasAdd]<-(bias)
v
使用如下参数进行训练
Training these words: yes,no,up,down,left,right,on,off,stop,go
Training steps in each stage: 12000,3000
Learning rate in each stage: 0.001,0.0001
Total number of training steps: 15000

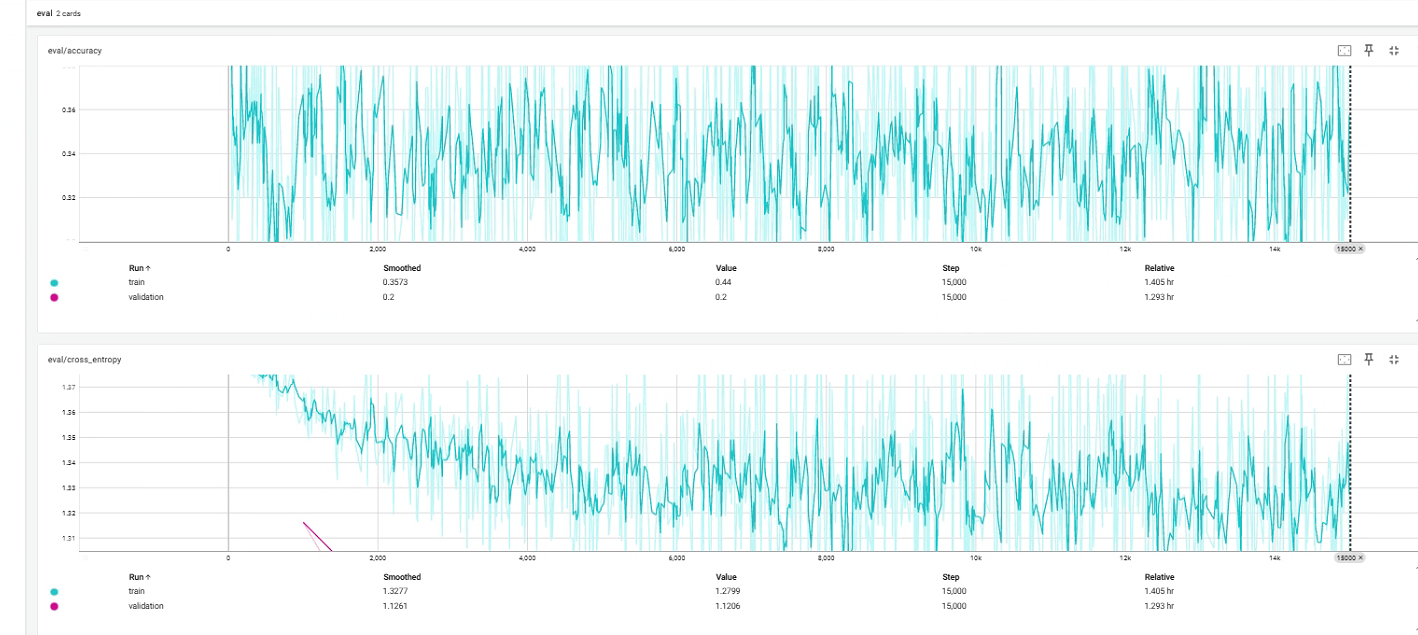

训练的效果如下

训练结果
[ 2 16 16 7 6 9 5 2 2 4 330 12]
[ 2 10 8 130 8 87 9 9 9 7 20 103]]
WARNING:tensorflow:Final test accuracy = 59.7% (N=4726)
W1017 13:57:23.635851 13480 train.py:315] Final test accuracy = 59.7% (N=4726)

使用如下参数进行训练
Training these words: yes,no
Training steps in each stage: 12000,3000
Learning rate in each stage: 0.001,0.0001
Total number of training steps: 15000
训练的效果如下

训练结果
WARNING:tensorflow:Final test accuracy = 85.4% (N=1236)
W1030 10:28:23.178637 67952 train.py:315] Final test accuracy = 85.4% (N=1236)
