机器学习实验--决策树

202421335016

620人浏览 · 2025-12-25 20:22:19

202421335016 · 2025-12-25 20:22:19 发布

一、决策树介绍

1.1 算法核心

本次实验针对贷款审批场景，采用ID3 决策树算法，以信息增益为特征选择准则：

信息熵：衡量贷款数据集的类别不纯度，公式为 H(D)=−∑k=1Kpklog2pk（pk为 “给贷款”/“不给贷款” 的样本占比）；
信息增益：划分后信息熵的减少量，公式为 Gain(D,a)=H(D)−∑v=1V∣D∣∣Dv∣H(Dv)（a为贷款特征，如 “有自己的房子”；Dv为特征a取v值的子集）；
核心逻辑：优先选择信息增益最大的特征作为节点划分依据，递归构建树形模型。

二、实践代码部分

1. 数据加载与预处理

# 1. 导入依赖库
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from sklearn.tree import DecisionTreeClassifier, plot_tree
from sklearn.metrics import accuracy_score, confusion_matrix

# 配置中文字体
plt.rcParams["font.family"] = ["SimHei", "Microsoft YaHei"]
plt.rcParams["axes.unicode_minus"] = False

# 2. 数据加载与预处理
def load_and_preprocess_data():
    columns = ["年龄段", "有工作", "有自己的房子", "信贷情况", "类别"]
    train_data = pd.read_csv("dataset.txt", sep=",", header=None, names=columns)
    test_data = pd.read_csv("testset.txt", sep=",", header=None, names=columns)

    X_train = train_data.drop("类别", axis=1)
    y_train = train_data["类别"]
    X_test = test_data.drop("类别", axis=1)
    y_test = test_data["类别"]

    print("-"*30)
    print("数据基本信息")
    print("-"*30)
    print(f"训练集样本数：{len(train_data)}，测试集样本数：{len(test_data)}")
    print("特征编码规则：")
    print("- 年龄段：青年(0)/中年(1)/老年(2)")
    print("- 有工作/有自己的房子：否(0)/是(1)")
    print("- 信贷情况：一般(0)/好(1)/非常好(2)")
    print("- 类别：不给贷款(0)/给贷款(1)")
    return X_train, X_test, y_train, y_test

2. 模型构建与训练

# 3. 模型构建与训练
def build_and_train_model(X_train, y_train):
    dt_model = DecisionTreeClassifier(
        criterion="entropy",
        random_state=42
    )
    dt_model.fit(X_train, y_train)
    print("\n" + "-"*30)
    print("模型训练完成")
    print("-"*30)
    print(f"训练集拟合准确率：{dt_model.score(X_train, y_train):.4f}")
    return dt_model

# 4. 手动计算指标
def calculate_metrics(y_true, y_pred, class_names):
    cm = confusion_matrix(y_true, y_pred)
    n_classes = len(class_names)
    precision = []
    recall = []
    f1_score = []
    support = []

    for i in range(n_classes):
        tp = cm[i, i]
        fp = cm[:, i].sum() - tp
        fn = cm[i, :].sum() - tp
        sup = cm[i, :].sum()
        support.append(sup)

        prec = tp / (tp + fp) if (tp + fp) != 0 else 0.0
        rec = tp / (tp + fn) if (tp + fn) != 0 else 0.0
        f1 = 2 * (prec * rec) / (prec + rec) if (prec + rec) != 0 else 0.0

        precision.append(prec)
        recall.append(rec)
        f1_score.append(f1)

    macro_prec = np.mean(precision)
    macro_rec = np.mean(recall)
    macro_f1 = np.mean(f1_score)
    weighted_prec = np.average(precision, weights=support)
    weighted_rec = np.average(recall, weights=support)
    weighted_f1 = np.average(f1_score, weights=support)
    accuracy = accuracy_score(y_true, y_pred)

    return (precision, recall, f1_score, support,
            macro_prec, macro_rec, macro_f1,
            weighted_prec, weighted_rec, weighted_f1,
            accuracy)

3. 指标手动计算

# 5. 分类报告
def evaluate_model(dt_model, X_test, y_test):
    y_pred = dt_model.predict(X_test)
    class_names = ["不给贷款", "给贷款"]

    (precision, recall, f1_score, support,
     macro_prec, macro_rec, macro_f1,
     weighted_prec, weighted_rec, weighted_f1,
     accuracy) = calculate_metrics(y_test, y_pred, class_names)

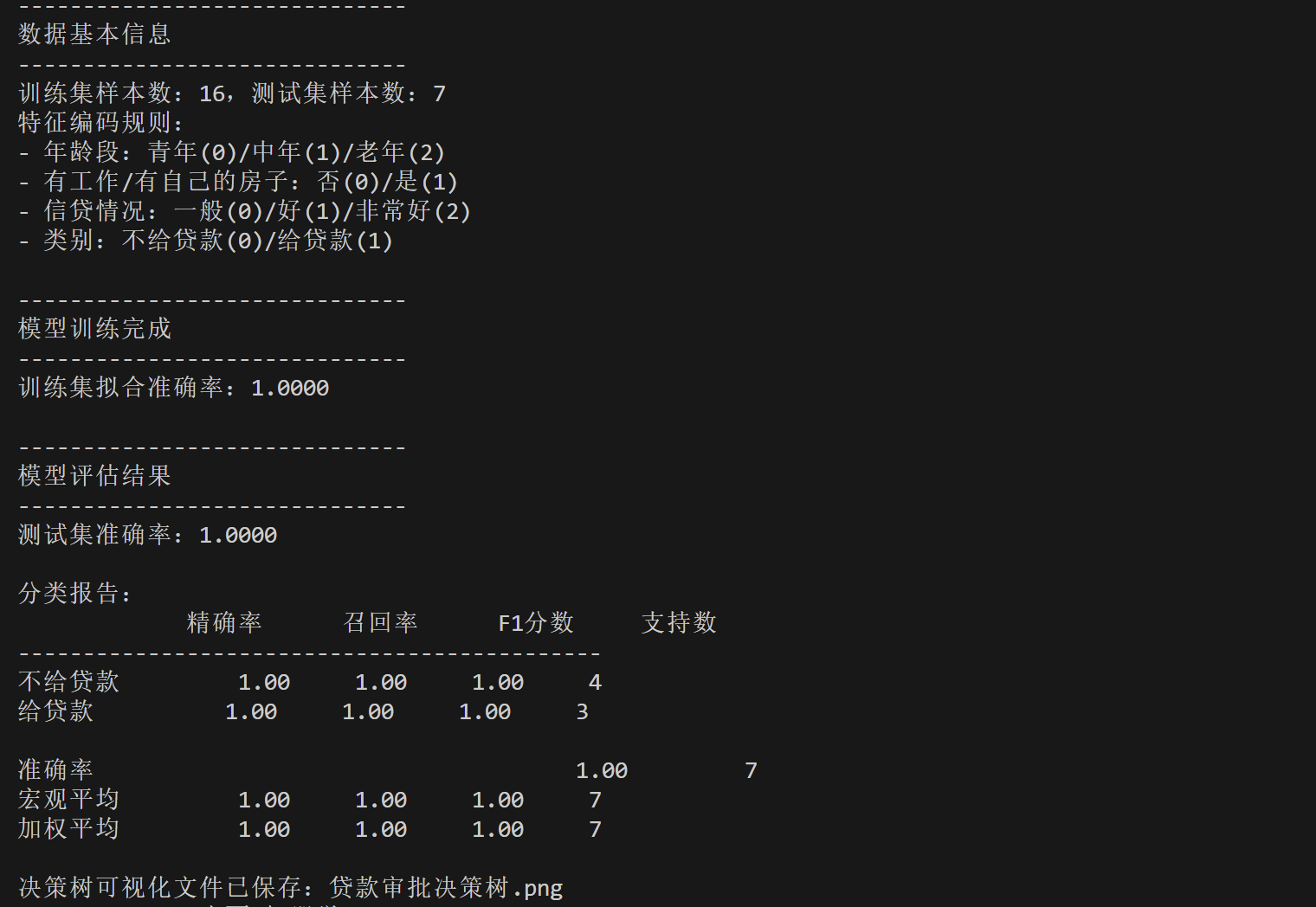

    print("\n" + "-"*30)
    print("模型评估结果")
    print("-"*30)
    print(f"测试集准确率：{accuracy:.4f}")

    print("\n分类报告：")
    header = f"{'':<12} {'精确率':<8} {'召回率':<8} {'F1分数':<8} {'支持数'}"
    print(header)
    print("-" * 45)
    for i, name in enumerate(class_names):
        line = f"{name:<12} {precision[i]:<8.2f} {recall[i]:<8.2f} {f1_score[i]:<8.2f} {support[i]}"
        print(line)
    print()
    print(f"{'准确率':<12} {'':<8} {'':<8} {'':<8} {accuracy:.2f}         {sum(support)}")
    print(f"{'宏观平均':<12} {macro_prec:<8.2f} {macro_rec:<8.2f} {macro_f1:<8.2f} {sum(support)}")
    print(f"{'加权平均':<12} {weighted_prec:<8.2f} {weighted_rec:<8.2f} {weighted_f1:<8.2f} {sum(support)}")

    return accuracy

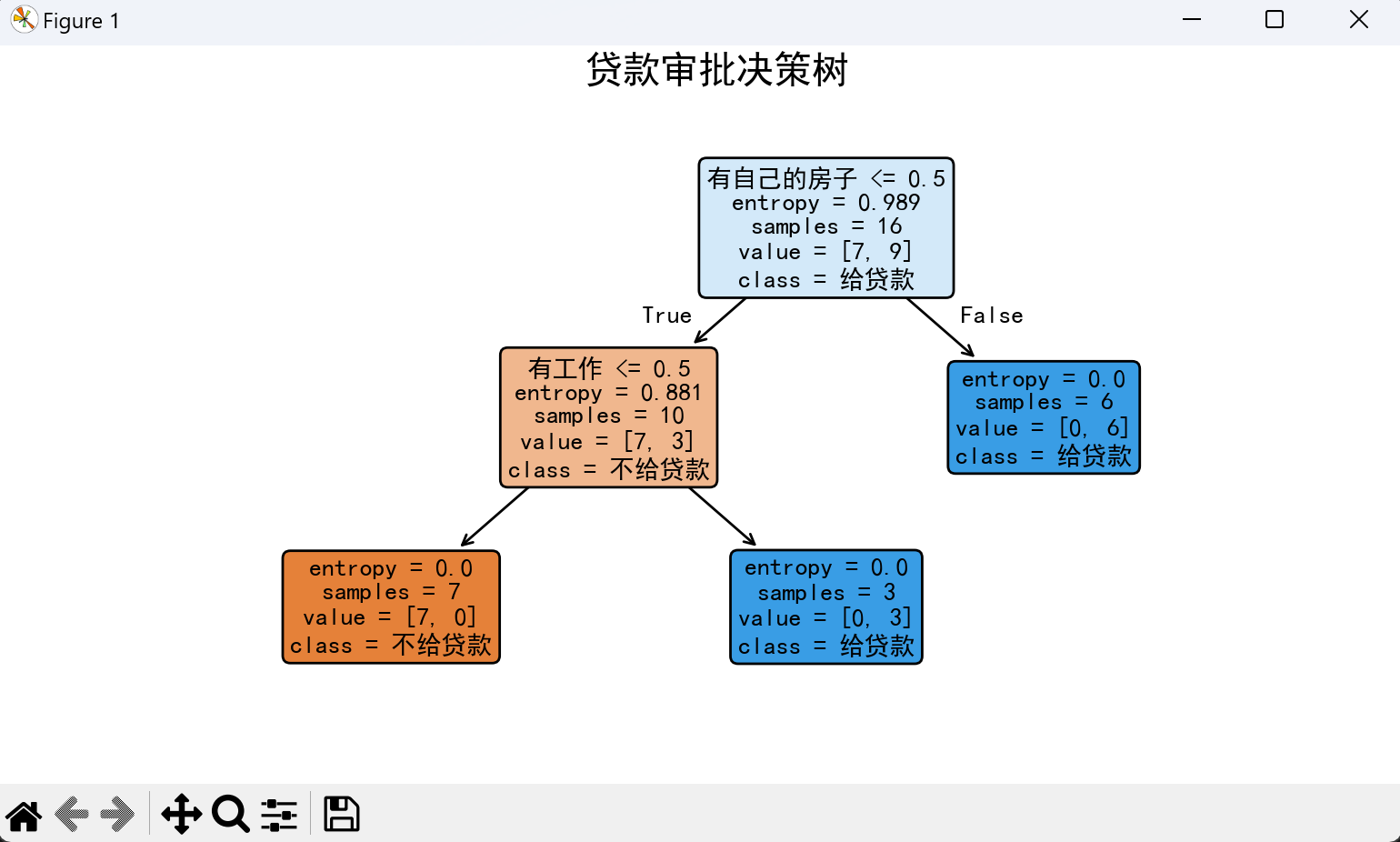

4. 决策树可视化

# 6. 决策树可视化
def visualize_tree(dt_model, X_train):
    plt.figure(figsize=(15, 10))
    plot_tree(
        dt_model,
        filled=True,
        rounded=True,
        feature_names=X_train.columns,
        class_names=["不给贷款", "给贷款"],
        fontsize=10
    )
    plt.title("贷款审批决策树", fontsize=15, pad=20)
    plt.savefig("贷款审批决策树.png", dpi=300, bbox_inches="tight")
    plt.show()
    print("\n决策树可视化文件已保存：贷款审批决策树.png")

# 主函数执行
if __name__ == "__main__":
    X_train, X_test, y_train, y_test = load_and_preprocess_data()
    dt_model = build_and_train_model(X_train, y_train)
    accuracy = evaluate_model(dt_model, X_test, y_test)
    visualize_tree(dt_model, X_train)
