一、ECS 部署openswan
环境：CentOS7.9

1. 安装OpenSwan

yum install -y openswan

2.修改内核配置

echo "net.ipv4.ip_forward = 1" >> /etc/sysctl.conf && \
echo "net.ipv4.conf.default.rp_filter = 0" >> /etc/sysctl.conf && \
echo "net.ipv4.conf.all.rp_filter = 0" >> /etc/sysctl.conf && \
echo "net.ipv4.conf.all.send_redirects = 0" >> /etc/sysctl.conf && \
echo "net.ipv4.conf.default.send_redirects = 0" >> /etc/sysctl.conf && \
echo "net.ipv4.icmp_ignore_bogus_error_responses = 1" >> /etc/sysctl.conf && \
echo "net.ipv4.conf.default.log_martians = 0" >> /etc/sysctl.conf && \
echo "net.ipv4.conf.all.log_martians = 0" >> /etc/sysctl.conf && \
echo "net.ipv4.conf.default.accept_source_route = 0" >> /etc/sysctl.conf && \
echo "net.ipv4.conf.all.accept_redirects = 0" >> /etc/sysctl.conf && \
echo "net.ipv4.conf.default.accept_redirects = 0" >> /etc/sysctl.conf

3.生效

sysctl -p

4.检查是否安装成功

ipsec --version

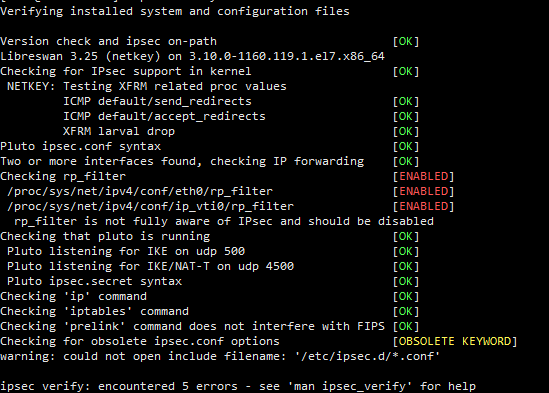

5.检查配置信息

ipsec verify

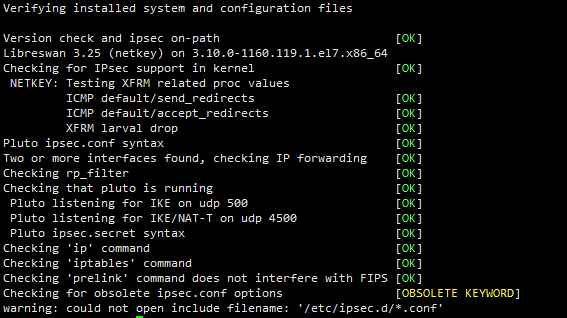

执行：

echo 0 > /proc/sys/net/ipv4/conf/eth0/rp_filter
echo 0 >/proc/sys/net/ipv4/conf/ip_vti0/rp_filter
ipsec verify

6.启动

systemctl enable ipsec
systemctl start ipsec

7.修改ECS配置文件/etc/ipsec.conf(另一台机器注意修改left/right的信息，调换过来即可)

vi /etc/ipsec.conf

version 2
config setup
        plutostderrlog=/var/log/vpn.log
        protostack=netkey
        nat_traversal=yes
        oe=off

conn net-to-net
        authby=secret
        type=tunnel

        pfs=no
        aggrmode=no
        forceencaps=yes
        dpdaction=restart

        ## phase 1 ##
        ike=3des-sha1;modp1024
        keyexchange=ike
        ikelifetime=86400s

        ## phase 2 ##
        phase2=esp
        phase2alg=3des-sha1
        salifetime=10000s

        left=172.16.0.73
        leftsubnet=172.16.0.0/16
        leftid=@test1
        leftnexthop=%defaultroute
        right=95.95.95.95
        rightsubnet=192.168.0.0/16
        rightid=@test2
        rightnexthop=%defaultroute
        auto=start

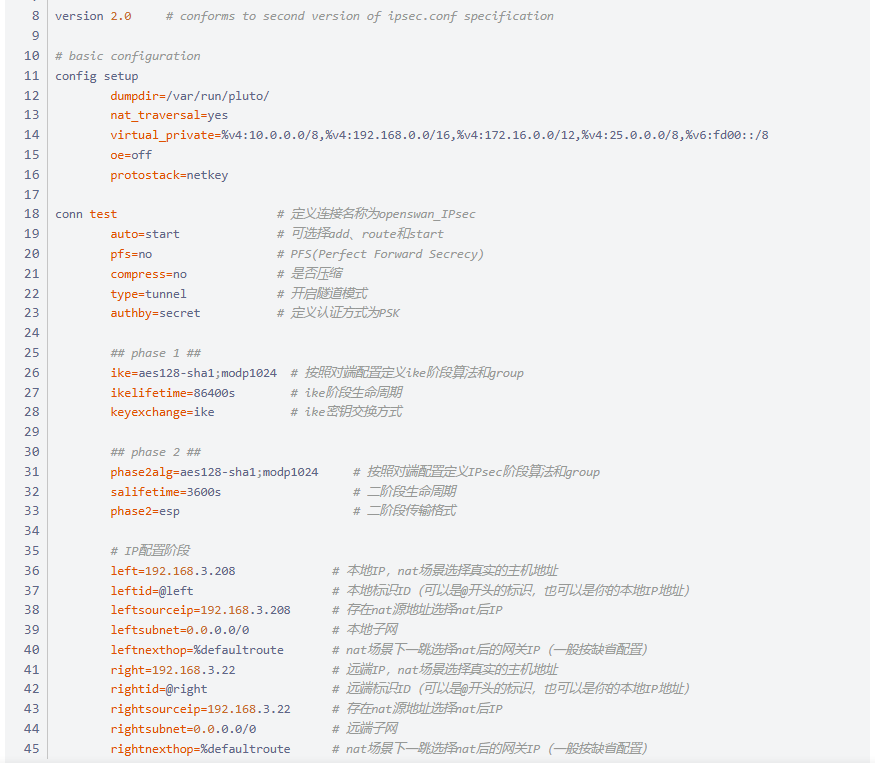

部分字段解释参考下图(https://blog.csdn.net/qq_36833548/article/details/130375242)

关键点：left用本地IP信息，rigth用另外机器IP信息

8.修改配置文件/etc/ipsec.secrets

vi /etc/ipsec.secrets

0.0.0.0 0.0.0.0 %any: PSK "12345678"

9.重启：

systemctl restart ipsec

10.ECS2也部署，方法雷同
配置文件ipsec.conf ,left right 信息IP需要换过来

ECS2 连接上后：能看到：SA established 表示连接上。

Oct 24 10:30:50.794719: “net-to-net” #1: STATE_MAIN_I4: ISAKMP SA established {auth=PRESHARED_KEY cipher=3des_cbc_192 integ=sha group=MODP1024}

11.补充说明

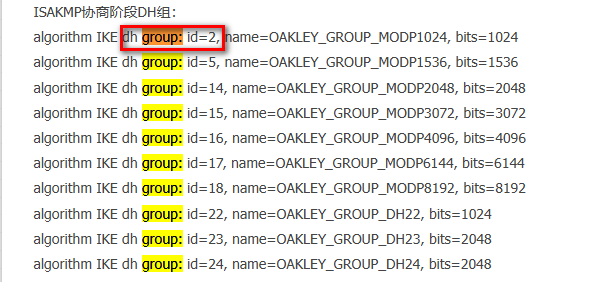

MODP1024，默认对应dh group id=2

(1)采用这个参数

ike=aes256-sha2_256;modp2048
phase2alg=aes256-sha2_256;modp2048

需要修改：

pfs=yes

二、采用docker部署openswan
