MWORKS-Julia语言(五)——任意角度旋转
题目:编写函数,实现算法完成图像矩阵的任意角度旋转,接收两个参数,第一个为图像矩阵,第二个为旋转的角度,输出为旋转后的图像(输入图像可以是彩色的也可以是灰度的)。(4)查看具体报错信息,咨询AI辅助修改。(2)图片格式问题,可能是通道不一样;(3)图片数据通道异常问题;欢迎各位同学交流互助交作业!(1)未安装包/包没更新;
·
题目:编写函数,实现算法完成图像矩阵的任意角度旋转,接收两个参数,第一个为图像矩阵,第二个为旋转的角度,输出为旋转后的图像(输入图像可以是彩色的也可以是灰度的)。
一、题目中功能要求
1.算法实现
2.图像矩阵
3.任意角度旋转
二、代码实现
using Images
using FileIO
using ImageCore
#自定义旋转函数(灰度图像)
function rotate_image_custom(img::AbstractArray{T,2}, angle_deg::Real) where T
angle_rad = deg2rad(angle_deg)
h, w = size(img)
#计算旋转后图像大小
new_w = ceil(Int, abs(w*cos(angle_rad)) + abs(h*sin(angle_rad)))
new_h = ceil(Int, abs(h*cos(angle_rad)) + abs(w*sin(angle_rad)))
#创建输出图像
out = zeros(T, new_h, new_w)
#中心点
cx_in = w/2
cy_in = h/2
cx_out = new_w/2
cy_out = new_h/2
#旋转参数
cosθ = cos(angle_rad)
sinθ = sin(angle_rad)
for y_out in 1:new_h, x_out in 1:new_w
#计算原图坐标
x_rel = x_out - cx_out
y_rel = y_out - cy_out
x_in = cosθ * x_rel + sinθ * y_rel + cx_in
y_in = -sinθ * x_rel + cosθ * y_rel + cy_in
#检查是否在原图范围内
if 1 <= x_in <= w && 1 <= y_in <= h
# 使用最近邻插值
x_round = round(Int, x_in)
y_round = round(Int, y_in)
x_round = clamp(x_round, 1, w)
y_round = clamp(y_round, 1, h)
out[y_out, x_out] = img[y_round, x_round]
end
end
return out
end
#处理彩色图像
function rotate_image_custom(img::AbstractArray{T,3}, angle_deg::Real) where T
#对每个颜色通道分别旋转
channels = [rotate_image_custom(img[:,:,c], angle_deg) for c in 1:size(img,3)]
return cat(channels..., dims=3)
end
#主函数
function main()
input_path = "picture.png"
output_path = replace(input_path, r"\.\w+$" => "_rotated.png")
rotation_angle = 30.0 #这里可以改角度
try
println("正在读取图像: $input_path")
img = load(input_path)
#转换为数组并处理数据类型
if eltype(img) <: Colorant
img_array = channelview(float32.(img)) #转换为Float32
img_array = permutedims(img_array, (2,3,1)) #调整维度顺序
else
img_array = float32.(img)
end
println("正在旋转图像,角度: $rotation_angle 度")
rotated = rotate_image_custom(img_array, rotation_angle)
#转换回图像格式
if ndims(img_array) == 3 #彩色图像
rotated_img = colorview(RGB, permutedims(rotated, (3,1,2)))
else #灰度图像
rotated_img = colorview(Gray, rotated)
end
println("正在保存旋转后的图像到: $output_path")
save(output_path, rotated_img)
println("图像旋转完成并已保存!")
catch e
println("发生错误: ", e)
println("堆栈跟踪:")
showerror(stdout, e, catch_backtrace())
end
end
# 执行主程序
main()

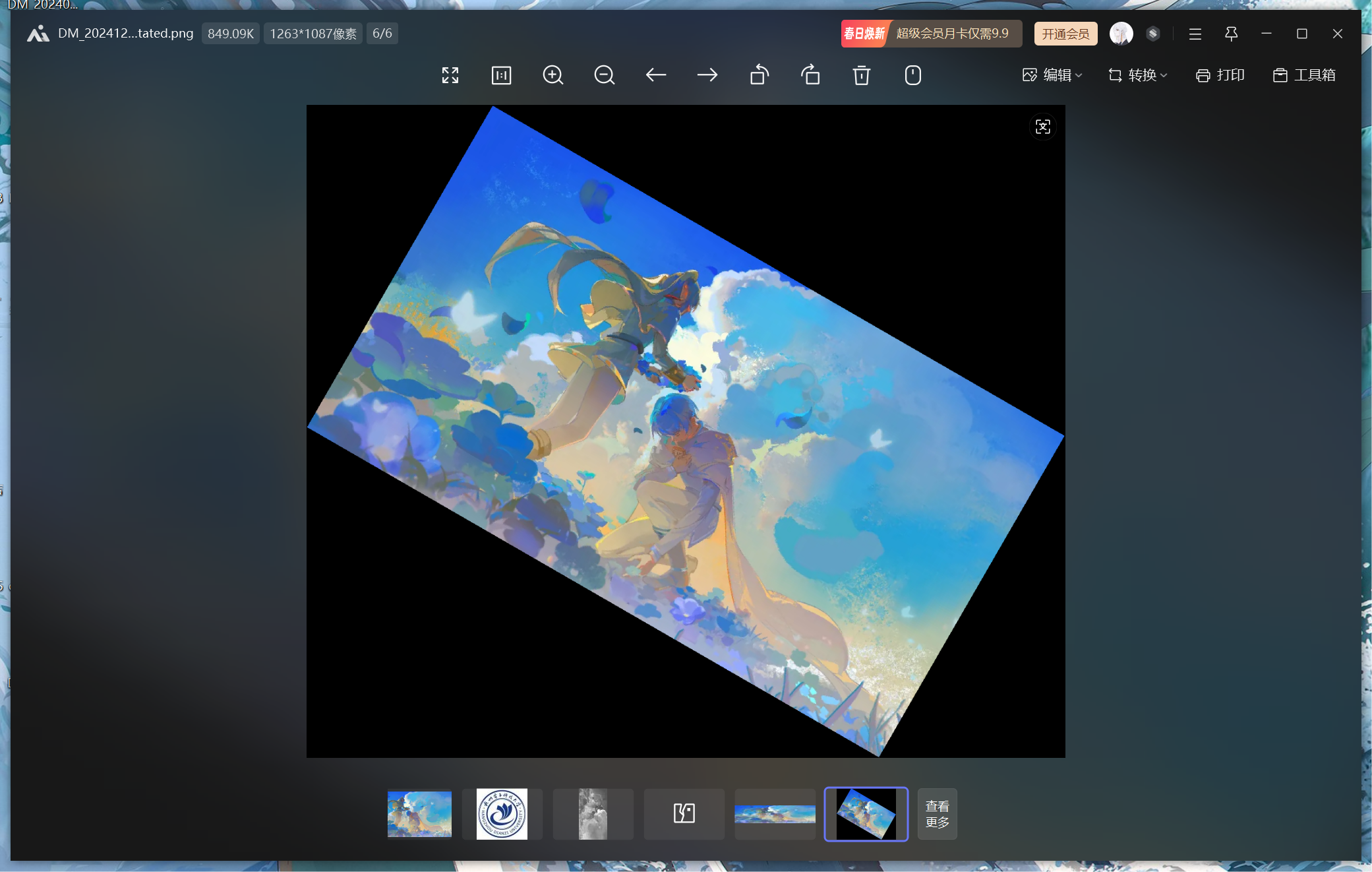

三、结果展示
四、疑问
若本代码报错,有以下几种可能:
(1)未安装包/包没更新;
(2)图片格式问题,可能是通道不一样;
(3)图片数据通道异常问题;
(4)查看具体报错信息,咨询AI辅助修改。
欢迎各位同学交流互助交作业!
