16，拾取点云
那该如何将点云ID写入文件呢？这样有利于拾取，获取相应属性。//<点云key，全局开始索引ID>集合。在创建点云geometry时写入。//如果数据为空，则返回一个空的。调用Main.cpp。
那该如何将点云ID写入文件呢？这样有利于拾取，获取相应属性。
设置一个结构体
struct ElementInfo
{
//坐标
osg::Vec3 pos;
//全局变量
uint32_t globalID;
};
在创建点云geometry时写入
// ID存到UserDataContainer（不影响渲染！）
osg::ref_ptr<osg::UserDataContainer> udc = new osg::DefaultUserDataContainer();
udc->addUserObject(ids); // 不加名字也行
// 或者加个名字，方便查找
// udc->setUserObject(ids, "GlobalIDs");
geometry->setUserDataContainer(udc);
//给当前geom设置名字
std::string strBlockID = "block" + std::to_string(_currentBlockID);
theGeom->setName(strBlockID);
拾取
bool bFind = false;
const osgUtil::PolytopeIntersector::Intersections& intersections = intersector->getIntersections();
for (osgUtil::PolytopeIntersector::Intersections::iterator it =
intersections.begin(); it != intersections.end(); ++it)
{
osg::Geometry* theGeom = dynamic_cast<osg::Geometry*> (it->drawable.get());
if (theGeom == nullptr)
{
continue;
}
std::string theName = theGeom->getName();
size_t pos = theName.find("block");
if (pos == std::string::npos)
{
continue;
}
int localIndex = it->primitiveIndex;
int globalID = -1;
// 3. 获取全局ID（从UserDataContainer）
osg::UserDataContainer* udc = theGeom->getUserDataContainer();
if (udc)
{
// 方式1：遍历查找
for (unsigned int i = 0; i < udc->getNumUserObjects(); ++i)
{
osg::UIntArray* ids = dynamic_cast<osg::UIntArray*>(udc->getUserObject(i));
if (ids && localIndex < ids->size())
{
globalID = (*ids)[localIndex];
bFind = true;
break;
}
}
}
if (bFind)
{
std::cout << "拾取点在点云" << theName << "中，局部索引:" << localIndex <<",全局索引" << globalID << std::endl;
break;
}

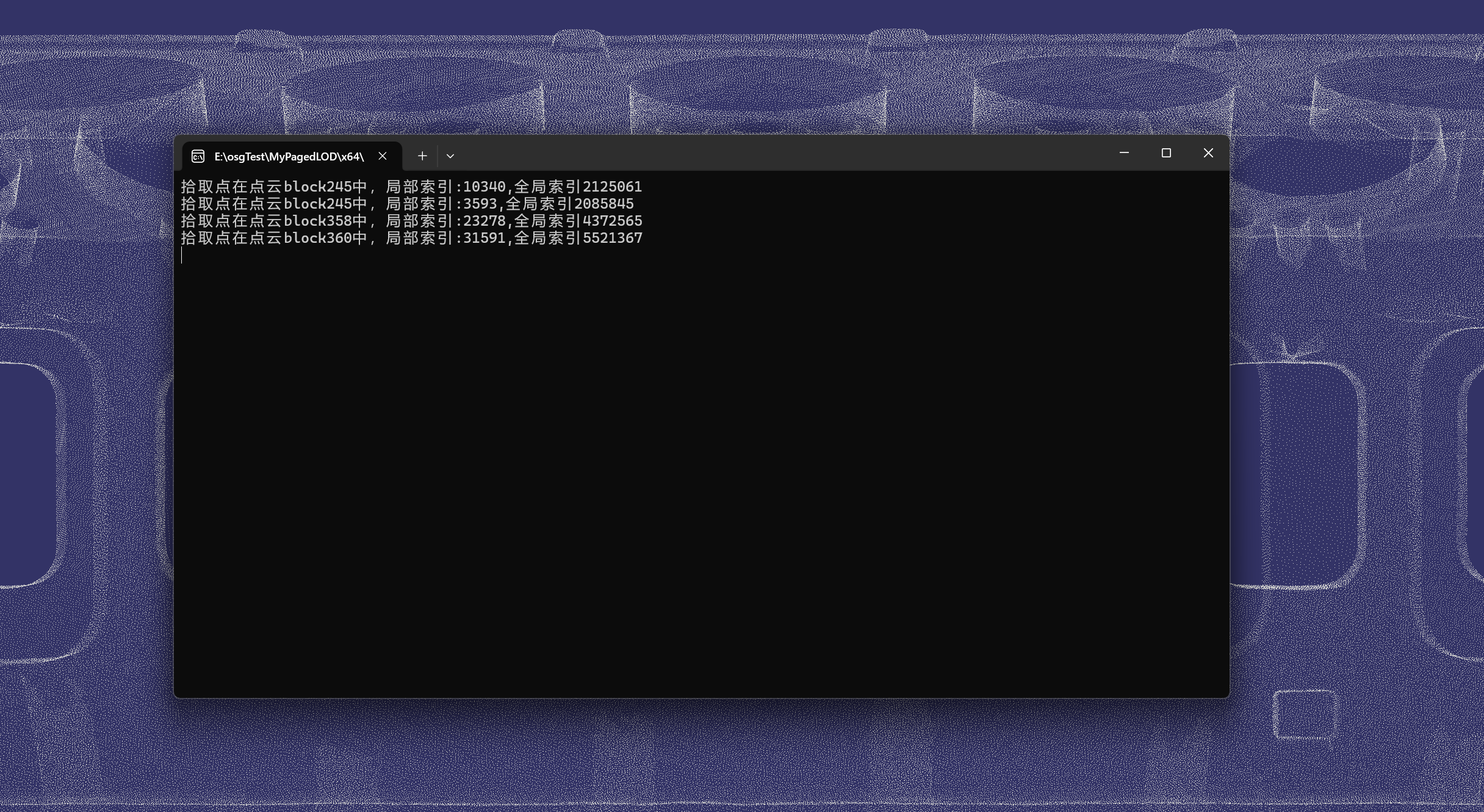

运行结果
代码如下：
STLReader.h
#pragma once
#include <osg/Notify>
#include <osg/Endian>
#include <osg/Types>
#include <osgDB/Registry>
#include <osgDB/ReadFile>
#include <osgDB/FileNameUtils>
#include <osgDB/FileUtils>
#include <osg/Geode>
#include <osg/Geometry>
#include <stdio.h>
#include <sys/types.h>
#include <sys/stat.h>
#include <string.h>
#include
#include <osgViewer/Viewer>
class ReaderObject
{
public:
ReaderObject();
virtual ~ReaderObject();
enum ReadResult
{
ReadSuccess,
ReadError,
ReadEOF
};
virtual ReadResult read(FILE* fp) = 0;
osg::ref_ptr<osg::Vec3Array> getVertexArray();
protected:
osg::ref_ptr<osg::Vec3Array> _vertex;
osg::ref_ptr<osg::Vec3Array> _normal;
osg::ref_ptr<osg::Vec4Array> _color;
void clear()
{
_vertex = osg::ref_ptr<osg::Vec3Array>();
_normal = osg::ref_ptr<osg::Vec3Array>();
_color = osg::ref_ptr<osg::Vec4Array>();
}
};
class AsciiReaderObject : public ReaderObject
{
public:
AsciiReaderObject()
: ReaderObject()
{
}
ReadResult read(FILE* fp);
};
STLReader.cpp
#include “STLReader.h”
osg::ref_ptrosg::Vec3Array ReaderObject::getVertexArray()
{
return _vertex;
}
ReaderObject::ReaderObject()
{
this->clear();
}
ReaderObject::~ReaderObject()
{
this->clear();
}
ReaderObject::ReadResult AsciiReaderObject::read(FILE* fp)
{
unsigned int vertexCount = 0;
unsigned int facetIndex[] = { 0, 0, 0 };
unsigned int vertexIndex = 0;
unsigned int normalIndex = 0;
const int MaxLineSize = 256;
char buf[MaxLineSize];
char sx[MaxLineSize], sy[MaxLineSize], sz[MaxLineSize];
// clear();
while (fgets(buf, sizeof(buf), fp))
{
// strip '\n' or '\r\n' and trailing whitespace
unsigned int len = strlen(buf) - 1;
while (len && (buf[len] == '\n' || buf[len] == '\r' || isspace(buf[len])))
{
buf[len--] = '\0';
}
if (len == 0 || buf[0] == '\0')
{
continue;
}
// strip leading whitespace
char* bp = buf;
while (isspace(*bp))
{
++bp;
}
if (strncmp(bp, "vertex", 6) == 0)
{
if (sscanf(bp + 6, "%s %s %s", sx, sy, sz) == 3)
{
if (!_vertex.valid())
_vertex = new osg::Vec3Array;
float vx = osg::asciiToFloat(sx);
float vy = osg::asciiToFloat(sy);
float vz = osg::asciiToFloat(sz);
vertexIndex = _vertex->size();
if (vertexCount < 3)
{
_vertex->push_back(osg::Vec3(vx, vy, vz));
facetIndex[vertexCount++] = vertexIndex;
}
}
}
else if (strncmp(bp, "facet", 5) == 0)
{
if (sscanf(bp + 5, "%*s %s %s %s", sx, sy, sz) == 3)
{
float nx = osg::asciiToFloat(sx);
float ny = osg::asciiToFloat(sy);
float nz = osg::asciiToFloat(sz);
if (!_normal.valid())
_normal = new osg::Vec3Array;
osg::Vec3 normal(nx, ny, nz);
normal.normalize();
normalIndex = _normal->size();
_normal->push_back(normal);
vertexCount = 0;
}
}
else if (strncmp(bp, "solid", 5) == 0)
{
OSG_INFO << "STL loader parsing '" << bp + 6 << "'" << std::endl;
}
else if (strncmp(bp, "endsolid", 8) == 0)
{
return ReadSuccess;
}
}
return ReadEOF;
}
OctreeBuilder.h
#pragma once
#include <osg/PagedLod>
#include <osg/Geometry>
class OctreeBuilder
{
struct ElementInfo
{
//坐标
osg::Vec3 pos;
//全局变量
uint32_t globalID;
};
protected:
osg::PagedLOD* createNewLevel(int level, const osg::Vec3& center, float radius);
osg::ref_ptrosg::Geometry createElement(std::vectorOctreeBuilder::ElementInfo childData);
osg::Geode* createBoxForDebug(const osg::Vec3& maxValue, const osg::Vec3& minValue);
int _maxChildNumber;
int _maxTreeDepth;
int _maxLevel;
std::string _strRootDir;
osg::ref_ptr<osg::Vec3Array> _posArray = nullptr;
//简模
osg::ref_ptr<osg::Group> _simpleModel = NULL;
//当前块ID
int _currentBlockID = 0;
public:
OctreeBuilder(std::string strRootDir,osg::ref_ptrosg::Vec3Array posArray)
{
_maxChildNumber = 50000;
_maxTreeDepth = 32;
_maxLevel = 0;
_strRootDir = strRootDir;
_posArray = posArray;
}
void run();
int getMaxLevel() const
{
return _maxLevel;
}
void setMaxChildNumber(int maxValue)
{
_maxChildNumber = maxValue;
}
int getMaxChildNumber()
{
return _maxChildNumber;
}
void setMaxTreeDepth(int maxValue)
{
_maxTreeDepth = maxValue;
}
int getMaxTreeDepth() const
{
return _maxTreeDepth;
}
osg::Group* build( int depth, const osg::BoundingBox& total, std::vectorOctreeBuilder::ElementInfo elementInfoVector);
//建立简模
osg::ref_ptrosg::Group buildSimpleModel();
};
OctreeBuilder.cpp
#include “OctreeBuilder.h”
#include
#include <sys/stat.h>
#include <io.h>
#include <direct.h>
#include <osg/Point>
#include <osg/Geode>
#include <osg/ShapeDrawable>
#include <osgDB/WriteFile>
osg::PagedLOD* OctreeBuilder::createNewLevel(int level, const osg::Vec3& center, float radius)
{
osg::ref_ptrosg::PagedLOD lod = new osg::PagedLOD;
lod->setCenter(center);
lod->setRadius(radius);
if (level == 0)
{
lod->setRange(0, 0.0f, 3000);
lod->setRange(1, 3000, FLT_MAX);
}
else
{
lod->setRange(0, 0.0f, radius * 50.0);
}
//lod->setRange(0, radius * 50.0f, FLT_MAX);
//lod->setRange(1, 0.0f, radius * 50.0f);
//lod->setRange(0, 0.0f, radius * 1000.0f);
//lod->setRange(0, 0.0f, radius * 500.0f);
//lod->setRange(0, 0.0f, radius * 200.0f);
// lod->setRange(0, 0.0f, radius * 50.0f);
//lod->setRange(0, 0.0f, FLT_MAX);
if (_maxLevel < level)
{
_maxLevel = level;
}
return lod.release();
}
osg::ref_ptrosg::Geometry OctreeBuilder::createElement(std::vectorOctreeBuilder::ElementInfo childData )
{
osg::ref_ptrosg::Geometry geometry = new osg::Geometry();
// 1. 设置顶点数组（点的位置）
osg::ref_ptr<osg::Vec3Array> posArray = new osg::Vec3Array;
// ID - 存到UserDataContainer（完全不影响渲染）
osg::ref_ptr<osg::UIntArray> ids = new osg::UIntArray();
for (int i = 0; i < childData.size(); i++)
{
ElementInfo info = childData[i];
posArray->push_back(info.pos);
ids->push_back(info.globalID);
}
geometry->setVertexArray(posArray);
// 3. 设置点的绘制方式
geometry->addPrimitiveSet(new osg::DrawArrays(
osg::PrimitiveSet::POINTS, // 绘制类型为点
0, // 起始索引
childData.size() // 点的数量
));
// ID存到UserDataContainer（不影响渲染！）
osg::ref_ptr<osg::UserDataContainer> udc = new osg::DefaultUserDataContainer();
udc->addUserObject(ids); // 不加名字也行
// 或者加个名字，方便查找
// udc->setUserObject(ids, "GlobalIDs");
geometry->setUserDataContainer(udc);
// 4. 设置点的大小
//osg::ref_ptr<osg::Point> point = new osg::Point();
//point->setSize(100.0f); // 设置点大小
//geometry->getOrCreateStateSet()->setAttribute(point.get());
// 启用光照（可选）
//geometry->getOrCreateStateSet()->setMode(GL_LIGHTING, osg::StateAttribute::OFF);
return geometry;
}
osg::Geode* OctreeBuilder::createBoxForDebug(const osg::Vec3& maxValue, const osg::Vec3& minValue)
{
osg::ref_ptrosg::Geode geode = new osg::Geode;
osg::Vec3 center = (maxValue + minValue) / 2.0;
float width = (maxValue - minValue).length() * 0.5;
//float width = 100;
geode->addDrawable(new osg::ShapeDrawable(new osg::Box(center, width)));
return geode.release();
}
void OctreeBuilder::run()
{
_currentBlockID = 0;
osg::BoundingBox globalBound;
std::vectorOctreeBuilder::ElementInfo globalElements;
for (int i = 0; i < _posArray->size(); i++)
{
osg::Vec3 pos = _posArray->at(i);
globalBound.expandBy(pos);
ElementInfo info;
info.pos = pos;
info.globalID = i;
globalElements.push_back(info);
}
osg::ref_ptr<osg::Group> rootPlot = this->build(0, globalBound, globalElements);
osg::ref_ptr<osg::Group> root = new osg::Group;
root->addChild(rootPlot);
std::string strRootOutputFileName = _strRootDir + "root.osgb";
osgDB::writeNodeFile(*root, strRootOutputFileName);
}
osg::Group* OctreeBuilder::build(int depth, const osg::BoundingBox& total, std::vectorOctreeBuilder::ElementInfo elementInfoVector)
{
int s[3];
osg::Vec3 extentSet[3] =
{
total._min,
(total._max + total._min) * 0.5f,
total._max
};
std::vectorOctreeBuilder::ElementInfo childData;
childData.clear();
for (unsigned int i = 0; i < elementInfoVector.size(); i++)
{
ElementInfo info = elementInfoVector[i];
if (total.contains(info.pos) )
{
childData.push_back(info);
}
}
//如果数据为空，则返回一个空的
if (childData.size() == 0)
{
return NULL;
}
bool isLeafNode = false;
if ((int) childData.size()<= _maxChildNumber|| depth > _maxTreeDepth)
{
isLeafNode = true;
}
osg::ref_ptr<osg::Group> group = new osg::Group;
if (!isLeafNode)
{
osg::ref_ptr<osg::Group> childNodes[8];
for (s[0] = 0; s[0] < 2; s[0]++ )
{
for (s[1] = 0; s[1] < 2; s[1]++)
{
for (s[2] = 0; s[2] < 2; s[2]++)
{
osg::Vec3 min, max;
for (int a = 0; a < 3; a++)
{
min[a] = (extentSet[s[a] + 0])[a];
max[a] = (extentSet[s[a] + 1])[a];
}
int id = s[0] + (2 * s[1]) + 4 * s[2];
childNodes[id] = build(depth + 1, osg::BoundingBox(min, max), childData);
}
}
}
for (unsigned int i = 0; i < 8; i++)
{
if (childNodes[i] )
{
group->addChild(childNodes[i]);
}
}
}
else
{
osg::ref_ptr<osg::Geometry> theGeom = createElement(childData);
group->addChild(theGeom);
//给当前geom设置名字
std::string strBlockID = "block" + std::to_string(_currentBlockID);
theGeom->setName(strBlockID);
//更新当前块ID和全局开始索引ID，供下一个块处理
_currentBlockID++;
}
//如果group为空，则返回
if (group->getNumChildren() == 0)
{
return NULL;
}
//如果没有文件夹，则建立
std::string strDir = _strRootDir + std::to_string(depth);
if (access(strDir.c_str(),0) == -1)
{
mkdir(strDir.c_str());
}
osg::Vec3 center = (total._max + total._min) * 0.5;
float radius = (total._max - total._min).length() * 0.5f;
std::string strName = std::to_string(depth) + "/"
"x_" + std::to_string(center.x()) +
"_y_" + std::to_string(center.y()) +
"_z_" + std::to_string(center.z()) + ".osgb";
std::string strOutputFile = _strRootDir + strName;
osgDB::writeNodeFile(*group, strOutputFile);
osg::PagedLOD* level = createNewLevel(depth, center, radius);
//level->insertChild(0, createBoxForDebug(total._max, total._min)); //在145行对应 if (childNodes[i] && childNodes[i]->getNumChildren())
//level->insertChild(1, group.get());
//level->insertChild(0, group.get());
std::string strLevelGroupFileName = "../" + std::to_string(depth) + "/"
"x_" + std::to_string(center.x()) +
"_y_" + std::to_string(center.y()) +
"_z_" + std::to_string(center.z()) + ".osgb";
if (depth==0)
{
strLevelGroupFileName = std::to_string(depth) + "/"
"x_" + std::to_string(center.x()) +
"_y_" + std::to_string(center.y()) +
"_z_" + std::to_string(center.z()) + ".osgb";
}
//level->setFileName(1, strLevelGroupFileName);
level->setFileName(0, strLevelGroupFileName);
if (depth == 0)
{
//简模
osg::ref_ptr<osg::Group> simpleGrp = this->buildSimpleModel();
std::string strSimpleNameWithDir = _strRootDir + std::to_string(depth) + "/simpleModel.osgb";
osgDB::writeNodeFile(*simpleGrp, strSimpleNameWithDir);
std::string strSimpleLevelName = std::to_string(depth) + "/simpleModel.osgb";
level->setFileName(1, strSimpleLevelName);
}
return level;
}
osg::ref_ptrosg::Group OctreeBuilder::buildSimpleModel()
{
osg::ref_ptrosg::Group simpleModelGrp = new osg::Group;
int theSize = _posArray->size();
int simpleSize = _maxChildNumber;
int intervalNumber = theSize / simpleSize;
std::vectorOctreeBuilder::ElementInfo simplePosArray ;
for ( int i = 0; i < theSize; i++)
{
if (i % intervalNumber != 0)
{
continue;
}
ElementInfo info;
info.pos = _posArray->at(i);
info.globalID = i;
simplePosArray.push_back(info);
}
simpleModelGrp->addChild(createElement(simplePosArray));
return simpleModelGrp;
}
PointPickerHandler.h
#pragma once
#include <osgUtil/PolytopeIntersector>
#include <osgUtil/IntersectionVisitor>
#include <osgViewer/Viewer>
#include <osgGA/GUIEventHandler>
class PointPickHandler : public osgGA::GUIEventHandler
{
public:
PointPickHandler(osgViewer::Viewer* viewer) : _viewer(viewer)
{
}
virtual bool handle(const osgGA::GUIEventAdapter& ea, osgGA::GUIActionAdapter&)
{
if (ea.getEventType() == osgGA::GUIEventAdapter::PUSH)
{
int x = ea.getX();
int y = ea.getY();
// 1. 获取窗口尺寸，并转换Y轴坐标（OSG窗口原点在左下角）
const osg::GraphicsContext::Traits* traits =
_viewer->getCamera()->getGraphicsContext()->getTraits();
if (!traits) return false;
y = traits->height - y;
// 2. 定义拾取区域的大小（例如，一个5x5像素的窗口）
float pickSize = 5.0f;
double xMin = x - pickSize;
double yMin = y - pickSize;
double xMax = x + pickSize;
double yMax = y + pickSize;
// 3. 创建PolytopeIntersector，指定坐标系为WINDOW，并定义矩形区域
osg::ref_ptr<osgUtil::PolytopeIntersector> intersector =
new osgUtil::PolytopeIntersector(osgUtil::Intersector::WINDOW, xMin, yMin, xMax, yMax);
// 4. 关键步骤：设置维度掩码，使其只检测点（DimZero）
// 如果还想检测线和面，可以使用位或操作，例如：DimZero | DimOne | DimTwo
intersector->setDimensionMask(osgUtil::PolytopeIntersector::DimZero);
// 5. 启动相交测试
osgUtil::IntersectionVisitor iv(intersector);
_viewer->getCamera()->accept(iv);
// 6. 处理结果：检查是否拾取到点
if (!intersector->containsIntersections())
{
return false;
}
{
bool bFind = false;
const osgUtil::PolytopeIntersector::Intersections& intersections = intersector->getIntersections();
for (osgUtil::PolytopeIntersector::Intersections::iterator it =
intersections.begin(); it != intersections.end(); ++it)
{
osg::Geometry* theGeom = dynamic_cast<osg::Geometry*> (it->drawable.get());
if (theGeom == nullptr)
{
continue;
}
std::string theName = theGeom->getName();
size_t pos = theName.find("block");
if (pos == std::string::npos)
{
continue;
}
int localIndex = it->primitiveIndex;
int globalID = -1;
// 3. 获取全局ID（从UserDataContainer）
osg::UserDataContainer* udc = theGeom->getUserDataContainer();
if (udc)
{
// 方式1：遍历查找
for (unsigned int i = 0; i < udc->getNumUserObjects(); ++i)
{
osg::UIntArray* ids = dynamic_cast<osg::UIntArray*>(udc->getUserObject(i));
if (ids && localIndex < ids->size())
{
globalID = (*ids)[localIndex];
bFind = true;
break;
}
}
}
if (bFind)
{
std::cout << "拾取点在点云" << theName << "中，局部索引:" << localIndex <<",全局索引" << globalID << std::endl;
break;
}
// 对于点图元，localIntersectionPoint即为被拾取点的坐标
// 这个坐标是局部坐标，如果需要世界坐标，可以结合it->matrix进行变换
//osg::Vec3 localPoint = it->localIntersectionPoint;
//OSG_NOTICE << "Picked a point at: " << localPoint.x() << ", "
// << localPoint.y() << ", " << localPoint.z() << std::endl;
// 可以进一步获取更多信息，如所在的Drawable、Primitive索引等
// unsigned int primitiveIndex = it->primitiveIndex;
// osg::Drawable* drawable = it->drawable.get();
}
}
return true;
}
return false;
}
private:
osgViewer::Viewer* _viewer;
//<点云key，全局开始索引ID>集合
std::map<std::string, int> _data;
};
调用Main.cpp
#include “STLReader.h”
#include “OctreeBuilder.h”
#include <osgGA/TrackballManipulator>
#include “PointPickerHandler.h”
int main()
{
std::string strRootDir = “d:/test/stllod/50000/”;
#if 0
std::string fileName = “d:/test/dianyun.stl”;
FILE* fp = osgDB::fopen(fileName.c_str(), "r");
osg::ref_ptr<osg::Group> group = new osg::Group;
// read
rewind(fp);
ReaderObject* readerObject = new AsciiReaderObject();
std::auto_ptr<ReaderObject> readerPtr(readerObject);
while (1)
{
ReaderObject::ReadResult result;
if ((result = readerPtr->read(fp)) == ReaderObject::ReadError)
{
fclose(fp);
return -1;
}
if (result == ReaderObject::ReadEOF)
break;
}
fclose(fp);
osg::ref_ptr<osg::Vec3Array> posArray = readerPtr->getVertexArray();
OctreeBuilder octree(strRootDir, posArray);
octree.run();
return 0;
#else
std::string strRootOutputFileName = strRootDir + “root.osgb”;
//std::string strRootOutputFileName = strRootDir + “0/simpleModel.osg”;
osg::ref_ptrosgViewer::Viewer viewer = new osgViewer::Viewer;
//unsigned int currentDefault = viewer->getDatabasePager()->getTargetMaximumNumberOfPageLOD();
//bool bcompiled =viewer->getDatabasePager()->getDoPreCompile();
osg::ref_ptrosg::Node root = osgDB::readNodeFile(strRootOutputFileName);
root->getOrCreateStateSet()->setMode(GL_LIGHTING, osg::StateAttribute::OFF);
osg::ref_ptr<PointPickHandler> pickerHandler = new PointPickHandler(viewer);
viewer->addEventHandler(pickerHandler);
viewer->setSceneData(root);
return viewer->run();
#endif
}
有“AI”的1024 = 2048，欢迎大家加入2048 AI社区
更多推荐
0
0- 0
已为社区贡献4条内容
所有评论(0)
