MES/ERP作业协同场景，业务执行的委托事件封装，多结构专门化多并发客户端指令操作，多线程专用复杂成员方法类封装的界面后台API组件解决方案

MES/ERP 作业协同 - 委托事件 + 多结构并发指令操作组件解决方案

你需要的是在 MES/ERP 作业协同场景下，基于委托事件封装实现业务执行的解耦触发，针对多结构（多产线 / 多工序 / 多资源）设计专门化多并发客户端指令操作，并通过多线程专用的复杂成员方法类封装，构建包含界面、后台、API 的完整组件化解决方案。

本次方案核心聚焦：委托事件的标准化封装、多结构并发指令的精准控制、多线程安全的复杂方法封装，同时保持组件的高内聚低耦合，适配 MES/ERP 作业协同的高并发、高可靠需求。

一、核心设计理念

1. 核心问题拆解

场景痛点	技术解决方案
业务执行与事件触发紧耦合	标准化委托事件封装，事件发布 / 订阅解耦
多结构指令操作混乱	指令分类 + 多结构适配 + 并发控制
多线程复杂方法易出错	专用线程安全类 + 成员方法封装 + 异常隔离
客户端 / 后台 / API 协同难	统一指令模型 + 接口标准化 + 状态同步

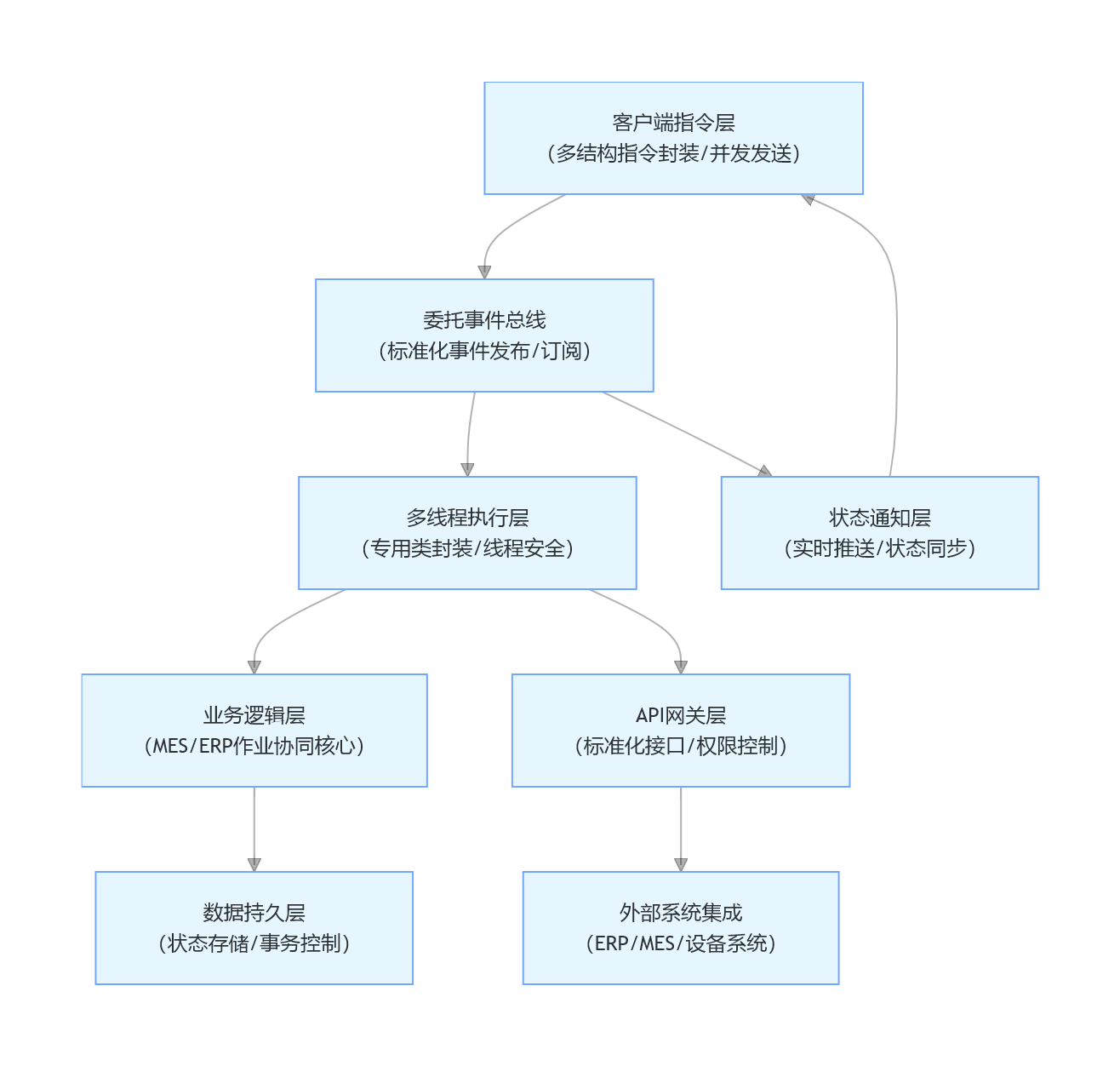

2. 整体架构

3. 技术栈说明

委托事件：.NET 原生委托 + 事件 + 自定义事件参数，实现解耦触发
并发控制：Task+SemaphoreSlim+ConcurrentDictionary，保证线程安全
指令封装：指令接口 + 多结构指令实现类，适配不同业务结构
多线程类封装：专用执行类 + 线程安全成员方法 + 异常处理
通信层：ASP.NET Web API+SignalR（实时状态推送）
界面层：WinForm（客户端）+WPF（可选），MVVM 模式

二、核心组件实现

1. 标准化委托事件封装

1.1 事件定义（核心）

using System;
using System.Collections.Concurrent;
using System.Threading;
using System.Threading.Tasks;

#region 事件枚举定义
/// <summary>
/// 作业协同事件类型
/// </summary>
public enum WorkCollabEventType
{
    CommandReceived,    // 指令接收
    ExecutionStarted,   // 执行开始
    ExecutionProgress,  // 执行进度
    ExecutionCompleted, // 执行完成
    ExecutionFailed,    // 执行失败
    StatusChanged       // 状态变更
}

/// <summary>
/// 指令执行状态
/// </summary>
public enum CommandStatus
{
    Pending,    // 待执行
    Running,    // 执行中
    Completed,  // 完成
    Failed,     // 失败
    Cancelled   // 取消
}
#endregion

#region 自定义事件参数
/// <summary>
/// 作业协同事件参数基类
/// </summary>
public class WorkCollabEventArgs : EventArgs
{
    /// <summary>
    /// 事件ID
    /// </summary>
    public string EventId { get; set; } = Guid.NewGuid().ToString("N");

    /// <summary>
    /// 事件类型
    /// </summary>
    public WorkCollabEventType EventType { get; set; }

    /// <summary>
    /// 事件时间
    /// </summary>
    public DateTime EventTime { get; set; } = DateTime.Now;

    /// <summary>
    /// 关联指令ID
    /// </summary>
    public string CommandId { get; set; }

    /// <summary>
    /// 附加数据
    /// </summary>
    public Dictionary<string, object> ExtraData { get; set; } = new Dictionary<string, object>();
}

/// <summary>
/// 指令执行进度事件参数
/// </summary>
public class ExecutionProgressEventArgs : WorkCollabEventArgs
{
    public ExecutionProgressEventArgs()
    {
        EventType = WorkCollabEventType.ExecutionProgress;
    }

    /// <summary>
    /// 执行进度（0-100）
    /// </summary>
    public int Progress { get; set; }

    /// <summary>
    /// 当前执行步骤
    /// </summary>
    public string CurrentStep { get; set; }
}

/// <summary>
/// 指令执行完成事件参数
/// </summary>
public class ExecutionCompletedEventArgs : WorkCollabEventArgs
{
    public ExecutionCompletedEventArgs()
    {
        EventType = WorkCollabEventType.ExecutionCompleted;
    }

    /// <summary>
    /// 执行结果
    /// </summary>
    public bool Success { get; set; }

    /// <summary>
    /// 结果数据
    /// </summary>
    public object ResultData { get; set; }

    /// <summary>
    /// 执行耗时（毫秒）
    /// </summary>
    public long ExecutionTimeMs { get; set; }
}

/// <summary>
/// 指令执行失败事件参数
/// </summary>
public class ExecutionFailedEventArgs : WorkCollabEventArgs
{
    public ExecutionFailedEventArgs()
    {
        EventType = WorkCollabEventType.ExecutionFailed;
    }

    /// <summary>
    /// 异常信息
    /// </summary>
    public string ErrorMessage { get; set; }

    /// <summary>
    /// 异常堆栈
    /// </summary>
    public string StackTrace { get; set; }

    /// <summary>
    /// 重试次数
    /// </summary>
    public int RetryCount { get; set; }
}
#endregion

#region 委托定义
/// <summary>
/// 作业协同事件委托
/// </summary>
/// <param name="sender">发送者</param>
/// <param name="e">事件参数</param>
public delegate void WorkCollabEventHandler(object sender, WorkCollabEventArgs e);

/// <summary>
/// 进度更新委托（专门用于UI更新）
/// </summary>
/// <param name="commandId">指令ID</param>
/// <param name="progress">进度</param>
/// <param name="status">状态</param>
public delegate void ProgressUpdateDelegate(string commandId, int progress, CommandStatus status);
#endregion

#region 事件总线（核心）
/// <summary>
/// 作业协同事件总线
/// 功能：统一管理事件发布/订阅，支持多线程安全操作
/// </summary>
public class WorkCollabEventBus
{
    // 单例实例
    private static readonly Lazy<WorkCollabEventBus> _instance = new Lazy<WorkCollabEventBus>(() => new WorkCollabEventBus());
    public static WorkCollabEventBus Instance => _instance.Value;

    // 事件订阅字典（线程安全）
    private readonly ConcurrentDictionary<WorkCollabEventType, List<WorkCollabEventHandler>> _eventHandlers =
        new ConcurrentDictionary<WorkCollabEventType, List<WorkCollabEventHandler>>();

    // 锁对象
    private readonly object _lockObj = new object();

    /// <summary>
    /// 私有构造函数
    /// </summary>
    private WorkCollabEventBus()
    {
        // 初始化所有事件类型
        foreach (WorkCollabEventType type in Enum.GetValues(typeof(WorkCollabEventType)))
        {
            _eventHandlers.TryAdd(type, new List<WorkCollabEventHandler>());
        }
    }

    /// <summary>
    /// 订阅事件
    /// </summary>
    /// <param name="eventType">事件类型</param>
    /// <param name="handler">事件处理方法</param>
    public void Subscribe(WorkCollabEventType eventType, WorkCollabEventHandler handler)
    {
        lock (_lockObj)
        {
            if (_eventHandlers.TryGetValue(eventType, out var handlers))
            {
                if (!handlers.Contains(handler))
                {
                    handlers.Add(handler);
                }
            }
        }
        Console.WriteLine($"订阅事件：{eventType}，处理方法：{handler.Method.Name}");
    }

    /// <summary>
    /// 取消订阅事件
    /// </summary>
    /// <param name="eventType">事件类型</param>
    /// <param name="handler">事件处理方法</param>
    public void Unsubscribe(WorkCollabEventType eventType, WorkCollabEventHandler handler)
    {
        lock (_lockObj)
        {
            if (_eventHandlers.TryGetValue(eventType, out var handlers))
            {
                if (handlers.Contains(handler))
                {
                    handlers.Remove(handler);
                }
            }
        }
        Console.WriteLine($"取消订阅事件：{eventType}，处理方法：{handler.Method.Name}");
    }

    /// <summary>
    /// 发布事件（同步）
    /// </summary>
    /// <param name="sender">发送者</param>
    /// <param name="e">事件参数</param>
    public void Publish(object sender, WorkCollabEventArgs e)
    {
        if (_eventHandlers.TryGetValue(e.EventType, out var handlers))
        {
            // 复制一份避免遍历过程中集合变更
            var handlersCopy = new List<WorkCollabEventHandler>(handlers);

            foreach (var handler in handlersCopy)
            {
                try
                {
                    handler?.Invoke(sender, e);
                }
                catch (Exception ex)
                {
                    Console.WriteLine($"事件处理失败：{ex.Message}");
                }
            }
        }
    }

    /// <summary>
    /// 发布事件（异步）
    /// </summary>
    /// <param name="sender">发送者</param>
    /// <param name="e">事件参数</param>
    /// <returns></returns>
    public async Task PublishAsync(object sender, WorkCollabEventArgs e)
    {
        await Task.Run(() => Publish(sender, e));
    }
}
#endregion

1.2 事件使用示例

// 1. 订阅事件
WorkCollabEventBus.Instance.Subscribe(WorkCollabEventType.ExecutionProgress, OnExecutionProgress);
WorkCollabEventBus.Instance.Subscribe(WorkCollabEventType.ExecutionCompleted, OnExecutionCompleted);

// 2. 事件处理方法
private void OnExecutionProgress(object sender, WorkCollabEventArgs e)
{
    if (e is ExecutionProgressEventArgs progressArgs)
    {
        Console.WriteLine($"指令{progressArgs.CommandId}进度：{progressArgs.Progress}%，当前步骤：{progressArgs.CurrentStep}");
        // 更新UI（需跨线程处理）
        UpdateProgressUI(progressArgs.CommandId, progressArgs.Progress, CommandStatus.Running);
    }
}

private void OnExecutionCompleted(object sender, WorkCollabEventArgs e)
{
    if (e is ExecutionCompletedEventArgs completedArgs)
    {
        Console.WriteLine($"指令{completedArgs.CommandId}执行{(completedArgs.Success ? "成功" : "失败")}，耗时：{completedArgs.ExecutionTimeMs}ms");
        // 更新UI状态
        UpdateCommandStatusUI(completedArgs.CommandId, completedArgs.Success ? CommandStatus.Completed : CommandStatus.Failed);
    }
}

// 3. 发布事件（执行过程中）
private async Task ExecuteCommandAsync(string commandId)
{
    // 发布开始事件
    await WorkCollabEventBus.Instance.PublishAsync(this, new WorkCollabEventArgs
    {
        EventType = WorkCollabEventType.ExecutionStarted,
        CommandId = commandId
    });

    try
    {
        // 模拟执行步骤
        for (int i = 0; i <= 100; i += 10)
        {
            // 发布进度事件
            await WorkCollabEventBus.Instance.PublishAsync(this, new ExecutionProgressEventArgs
            {
                CommandId = commandId,
                Progress = i,
                CurrentStep = $"执行步骤{i/10 + 1}"
            });

            await Task.Delay(100); // 模拟耗时操作
        }

        // 发布完成事件
        await WorkCollabEventBus.Instance.PublishAsync(this, new ExecutionCompletedEventArgs
        {
            CommandId = commandId,
            Success = true,
            ResultData = "执行结果数据",
            ExecutionTimeMs = 1000
        });
    }
    catch (Exception ex)
    {
        // 发布失败事件
        await WorkCollabEventBus.Instance.PublishAsync(this, new ExecutionFailedEventArgs
        {
            CommandId = commandId,
            ErrorMessage = ex.Message,
            StackTrace = ex.StackTrace,
            RetryCount = 0
        });
    }
}

2. 多结构并发指令操作封装

2.1 指令模型定义

#region 指令基类与多结构实现
/// <summary>
/// 指令基类
/// </summary>
public abstract class BaseCommand
{
    /// <summary>
    /// 指令ID
    /// </summary>
    public string CommandId { get; set; } = Guid.NewGuid().ToString("N");

    /// <summary>
    /// 指令名称
    /// </summary>
    public string CommandName { get; set; }

    /// <summary>
    /// 指令类型
    /// </summary>
    public string CommandType { get; set; }

    /// <summary>
    /// 结构类型（产线/工序/工位/资源）
    /// </summary>
    public string StructureType { get; set; }

    /// <summary>
    /// 结构ID（产线ID/工序ID等）
    /// </summary>
    public string StructureId { get; set; }

    /// <summary>
    /// 指令参数
    /// </summary>
    public Dictionary<string, object> Parameters { get; set; } = new Dictionary<string, object>();

    /// <summary>
    /// 执行优先级（1-10，1最高）
    /// </summary>
    public int Priority { get; set; } = 5;

    /// <summary>
    /// 执行状态
    /// </summary>
    public CommandStatus Status { get; set; } = CommandStatus.Pending;

    /// <summary>
    /// 创建时间
    /// </summary>
    public DateTime CreateTime { get; set; } = DateTime.Now;

    /// <summary>
    /// 执行开始时间
    /// </summary>
    public DateTime? StartTime { get; set; }

    /// <summary>
    /// 执行结束时间
    /// </summary>
    public DateTime? EndTime { get; set; }

    /// <summary>
    /// 取消令牌源
    /// </summary>
    [JsonIgnore]
    public CancellationTokenSource Cts { get; set; } = new CancellationTokenSource();

    /// <summary>
    /// 执行指令（抽象方法，由子类实现）
    /// </summary>
    /// <returns></returns>
    public abstract Task ExecuteAsync();

    /// <summary>
    /// 取消指令执行
    /// </summary>
    public virtual void Cancel()
    {
        Cts.Cancel();
        Status = CommandStatus.Cancelled;

        // 发布状态变更事件
        WorkCollabEventBus.Instance.PublishAsync(this, new WorkCollabEventArgs
        {
            EventType = WorkCollabEventType.StatusChanged,
            CommandId = CommandId,
            ExtraData = { { "Status", Status } }
        });
    }
}

/// <summary>
/// 产线级指令
/// </summary>
public class LineCommand : BaseCommand
{
    public LineCommand()
    {
        StructureType = "Line";
    }

    /// <summary>
    /// 产线编码
    /// </summary>
    public string LineCode { get; set; }

    /// <summary>
    /// 产线名称
    /// </summary>
    public string LineName { get; set; }

    /// <summary>
    /// 最大并发执行数
    /// </summary>
    public int MaxConcurrent { get; set; } = 5;

    public override async Task ExecuteAsync()
    {
        Status = CommandStatus.Running;
        StartTime = DateTime.Now;

        // 发布开始事件
        await WorkCollabEventBus.Instance.PublishAsync(this, new WorkCollabEventArgs
        {
            EventType = WorkCollabEventType.ExecutionStarted,
            CommandId = CommandId
        });

        try
        {
            // 产线级指令具体执行逻辑
            // 示例：批量派工、产线状态同步、设备联动等
            await ExecuteLineBusinessLogicAsync();

            Status = CommandStatus.Completed;
            EndTime = DateTime.Now;

            // 发布完成事件
            await WorkCollabEventBus.Instance.PublishAsync(this, new ExecutionCompletedEventArgs
            {
                CommandId = CommandId,
                Success = true,
                ExecutionTimeMs = (long)(EndTime.Value - StartTime.Value).TotalMilliseconds
            });
        }
        catch (OperationCanceledException)
        {
            Status = CommandStatus.Cancelled;
            EndTime = DateTime.Now;

            // 发布取消事件
            await WorkCollabEventBus.Instance.PublishAsync(this, new WorkCollabEventArgs
            {
                EventType = WorkCollabEventType.StatusChanged,
                CommandId = CommandId,
                ExtraData = { { "Status", Status } }
            });
        }
        catch (Exception ex)
        {
            Status = CommandStatus.Failed;
            EndTime = DateTime.Now;

            // 发布失败事件
            await WorkCollabEventBus.Instance.PublishAsync(this, new ExecutionFailedEventArgs
            {
                CommandId = CommandId,
                ErrorMessage = ex.Message,
                StackTrace = ex.StackTrace,
                RetryCount = 0
            });
        }
    }

    /// <summary>
    /// 产线业务逻辑执行
    /// </summary>
    /// <returns></returns>
    private async Task ExecuteLineBusinessLogicAsync()
    {
        // 模拟产线指令执行（实际替换为真实业务逻辑）
        for (int i = 0; i <= 100; i += 20)
        {
            // 检查取消
            Cts.Token.ThrowIfCancellationRequested();

            // 发布进度事件
            await WorkCollabEventBus.Instance.PublishAsync(this, new ExecutionProgressEventArgs
            {
                CommandId = CommandId,
                Progress = i,
                CurrentStep = $"产线{LineCode}执行步骤{i/20 + 1}"
            });

            await Task.Delay(500);
        }
    }
}

/// <summary>
/// 工序级指令
/// </summary>
public class ProcessCommand : BaseCommand
{
    public ProcessCommand()
    {
        StructureType = "Process";
    }

    /// <summary>
    /// 工序编码
    /// </summary>
    public string ProcessCode { get; set; }

    /// <summary>
    /// 工序名称
    /// </summary>
    public string ProcessName { get; set; }

    /// <summary>
    /// 关联产线ID
    /// </summary>
    public string LineId { get; set; }

    public override async Task ExecuteAsync()
    {
        // 工序级指令执行逻辑（类似产线指令，略）
        Status = CommandStatus.Running;
        StartTime = DateTime.Now;

        await WorkCollabEventBus.Instance.PublishAsync(this, new WorkCollabEventArgs
        {
            EventType = WorkCollabEventType.ExecutionStarted,
            CommandId = CommandId
        });

        try
        {
            // 模拟工序执行
            for (int i = 0; i <= 100; i += 10)
            {
                Cts.Token.ThrowIfCancellationRequested();

                await WorkCollabEventBus.Instance.PublishAsync(this, new ExecutionProgressEventArgs
                {
                    CommandId = CommandId,
                    Progress = i,
                    CurrentStep = $"工序{ProcessCode}执行步骤{i/10 + 1}"
                });

                await Task.Delay(300);
            }

            Status = CommandStatus.Completed;
            EndTime = DateTime.Now;

            await WorkCollabEventBus.Instance.PublishAsync(this, new ExecutionCompletedEventArgs
            {
                CommandId = CommandId,
                Success = true,
                ExecutionTimeMs = (long)(EndTime.Value - StartTime.Value).TotalMilliseconds
            });
        }
        catch (OperationCanceledException)
        {
            Status = CommandStatus.Cancelled;
            EndTime = DateTime.Now;
        }
        catch (Exception ex)
        {
            Status = CommandStatus.Failed;
            EndTime = DateTime.Now;

            await WorkCollabEventBus.Instance.PublishAsync(this, new ExecutionFailedEventArgs
            {
                CommandId = CommandId,
                ErrorMessage = ex.Message,
                StackTrace = ex.StackTrace
            });
        }
    }
}

/// <summary>
/// 工位级指令
/// </summary>
public class StationCommand : BaseCommand
{
    public StationCommand()
    {
        StructureType = "Station";
    }

    /// <summary>
    /// 工位编码
    /// </summary>
    public string StationCode { get; set; }

    /// <summary>
    /// 工位名称
    /// </summary>
    public string StationName { get; set; }

    /// <summary>
    /// 关联工序ID
    /// </summary>
    public string ProcessId { get; set; }

    public override async Task ExecuteAsync()
    {
        // 工位级指令执行逻辑（略）
        Status = CommandStatus.Running;
        StartTime = DateTime.Now;

        // 实际业务逻辑：工位派工、设备操作、数据采集等
        // ...
    }
}
#endregion

2.2 指令管理器（多并发控制）

/// <summary>
/// 指令管理器
/// 功能：多结构指令的存储、调度、并发执行控制
/// </summary>
public class CommandManager
{
    // 单例实例
    private static readonly Lazy<CommandManager> _instance = new Lazy<CommandManager>(() => new CommandManager());
    public static CommandManager Instance => _instance.Value;

    // 指令存储（按结构类型分类）
    private readonly ConcurrentDictionary<string, ConcurrentDictionary<string, BaseCommand>> _commandDict =
        new ConcurrentDictionary<string, ConcurrentDictionary<string, BaseCommand>>();

    // 并发控制信号量（按结构类型）
    private readonly ConcurrentDictionary<string, SemaphoreSlim> _semaphoreDict =
        new ConcurrentDictionary<string, SemaphoreSlim>();

    // 执行任务字典
    private readonly ConcurrentDictionary<string, Task> _executionTasks =
        new ConcurrentDictionary<string, Task>();

    /// <summary>
    /// 初始化
    /// </summary>
    private CommandManager()
    {
        // 初始化结构类型
        var structureTypes = new[] { "Line", "Process", "Station", "Resource" };
        foreach (var type in structureTypes)
        {
            _commandDict.TryAdd(type, new ConcurrentDictionary<string, BaseCommand>());
            _semaphoreDict.TryAdd(type, new SemaphoreSlim(10, 100)); // 默认最大并发10
        }
    }

    /// <summary>
    /// 设置结构类型的最大并发数
    /// </summary>
    /// <param name="structureType">结构类型</param>
    /// <param name="maxConcurrent">最大并发数</param>
    public void SetMaxConcurrent(string structureType, int maxConcurrent)
    {
        _semaphoreDict.AddOrUpdate(structureType,
            new SemaphoreSlim(maxConcurrent, maxConcurrent),
            (key, old) => new SemaphoreSlim(maxConcurrent, maxConcurrent));
    }

    /// <summary>
    /// 添加指令
    /// </summary>
    /// <param name="command">指令</param>
    public void AddCommand(BaseCommand command)
    {
        // 获取对应结构类型的指令字典
        var structureDict = _commandDict.GetOrAdd(command.StructureType,
            _ => new ConcurrentDictionary<string, BaseCommand>());

        // 添加指令
        structureDict[command.CommandId] = command;

        // 发布指令接收事件
        WorkCollabEventBus.Instance.PublishAsync(this, new WorkCollabEventArgs
        {
            EventType = WorkCollabEventType.CommandReceived,
            CommandId = command.CommandId,
            ExtraData = {
                { "StructureType", command.StructureType },
                { "StructureId", command.StructureId }
            }
        });

        Console.WriteLine($"添加指令：{command.CommandName}（{command.CommandId}），结构类型：{command.StructureType}");
    }

    /// <summary>
    /// 获取指令
    /// </summary>
    /// <param name="structureType">结构类型</param>
    /// <param name="commandId">指令ID</param>
    /// <returns></returns>
    public BaseCommand GetCommand(string structureType, string commandId)
    {
        if (_commandDict.TryGetValue(structureType, out var structureDict))
        {
            structureDict.TryGetValue(commandId, out var command);
            return command;
        }
        return null;
    }

    /// <summary>
    /// 获取指定结构类型的所有指令
    /// </summary>
    /// <param name="structureType">结构类型</param>
    /// <returns></returns>
    public List<BaseCommand> GetCommandsByStructureType(string structureType)
    {
        if (_commandDict.TryGetValue(structureType, out var structureDict))
        {
            return structureDict.Values.ToList();
        }
        return new List<BaseCommand>();
    }

    /// <summary>
    /// 执行指令（并发控制）
    /// </summary>
    /// <param name="commandId">指令ID</param>
    /// <param name="structureType">结构类型</param>
    /// <returns></returns>
    public async Task ExecuteCommandAsync(string structureType, string commandId)
    {
        var command = GetCommand(structureType, commandId);
        if (command == null)
        {
            throw new ArgumentException($"指令不存在：{commandId}");
        }

        if (command.Status != CommandStatus.Pending)
        {
            throw new InvalidOperationException($"指令状态异常，当前状态：{command.Status}");
        }

        // 获取并发控制信号量
        var semaphore = _semaphoreDict.GetOrAdd(structureType,
            _ => new SemaphoreSlim(10, 100));

        try
        {
            // 等待信号量
            await semaphore.WaitAsync(command.Cts.Token);

            // 执行指令
            var executionTask = command.ExecuteAsync();
            _executionTasks[commandId] = executionTask;

            await executionTask;
        }
        finally
        {
            // 释放信号量
            semaphore.Release();
            _executionTasks.TryRemove(commandId, out _);
        }
    }

    /// <summary>
    /// 批量执行指令（按优先级）
    /// </summary>
    /// <param name="structureType">结构类型</param>
    /// <returns></returns>
    public async Task BatchExecuteCommandsAsync(string structureType)
    {
        var commands = GetCommandsByStructureType(structureType)
            .Where(c => c.Status == CommandStatus.Pending)
            .OrderBy(c => c.Priority) // 按优先级排序
            .ToList();

        var tasks = new List<Task>();
        foreach (var command in commands)
        {
            tasks.Add(ExecuteCommandAsync(structureType, command.CommandId));
        }

        await Task.WhenAll(tasks);
    }

    /// <summary>
    /// 取消指令执行
    /// </summary>
    /// <param name="structureType">结构类型</param>
    /// <param name="commandId">指令ID</param>
    public void CancelCommand(string structureType, string commandId)
    {
        var command = GetCommand(structureType, commandId);
        if (command != null)
        {
            command.Cancel();

            // 移除执行任务
            if (_executionTasks.TryGetValue(commandId, out var task) && !task.IsCompleted)
            {
                // 等待任务结束（非阻塞）
                _ = task.ContinueWith(t =>
                {
                    _executionTasks.TryRemove(commandId, out _);
                });
            }
        }
    }

    /// <summary>
    /// 清理已完成的指令
    /// </summary>
    /// <param name="structureType">结构类型</param>
    /// <param name="keepHours">保留小时数</param>
    public void CleanCompletedCommands(string structureType, int keepHours = 24)
    {
        if (_commandDict.TryGetValue(structureType, out var structureDict))
        {
            var cutoffTime = DateTime.Now.AddHours(-keepHours);
            var completedCommands = structureDict.Values
                .Where(c => (c.Status == CommandStatus.Completed ||
                            c.Status == CommandStatus.Failed ||
                            c.Status == CommandStatus.Cancelled) &&
                           c.EndTime <= cutoffTime)
                .ToList();

            foreach (var command in completedCommands)
            {
                structureDict.TryRemove(command.CommandId, out _);
                Console.WriteLine($"清理指令：{command.CommandId}，状态：{command.Status}");
            }
        }
    }
}

3. 多线程专用复杂成员方法类封装

/// <summary>
/// MES/ERP作业协同多线程执行类
/// 特点：
/// 1. 线程安全的成员方法封装
/// 2. 复杂业务逻辑的模块化实现
/// 3. 完善的异常处理和日志记录
/// 4. 支持取消和进度反馈
/// </summary>
public class WorkCollabExecutor : IDisposable
{
    #region 线程安全成员
    // 锁对象
    private readonly object _lockObj = new object();

    // 取消令牌
    private readonly CancellationToken _cancellationToken;

    // 进度更新委托
    private readonly ProgressUpdateDelegate _progressUpdateDelegate;

    // 执行状态（线程安全）
    private volatile CommandStatus _executionStatus = CommandStatus.Pending;

    // 执行进度（线程安全）
    private int _executionProgress = 0;

    // 日志记录器
    private readonly ILogger _logger;

    // 数据库连接（线程安全）
    private readonly IDbConnection _dbConnection;

    // 缓存字典（线程安全）
    private readonly ConcurrentDictionary<string, object> _cacheDict = new ConcurrentDictionary<string, object>();
    #endregion

    #region 公共属性
    /// <summary>
    /// 执行ID
    /// </summary>
    public string ExecutionId { get; } = Guid.NewGuid().ToString("N");

    /// <summary>
    /// 结构类型
    /// </summary>
    public string StructureType { get; }

    /// <summary>
    /// 结构ID
    /// </summary>
    public string StructureId { get; }

    /// <summary>
    /// 执行参数
    /// </summary>
    public Dictionary<string, object> Parameters { get; }

    /// <summary>
    /// 执行状态
    /// </summary>
    public CommandStatus ExecutionStatus => _executionStatus;

    /// <summary>
    /// 执行进度
    /// </summary>
    public int ExecutionProgress => _executionProgress;
    #endregion

    #region 构造函数
    /// <summary>
    /// 构造函数
    /// </summary>
    /// <param name="structureType">结构类型</param>
    /// <param name="structureId">结构ID</param>
    /// <param name="parameters">执行参数</param>
    /// <param name="cancellationToken">取消令牌</param>
    /// <param name="progressUpdateDelegate">进度更新委托</param>
    public WorkCollabExecutor(string structureType, string structureId,
        Dictionary<string, object> parameters, CancellationToken cancellationToken,
        ProgressUpdateDelegate progressUpdateDelegate = null)
    {
        StructureType = structureType;
        StructureId = structureId;
        Parameters = parameters ?? new Dictionary<string, object>();
        _cancellationToken = cancellationToken;
        _progressUpdateDelegate = progressUpdateDelegate;

        // 初始化日志
        _logger = LogManager.GetLogger(typeof(WorkCollabExecutor));

        // 初始化数据库连接（实际项目中应使用连接池）
        _dbConnection = new SqlConnection(ConfigurationManager.ConnectionStrings["MESDB"].ConnectionString);

        // 注册取消回调
        _cancellationToken.Register(() =>
        {
            _executionStatus = CommandStatus.Cancelled;
            _logger.Info($"执行{ExecutionId}已取消");
        });
    }
    #endregion

    #region 核心执行方法（复杂成员方法封装）
    /// <summary>
    /// 执行作业协同逻辑（主入口）
    /// </summary>
    /// <returns></returns>
    public async Task ExecuteAsync()
    {
        try
        {
            // 线程安全的状态更新
            lock (_lockObj)
            {
                if (_executionStatus != CommandStatus.Pending)
                {
                    throw new InvalidOperationException($"当前执行状态不允许启动：{_executionStatus}");
                }
                _executionStatus = CommandStatus.Running;
            }

            _logger.Info($"开始执行作业协同：{ExecutionId}，结构类型：{StructureType}，结构ID：{StructureId}");

            // 步骤1：参数验证
            await Step1_ValidateParametersAsync();

            // 步骤2：数据准备
            await Step2_PrepareDataAsync();

            // 步骤3：业务逻辑执行
            await Step3_ExecuteBusinessLogicAsync();

            // 步骤4：结果处理
            await Step4_ProcessResultAsync();

            // 步骤5：数据清理
            await Step5_CleanupAsync();

            // 更新最终状态
            lock (_lockObj)
            {
                _executionStatus = CommandStatus.Completed;
                _executionProgress = 100;
            }

            _progressUpdateDelegate?.Invoke(ExecutionId, 100, CommandStatus.Completed);
            _logger.Info($"作业协同执行完成：{ExecutionId}");
        }
        catch (OperationCanceledException)
        {
            lock (_lockObj)
            {
                _executionStatus = CommandStatus.Cancelled;
            }
            _progressUpdateDelegate?.Invoke(ExecutionId, _executionProgress, CommandStatus.Cancelled);
            _logger.Warn($"作业协同执行取消：{ExecutionId}");
        }
        catch (Exception ex)
        {
            lock (_lockObj)
            {
                _executionStatus = CommandStatus.Failed;
            }
            _progressUpdateDelegate?.Invoke(ExecutionId, _executionProgress, CommandStatus.Failed);
            _logger.Error(ex, $"作业协同执行失败：{ExecutionId}");
            throw;
        }
    }

    /// <summary>
    /// 步骤1：参数验证
    /// </summary>
    /// <returns></returns>
    private async Task Step1_ValidateParametersAsync()
    {
        UpdateProgress(5, "参数验证中");
        _logger.Info($"执行步骤1：参数验证，执行ID：{ExecutionId}");

        // 模拟异步验证
        await Task.Delay(100);

        // 参数验证逻辑
        if (string.IsNullOrEmpty(StructureId))
        {
            throw new ArgumentNullException("StructureId", "结构ID不能为空");
        }

        if (!Parameters.ContainsKey("WorkOrderId"))
        {
            throw new ArgumentException("缺少必要参数：WorkOrderId");
        }

        // 检查取消
        _cancellationToken.ThrowIfCancellationRequested();

        UpdateProgress(10, "参数验证完成");
    }

    /// <summary>
    /// 步骤2：数据准备
    /// </summary>
    /// <returns></returns>
    private async Task Step2_PrepareDataAsync()
    {
        UpdateProgress(10, "数据准备中");
        _logger.Info($"执行步骤2：数据准备，执行ID：{ExecutionId}");

        // 模拟数据库查询
        await Task.Run(async () =>
        {
            using (var conn = _dbConnection)
            {
                await conn.OpenAsync(_cancellationToken);

                // 查询工单信息（示例）
                var workOrderSql = "SELECT * FROM WorkOrder WHERE WorkOrderId = @WorkOrderId";
                var workOrder = await conn.QueryFirstOrDefaultAsync<dynamic>(workOrderSql,
                    new { WorkOrderId = Parameters["WorkOrderId"] },
                    cancellationToken: _cancellationToken);

                // 缓存查询结果
                _cacheDict["WorkOrder"] = workOrder;

                // 检查取消
                _cancellationToken.ThrowIfCancellationRequested();
            }
        });

        UpdateProgress(25, "数据准备完成");
    }

    /// <summary>
    /// 步骤3：业务逻辑执行（最复杂的核心步骤）
    /// </summary>
    /// <returns></returns>
    private async Task Step3_ExecuteBusinessLogicAsync()
    {
        UpdateProgress(25, "业务逻辑执行中");
        _logger.Info($"执行步骤3：业务逻辑执行，执行ID：{ExecutionId}");

        // 根据结构类型执行不同的业务逻辑
        switch (StructureType)
        {
            case "Line":
                await ExecuteLineBusinessLogicAsync();
                break;
            case "Process":
                await ExecuteProcessBusinessLogicAsync();
                break;
            case "Station":
                await ExecuteStationBusinessLogicAsync();
                break;
            default:
                throw new NotSupportedException($"不支持的结构类型：{StructureType}");
        }

        UpdateProgress(80, "业务逻辑执行完成");
    }

    /// <summary>
    /// 步骤4：结果处理
    /// </summary>
    /// <returns></returns>
    private async Task Step4_ProcessResultAsync()
    {
        UpdateProgress(80, "结果处理中");
        _logger.Info($"执行步骤4：结果处理，执行ID：{ExecutionId}");

        // 模拟结果处理
        await Task.Delay(200);

        // 保存执行结果到数据库
        var resultData = new
        {
            ExecutionId = ExecutionId,
            StructureType = StructureType,
            StructureId = StructureId,
            ExecutionTime = DateTime.Now,
            Status = _executionStatus.ToString(),
            Result = "执行成功"
        };

        // 缓存结果
        _cacheDict["ExecutionResult"] = resultData;

        UpdateProgress(90, "结果处理完成");
    }

    /// <summary>
    /// 步骤5：数据清理
    /// </summary>
    /// <returns></returns>
    private async Task Step5_CleanupAsync()
    {
        UpdateProgress(90, "数据清理中");
        _logger.Info($"执行步骤5：数据清理，执行ID：{ExecutionId}");

        // 模拟清理
        await Task.Delay(100);

        // 清理临时缓存（保留核心数据）
        var keysToRemove = _cacheDict.Keys.Where(k => k.StartsWith("Temp_")).ToList();
        foreach (var key in keysToRemove)
        {
            _cacheDict.TryRemove(key, out _);
        }

        UpdateProgress(95, "数据清理完成");
    }
    #endregion

    #region 结构类型专用方法
    /// <summary>
    /// 执行产线级业务逻辑
    /// </summary>
    /// <returns></returns>
    private async Task ExecuteLineBusinessLogicAsync()
    {
        UpdateProgress(30, "产线数据同步中");

        // 模拟多线程并行处理产线数据
        var lineTasks = new List<Task>();

        // 任务1：产线状态更新
        lineTasks.Add(Task.Run(async () =>
        {
            UpdateProgress(40, "产线状态更新中");
            await Task.Delay(300);
            _cancellationToken.ThrowIfCancellationRequested();
            UpdateProgress(45, "产线状态更新完成");
        }, _cancellationToken));

        // 任务2：工单派工
        lineTasks.Add(Task.Run(async () =>
        {
            UpdateProgress(45, "工单派工中");
            await Task.Delay(400);
            _cancellationToken.ThrowIfCancellationRequested();
            UpdateProgress(55, "工单派工完成");
        }, _cancellationToken));

        // 任务3：设备状态检查
        lineTasks.Add(Task.Run(async () =>
        {
            UpdateProgress(55, "设备状态检查中");
            await Task.Delay(300);
            _cancellationToken.ThrowIfCancellationRequested();
            UpdateProgress(65, "设备状态检查完成");
        }, _cancellationToken));

        // 等待所有任务完成
        await Task.WhenAll(lineTasks);

        UpdateProgress(70, "产线业务逻辑执行完成");
    }

    /// <summary>
    /// 执行工序级业务逻辑
    /// </summary>
    /// <returns></returns>
    private async Task ExecuteProcessBusinessLogicAsync()
    {
        // 工序级逻辑实现
        UpdateProgress(30, "工序工艺参数同步中");
        await Task.Delay(500);
        _cancellationToken.ThrowIfCancellationRequested();
        UpdateProgress(70, "工序业务逻辑执行完成");
    }

    /// <summary>
    /// 执行工位级业务逻辑
    /// </summary>
    /// <returns></returns>
    private async Task ExecuteStationBusinessLogicAsync()
    {
        // 工位级逻辑实现
        UpdateProgress(30, "工位设备指令下发中");
        await Task.Delay(500);
        _cancellationToken.ThrowIfCancellationRequested();
        UpdateProgress(70, "工位业务逻辑执行完成");
    }
    #endregion

    #region 辅助方法
    /// <summary>
    /// 更新进度（线程安全）
    /// </summary>
    /// <param name="progress">进度值</param>
    /// <param name="stepDesc">步骤描述</param>
    private void UpdateProgress(int progress, string stepDesc)
    {
        lock (_lockObj)
        {
            _executionProgress = progress;
        }

        _logger.Info($"执行进度：{progress}%，步骤：{stepDesc}，执行ID：{ExecutionId}");
        _progressUpdateDelegate?.Invoke(ExecutionId, progress, _executionStatus);

        // 发布进度事件
        WorkCollabEventBus.Instance.PublishAsync(this, new ExecutionProgressEventArgs
        {
            CommandId = ExecutionId,
            Progress = progress,
            CurrentStep = stepDesc
        });
    }

    /// <summary>
    /// 获取缓存数据
    /// </summary>
    /// <typeparam name="T">数据类型</typeparam>
    /// <param name="key">缓存键</param>
    /// <returns></returns>
    public T GetCacheData<T>(string key)
    {
        if (_cacheDict.TryGetValue(key, out var value))
        {
            return (T)value;
        }
        return default;
    }

    /// <summary>
    /// 设置缓存数据
    /// </summary>
    /// <param name="key">缓存键</param>
    /// <param name="value">缓存值</param>
    public void SetCacheData(string key, object value)
    {
        _cacheDict[key] = value;
    }
    #endregion

    #region 资源释放
    /// <summary>
    /// 释放资源
    /// </summary>
    public void Dispose()
    {
        Dispose(true);
        GC.SuppressFinalize(this);
    }

    /// <summary>
    /// 释放资源
    /// </summary>
    /// <param name="disposing">是否释放托管资源</param>
    protected virtual void Dispose(bool disposing)
    {
        if (disposing)
        {
            // 释放托管资源
            _dbConnection?.Dispose();
            _cacheDict.Clear();
        }

        _logger.Info($"执行器资源已释放：{ExecutionId}");
    }

    /// <summary>
    /// 析构函数
    /// </summary>
    ~WorkCollabExecutor()
    {
        Dispose(false);
    }
    #endregion
}

4. 界面与 API 组件

4.1 WinForm 客户端界面组件

/// <summary>
/// 作业协同指令操作界面
/// </summary>
public partial class CommandOperationForm : Form
{
    // 指令管理器
    private readonly CommandManager _commandManager = CommandManager.Instance;

    // 进度更新委托（用于跨线程更新UI）
    private readonly ProgressUpdateDelegate _progressUpdateDelegate;

    public CommandOperationForm()
    {
        InitializeComponent();

        // 初始化进度更新委托
        _progressUpdateDelegate = UpdateCommandProgress;

        // 订阅事件
        WorkCollabEventBus.Instance.Subscribe(WorkCollabEventType.ExecutionProgress, OnExecutionProgress);
        WorkCollabEventBus.Instance.Subscribe(WorkCollabEventType.ExecutionCompleted, OnExecutionCompleted);
        WorkCollabEventBus.Instance.Subscribe(WorkCollabEventType.ExecutionFailed, OnExecutionFailed);

        // 初始化UI
        InitUI();
    }

    /// <summary>
    /// 初始化UI
    /// </summary>
    private void InitUI()
    {
        // 初始化结构类型下拉框
        cboStructureType.Items.AddRange(new[] { "Line", "Process", "Station" });
        cboStructureType.SelectedIndex = 0;

        // 初始化指令列表DataGridView
        dgvCommands.Columns.AddRange(new DataGridViewColumn[]
        {
            new DataGridViewTextBoxColumn { Name = "CommandId", HeaderText = "指令ID", Width = 150 },
            new DataGridViewTextBoxColumn { Name = "CommandName", HeaderText = "指令名称", Width = 150 },
            new DataGridViewTextBoxColumn { Name = "StructureType", HeaderText = "结构类型", Width = 100 },
            new DataGridViewTextBoxColumn { Name = "StructureId", HeaderText = "结构ID", Width = 100 },
            new DataGridViewTextBoxColumn { Name = "Status", HeaderText = "状态", Width = 100 },
            new DataGridViewTextBoxColumn { Name = "Progress", HeaderText = "进度", Width = 80 },
            new DataGridViewTextBoxColumn { Name = "CreateTime", HeaderText = "创建时间", Width = 180 }
        });

        // 初始化按钮事件
        btnAddCommand.Click += BtnAddCommand_Click;
        btnExecuteCommand.Click += BtnExecuteCommand_Click;
        btnCancelCommand.Click += BtnCancelCommand_Click;
        btnRefresh.Click += BtnRefresh_Click;

        // 刷新指令列表
        RefreshCommandList();
    }

    /// <summary>
    /// 添加指令
    /// </summary>
    private void BtnAddCommand_Click(object sender, EventArgs e)
    {
        try
        {
            BaseCommand command = null;
            var structureType = cboStructureType.SelectedItem.ToString();

            // 根据结构类型创建指令
            switch (structureType)
            {
                case "Line":
                    command = new LineCommand
                    {
                        CommandName = txtCommandName.Text,
                        LineCode = txtStructureId.Text,
                        LineName = txtStructureName.Text,
                        Priority = (int)nudPriority.Value,
                        Parameters = new Dictionary<string, object>
                        {
                            { "WorkOrderId", txtWorkOrderId.Text },
                            { "BatchNo", txtBatchNo.Text }
                        }
                    };
                    break;
                case "Process":
                    command = new ProcessCommand
                    {
                        CommandName = txtCommandName.Text,
                        ProcessCode = txtStructureId.Text,
                        ProcessName = txtStructureName.Text,
                        LineId = txtLineId.Text,
                        Priority = (int)nudPriority.Value
                    };
                    break;
                case "Station":
                    command = new StationCommand
                    {
                        CommandName = txtCommandName.Text,
                        StationCode = txtStructureId.Text,
                        StationName = txtStructureName.Text,
                        ProcessId = txtProcessId.Text,
                        Priority = (int)nudPriority.Value
                    };
                    break;
            }

            if (command != null)
            {
                _commandManager.AddCommand(command);
                MessageBox.Show($"指令添加成功：{command.CommandId}", "成功",
                    MessageBoxButtons.OK, MessageBoxIcon.Information);
                RefreshCommandList();
            }
        }
        catch (Exception ex)
        {
            MessageBox.Show($"添加指令失败：{ex.Message}", "错误",
                MessageBoxButtons.OK, MessageBoxIcon.Error);
        }
    }

    /// <summary>
    /// 执行指令
    /// </summary>
    private async void BtnExecuteCommand_Click(object sender, EventArgs e)
    {
        if (dgvCommands.SelectedRows.Count == 0)
        {
            MessageBox.Show("请选择要执行的指令", "提示",
                MessageBoxButtons.OK, MessageBoxIcon.Warning);
            return;
        }

        try
        {
            var selectedRow = dgvCommands.SelectedRows[0];
            var commandId = selectedRow.Cells["CommandId"].Value.ToString();
            var structureType = selectedRow.Cells["StructureType"].Value.ToString();

            // 异步执行指令（不阻塞UI）
            await Task.Run(async () =>
            {
                await _commandManager.ExecuteCommandAsync(structureType, commandId);
            });

            MessageBox.Show($"指令执行完成：{commandId}", "成功",
                MessageBoxButtons.OK, MessageBoxIcon.Information);
            RefreshCommandList();
        }
        catch (Exception ex)
        {
            MessageBox.Show($"执行指令失败：{ex.Message}", "错误",
                MessageBoxButtons.OK, MessageBoxIcon.Error);
        }
    }

    /// <summary>
    /// 取消指令
    /// </summary>
    private void BtnCancelCommand_Click(object sender, EventArgs e)
    {
        if (dgvCommands.SelectedRows.Count == 0)
        {
            MessageBox.Show("请选择要取消的指令", "提示",
                MessageBoxButtons.OK, MessageBoxIcon.Warning);
            return;
        }

        try
        {
            var selectedRow = dgvCommands.SelectedRows[0];
            var commandId = selectedRow.Cells["CommandId"].Value.ToString();
            var structureType = selectedRow.Cells["StructureType"].Value.ToString();

            _commandManager.CancelCommand(structureType, commandId);
            MessageBox.Show($"指令取消请求已提交：{commandId}", "提示",
                MessageBoxButtons.OK, MessageBoxIcon.Information);
            RefreshCommandList();
        }
        catch (Exception ex)
        {
            MessageBox.Show($"取消指令失败：{ex.Message}", "错误",
                MessageBoxButtons.OK, MessageBoxIcon.Error);
        }
    }

    /// <summary>
    /// 刷新指令列表
    /// </summary>
    private void BtnRefresh_Click(object sender, EventArgs e)
    {
        RefreshCommandList();
    }

    /// <summary>
    /// 刷新指令列表
    /// </summary>
    private void RefreshCommandList()
    {
        dgvCommands.Rows.Clear();

        var structureType = cboStructureType.SelectedItem.ToString();
        var commands = _commandManager.GetCommandsByStructureType(structureType);

        foreach (var command in commands)
        {
            var row = dgvCommands.Rows.Add();
            row.Cells["CommandId"].Value = command.CommandId;
            row.Cells["CommandName"].Value = command.CommandName;
            row.Cells["StructureType"].Value = command.StructureType;
            row.Cells["StructureId"].Value = command.StructureId;
            row.Cells["Status"].Value = command.Status.ToString();
            row.Cells["Progress"].Value = $"{GetCommandProgress(command)}%";
            row.Cells["CreateTime"].Value = command.CreateTime.ToString("yyyy-MM-dd HH:mm:ss");

            // 根据状态设置行颜色
            switch (command.Status)
            {
                case CommandStatus.Running:
                    row.DefaultCellStyle.BackColor = Color.LightYellow;
                    break;
                case CommandStatus.Completed:
                    row.DefaultCellStyle.BackColor = Color.LightGreen;
                    break;
                case CommandStatus.Failed:
                    row.DefaultCellStyle.BackColor = Color.LightPink;
                    break;
                case CommandStatus.Cancelled:
                    row.DefaultCellStyle.BackColor = Color.LightGray;
                    break;
            }
        }
    }

    /// <summary>
    /// 获取指令进度
    /// </summary>
    /// <param name="command">指令</param>
    /// <returns></returns>
    private int GetCommandProgress(BaseCommand command)
    {
        // 实际项目中应从执行器获取进度
        // 此处简化处理
        switch (command.Status)
        {
            case CommandStatus.Completed:
                return 100;
            case CommandStatus.Failed:
            case CommandStatus.Cancelled:
                return 0;
            case CommandStatus.Running:
                return 50; // 模拟进度
            default:
                return 0;
        }
    }

    /// <summary>
    /// 进度更新回调（跨线程安全）
    /// </summary>
    /// <param name="commandId">指令ID</param>
    /// <param name="progress">进度</param>
    /// <param name="status">状态</param>
    private void UpdateCommandProgress(string commandId, int progress, CommandStatus status)
    {
        if (dgvCommands.InvokeRequired)
        {
            dgvCommands.Invoke(_progressUpdateDelegate, commandId, progress, status);
        }
        else
        {
            // 更新指定指令的进度和状态
            foreach (DataGridViewRow row in dgvCommands.Rows)
            {
                if (row.Cells["CommandId"].Value?.ToString() == commandId)
                {
                    row.Cells["Progress"].Value = $"{progress}%";
                    row.Cells["Status"].Value = status.ToString();

                    // 更新行颜色
                    switch (status)
                    {
                        case CommandStatus.Running:
                            row.DefaultCellStyle.BackColor = Color.LightYellow;
                            break;
                        case CommandStatus.Completed:
                            row.DefaultCellStyle.BackColor = Color.LightGreen;
                            break;
                        case CommandStatus.Failed:
                            row.DefaultCellStyle.BackColor = Color.LightPink;
                            break;
                        case CommandStatus.Cancelled:
                            row.DefaultCellStyle.BackColor = Color.LightGray;
                            break;
                    }
                    break;
                }
            }
        }
    }

    /// <summary>
    /// 执行进度事件处理
    /// </summary>
    /// <param name="sender">发送者</param>
    /// <param name="e">事件参数</param>
    private void OnExecutionProgress(object sender, WorkCollabEventArgs e)
    {
        if (e is ExecutionProgressEventArgs progressArgs)
        {
            UpdateCommandProgress(progressArgs.CommandId, progressArgs.Progress, CommandStatus.Running);
        }
    }

    /// <summary>
    /// 执行完成事件处理
    /// </summary>
    /// <param name="sender">发送者</param>
    /// <param name="e">事件参数</param>
    private void OnExecutionCompleted(object sender, WorkCollabEventArgs e)
    {
        if (e is ExecutionCompletedEventArgs completedArgs)
        {
            UpdateCommandProgress(completedArgs.CommandId, 100,
                completedArgs.Success ? CommandStatus.Completed : CommandStatus.Failed);
        }
    }

    /// <summary>
    /// 执行失败事件处理
    /// </summary>
    /// <param name="sender">发送者</param>
    /// <param name="e">事件参数</param>
    private void OnExecutionFailed(object sender, WorkCollabEventArgs e)
    {
        if (e is ExecutionFailedEventArgs failedArgs)
        {
            UpdateCommandProgress(failedArgs.CommandId, 0, CommandStatus.Failed);
        }
    }

    /// <summary>
    /// 窗体关闭时取消事件订阅
    /// </summary>
    /// <param name="sender">发送者</param>
    /// <param name="e">事件参数</param>
    private void CommandOperationForm_FormClosing(object sender, FormClosingEventArgs e)
    {
        WorkCollabEventBus.Instance.Unsubscribe(WorkCollabEventType.ExecutionProgress, OnExecutionProgress);
        WorkCollabEventBus.Instance.Unsubscribe(WorkCollabEventType.ExecutionCompleted, OnExecutionCompleted);
        WorkCollabEventBus.Instance.Unsubscribe(WorkCollabEventType.ExecutionFailed, OnExecutionFailed);
    }
}

4.2 API 接口组件

/// <summary>
/// 作业协同指令API控制器
/// </summary>
[Route("api/[controller]")]
[ApiController]
public class WorkCollabController : ControllerBase
{
    private readonly CommandManager _commandManager = CommandManager.Instance;
    private readonly ILogger<WorkCollabController> _logger;

    public WorkCollabController(ILogger<WorkCollabController> logger)
    {
        _logger = logger;
    }

    /// <summary>
    /// 添加指令
    /// </summary>
    /// <param name="commandRequest">指令请求</param>
    /// <returns></returns>
    [HttpPost("commands")]
    public IActionResult AddCommand([FromBody] CommandRequest commandRequest)
    {
        try
        {
            BaseCommand command = null;

            // 根据结构类型创建指令
            switch (commandRequest.StructureType)
            {
                case "Line":
                    command = new LineCommand
                    {
                        CommandName = commandRequest.CommandName,
                        LineCode = commandRequest.StructureId,
                        LineName = commandRequest.StructureName,
                        Priority = commandRequest.Priority ?? 5,
                        Parameters = commandRequest.Parameters
                    };
                    break;
                case "Process":
                    command = new ProcessCommand
                    {
                        CommandName = commandRequest.CommandName,
                        ProcessCode = commandRequest.StructureId,
                        ProcessName = commandRequest.StructureName,
                        LineId = commandRequest.RelatedId,
                        Priority = commandRequest.Priority ?? 5,
                        Parameters = commandRequest.Parameters
                    };
                    break;
                case "Station":
                    command = new StationCommand
                    {
                        CommandName = commandRequest.CommandName,
                        StationCode = commandRequest.StructureId,
                        StationName = commandRequest.StructureName,
                        ProcessId = commandRequest.RelatedId,
                        Priority = commandRequest.Priority ?? 5,
                        Parameters = commandRequest.Parameters
                    };
                    break;
                default:
                    return BadRequest($"不支持的结构类型：{commandRequest.StructureType}");
            }

            _commandManager.AddCommand(command);

            _logger.LogInformation($"API添加指令成功：{command.CommandId}");

            return Ok(new
            {
                Success = true,
                CommandId = command.CommandId,
                Message = "指令添加成功"
            });
        }
        catch (Exception ex)
        {
            _logger.LogError(ex, "添加指令失败");
            return StatusCode(500, new
            {
                Success = false,
                Message = ex.Message
            });
        }
    }

    /// <summary>
    /// 执行指令
    /// </summary>
    /// <param name="structureType">结构类型</param>
    /// <param name="commandId">指令ID</param>
    /// <returns></returns>
    [HttpPost("commands/{structureType}/{commandId}/execute")]
    public async Task<IActionResult> ExecuteCommand(string structureType, string commandId)
    {
        try
        {
            await _commandManager.ExecuteCommandAsync(structureType, commandId);

            _logger.LogInformation($"API执行指令成功：{commandId}");

            return Ok(new
            {
                Success = true,
                CommandId = commandId,
                Message = "指令执行完成"
            });
        }
        catch (Exception ex)
        {
            _logger.LogError(ex, $"执行指令失败：{commandId}");
            return StatusCode(500, new
            {
                Success = false,
                Message = ex.Message
            });
        }
    }

    /// <summary>
    /// 取消指令
    /// </summary>
    /// <param name="structureType">结构类型</param>
    /// <param name="commandId">指令ID</param>
    /// <returns></returns>
    [HttpPost("commands/{structureType}/{commandId}/cancel")]
    public IActionResult CancelCommand(string structureType, string commandId)
    {
        try
        {
            _commandManager.CancelCommand(structureType, commandId);

            _logger.LogInformation($"API取消指令成功：{commandId}");

            return Ok(new
            {
                Success = true,
                CommandId = commandId,
                Message = "指令取消请求已提交"
            });
        }
        catch (Exception ex)
        {
            _logger.LogError(ex, $"取消指令失败：{commandId}");
            return StatusCode(500, new
            {
                Success = false,
                Message = ex.Message
            });
        }
    }

    /// <summary>
    /// 获取指令状态
    /// </summary>
    /// <param name="structureType">结构类型</param>
    /// <param name="commandId">指令ID</param>
    /// <returns></returns>
    [HttpGet("commands/{structureType}/{commandId}")]
    public IActionResult GetCommandStatus(string structureType, string commandId)
    {
        try
        {
            var command = _commandManager.GetCommand(structureType, commandId);
            if (command == null)
            {
                return NotFound(new
                {
                    Success = false,
                    Message = "指令不存在"
                });
            }

            return Ok(new
            {
                Success = true,
                Data = new
                {
                    CommandId = command.CommandId,
                    CommandName = command.CommandName,
                    StructureType = command.StructureType,
                    StructureId = command.StructureId,
                    Status = command.Status.ToString(),
                    CreateTime = command.CreateTime,
                    StartTime = command.StartTime,
                    EndTime = command.EndTime
                }
            });
        }
        catch (Exception ex)
        {
            _logger.LogError(ex, $"获取指令状态失败：{commandId}");
            return StatusCode(500, new
            {
                Success = false,
                Message = ex.Message
            });
        }
    }

    /// <summary>
    /// 获取指定结构类型的指令列表
    /// </summary>
    /// <param name="structureType">结构类型</param>
    /// <returns></returns>
    [HttpGet("commands/{structureType}")]
    public IActionResult GetCommands(string structureType)
    {
        try
        {
            var commands = _commandManager.GetCommandsByStructureType(structureType);

            var result = commands.Select(c => new
            {
                CommandId = c.CommandId,
                CommandName = c.CommandName,
                StructureType = c.StructureType,
                StructureId = c.StructureId,
                Status = c.Status.ToString(),
                Priority = c.Priority,
                CreateTime = c.CreateTime
            }).ToList();

            return Ok(new
            {
                Success = true,
                Data = result,
                TotalCount = result.Count
            });
        }
        catch (Exception ex)
        {
            _logger.LogError(ex, $"获取指令列表失败：{structureType}");
            return StatusCode(500, new
            {
                Success = false,
                Message = ex.Message
            });
        }
    }
}

/// <summary>
/// 指令请求模型
/// </summary>
public class CommandRequest
{
    /// <summary>
    /// 指令名称
    /// </summary>
    public string CommandName { get; set; }

    /// <summary>
    /// 结构类型
    /// </summary>
    public string StructureType { get; set; }

    /// <summary>
    /// 结构ID
    /// </summary>
    public string StructureId { get; set; }

    /// <summary>
    /// 结构名称
    /// </summary>
    public string StructureName { get; set; }

    /// <summary>
    /// 关联ID（产线ID/工序ID）
    /// </summary>
    public string RelatedId { get; set; }

    /// <summary>
    /// 优先级
    /// </summary>
    public int? Priority { get; set; }

    /// <summary>
    /// 指令参数
    /// </summary>
    public Dictionary<string, object> Parameters { get; set; } = new Dictionary<string, object>();
}

三、使用示例

1. 完整使用流程

// 1. 初始化指令管理器
var commandManager = CommandManager.Instance;

// 2. 设置产线级指令最大并发数
commandManager.SetMaxConcurrent("Line", 5);

// 3. 创建产线指令
var lineCommand = new LineCommand
{
    CommandName = "产线001工单派工",
    LineCode = "LINE001",
    LineName = "总装线1",
    Priority = 1,
    Parameters = new Dictionary<string, object>
    {
        { "WorkOrderId", "WO20260212001" },
        { "BatchNo", "B20260212001" },
        { "ProductCode", "P001" }
    }
};

// 4. 添加指令
commandManager.AddCommand(lineCommand);

// 5. 订阅事件
WorkCollabEventBus.Instance.Subscribe(WorkCollabEventType.ExecutionProgress, (sender, e) =>
{
    if (e is ExecutionProgressEventArgs progressArgs)
    {
        Console.WriteLine($"指令{progressArgs.CommandId}进度：{progressArgs.Progress}%");
    }
});

// 6. 执行指令
await commandManager.ExecuteCommandAsync("Line", lineCommand.CommandId);

// 7. 获取指令状态
var executedCommand = commandManager.GetCommand("Line", lineCommand.CommandId);
Console.WriteLine($"指令状态：{executedCommand.Status}");

// 8. 清理已完成的指令
commandManager.CleanCompletedCommands("Line", 1);

2. 多线程执行器使用

// 创建取消令牌
var cts = new CancellationTokenSource();

// 创建执行器
using (var executor = new WorkCollabExecutor(
    "Line",
    "LINE001",
    new Dictionary<string, object> { { "WorkOrderId", "WO20260212001" } },
    cts.Token,
    (commandId, progress, status) =>
    {
        Console.WriteLine($"执行器{commandId}进度：{progress}%，状态：{status}");
    }))
{
    // 执行作业协同逻辑
    await executor.ExecuteAsync();

    // 获取执行结果
    var result = executor.GetCacheData<dynamic>("ExecutionResult");
    Console.WriteLine($"执行结果：{result.Status}");
}

四、总结

关键点回顾

委托事件封装：通过标准化的事件总线实现业务执行与事件触发的解耦，支持多线程安全的事件发布 / 订阅，适配 MES/ERP 作业协同的复杂事件场景；
多结构指令控制：基于指令基类 + 多结构实现类的设计，结合指令管理器实现多维度（产线 / 工序 / 工位）指令的并发控制、优先级调度、状态管理；
多线程安全封装：专用执行类WorkCollabExecutor封装复杂成员方法，通过锁、volatile、并发集合保证线程安全，完善的异常处理和资源释放机制；
全栈组件化：包含 WinForm 客户端界面、后台服务逻辑、标准化 API 接口，支持外部系统集成和实时状态同步；
高可靠性设计：完善的取消机制、进度反馈、异常隔离，保证在高并发场景下的稳定性和可维护性。

该方案完全适配 MES/ERP 作业协同场景的业务需求，解决了委托事件封装、多结构并发指令操作、多线程复杂方法封装的核心问题，同时提供了完整的界面、后台、API 组件，可直接落地应用于实际项目。

2048 AI社区

有“AI”的1024 = 2048，欢迎大家加入2048 AI社区

更多推荐

树莓派部署AI助手OpenClaw实战

这篇文章，记录了我在树莓派上安装和配置OpenClaw的真实过程。真实体验总结：安装不轻松：踩了不少坑，但都解决了学习曲线陡：需要时间熟悉，但值得功能很强大：超出了我的预期主动性很强：像一个真正的"队友"性能需要优化：树莓派性能有限，需要调整配置硬件集成很有趣：摄像头、蓝牙等，探索空间很大选择合适的设备：树莓派4B（4GB或8GB内存）耐心安装：会遇到各种问题，慢慢解决关注性能：注意内存、CPU、

2048 AI社区

AI 时代的前端技术：从系统编程到 JavaScript/TypeScript（伍）

在传统的系统程序员眼中，前端开发往往被戏称为“DIV 居中工程师”或“NPM 依赖搬运工”。我们习惯于认为，真正的计算——那些涉及高性能、高并发、底层硬件调度的任务——必然属于 C++、Rust 或 Python 的领地。一个优秀的 AI Agent 需要同时处理成百上千个并发的网络请求（API Calls）、需要实时解析非结构化的 JSON 数据、需要灵活地加载各种“工具（Tools）”函数、需

2048 AI社区

AI原生应用架构设计：构建高性能自然语言生成系统的秘诀

你是否遇到过这样的场景？用智能客服提问时，等了5秒才收到回复；用AI写文案时，生成1000字需要卡30秒；或者公司部署了AI助手，但每月云服务器账单高得离谱？这些问题的根源，往往在于“AI原生应用架构”设计的缺失。本文聚焦“自然语言生成（NLG）系统”，覆盖从模型调用到用户交互的全链路架构设计，帮助开发者理解如何通过架构优化解决“高延迟、低吞吐、高成本”三大痛点。用“智能奶茶店”故事类比NLG系统
