Cangjie后端项目集成Jmeter/Redis/AI对话管理

采用Cangjie语言开发，集成JMeter性能测试框架和Redis缓存管理服务。支持压测任务的创建、执行、监控，Redis缓存的查看管理功能，AI对话管理。

yunting314

600人浏览 · 2026-02-10 17:42:09

yunting314 · 2026-02-10 17:42:09 发布

代码示例gitcode地址

https://gitcode.com/yunting/cirrus-be.git

项目简介

采用Cangjie语言开发，集成JMeter性能测试框架和Redis缓存管理服务。支持压测任务的创建、执行、监控，
Redis缓存的查看管理功能，
AI对话管理。

项目说明

项目文件包	说明
doc	初始SQL和项目截图
docker	docker启动配置
resource	程序配置文件
src/base/model	基础模型类
src/base/util	基础工具包
src/config	程序启动配置加载
src/main.cj	程序启动类
src/v1/App.cj	应用接口类
src/test	测试包
src/third	第三方服务包
src/v1	业务包

依赖项目

项目名称	git地址	说明
cjoy	https://gitcode.com/Cangjie-SIG/cjoy.git	web应用框架
mariadb	https://gitcode.com/Cangjie-SIG/mariadb-driver.git	数据库驱动
corm	https://gitcode.com/Yesokim/corm.git	ORM框架
hyperion	https://gitcode.com/Cangjie-TPC/hyperion.git	TCP通信框架
redis_sdk	https://gitcode.com/Cangjie-TPC/redis-sdk.git	Redis客户端SDK
mustache	https://gitcode.com/Cangjie-SIG/mustache-cj.git	mustache模板引擎
xml4cj	https://gitcode.com/SeanXDO/xml4cj.git	XML解析库

业务模块说明

模块名称	主要功能	文件位置
JWT认证	JWT认证	src/v1/auth/
JMX模块	JMeter性能测试任务管理	src/v1/jmx/
Redis模块	Redis缓存管理	src/v1/redis/
系统模块	系统配置管理	src/v1/sys/
用户模块	用户管理	src/v1/user/
文件上传	文件上传服务	src/v1/upload/

API接口

接口路径	方法	功能描述
/healthz	GET	健康检查接口
/v1/App.cj	POST/GET	JWT认证相关接口
/v1/jmx/*	POST/GET	JMeter相关接口
/v1/redis/*	POST/GET	Redis缓存管理接口
/v1/sys/*	POST/GET	系统管理接口
/v1/user/*	POST/GET	用户管理接口

目录结构详解

src/
├── base/
│   ├── model/     # 基础模型类
│   └── util/      # 基础工具包
├── config/        # 程序启动配置加载
├── main.cj        # 程序启动类
├── v1/            # 业务包
│   ├── App.cj     # 应用接口类
│   ├── auth/      # JWT认证相关
│   ├── jmx/       # JMeter性能测试相关
│   ├── redis/     # Redis缓存管理相关
│   ├── sys/       # 系统管理相关
│   ├── user/      # 用户管理相关
│   └── upload/    # 文件上传相关
└── test/          # 测试包

# 模块内调用流程
Controller -> Service -> Provider -> DO

配置文件说明

项目配置文件位于 resource/joy.properties，主要配置项示例如下：

配置项	说明	默认值
jmx.jmeterHome	JMeter安装路径	/opt/jmeter
jmx.storePath	JMeter脚本存储路径	/var/opt/jmx/jmx
jmx.report.storePath	测试报告存储路径	/var/opt/jmx/report
jmx.jtl.storePath	测试结果存储路径	/var/opt/jmx/jtl
jmx.log.storePath	日志存储路径	/var/log/jmx
db.host	数据库主机	localhost
db.port	数据库端口	3306
db.username	数据库用户名	dev_client_user
db.password	数据库密码	test123456
db.database	数据库名称	dev_client
redis.nodes	Redis节点	127.0.0.1:6379
redis.mode	Redis模式	single单机, 集群模式,不配置,然后节点多个逗号分隔
redis.password	Redis密码	redis123
upload.tmpDir	临时上传目录	/var/tmp

项目启动说明

前置条件

Docker 20.10.22 （验证环境版本）
Docker Compose v2.15.1（验证环境版本）
有效的 API访问密钥（硅基流动，参考官方网站）

克隆项目

#克隆/下载本项目到本地
git clone https://gitcode.com/yunting/cirrus-be.git

快速开始

修改配置docker/docker-compose/config/app_ai.properties的API访问密钥

#进入项目目录
cd cirrus-be
cd docker/docker-compose
# 启动
docker-compose up -d

本地构建启动

下载依赖项目

cd cirrus-be
git clone https://gitcode.com/Cangjie-TPC/hyperion.git
git clone https://gitcode.com/Cangjie-TPC/redis-sdk.git
git clone https://gitcode.com/Cangjie-SIG/mariadb-driver.git
git clone https://gitcode.com/Cangjie-SIG/mustache-cj.git

修改以上依赖项目的cjpm.toml

新增或者修改对应的配置

[target.aarch64-unknown-linux-gnu]
[target.aarch64-unknown-linux-gnu.bin-dependencies]
path-option = ["${CANGJIE_STDX_PATH}/linux_aarch64_llvm/static/stdx"]
[target.aarch64-apple-darwin]
[target.aarch64-apple-darwin.bin-dependencies]
path-option = ["${CANGJIE_STDX_PATH}/darwin_aarch64_llvm/static/stdx"]

redis-sdk的依赖包也修改

 hyperion = { path = "../hyperion" }

docker本地启动

cd cirrus-be
# 构建
docker build -t cirrus-be:1.0.0 .
#查看
docker run -it cirrus-be:1.0.0 /bin/bash
# 启动
docker run -d --name cirrus-be -p 18881:18881 cirrus-be:1.0.0

本地启动

cd cirrus-be
cjpm update
cjpm run --name cirrus

运行示例

Jmeter环境变量

sys_env_jmx

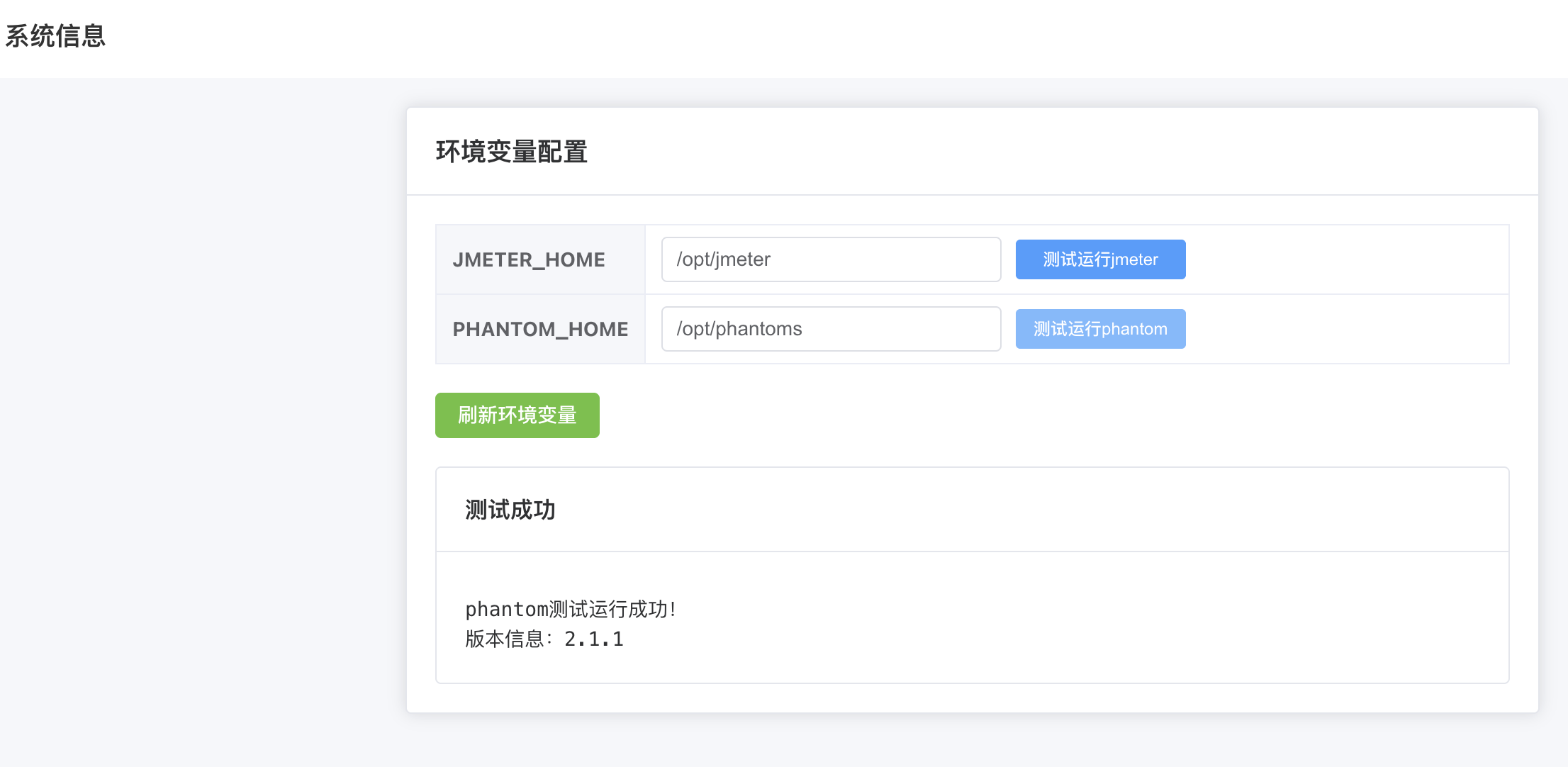

Phantomjs环境变量

sys_env_pjs

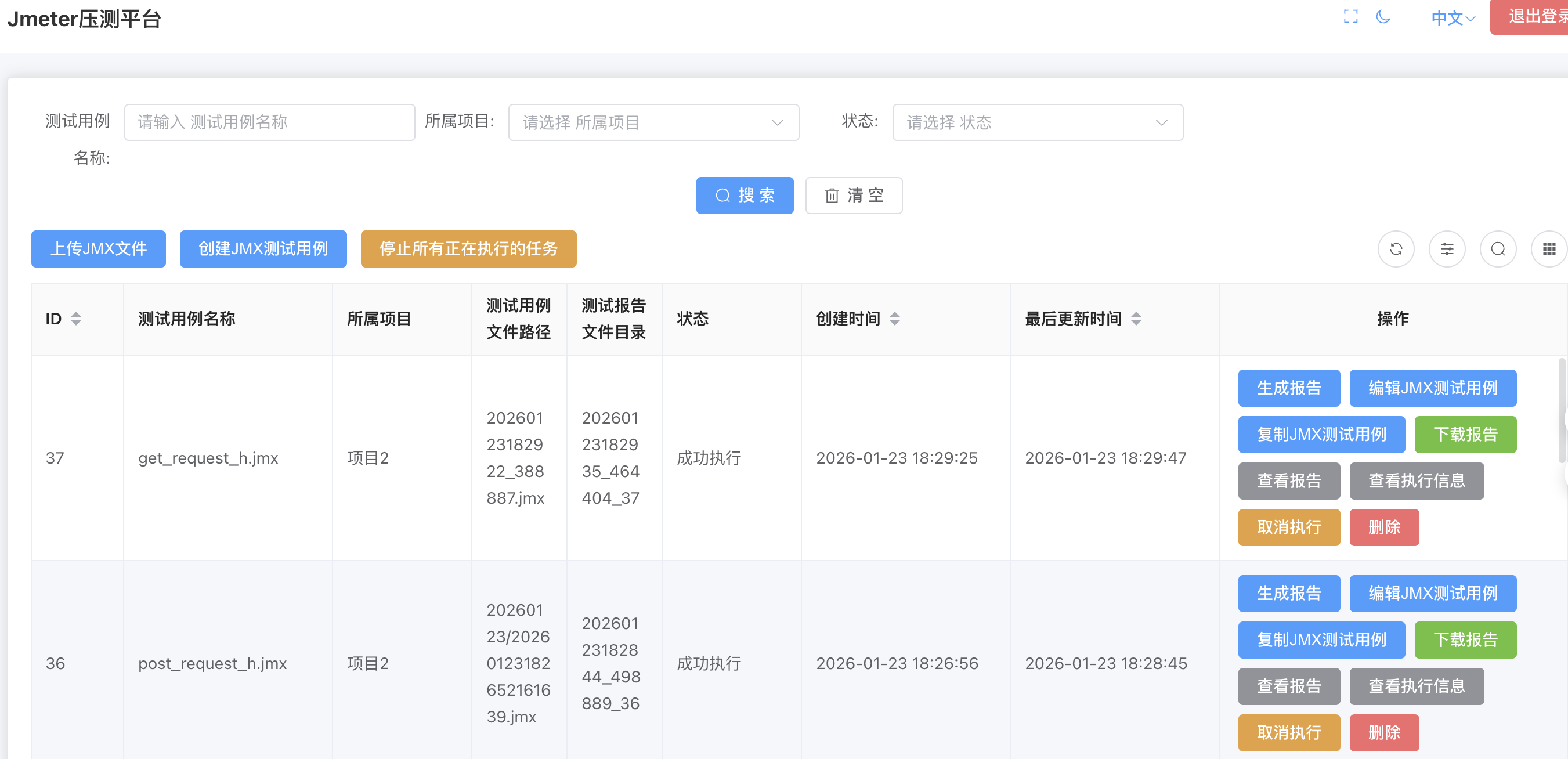

Jmeter分页数据

jmx_pageList

Jmeter编辑GET

jmx_edit_get

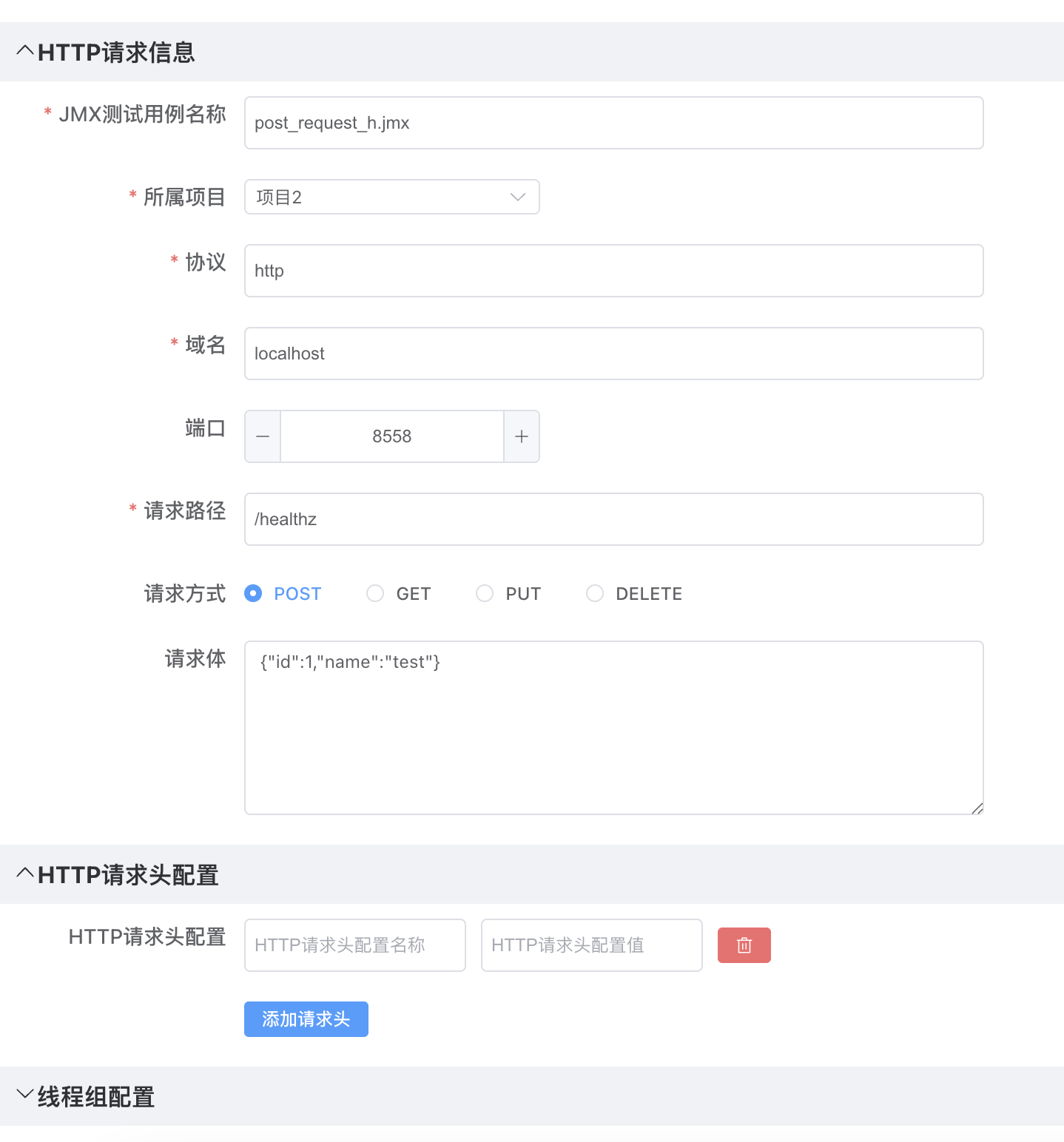

Jmeter编辑POST

jmx_edit_post

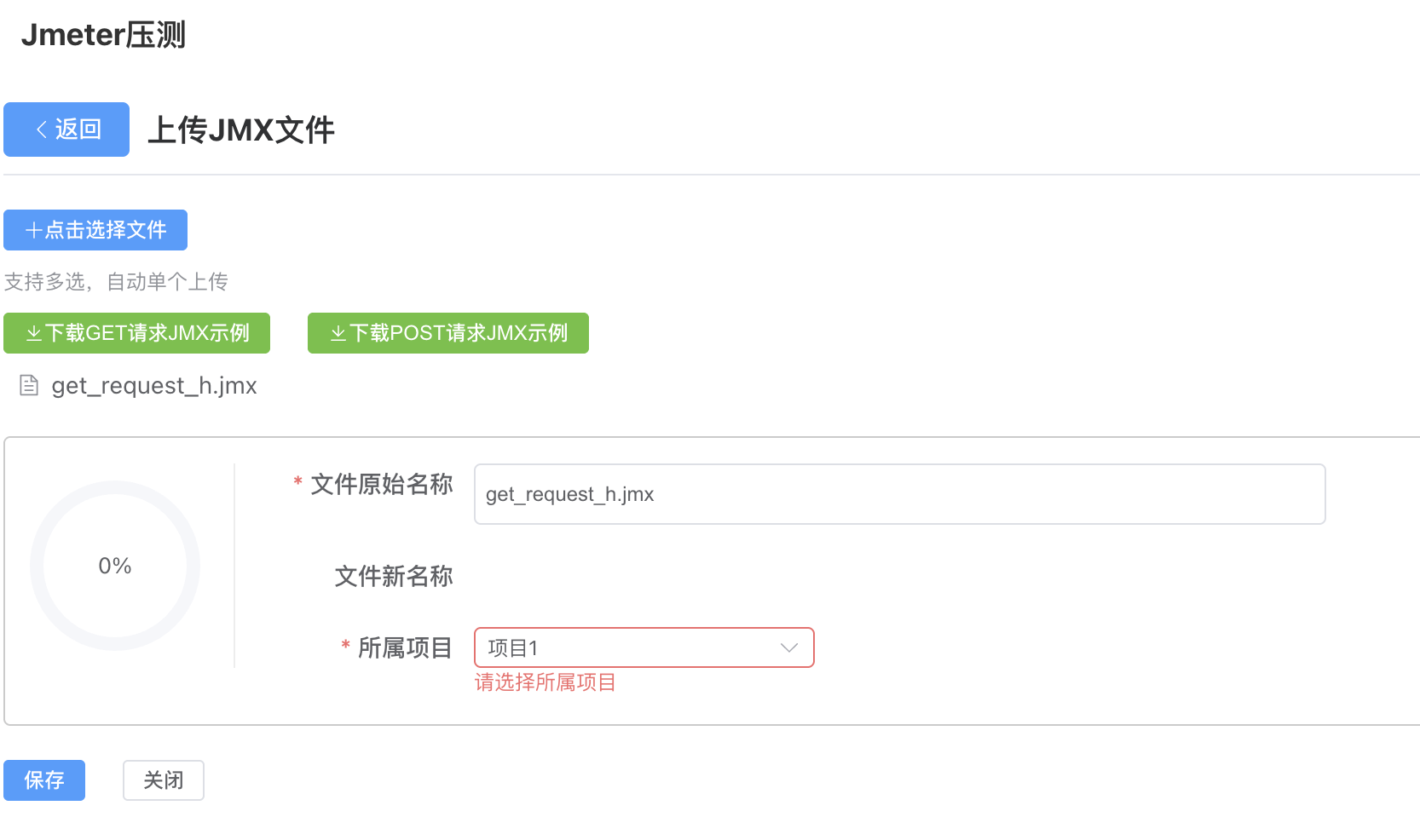

Jmeter上传

jmx_upload

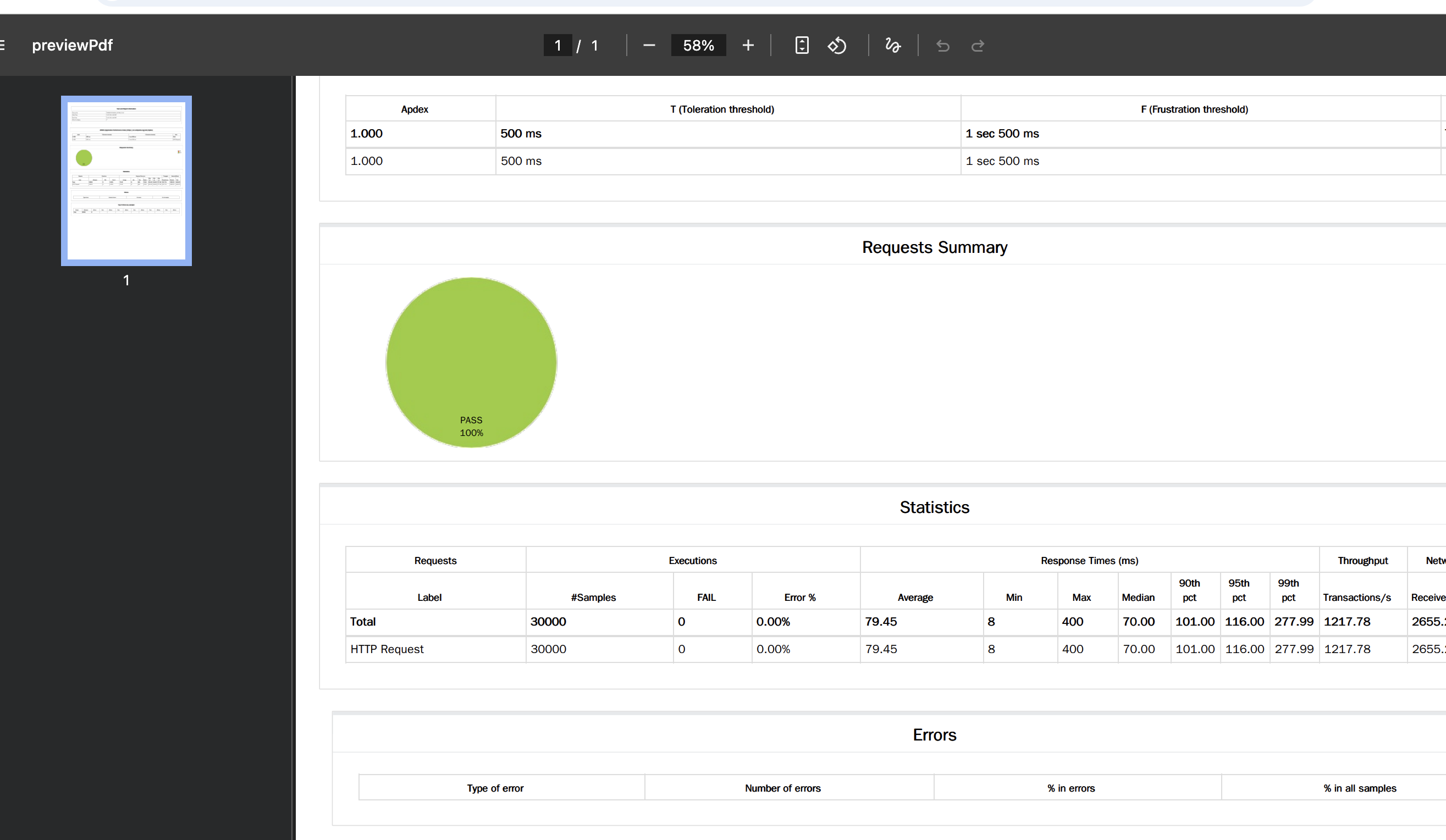

Jmeter预览报告

jmx_preview_report

Redis数据查询

redis_page

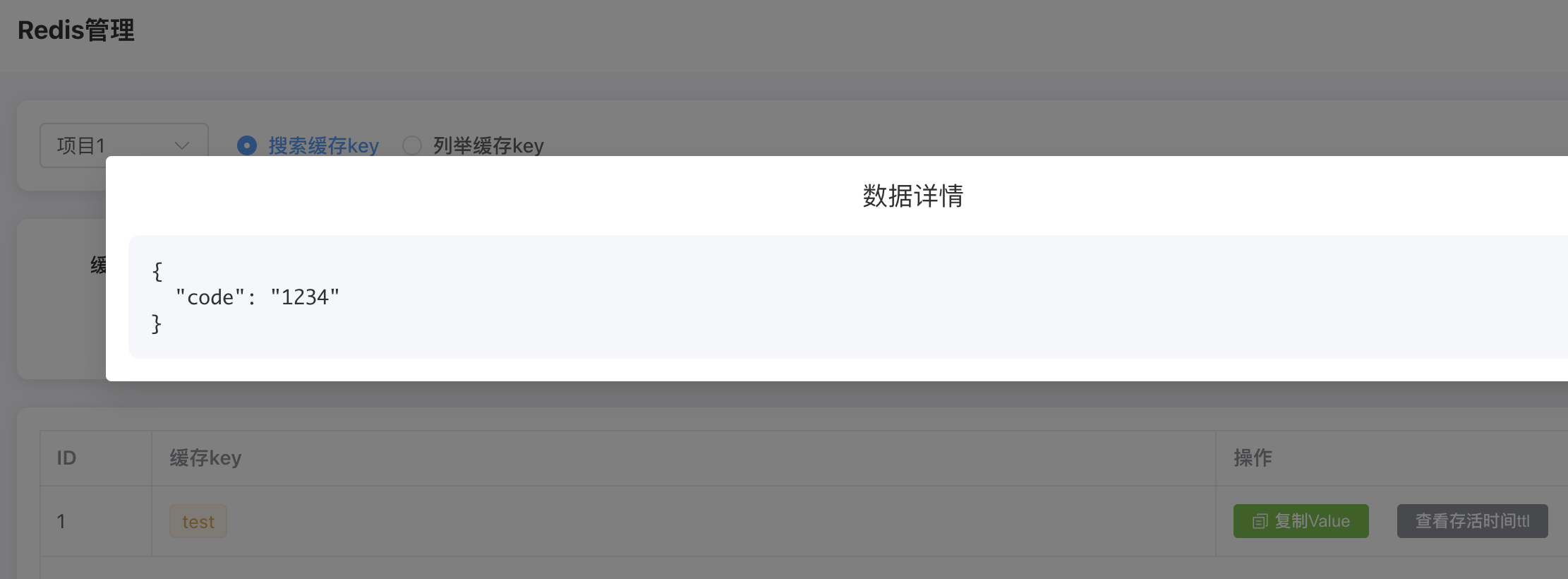

Redis查看缓存

redis_preview

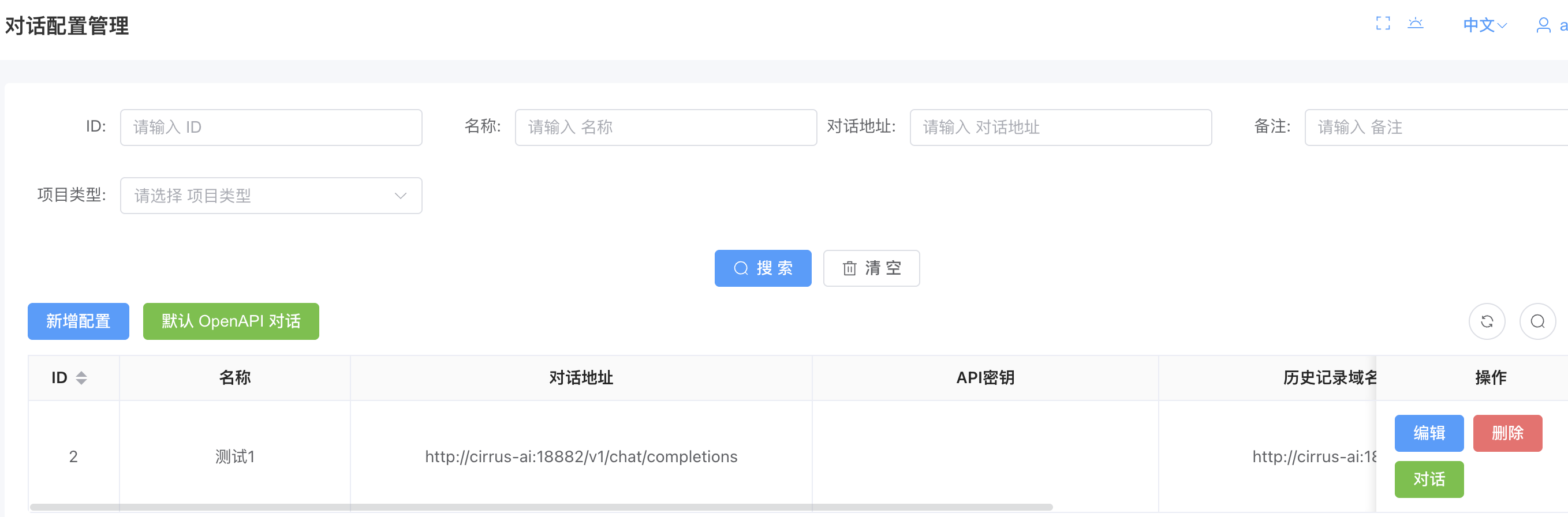

对话配置分页数据

chat_page

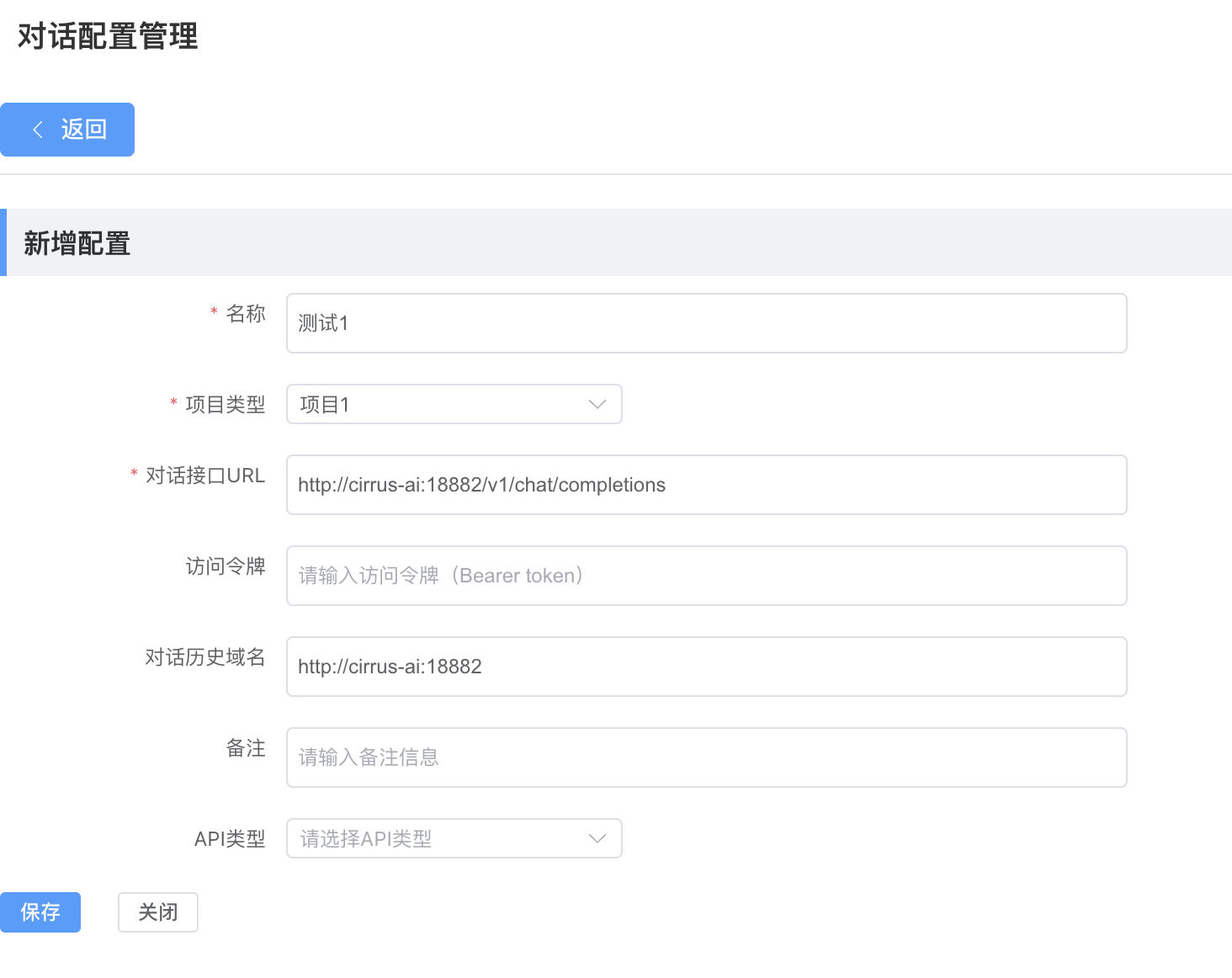

对话配置新增

chat_config

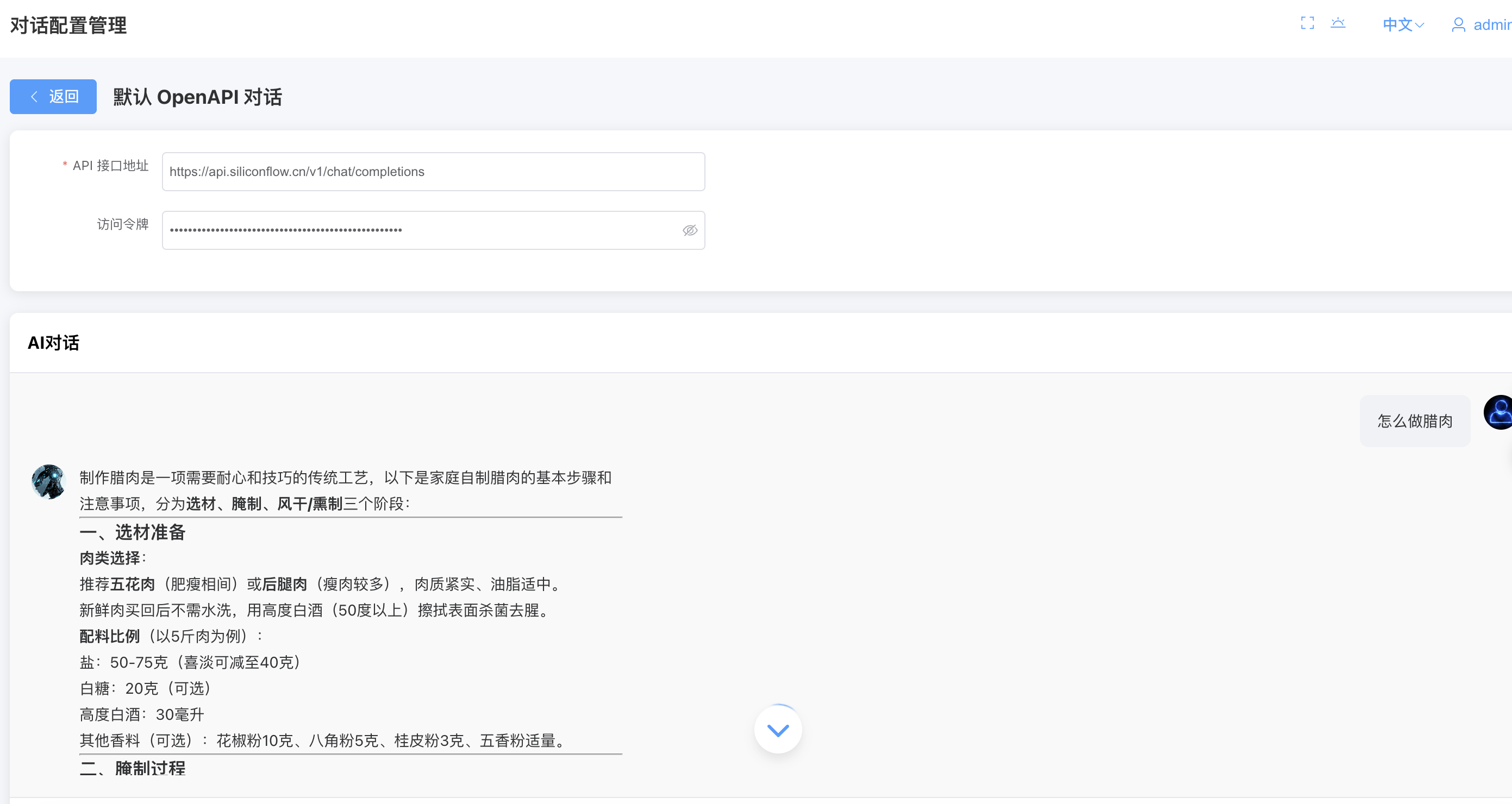

openapi对话

chat_openapi

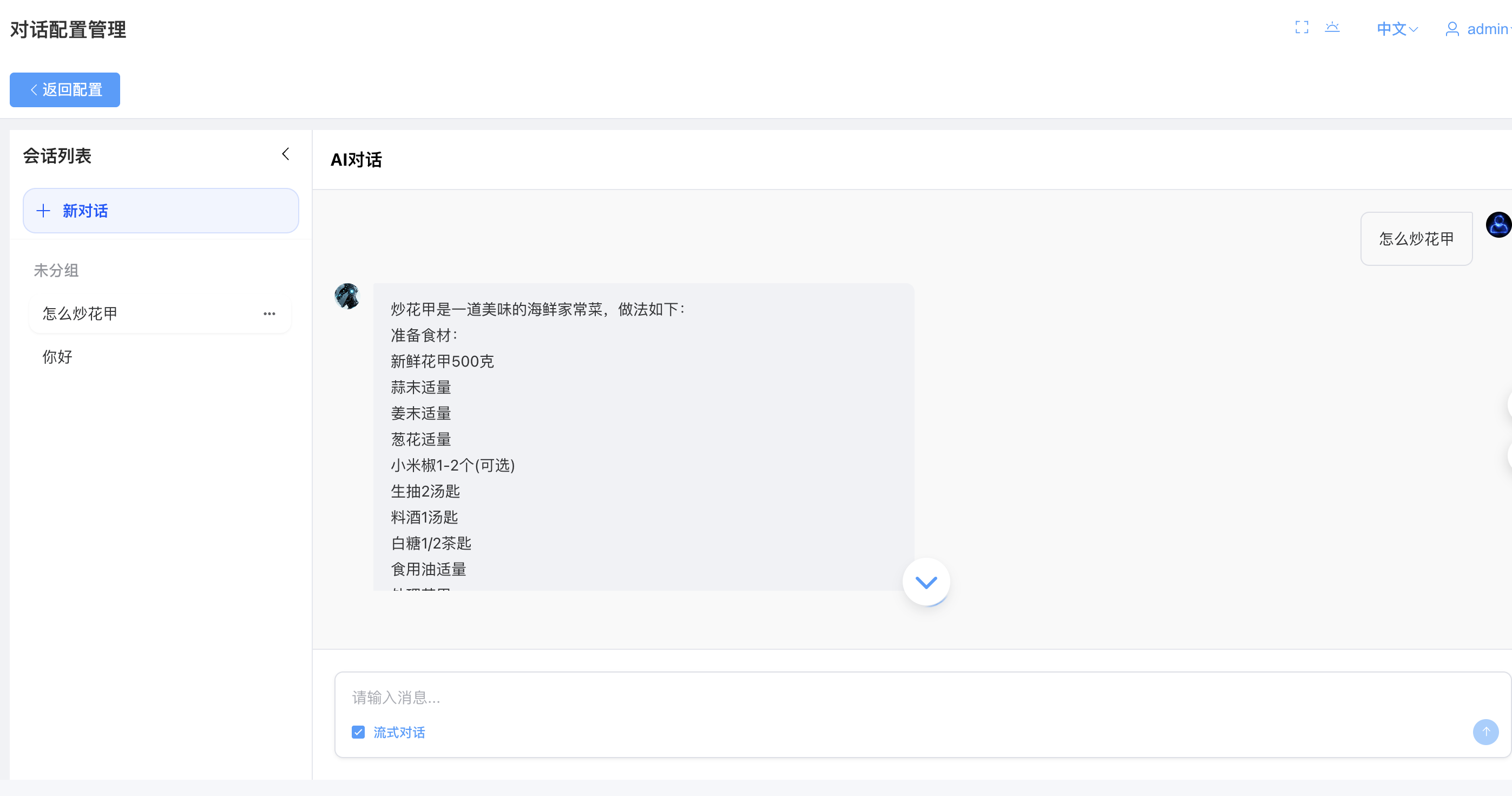

AI对话(历史会话)

chat_detail

docker镜像

基础镜像构建说明

测试

运行全部测试 cjpm test
运行指定测试 cjpm test --filter=Md5Util*

备注

前端项目地址

前端项目地址

redis测试写入数据

#
curl -v telnet://localhost:6379
#验证
auth redis123
#设置缓存值
SET test '{"code":"1234"}'

输出

#curl -v telnet://redis-cirrus:7001
curl -v telnet://localhost:6379
*   Trying 127.0.0.1:6379...
* Connected to localhost (127.0.0.1) port 6379 (#0)
auth redis123
+OK
SET test '{"code":"1234"}'
+OK

redis_sdk包连接不上redis-cirrus容器问题

赶在cirrus-be启动报错过程中，执行，获取IP,示例：172.25.0.2

#查看IP
curl -v telnet://redis-cirrus:7001

输出

sh-5.2# curl -v telnet://redis-cirrus:7001
*   Trying 172.25.0.2:7001...
* Connected to redis-cirrus (172.25.0.2) port 7001

或者修改代码

hyperion/src/transport/client_socket_connection_factory.cj

 /**
 * Copyright 2024 Beijing Baolande Software Corporation
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *    http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 *
 * Runtime Library Exception to the Apache 2.0 License:
 *
 * As an exception, if you use this Software to compile your source code and
 * portions of this Software are embedded into the binary product as a result,
 * you may redistribute such product without providing attribution as would
 * otherwise be required by Sections 4(a), 4(b) and 4(d) of the License.
 */

package hyperion.transport

/**
 * 创建ClientSocketConnection的工厂
 *
 * @author yangfuping
 */
public class ClientSocketConnectionFactory <: PooledObjectFactory<Connection> {
    private let socketOptions: ClientEndpointConfig

    private let ioFilterChain: IoFilterChain

    private let threadPool: ThreadPool

    private var connectionPool: ?ObjectPool<Connection> = None

    private var connInitializer: ?ConnectionInitializer = None

    public init(socketOptions: ClientEndpointConfig, ioFilterChain: IoFilterChain, threadPool: ThreadPool) {
        this.socketOptions = socketOptions
        this.ioFilterChain = ioFilterChain
        this.threadPool = threadPool
    }

    public func setConnectionPool(connectionPool: ObjectPool<Connection>) {
        this.connectionPool = connectionPool
    }

    public func setConnectionInitializer(connInitializer: ConnectionInitializer) {
        this.connInitializer = connInitializer
    }

    /*
     * 创建缓存的对象实例
     * @throws PoolException
     */
    public func createObject(): PooledObject<Connection> {
        let conn = createConnection()
        let pooledObj = PooledObject<Connection>(conn)
        return pooledObj
    }

    /**
     * 创建Socket连接
     */
    private func createConnection(): Connection {
//        let ipAddress = resolveIpAddress(socketOptions.host)
//        let address = IPSocketAddress(ipAddress, socketOptions.port)
//        return createConnection(address)
        return createConnection(socketOptions.host, socketOptions.port)
    }

    private func createConnection(host: String, port: UInt16): Connection {
        try {
//            let socket = createSocket(address)
            println("createConnection: ${host}: ${port}")
            let socket = createSocket(host, port)
            let conn: Connection
            if (let Some(connectionPool) <- connectionPool) {
                conn = ClientSocketConnection(connectionPool, socket)
            } else {
                conn = ClientSocketConnection(socket)
            }
            conn.config(socketOptions)

            let session = DefaultIoSession(conn, ioFilterChain)
            if (socketOptions.stickyRead) {
                let handler = StickyReadInboudHandler(threadPool, ioFilterChain.getBufferAllocator(), session)
                handler.setMaxMessageSizeInBytes(socketOptions.maxMessageSizeInBytes)
                handler.setExecOnReadThread(socketOptions.execOnReadThread)
                spawn {
                    Thread.currentThread.name = "ReadLoop-${conn.simpleName()}"
                    handler.run()
                }
            } else {
                let handler = SimpleInboudEventLoopHandler(threadPool, ioFilterChain.getBufferAllocator(), session)
                handler.setSliceExceedBuffer(socketOptions.sliceExceedBuffer)
                handler.setMaxMessageSizeInBytes(socketOptions.maxMessageSizeInBytes)
                threadPool.addTask(handler)
            }

            if (let Some(initializer) <- connInitializer) {
                initializer.initialize(session)
            }

            return conn
        } catch (ex: Exception) {
            if (ex is PoolException) {
                throw ex
            }
            throw PoolException("Failure to create connection to ${host}, error: ${ex.message}", ex)
        }
    }

    private func createSocket(address: SocketAddress): StreamingSocket {
        let tcpSocket = TcpSocket(address)
        tcpSocket.connect(timeout: Duration.second * 5)
        SocketConnection.configSocketOptions(tcpSocket, socketOptions)
        if (! socketOptions.tlsEnabled) {
            return tcpSocket
        }

        if (let Some(config) <- socketOptions.tlsClientConfig) {
            try {
                let tls = TlsSocket.client(tcpSocket, session: None, clientConfig: config)
                tls.handshake()
                return tls
            } catch (ex: TlsException) {
                tcpSocket.close()
                throw PoolException("Failure to create tls connection to ${address}, error: ${ex.message}", ex)
            }
        } else {
            throw PoolException("Failure to create tls connection to ${address}, should provide tlsClientConfig")
        }
    }

    private func createSocket(host: String, port: UInt16): StreamingSocket {
        let tcpSocket = TcpSocket(host, port)
        tcpSocket.connect(timeout: Duration.second * 5)
        SocketConnection.configSocketOptions(tcpSocket, socketOptions)
        if (! socketOptions.tlsEnabled) {
            return tcpSocket
        }

        if (let Some(config) <- socketOptions.tlsClientConfig) {
            try {
                let tls = TlsSocket.client(tcpSocket, session: None, clientConfig: config)
                tls.handshake()
                return tls
            } catch (ex: TlsException) {
                tcpSocket.close()
                throw PoolException("Failure to create tls connection to ${host}, error: ${ex.message}", ex)
            }
        } else {
            throw PoolException("Failure to create tls connection to ${host}, should provide tlsClientConfig")
        }
    }

    private func resolveIpAddress(host: String): IPAddress {
        if (let Some(ipAddress) <- IPAddress.tryParse(host)) {
            return ipAddress
        }

        let ipAddresses = IPAddress.resolve(host)
        if (ipAddresses.size > 1) {
            return ipAddresses[0]
        }

        throw PoolException("Failure to resolve IPAddress for ${host}")
    }

    /*
     * 验证缓存的对象实例
     */
    public func validObject(pooledObj: PooledObject<Connection>): Bool {
        let conn = pooledObj.value
        if (conn.isInvalid() || conn.isClosed()) {
            return false
        }

        return true
    }

    /*
     * 销毁缓存的对象实例
     * @throws PoolException
     */
    public func destoryObject(pooledObj: PooledObject<Connection>): Unit {
        let conn = pooledObj.value
        conn.markInvalid()
        if (! conn.isClosed()) {
            conn.close()
        }
    }
}

注释JWT认证

src/v1/App.cj

 //设置JWT
//  setJwtAuth(joy)
