基于OEL8静默安装Oracle26ai
涵盖了安装Oracle数据库所需的所有系统级准备工作，为后续的Oracle软件安装奠定了坚实基础
📢📢📢📣📣📣
作者：IT邦德
中国DBA联盟(ACDU)成员，15年DBA工作经验
Oracle、PostgreSQL ACE
CSDN博客专家及B站知名UP主，全网粉丝15万+
擅长主流Oracle、MySQL、PG、高斯及Greenplum备份恢复，
安装迁移，性能优化、故障应急处理
文章目录
1.安装环境准备
1.1.查看物理内存
[root@aiserver ~]# free -m
1.2.操作系统版本
[root@aiserver ~]# cat /etc/redhat-release
Red Hat Enterprise Linux release 8.9 (Ootpa)
1.3.操作系统内存
[root@aiserver ~]# df -h /dev/shm/
Filesystem Size Used Avail Use% Mounted on
tmpfs 1.8G 0 1.8G 0% /dev/shm
1.4.磁盘空间
[root@aiserver ~]# df -TH
[root@aiserver ~]# df -h /tmp/
[root@aiserver ~]# df -h /u01
[root@aiserver ~]# grep SwapTotal /proc/meminfo
Between 1 GB and 2 GB: 1.5 times the size of the RAM
Between 2 GB and 16 GB: Equal to the size of the RAM
More than 16 GB: 16 GB
1.5.查看系统架构
[root@aiserver ~]# uname -m
x86_64
[root@aiserver ~]# cat /proc/version
1.6.解析/etc/hosts
[root@aiserver ~]# hostname
aiserver
cat >> /etc/hosts << EOF
192.168.6.10 aiserver
EOF
1.7.关闭防火墙还有selinux
systemctl stop firewalld.service
systemctl disable firewalld.service
[root@aiserver ~]# /usr/sbin/sestatus
SELinux status: enabled
SELinuxfs mount: /sys/fs/selinux
SELinux root directory: /etc/selinux
Loaded policy name: targeted
Current mode: enforcing
Mode from config file: enforcing
Policy MLS status: enabled
Policy deny_unknown status: allowed
Max kernel policy version: 31
以上发现selinux是打开的
修改/etc/selinux/config文件中设置SELINUX=disabled ，然后重启服务器
sed -i 's/SELINUX=enforcing/SELINUX=disabled/' /etc/selinux/config
##。1.8.CPU信息
[root@aiserver ~]# cat /proc/cpuinfo | grep name | cut -f2 -d: | uniq -c
4 Intel® Core™ i9-9980HK CPU @ 2.40GHz
2.创建用户和组
#查看是否安装有Oracle软件
[root@aiserver ~]# more /etc/oraInst.loc
#查看是否已存在相关用户组
[root@aiserver ~]# grep oinstall /etc/group
[root@aiserver ~]# grep dba /etc/group
[root@aiserver ~]# grep oper /etc/group
[root@aiserver ~]# /usr/sbin/groupadd -g 54321 oinstall
[root@aiserver ~]# /usr/sbin/groupadd -g 54322 dba
[root@aiserver ~]# /usr/sbin/groupadd -g 54323 oper
[root@aiserver ~]# /usr/sbin/useradd -u 54321 -g oinstall -G dba,oper oracle
–修改密码为oracle
[root@aiserver ~]# passwd oracle
3.创建工作的目录
[root@aiserver ~]# mkdir -p /u01/app/oracle
[root@aiserver ~]# chown -R oracle:oinstall /u01/
[root@aiserver ~]# chmod -R 775 /u01/app/oracle
4.配置Oracle的环境变量
[oracle@aiserver ~]$ vi .bash_profile
export ORACLE_BASE=/u01/app/oracle
export ORACLE_HOME=$ORACLE_BASE/product/23.26.1/dbhome_1
export ORACLE_SID=prod
export PATH=$ORACLE_HOME/bin:$PATH:$HOME/bin
[oracle@aiserver ~]$ source .bash_profile

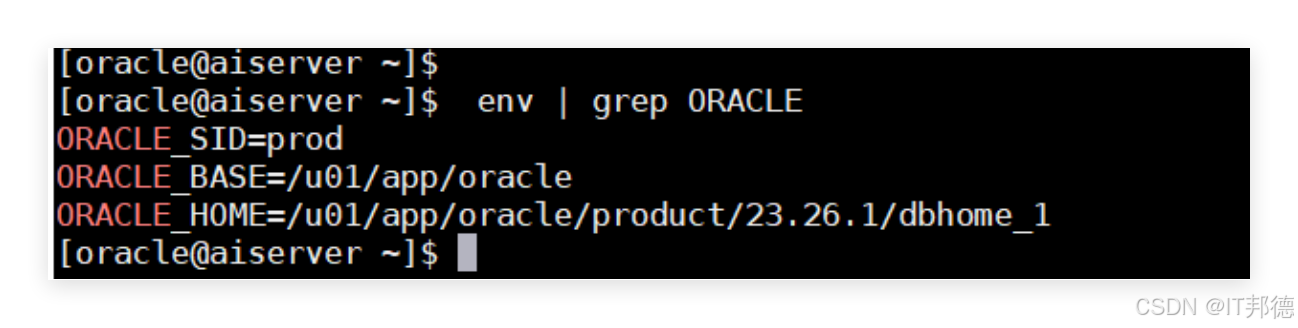

[oracle@aiserver ~]$ env | grep ORACLE
5.修改内核参数
以下在root用户下操作
cp /etc/sysctl.conf /etc/sysctl.conf.bak
cat >> /etc/sysctl.conf << “EOF”
fs.file-max = 6815744
kernel.sem = 250 32000 100 128
kernel.shmmni = 4096
kernel.shmall = 751619276
kernel.shmmax = 3006477107
kernel.panic_on_oops = 1
net.core.rmem_default = 262144
net.core.rmem_max = 4194304
net.core.wmem_default = 262144
net.core.wmem_max = 1048576
fs.aio-max-nr = 1048576
net.ipv4.ip_local_port_range = 9000 65500
EOF
kernel.shmall :物理内存的70%
kernel.shmmni=kernel.shmall/4
环境变量生效
sysctl --system
6./etc/profile配置
以下root用户操作
cp /etc/profile /etc/profile.bak
cat >> /etc/profile << “EOF”
if [ $USER = “oracle” ]; then
if [ $SHELL = “/bin/ksh” ]; then
ulimit -p 16384
ulimit -n 65536
else
ulimit -u 16384 -n 65536
fi
fi
EOF
vi /etc/pam.d/login
session required pam_limits.so
#。7.修改资源限制
以下root用户操作
cp /etc/security/limits.conf /etc/security/limits.conf.bak
cat >> /etc/security/limits.conf << “EOF”
oracle soft nproc 2047
oracle hard nproc 16384
oracle soft nofile 1024
oracle hard nofile 65536
EOF

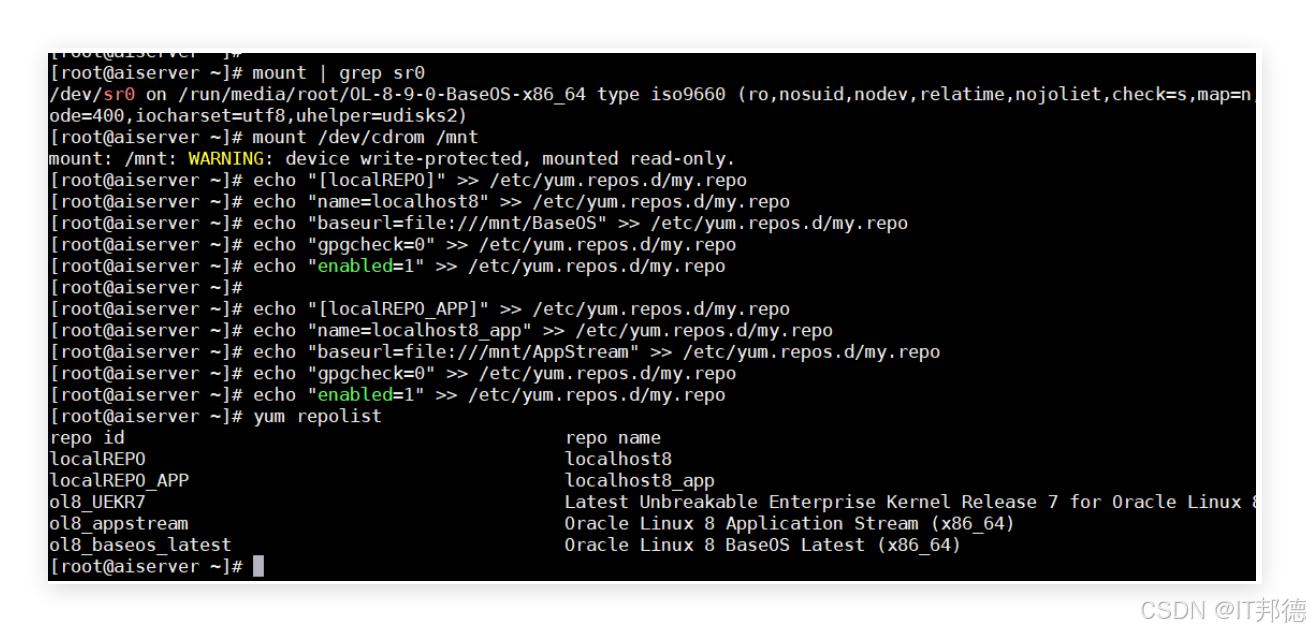

7.yum安装依赖
[root@aiserver ~]# mount | grep sr0
mount /dev/cdrom /mnt
echo "[localREPO]" >> /etc/yum.repos.d/my.repo
echo "name=localhost8" >> /etc/yum.repos.d/my.repo
echo "baseurl=file:///mnt/BaseOS" >> /etc/yum.repos.d/my.repo
echo "gpgcheck=0" >> /etc/yum.repos.d/my.repo
echo "enabled=1" >> /etc/yum.repos.d/my.repo
echo "[localREPO_APP]" >> /etc/yum.repos.d/my.repo
echo "name=localhost8_app" >> /etc/yum.repos.d/my.repo
echo "baseurl=file:///mnt/AppStream" >> /etc/yum.repos.d/my.repo
echo "gpgcheck=0" >> /etc/yum.repos.d/my.repo
echo "enabled=1" >> /etc/yum.repos.d/my.repo
[root@aiserver yum.repos.d]# yum repolist
以下命令安装依赖包
yum install bc \
binutils \
compat-openssl10 \
elfutils-libelf \
fontconfig \
glibc \
glibc-devel \
ksh \
libaio \
libXrender \
libX11 \
libXau \
libXi \
libXtst \
libgcc \
libstdc++ \
libxcb \
libibverbs \
libasan \
liblsan \
librdmacm \
make \
policycoreutils \
policycoreutils-python-utils \
smartmontools \
sysstat -y
8.解压软件授权
oracle用户下操作
[oracle@aiserver ~]$ mkdir -p /u01/app/oracle/product/23.26.1/dbhome_1
oracle用户下操作
[oracle@aiserver ~]$ unzip /opt/LINUX.X64_2326100_db_home.zip -d $ORACLE_HOME
9.静默安装Oracle数据库
9.1.编辑rsp文件
[oracle@aiserver ~]$ cd O R A C L E H O M E / i n s t a l l / r e s p o n s e [ o r a c l e @ a i s e r v e r r e s p o n s e ] ORACLE_HOME/install/response [oracle@aiserver response] ORACLEHOME/install/response[oracle@aiserverresponse] cp db_install.rsp /tmp
vi /tmp/db_install.rsp
修改db_install.rsp文件中以下内容
oracle.install.option=INSTALL_DB_SWONLY
UNIX_GROUP_NAME=oinstall
INVENTORY_LOCATION=/u01/app/oraInventory
ORACLE_BASE=/u01/app/oracle
ORACLE_HOME=/u01/app/oracle/product/23.26.1/dbhome_1
InstallEdition=EE
oracle.install.db.OSDBA_GROU=dba
oracle.install.db.OSOPER_GROUP=oper
oracle.install.db.OSBACKUPDBA_GROUP=dba
oracle.install.db.OSDGDBA_GROUP=dba
oracle.install.db.OSKMDBA_GROUP=dba
oracle.install.db.OSRACDBA_GROUP=dba
9.2.静默安装Oracle软件
[oracle@aiserver ~]$ cd $ORACLE_HOME
./runInstaller -silent -responseFile /tmp/db_install.rsp -ignorePrereq
安装结束后需要以root用户执行以下两个脚本
/u01/app/oracle/oraInventory/orainstRoot.sh
/u01/app/oracle/product/23.26.1/dbhome_1/root.sh

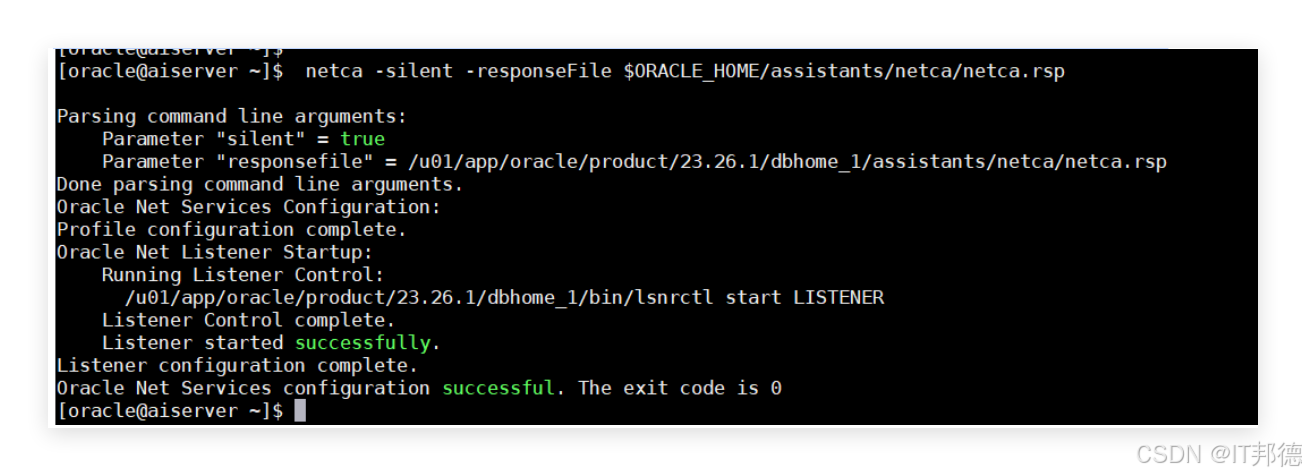

10.监听创建
静默配置监听
[oracle@aiserver ~]$ netca -silent -responseFile $ORACLE_HOME/assistants/netca/netca.rsp
11.dbca建库
11.1.编辑dbca.rsp安装文件
[oracle@aiserver ~]$ cd $ORACLE_HOME/assistants/dbca
[oracle@aiserver dbca]$ cp dbca.rsp /tmp
[oracle@aiserver ~]$ vi /tmp/dbca.rsp
responseFileVersion=/oracle/assistants/rspfmt_dbca_response_schema_v23.0.0
gdbName=prod
sid=prod
databaseConfigType=SI
createAsContainerDatabase=true
numberOfPDBs=2
pdbName=prod
templateName=General_Purpose.dbc
oracleHomeUserPassword=oracle
totalMemory=1500
sysPassword=oracle
systemPassword=oracle
datafileDestination=/u01/app/oracle/oradata
characterSet=AL32UTF8
nationalCharacterSet=UTF8
databaseType=OLTP
注意：templateName、createAsContainerDatabase必須指定

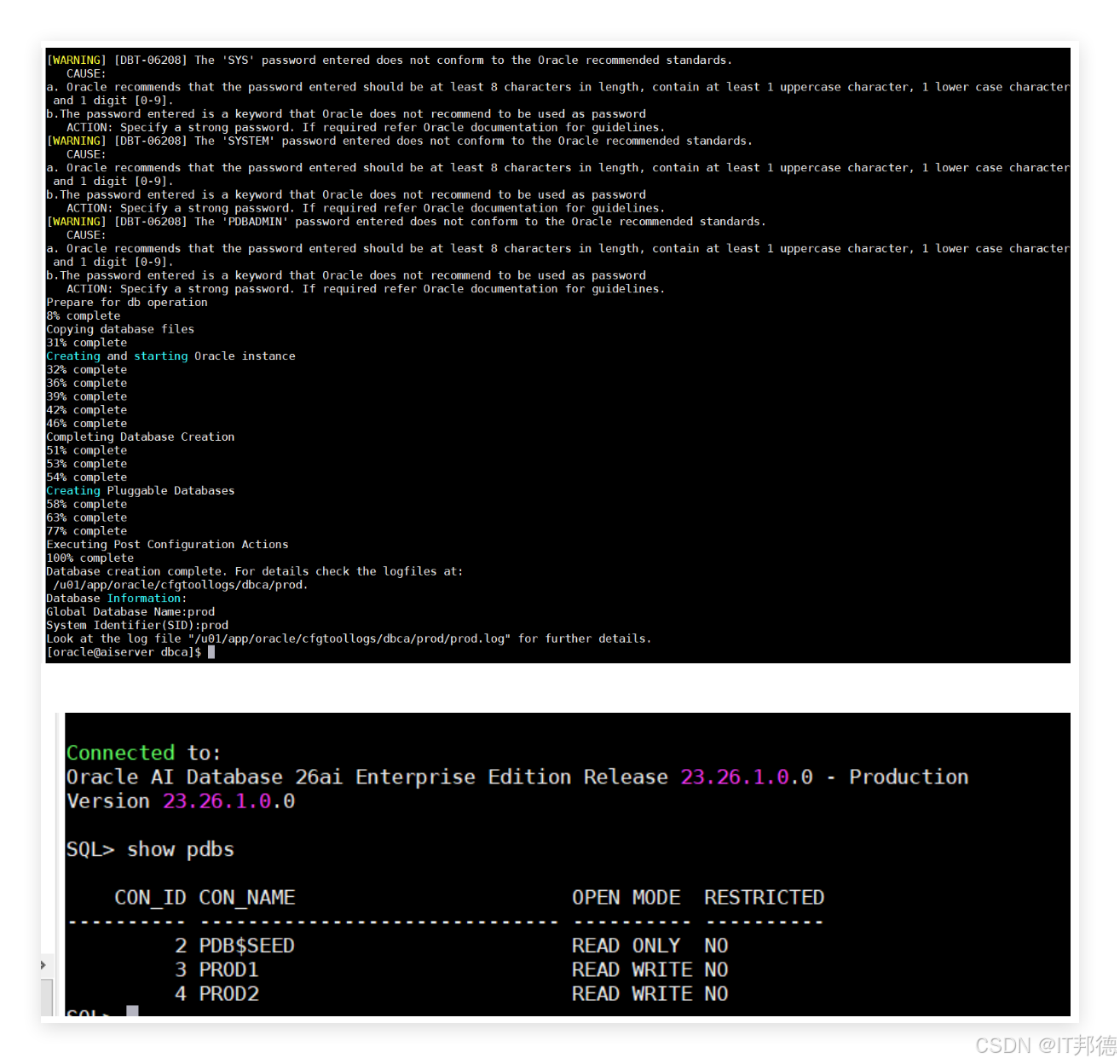

11.2.静默安装数据库
[oracle@aiserver ~]$ dbca -silent -createDatabase -responseFile /tmp/dbca.rsp
