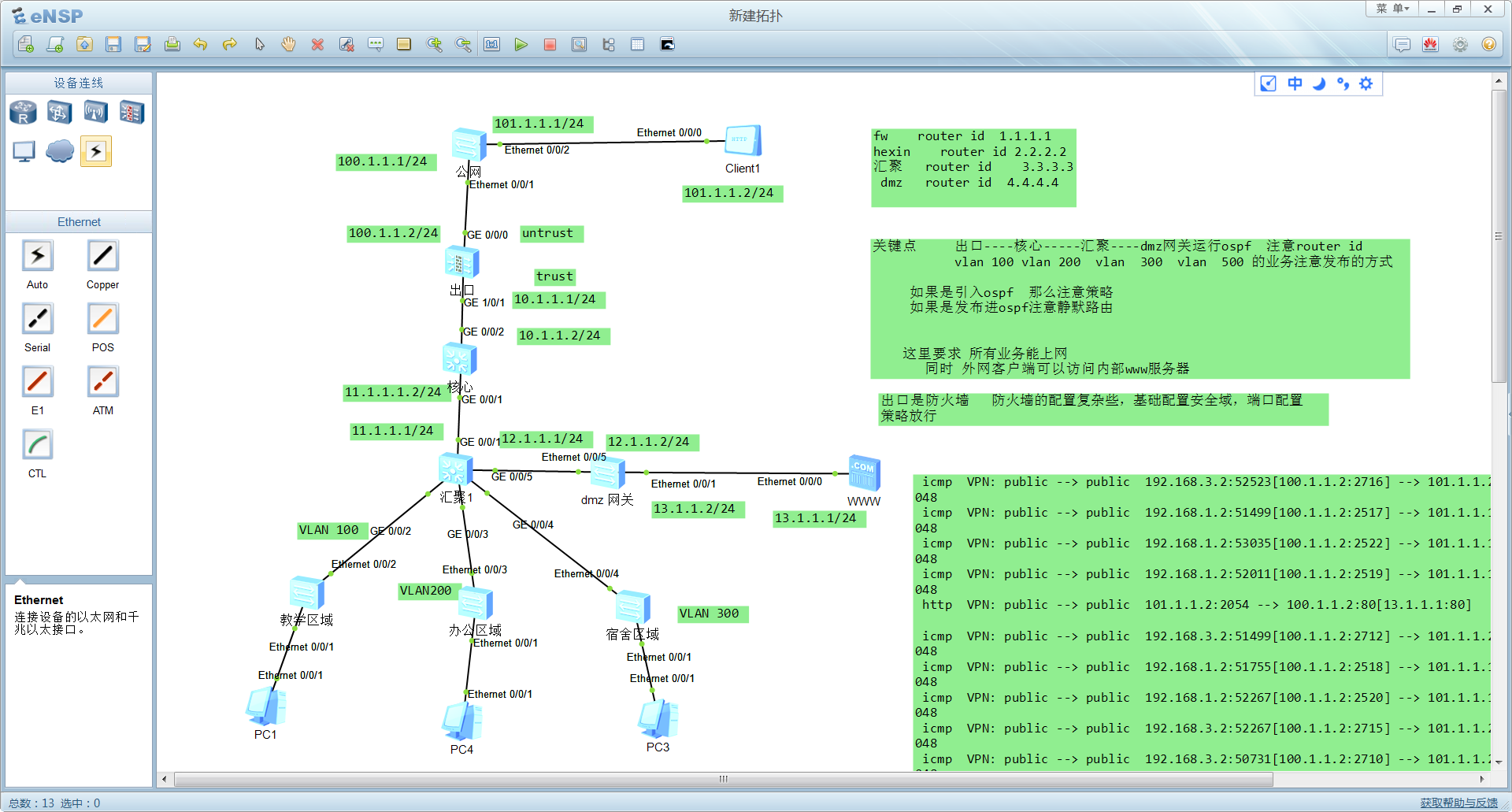

1  拓扑

2  配置

2.1    接入交换机配置

<jiaoxuequyu>display  current-configuration
#
sysname jiaoxuequyu
#
vlan batch 100
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
drop-profile default
#
vlan 100
 description jiaoxueyuju
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password simple admin
 local-user admin service-type http
#
interface Vlanif1
#
interface MEth0/0/1
#
interface Ethernet0/0/1
 port link-type access
 port default vlan 100
#
interface Ethernet0/0/2
 port link-type access
 port default vlan 100
#
interface Ethernet0/0/3
#
interface Ethernet0/0/4
#
interface Ethernet0/0/5
#
interface Ethernet0/0/6
#
interface Ethernet0/0/7
#
interface Ethernet0/0/8
#
interface Ethernet0/0/9
#
interface Ethernet0/0/10
#
interface Ethernet0/0/11
#
interface Ethernet0/0/12
#
interface Ethernet0/0/13
#
interface Ethernet0/0/14
#
interface Ethernet0/0/15
#
interface Ethernet0/0/16
#
interface Ethernet0/0/17
#
interface Ethernet0/0/18
#
interface Ethernet0/0/19
#
interface Ethernet0/0/20
#
interface Ethernet0/0/21
#
interface Ethernet0/0/22
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
#
return

--------------------------------------------------------------------

<bangong>display  current-configuration
#
sysname bangong
#
vlan batch 200
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
drop-profile default
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password simple admin
 local-user admin service-type http
#
interface Vlanif1
#
interface MEth0/0/1
#
interface Ethernet0/0/1
 port link-type access
 port default vlan 200
#
interface Ethernet0/0/2
#
interface Ethernet0/0/3
 port link-type access
 port default vlan 200
#
interface Ethernet0/0/4
#
interface Ethernet0/0/5
#
interface Ethernet0/0/6
#
interface Ethernet0/0/7
#
interface Ethernet0/0/8
#
interface Ethernet0/0/9
#
interface Ethernet0/0/10
#
interface Ethernet0/0/11
#
interface Ethernet0/0/12
#
interface Ethernet0/0/13
#
interface Ethernet0/0/14
#
interface Ethernet0/0/15
#
interface Ethernet0/0/16
#
interface Ethernet0/0/17
#
interface Ethernet0/0/18
#
interface Ethernet0/0/19
#
interface Ethernet0/0/20
#
interface Ethernet0/0/21
#
interface Ethernet0/0/22
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
#
return

---------------------------------------------

<sushe>display  current-configuration
#
sysname sushe
#
vlan batch 300
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
drop-profile default
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password simple admin
 local-user admin service-type http
#
interface Vlanif1
#
interface MEth0/0/1
#
interface Ethernet0/0/1
 port link-type access
 port default vlan 300
#
interface Ethernet0/0/2
#
interface Ethernet0/0/3
#
interface Ethernet0/0/4
 port link-type access
 port default vlan 300
#
interface Ethernet0/0/5
#
interface Ethernet0/0/6
#
interface Ethernet0/0/7
#
interface Ethernet0/0/8
#
interface Ethernet0/0/9
#
interface Ethernet0/0/10
#
interface Ethernet0/0/11
#
interface Ethernet0/0/12
#
interface Ethernet0/0/13
#
interface Ethernet0/0/14
#
interface Ethernet0/0/15
#
interface Ethernet0/0/16
#
interface Ethernet0/0/17
#
interface Ethernet0/0/18
#
interface Ethernet0/0/19
#
interface Ethernet0/0/20
#
interface Ethernet0/0/21
#
interface Ethernet0/0/22
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
#

2.2    核心区域的配置

<dmz>display  current-configuration
#
sysname dmz
#
vlan batch 10 20
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
acl number 2000
 rule 1 permit source 13.1.1.0 0.0.0.255
#
drop-profile default
#
vlan 10
 description to-wangguang
vlan 20
 description to-server
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password simple admin
 local-user admin service-type http
#
interface Vlanif1
 ip address 13.1.1.2 255.255.255.0
#
interface Vlanif10
 description to-huiju
 ip address 12.1.1.2 255.255.255.0
#
interface MEth0/0/1
#
interface Ethernet0/0/1
#
interface Ethernet0/0/2
#
interface Ethernet0/0/3
#
interface Ethernet0/0/4
#
interface Ethernet0/0/5
 port link-type access
 port default vlan 10
#
interface Ethernet0/0/6
#
interface Ethernet0/0/7
#
interface Ethernet0/0/8
#
interface Ethernet0/0/9
#
interface Ethernet0/0/10
#
interface Ethernet0/0/11
#
interface Ethernet0/0/12
#
interface Ethernet0/0/13
#
interface Ethernet0/0/14
#
interface Ethernet0/0/15
#
interface Ethernet0/0/16
#
interface Ethernet0/0/17
#
interface Ethernet0/0/18
#
interface Ethernet0/0/19
#
interface Ethernet0/0/20
#
interface Ethernet0/0/21
#
interface Ethernet0/0/22
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
ospf 1 router-id 4.4.4.4
 import-route direct route-policy 1
 area 0.0.0.0
  network 12.1.1.0 0.0.0.255
#
route-policy 1 permit node 10
 if-match acl 2000
 apply cost 1000
#
user-interface con 0
user-interface vty 0 4
#
return


---------------------------------------

<huiju>display  current-configuration
#
sysname huiju
#
vlan batch 10 20 100 200 300 500
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
acl number 2000
 rule 1 permit source 192.168.4.0 0.0.0.255
 rule 2 permit source 192.168.1.0 0.0.0.255
 rule 3 permit source 192.168.3.0 0.0.0.255
#
drop-profile default
#
vlan 10
 description to-dmz-wangguan
vlan 100
 description jiaoxuequyu
vlan 200
 description bangongquyu
vlan 300
 description sushequyu
vlan 500
 description dmzquyu
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password simple admin
 local-user admin service-type http
#
interface Vlanif1
#
interface Vlanif10
 description to-dmz-wangguan
 ip address 12.1.1.1 255.255.255.0
#
interface Vlanif20
 ip address 11.1.1.1 255.255.255.0
#
interface Vlanif100
 description jiaoxuequyu
 ip address 192.168.4.1 255.255.255.0
#
interface Vlanif200
 description bangongquyu
 ip address 192.168.1.1 255.255.255.0
#
interface Vlanif300
 description sushequyu
 ip address 192.168.3.1 255.255.255.0
#
interface MEth0/0/1
#
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 20
#
interface GigabitEthernet0/0/2
 port link-type access
 port default vlan 100
#
interface GigabitEthernet0/0/3
 port link-type access
 port default vlan 200
#
interface GigabitEthernet0/0/4
 port link-type access
 port default vlan 300
#
interface GigabitEthernet0/0/5
 port link-type access
 port default vlan 10
#
interface GigabitEthernet0/0/6
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface GigabitEthernet0/0/20
#
interface GigabitEthernet0/0/21
#
interface GigabitEthernet0/0/22
#
interface GigabitEthernet0/0/23
#
interface GigabitEthernet0/0/24
#
interface NULL0
#
ospf 1 router-id 3.3.3.3
 import-route direct route-policy 1
 area 0.0.0.0
  network 11.1.1.0 0.0.0.255
  network 12.1.1.0 0.0.0.255
#
route-policy 1 permit node 10
 if-match acl 2000
 apply cost 10000
#
user-interface con 0
user-interface vty 0 4
#
return
----------------------------------------------------------------

<hexin>display  current-configuration
#
sysname hexin
#
vlan batch 10 20
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
drop-profile default
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password simple admin
 local-user admin service-type http
#
interface Vlanif1
#
interface Vlanif10
 ip address 10.1.1.2 255.255.255.0
#
interface Vlanif20
 ip address 11.1.1.2 255.255.255.0
#
interface MEth0/0/1
#
interface GigabitEthernet0/0/1
 port link-type access
 port default vlan 20
#
interface GigabitEthernet0/0/2
 port link-type access
 port default vlan 10
#
interface GigabitEthernet0/0/3
#
interface GigabitEthernet0/0/4
#
interface GigabitEthernet0/0/5
#
interface GigabitEthernet0/0/6
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface GigabitEthernet0/0/20
#
interface GigabitEthernet0/0/21
#
interface GigabitEthernet0/0/22
#
interface GigabitEthernet0/0/23
#
interface GigabitEthernet0/0/24
#
interface NULL0
#
ospf 1 router-id 2.2.2.2
 area 0.0.0.0
  network 10.1.1.0 0.0.0.255
  network 11.1.1.0 0.0.0.255
#
user-interface con 0
user-interface vty 0 4
#
return


--------------------------------------------------

#
interface GigabitEthernet0/0/0
 undo shutdown
 ip address 100.1.1.2 255.255.255.0
 alias GE0/METH
 service-manage http permit
 service-manage https permit
 service-manage ping permit
 service-manage ssh permit
 service-manage snmp permit
 service-manage telnet permit
#
interface GigabitEthernet1/0/0
 undo shutdown
#
interface GigabitEthernet1/0/1
 undo shutdown
 ip address 10.1.1.1 255.255.255.0
 service-manage http permit
 service-manage https permit
 service-manage ping permit
 service-manage ssh permit
 service-manage snmp permit
 service-manage telnet permit
#
interface GigabitEthernet1/0/2
 undo shutdown
#
interface GigabitEthernet1/0/3
 undo shutdown
#
interface GigabitEthernet1/0/4
 undo shutdown
#
interface GigabitEthernet1/0/5
 undo shutdown
#
interface GigabitEthernet1/0/6
 undo shutdown
#
interface Virtual-if0
#
interface NULL0
#
firewall zone local
 set priority 100
#
firewall zone trust
 set priority 85
 add interface GigabitEthernet1/0/1
#
firewall zone untrust
 set priority 5
 add interface GigabitEthernet0/0/0
#
firewall zone dmz
 set priority 50
#
ospf 1 router-id 1.1.1.1
 default-route-advertise always
 area 0.0.0.0
  network 10.1.1.0 0.0.0.255
#
ip route-static 0.0.0.0 0.0.0.0 100.1.1.1
#
undo ssh server compatible-ssh1x enable
ssh authentication-type default password
ssh server cipher aes256_ctr aes128_ctr
ssh server hmac sha2_256 sha1
ssh client cipher aes256_ctr aes128_ctr
ssh client hmac sha2_256 sha1
#
firewall detect ftp
#
 nat server 0 global 100.1.1.2 inside 13.1.1.1
#
user-interface con 0
 authentication-mode aaa
user-interface vty 0 4
 authentication-mode aaa
 protocol inbound ssh
user-interface vty 16 20
#
pki realm default
#
sa
#
location
#
multi-linkif
 mode proportion-of-weight
#
right-manager server-group
#
device-classification
 device-group pc
 device-group mobile-terminal
 device-group undefined-group
#
user-manage server-sync tsm
#
security-policy
 rule name nat
  source-zone local
  source-zone trust
  source-zone untrust
  destination-zone local
  destination-zone trust
  destination-zone untrust
  action permit
 rule name zhilian
  source-zone local
  source-zone trust
  source-zone untrust
  destination-zone local
  destination-zone trust
  destination-zone untrust
  source-address 10.1.1.0 mask 255.255.255.0
  source-address 100.1.1.0 mask 255.255.255.0
  destination-address 10.1.1.0 mask 255.255.255.0
  destination-address 100.1.1.0 mask 255.255.255.0
  action permit
 rule name ospf
  source-zone local
  source-zone trust
  destination-zone local
  destination-zone trust
  action permit
#
auth-policy
#
traffic-policy
#
policy-based-route
#
nat-policy
 rule name nat
  source-zone trust
  destination-zone untrust
  source-address 192.168.1.0 mask 255.255.255.0
  source-address 192.168.2.0 mask 255.255.255.0
  source-address 192.168.3.0 mask 255.255.255.0
  source-address 192.168.4.0 mask 255.255.255.0
  action source-nat easy-ip
#
quota-policy
#
pcp-policy
#
dns-transparent-policy
#
rightm-policy
#
return


2.2   公网配置

<isp>display  current-configuration
#
sysname isp
#
vlan batch 2
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
drop-profile default
#
aaa
 authentication-scheme default
 authorization-scheme default
 accounting-scheme default
 domain default
 domain default_admin
 local-user admin password simple admin
 local-user admin service-type http
#
interface Vlanif1
 ip address 100.1.1.1 255.255.255.0
#
interface Vlanif2
 ip address 101.1.1.1 255.255.255.0
#
interface MEth0/0/1
#
interface Ethernet0/0/1
#
interface Ethernet0/0/2
 port link-type access
 port default vlan 2
#
interface Ethernet0/0/3
#
interface Ethernet0/0/4
#
interface Ethernet0/0/5
#
interface Ethernet0/0/6
#
interface Ethernet0/0/7
#
interface Ethernet0/0/8
#
interface Ethernet0/0/9
#
interface Ethernet0/0/10
#
interface Ethernet0/0/11
#
interface Ethernet0/0/12
#
interface Ethernet0/0/13
#
interface Ethernet0/0/14
#
interface Ethernet0/0/15
#
interface Ethernet0/0/16
#
interface Ethernet0/0/17
#
interface Ethernet0/0/18
#
interface Ethernet0/0/19
#
interface Ethernet0/0/20
#
interface Ethernet0/0/21
#
interface Ethernet0/0/22
#
interface GigabitEthernet0/0/1
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
#
return

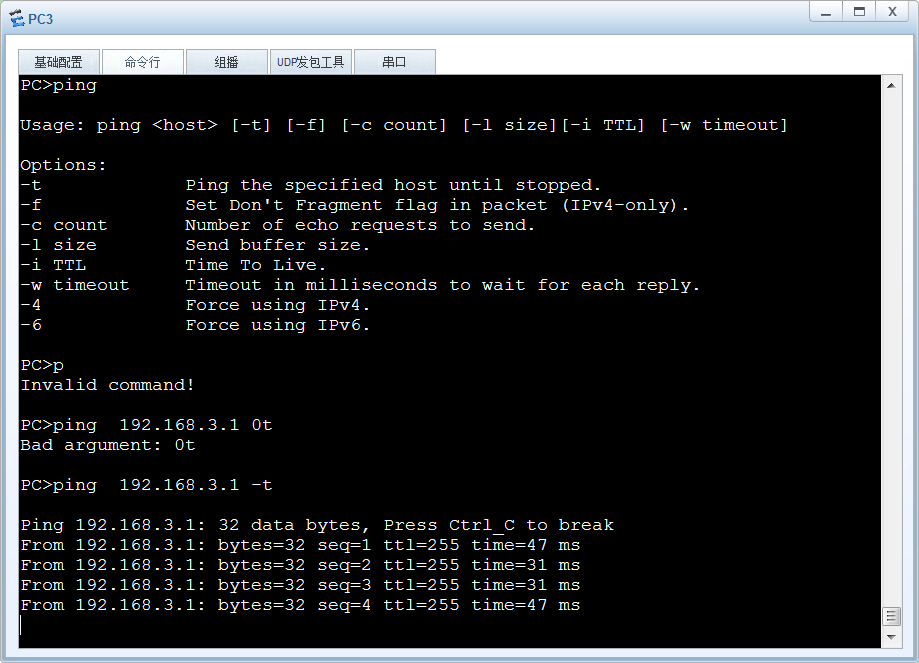

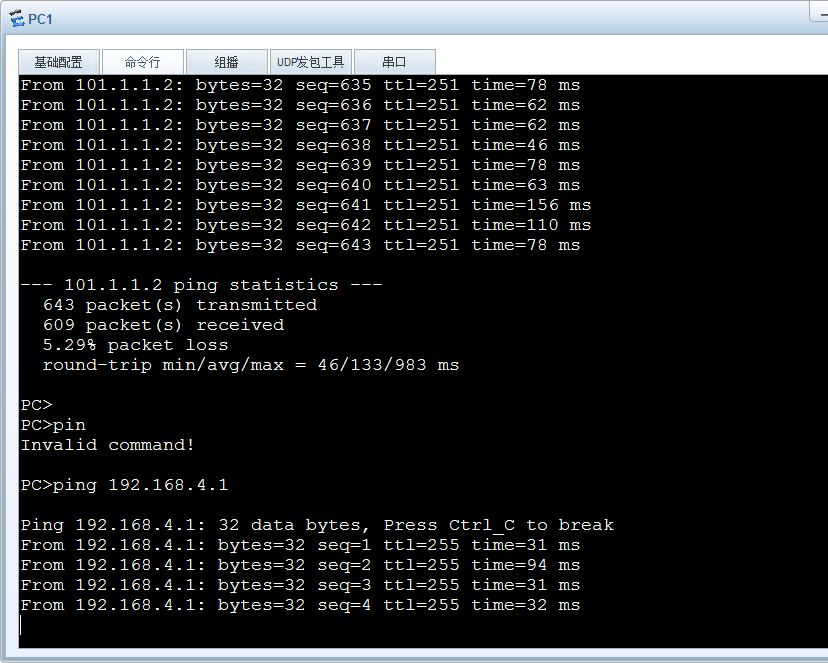

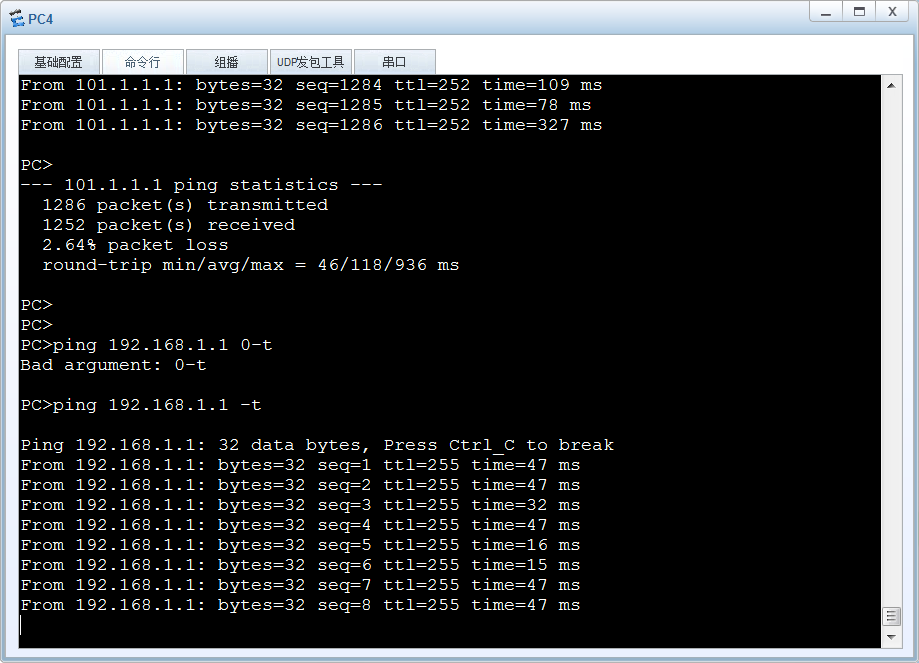

3   测试

汇聚网关能通



<chukou-fw>display  firewall session table
2025-12-21 17:35:34.350
 Current Total Sessions : 44

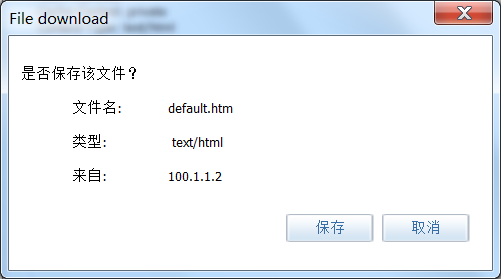

 http  VPN: public --> public  101.1.1.2:2057 --> 100.1.1.2:80[13.1.1.1:80]
 icmp  VPN: public --> public  192.168.1.2:58927[100.1.1.2:3340] --> 101.1.1.1:2
048
 icmp  VPN: public --> public  192.168.3.2:61743[100.1.1.2:4228] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.3.2:60207[100.1.1.2:4215] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.3.2:61231[100.1.1.2:4224] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.4.2:56879[100.1.1.2:4201] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.1.2:59183[100.1.1.2:3341] --> 101.1.1.1:2
048
 icmp  VPN: public --> public  192.168.4.2:58415[100.1.1.2:4206] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.3.2:61487[100.1.1.2:4226] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.4.2:61231[100.1.1.2:4223] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.4.2:60463[100.1.1.2:4218] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.1.2:58159[100.1.1.2:3337] --> 101.1.1.1:2
048
 icmp  VPN: public --> public  192.168.1.2:60975[100.1.1.2:3347] --> 101.1.1.1:2
048
 icmp  VPN: public --> public  192.168.4.2:60719[100.1.1.2:4219] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.1.2:58671[100.1.1.2:3339] --> 101.1.1.1:2
048
 icmp  VPN: public --> public  192.168.1.2:60719[100.1.1.2:3346] --> 101.1.1.1:2
048
 icmp  VPN: public --> public  192.168.4.2:57903[100.1.1.2:4204] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.1.2:59951[100.1.1.2:3343] --> 101.1.1.1:2
048
 icmp  VPN: public --> public  192.168.1.2:60463[100.1.1.2:3345] --> 101.1.1.1:2
048
 icmp  VPN: public --> public  192.168.3.2:59951[100.1.1.2:4214] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.1.2:59439[100.1.1.2:3342] --> 101.1.1.1:2
048
 icmp  VPN: public --> public  192.168.4.2:61743[100.1.1.2:4227] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.4.2:60975[100.1.1.2:4222] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.4.2:60207[100.1.1.2:4216] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.4.2:58927[100.1.1.2:4208] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.4.2:58159[100.1.1.2:4205] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.3.2:60463[100.1.1.2:4217] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.1.2:61487[100.1.1.2:3349] --> 101.1.1.1:2
048
 icmp  VPN: public --> public  192.168.3.2:59439[100.1.1.2:4212] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.4.2:59695[100.1.1.2:4213] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.4.2:57391[100.1.1.2:4202] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.4.2:57647[100.1.1.2:4203] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.1.2:61743[100.1.1.2:3350] --> 101.1.1.1:2
048
 icmp  VPN: public --> public  192.168.4.2:59183[100.1.1.2:4209] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.3.2:60719[100.1.1.2:4220] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.4.2:61487[100.1.1.2:4225] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.1.2:60207[100.1.1.2:3344] --> 101.1.1.1:2
048
 icmp  VPN: public --> public  192.168.1.2:57903[100.1.1.2:3336] --> 101.1.1.1:2
048
 icmp  VPN: public --> public  192.168.4.2:59439[100.1.1.2:4211] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.3.2:59183[100.1.1.2:4210] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.1.2:61231[100.1.1.2:3348] --> 101.1.1.1:2
048
 icmp  VPN: public --> public  192.168.1.2:58415[100.1.1.2:3338] --> 101.1.1.1:2
048
 icmp  VPN: public --> public  192.168.4.2:58671[100.1.1.2:4207] --> 101.1.1.2:2
048
 icmp  VPN: public --> public  192.168.3.2:60975[100.1.1.2:4221] --> 101.1.1.2:2
048

注意测试这些数据流
