论文

A global reptile assessment highlights shared conservation needs of tetrapods

https://www.nature.com/articles/s41586-022-04664-7#Sec33

数据代码链接

https://github.com/j-marin/Global-reptile-assessment-

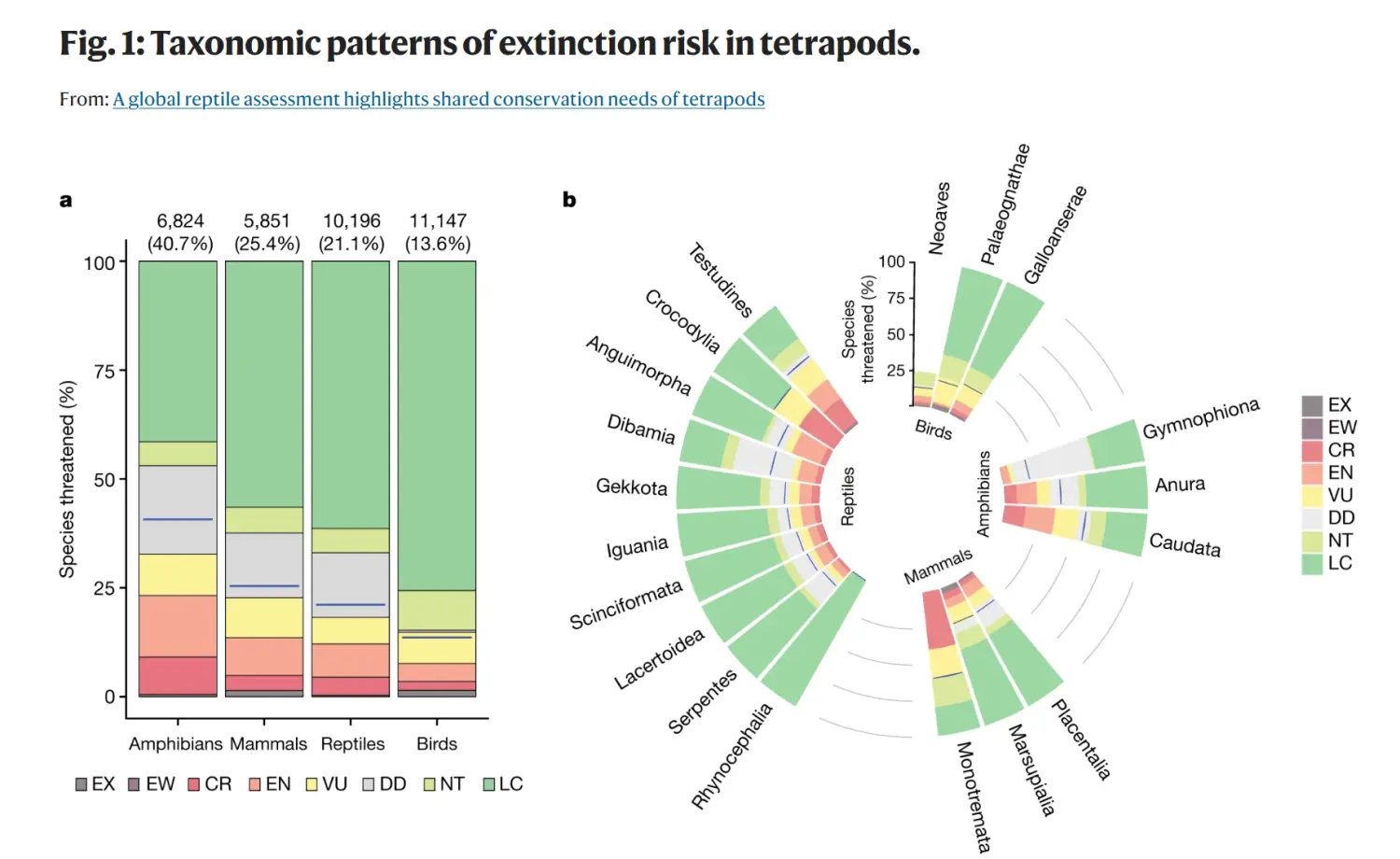

今天的推文学习一下推文中的Figure 1a的堆积柱形图，没有找到论文中的作图代码，但是找到了原始数据集，有了原始数据集就可以自己写代码来做这个图

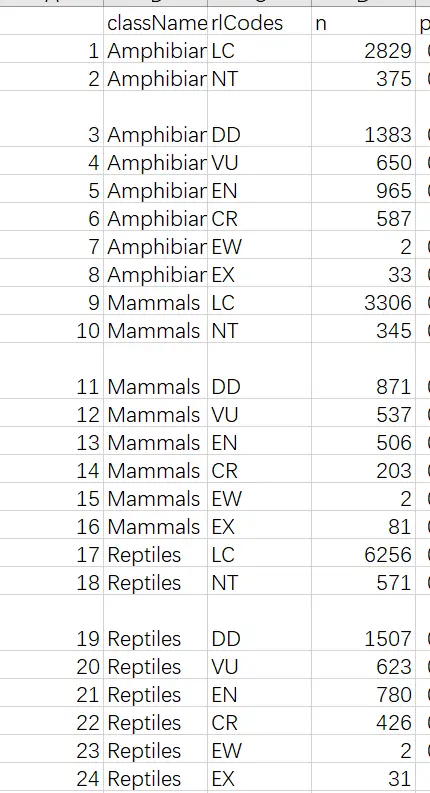

作图数据集部分截图


读取数据集

library(readxl)
dat01<-read_excel("data/20220630/41586_2022_4664_MOESM3_ESM.xlsx",
                  sheet = "Fig 1a")
head(dat01)

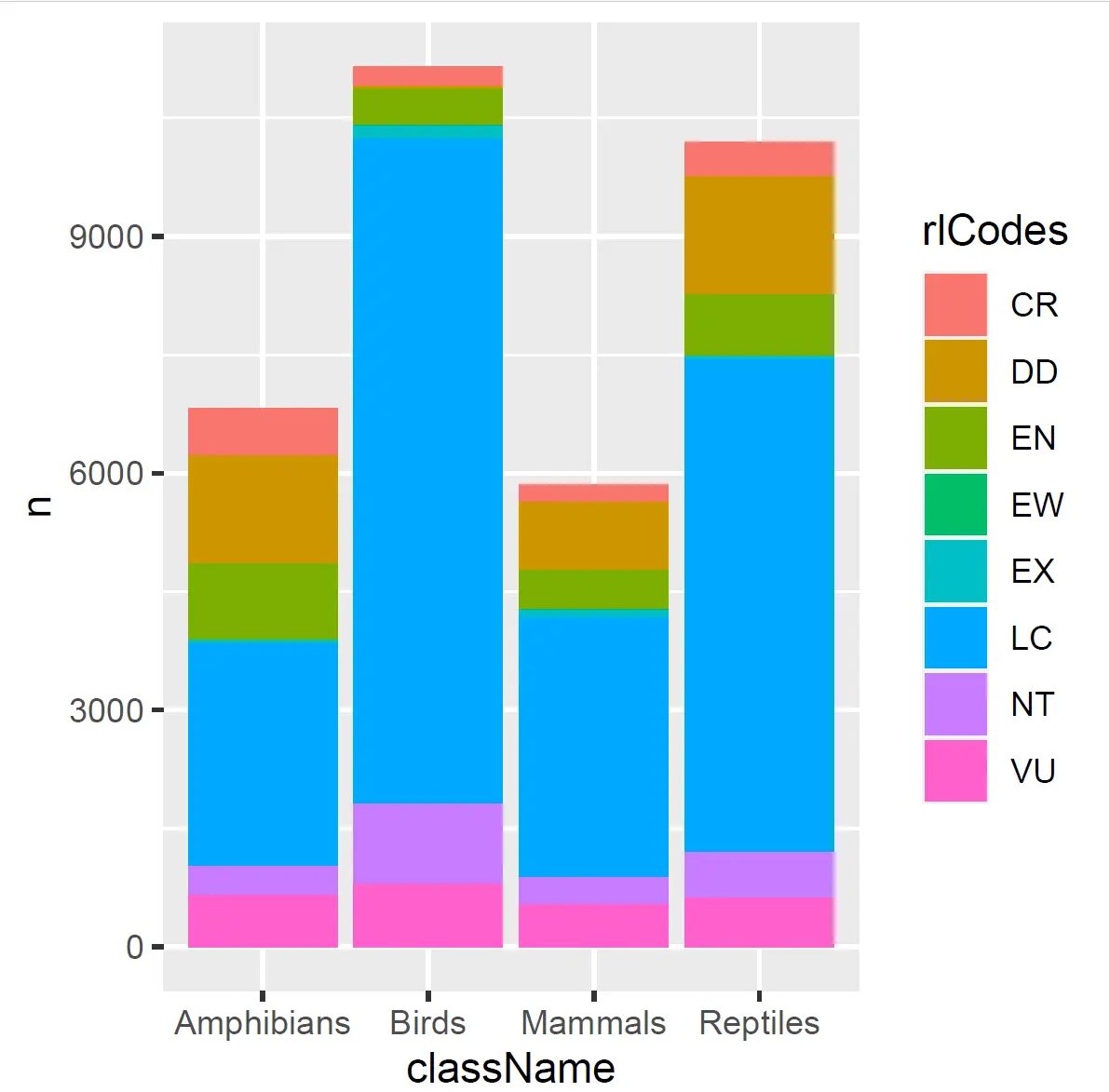

最基本的堆积柱形图

library(ggplot2)
ggplot(data = dat01,aes(x=className,y=n,fill=rlCodes))+
  geom_bar(stat = "identity",
           position = "stack")


调整x轴和图例的前后顺序

table(dat01$className)
table(dat01$rlCodes)

dat01$className<-factor(
  dat01$className,
  levels = c("Amphibians","Mammals","Reptiles","Birds")
)

dat01$rlCodes<-factor(
  dat01$rlCodes,
  levels = rev(c("EX","EW","CR","EN","VU","DD","NT","LC")))
ggplot(data = dat01,aes(x=className,y=n,fill=rlCodes))+
  geom_bar(stat = "identity",
           position = "stack")+
  scale_fill_discrete(limits=c("EX","EW","CR",
                               "EN","VU","DD","NT","LC"))


这里的小知识点是调整图例的顺序可以使用函数scale_fill_discrete(limits=c("EX","EW","CR", "EN","VU","DD","NT","LC"))

现在堆积柱形图展示的是真实数值，接下来把它转换成比例

ggplot(data = dat01,aes(x=className,y=n,fill=rlCodes))+
  geom_bar(stat = "identity",
           position = "fill")+
  scale_fill_discrete(limits=c("EX","EW","CR",
                               "EN","VU","DD","NT","LC"))

只需要把position = "stack" 改成 position = "fill"

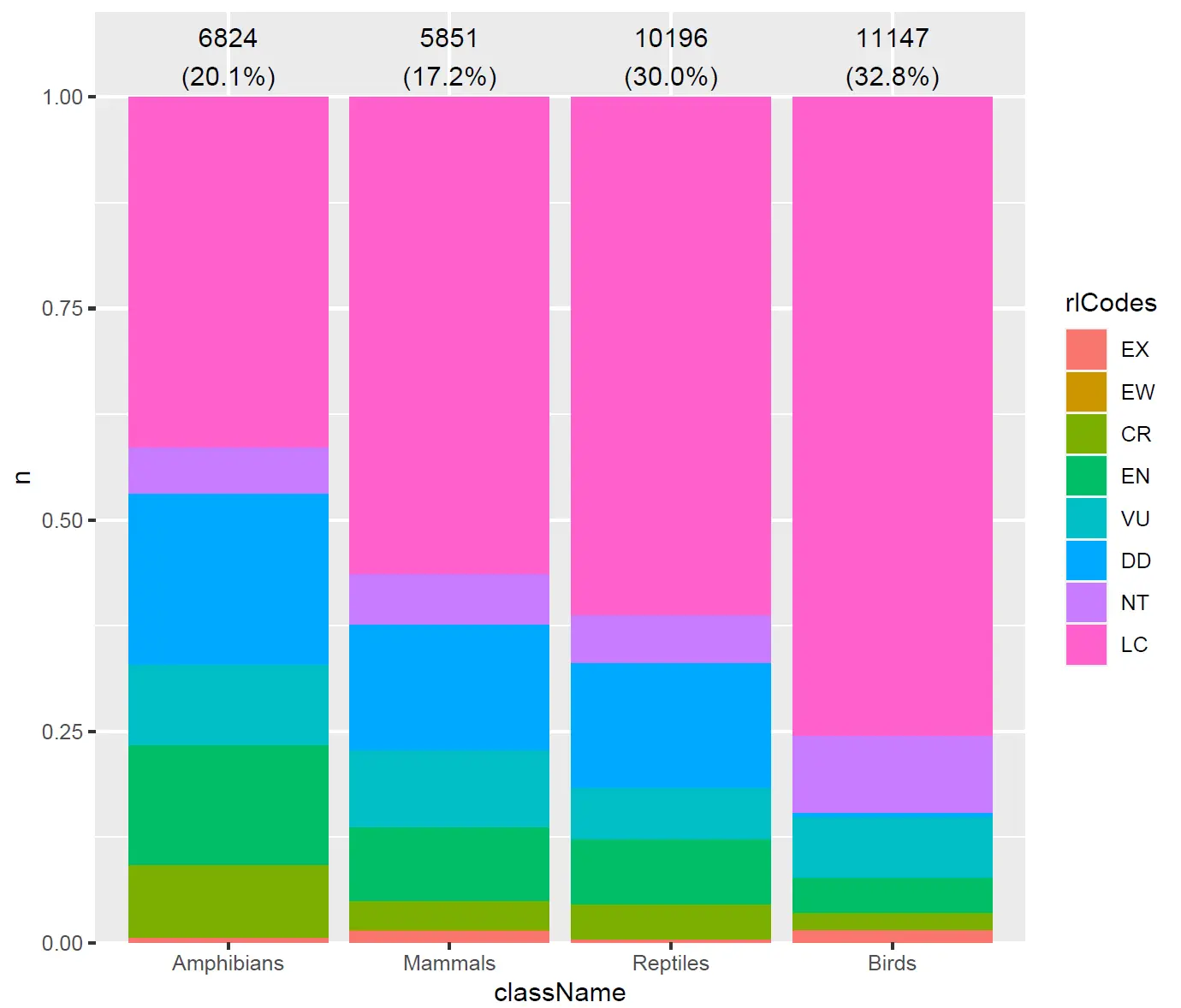

添加顶部的文字

library(tidyverse)
dat01 %>%
  group_by(className) %>%
  summarise(total_number=sum(n)) %>%
  ungroup() %>%
  mutate(ratio=total_number/sum(total_number)) %>%
  mutate(ratio=scales::percent(ratio)) -> dat02

ggplot(data = dat01,aes(x=className,y=n,fill=rlCodes))+
  geom_bar(stat = "identity",
           position = "fill")+
  scale_fill_discrete(limits=c("EX","EW","CR",
                               "EN","VU","DD","NT","LC"))+
  geom_text(data=dat02,
            aes(x=className,y=1,
                label=paste0(total_number,"\n","(",ratio,")")),
            inherit.aes = FALSE,
            vjust=-0.2)+
  scale_y_continuous(expand = expansion(mult=c(0,0.1)))

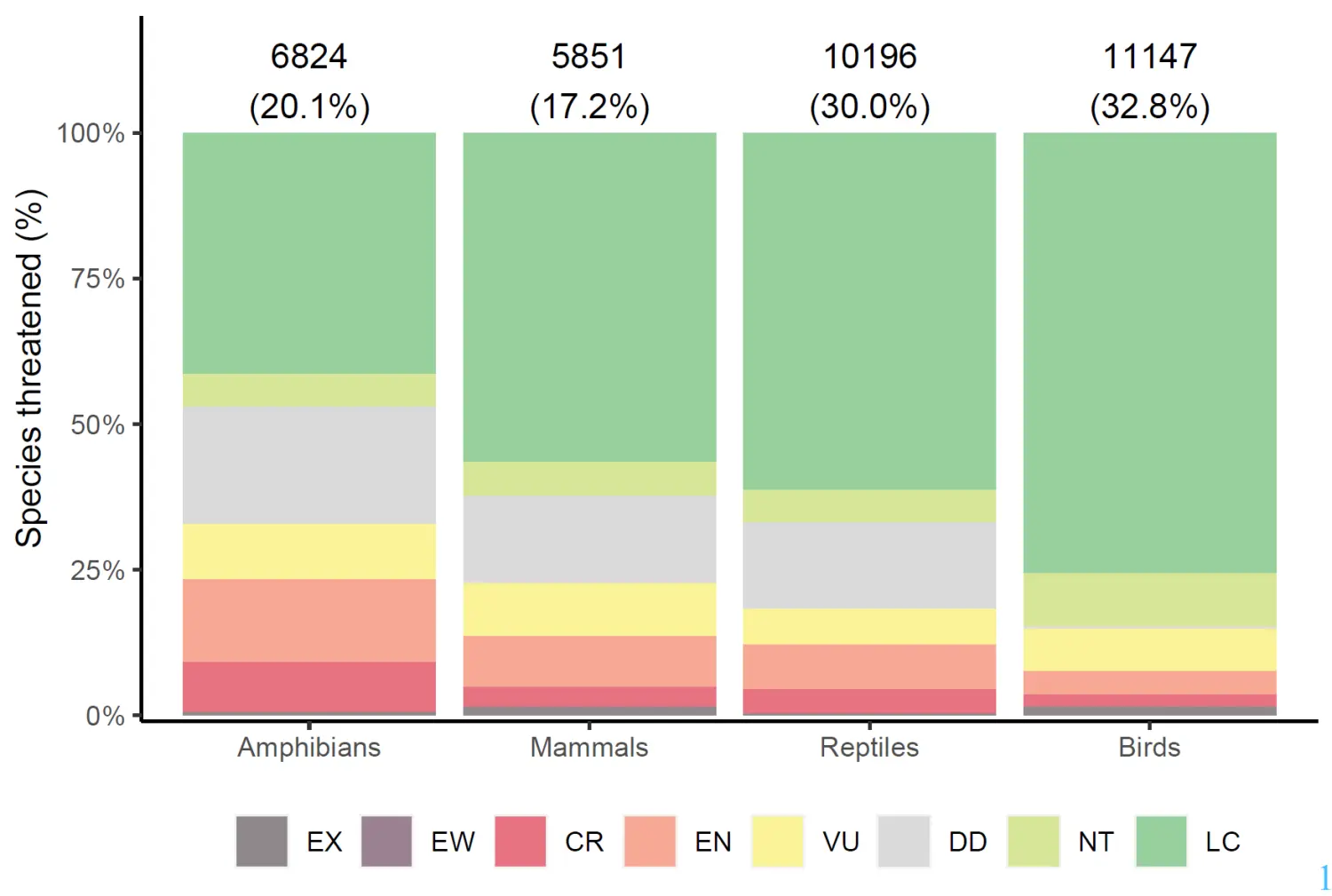

更改配色和其他主题

ggplot(data = dat01,aes(x=className,y=n,fill=rlCodes))+
  geom_bar(stat = "identity",
           position = "fill")+
  scale_fill_manual(values = c("LC"="#98d09d","NT"="#d7e698",
                               "DD"="#dadada","VU"="#fbf398",
                               "EN"="#f7a895","CR"="#e77381",
                               "EW"="#9b8191","EX"="#8f888b"),
                    limits=c("EX","EW","CR","EN","VU","DD","NT","LC"))+
  geom_text(data=dat02,
            aes(x=className,y=1,
                label=paste0(total_number,"\n","(",ratio,")")),
            inherit.aes = FALSE,
            vjust=-0.2)+
  scale_y_continuous(expand = expansion(mult=c(0.01,0.1)),
                     labels = scales::percent_format())+
  theme(panel.background = element_blank(),
        axis.line = element_line(),
        legend.position = "bottom")+
  labs(x=NULL,y="Species threatened (%)")+
  guides(fill=guide_legend(title = NULL,nrow = 1,byrow = FALSE))

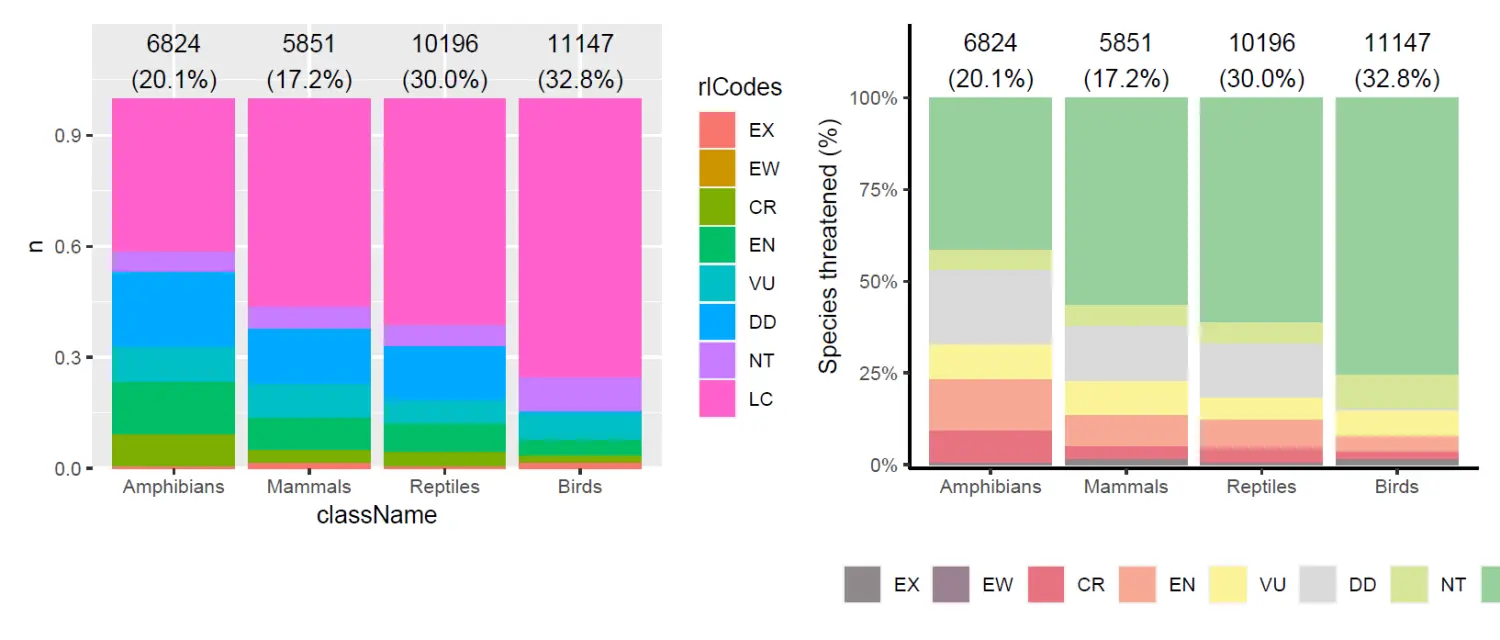

制作封面图

library(patchwork)
p2+p1


示例数据可以到论文中去下载，示例代码可以在推文中复制、

AI大模型学习福利

作为一名热心肠的互联网老兵，我决定把宝贵的AI知识分享给大家。 至于能学习到多少就看你的学习毅力和能力了 。我已将重要的AI大模型资料包括AI大模型入门学习思维导图、精品AI大模型学习书籍手册、视频教程、实战学习等录播视频免费分享出来。

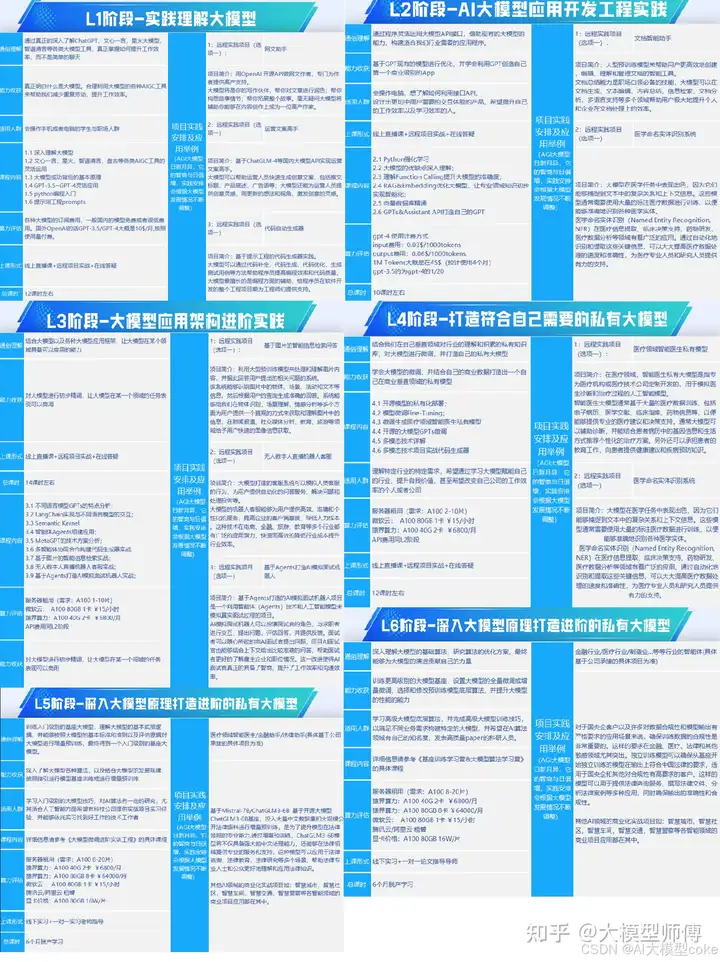

一、全套AGI大模型学习路线

AI大模型时代的学习之旅：从基础到前沿，掌握人工智能的核心技能！

因篇幅有限，仅展示部分资料，需要点击文章最下方名片即可前往获取

二、640套AI大模型报告合集

这套包含640份报告的合集，涵盖了AI大模型的理论研究、技术实现、行业应用等多个方面。无论您是科研人员、工程师，还是对AI大模型感兴趣的爱好者，这套报告合集都将为您提供宝贵的信息和启示。

因篇幅有限，仅展示部分资料，需要点击文章最下方名片即可前往获

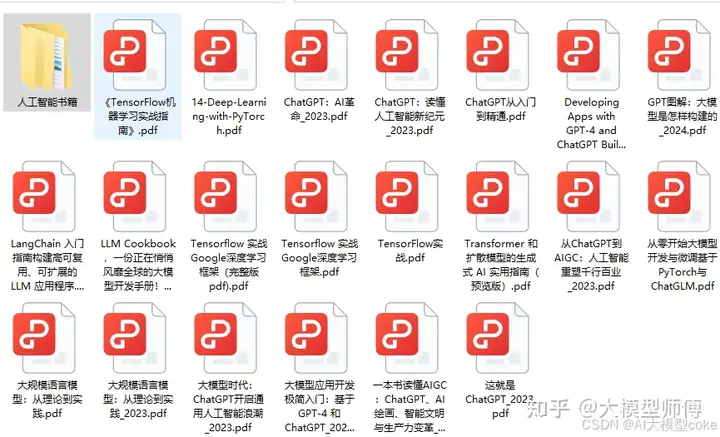

三、AI大模型经典PDF籍
