Kubernetes 安装（基于Containerd+Calico）
一、部署环境说明
1. 集群规划
| 节点角色 | 主机名 | IP 地址 | 核心组件 |
|---|---|---|---|
| 控制节点（Master） | master | 192.168.100.130 | kube-apiserver、etcd 等 |
| 工作节点（Node） | node1 | 192.168.100.128 | kubelet、kube-proxy 等 |
| 工作节点（Node） | node2 | 192.168.100.129 | kubelet、kube-proxy 等 |
2. 基础环境要求
-
操作系统：CentOS 7.x（64 位）
-
内核版本：≥ 4.19（推荐 6.5+，本文升级至 6.5.5）
-
硬件配置：每节点≥2 核 CPU、2GB 内存、20GB 磁盘
-
网络要求：节点间互通，无防火墙拦截 6443、10250 等端口
二、所有节点统一操作（必做）
1. 内核升级（必做，提升稳定性）
方式 ：普通升级（自动匹配最新稳定版）
[root@all ~]# yum update -y kernel
[root@all ~]# reboot
2. 设置主机名与 Hosts 解析
# 分别在对应节点执行（Master/Node01/Node02）
[root@master ~]# hostnamectl set-hostname master
[root@node1 ~]# hostnamectl set-hostname node1
[root@node2 ~]# hostnamectl set-hostname node2
# 所有节点添加Hosts映射
[root@all ~]#
cat >>/etc/hosts<<EOF
192.168.100.130 master
192.168.100.128 node1
192.168.100.129 node2
EOF
3. 安装依赖环境包
[root@all ~]# yum -y install vim lrzsz unzip wget net-tools tree bash-completion conntrack ntpdate ntp ipvsadm ipset iptables curl sysstat libseccomp git psmisc telnet unzip gcc gcc-c++ make
4. 关闭防火墙与 SELinux（K8s 要求）
# 关闭防火墙（永久禁用）
[root@all ~]# systemctl disable firewalld --now
# 关闭SELinux（永久+临时）
[root@all ~]# sed -i 's/enforcing/disabled/g' /etc/selinux/config
[root@all ~]# setenforce 0
5. 禁用 Swap 分区（关键！影响性能）
启用swap分区会对系统的性能产生非常负面的影响，因此kubernetes要求每个节点都要禁用swap分区。
# 临时禁用+永久禁用
[root@all ~]# vim etc/fstab
# 进去后把swap用'#'键注释掉即可
[root@all ~]# swapoff -a
6. 关闭 NetworkManager（可选，避免网络冲突，暂时没有用到）
[root@all ~]# systemctl stop NetworkManager
[root@all ~]# systemctl disable NetworkManager
7. 调整内核参数（优化 K8s 网络与性能）
# 创建配置文件
[root@all ~]# vim /etc/sysctl.d/kubernetes.conf
# 开启Linux内核的网络桥接功能，同时启用iptables和ip6tables的网络包过滤功能，用于在网络桥接时进行网络包过滤
net.bridge.bridge-nf-call-iptables=1
net.bridge.bridge-nf-call-ip6tables=1
# 开启路由转发，转发IPv4的数据包
net.ipv4.ip_forward=1
# 尽可能避免使用交换分区，提升k8s性能
vm.swappiness=0
# 不检查物理内存是否够用
vm.overcommit_memory=1
# 立即生效
[root@all ~]# systemctl --system
8. 调整资源限制（提升并发能力）
# 临时配置
# 设置一个进程可以打开的最大文件句柄数
[root@all ~]# ulimit -SHn 65535
# 永久配置（添加到limits.conf）
# 在Linux系统中，默认情况下一个进程可以打开的最大文件句柄数是1024
[root@all ~]#
cat >> /etc/security/limits.conf <<EOF
# 为所有用户设置文件描述符软限制
* soft nofile 655360
# 为所有用户设置文件描述符硬限制
* hard nofile 131072
# 为所有用户设置进程数软限制
* soft nproc 655350
# 为所有用户设置进程数硬限制
* hard nproc 655350
# 为所有用户设置内存锁定软限制为无限制
* soft memlock unlimited
# 为所有用户设置内存锁定硬限制为无限制
* hard memlock unlimited
EOF
9. 配置时间同步（避免集群时间偏差）
[root@all ~]# yum -y install chrony
[root@all ~]# systemctl restart chronyd && systemctl enable chronyd
# 验证同步状态
[root@all ~]# chronyc sources -v
# 硬件时钟同步到系统时钟
[root@all ~]# hwclock -s
10. 配置 IPVS 负载均衡（推荐，替代 iptables）
# 安装依赖（已在步骤3安装，此处确认）
[root@all ~]# yum -y install ipvsadm ipset sysstat conntrack libseccomp
# 添加IPVS内核模块
[root@all ~]#
cat >>/etc/modules-load.d/ipvs.conf<<EOF
ip_vs
ip_vs_rr # 轮询调度
ip_vs_wrr # 加权轮询
ip_vs_sh # 源哈希调度
nf_conntrack_ipv4 # 连接跟踪（内核<4.19用此配置）
# nf_conntrack # 内核≥4.19替换为这行
ip_tables
ip_set
xt_set
ipt_set
ipt_rpfilter
ipt_REJECT
ipip
overlay
br_netfilter
EOF
# 注意：
# Linux内核4.19+版本已经将nf_conntrack_ipv4更新为nf_conntrack。
# nf_conntrack是Linux内核中用于连接跟踪的模块，它负责跟踪网络连接的状态，包括连接的建立、维护和终止，以及相关的网络数据包的处理。这个模块在防火墙、网络地址转换（NAT）、负载均衡等网络功能中起着重要作用。
# 加载模块并重启服务
[root@all ~]# systemctl restart systemd-modules-load
# 查看内核模块（验证模块加载成功）
[root@all ~]# lsmod | grep -e ip_vs -e nf_conntrack_ipv4
nf_conntrack_ipv4 19149 0
nf_defrag_ipv4 12729 1 nf_conntrack_ipv4
ip_vs_sh 12688 0
ip_vs_wrr 12697 0
ip_vs_rr 12600 0
ip_vs 145458 6 ip_vs_rr,ip_vs_sh,ip_vs_wrr
nf_conntrack 143411 2 ip_vs,nf_conntrack_ipv4
libcrc32c 12644 3 xfs,ip_vs,nf_conntrack
11. 安装 Containerd（K8s v1.24 + 默认容器运行时）
注意：k8s v1.24 版本以后放弃对Docker Engine的支持，所以采用containerd容器进行时。
containerd 简介
containerd 是高级容器运行时（容器管理器），以守护进程形式运行，核心职责是管理单个主机上容器的全生命周期：
- 容器操作：创建、启动、停止、销毁
- 镜像管理：拉取、存储、分发容器镜像
- 资源配置：挂载点管理、网络配置等基础编排
核心特性与生态定位
- 轻量可嵌入：设计简洁，易于集成到 Docker 引擎、Kubernetes 等更大的系统中
- 生态兼容：
- Docker 引擎的底层容器运行依赖 containerd
- Kubernetes 通过 CRI（容器运行时接口）直接调用 containerd 管理节点容器
- 专注核心能力：聚焦容器生命周期管理，剥离冗余功能，保证稳定性与性能
步骤 1：配置内核模块
# 指定 containerd 在系统启动时加载的内核模块
[root@all ~]# cd /etc/modules-load.d/
[root@all modules-load.d]#
cat >>/etc/modules-load.d/containerd.conf <<EOF
overlay
br_netfilter
EOF
# 加载模块
[root@all modules-load.d]# modprobe overlay
[root@all modules-load.d]# modprobe br_netfilter
# 立即生效
[root@all modules-load.d]# systemctl --system
步骤 2：安装 Containerd
# 安装依赖的软件包
[root@all modules-load.d]# yum install -y yum-utils device-mapper-persistent-data lvm2
# 添加Docker源（Containerd包含在Docker源中）
[root@all modules-load.d]# yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
Loaded plugins: fastestmirror, langpacks
adding repo from: http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
grabbing file http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo to /etc/yum.repos.d/docker-ce.repo
repo saved to /etc/yum.repos.d/docker-ce.repo
[root@all modules-load.d]# yum makecache fast
Loaded plugins: fastestmirror, langpacks
base | 3.6 kB 00:00:00
docker-ce-stable | 3.5 kB 00:00:00
epel | 4.3 kB 00:00:00
extras | 2.9 kB 00:00:00
updates | 2.9 kB 00:00:00
(1/2): docker-ce-stable/7/x86_64/updateinfo | 55 B 00:00:01
(2/2): docker-ce-stable/7/x86_64/primary_db | 152 kB 00:00:03
Loading mirror speeds from cached hostfile
* base: mirrors.aliyun.com
* extras: mirrors.aliyun.com
* updates: mirrors.aliyun.com
Metadata Cache Created
# 查看可用版本
[root@all modules-load.d]# yum list containerd.io --showduplicates | sort -r
* updates: mirrors.aliyun.com
Loading mirror speeds from cached hostfile
Loaded plugins: fastestmirror, langpacks
* extras: mirrors.aliyun.com
containerd.io.x86_64 1.6.9-3.1.el7 docker-ce-stable
containerd.io.x86_64 1.6.8-3.1.el7 docker-ce-stable
containerd.io.x86_64 1.6.7-3.1.el7 docker-ce-stable
containerd.io.x86_64 1.6.6-3.1.el7 docker-ce-stable
containerd.io.x86_64 1.6.4-3.1.el7 docker-ce-stable
containerd.io.x86_64 1.6.33-3.1.el7 docker-ce-stable
............
# 安装指定版本（跳过，咱们要用就用最新版！）
# [root@all modules-load.d]# yum -y install containerd.io-1.6.16
# 默认安装最新版本containerd
[root@all modules-load.d]# yum -y install containerd.io
步骤 3：配置 Containerd
# 生成默认配置文件
[root@all modules-load.d]# mkdir -p /etc/containerd
[root@all modules-load.d]# containerd config default >/etc/containerd/config.toml
# 修改containerd的驱动程序关键配置（2处）
# 1. 启用SystemdCgroup（与K8s cgroup驱动一致）
[root@all modules-load.d]# sed -i '/SystemdCgroup/s/false/true/g' /etc/containerd/config.toml
# 2. 修改沙箱镜像（替换为阿里云镜像，加速拉取）
[root@all modules-load.d]# vim /etc/containerd/config.toml
63 sandbox_image = "registry.aliyuncs.com/google_containers/pause:3.9"
# 启动containerd
[root@all modules-load.d]# systemctl enable containerd
[root@all modules-load.d]# systemctl start containerd
[root@all modules-load.d]# systemctl status containerd
步骤 4：配置镜像加速（关键！解决拉取慢问题）
#镜像加速配置
[root@all modules-load.d]# vim /etc/containerd/config.toml
# 找到145行
[plugins."io.containerd.grpc.v1.cri".registry]
config_path = "/etc/containerd/certs.d"
# 创建镜像仓库配置目录
[root@all modules-load.d]# mkdir -p /etc/containerd/certs.d/docker.io
# 编辑加速配置
[root@all modules-load.d]# vim /etc/containerd/certs.d/docker.io/hosts.toml
server = "https://docker.io"
[host."https://09def58152000fc00ff0c00057bad7e0.mirror.swr.myhuaweicloud.com"]
capabilities = ["pull","resolve","push"]
[host."https://hub-mirror.c.163.com"]
capabilities = ["pull","resolve","push"]
[host."https://do.nark.eu.org"]
capabilities = ["pull","resolve","push"]
[host."https://dc.j8.work"]
capabilities = ["pull","resolve","push"]
[host."https://docker.m.daocloud.io"]
capabilities = ["pull","resolve","push"]
[host."https://dockerproxy.com"]
capabilities = ["pull","resolve","push"]
[host."https://docker.mirrors.ustc.edu.cn"]
capabilities = ["pull","resolve","push"]
[host."https://docker.nju.edu.cn"]
capabilities = ["pull","resolve","push"]
[host."https://registry.docker-cn.com"]
capabilities = ["pull","resolve","push"]
[host."https://hub.uuuadc.top"]
capabilities = ["pull","resolve","push"]
[host."https://docker.anyhub.us.kg"]
capabilities = ["pull","resolve","push"]
[host."https://dockerhub.jobcher.com"]
capabilities = ["pull","resolve","push"]
[host."https://dockerhub.icu"]
capabilities = ["pull","resolve","push"]
[host."https://docker.ckyl.me"]
capabilities = ["pull","resolve","push"]
[host."https://docker.awsl9527.cn"]
capabilities = ["pull","resolve","push"]
[host."https://mirror.baidubce.com"]
capabilities = ["pull","resolve","push"]
[host."https://docker.1panel.live"]
capabilities = ["pull","resolve","push"]
# #重启
[root@all modules-load.d]# systemctl restart containerd
# 验证版本
[root@all modules-load.d]# ctr version
Client:
Version: 1.6.33
Revision: d2d58213f83a351ca8f528a95fbd145f5654e957
Go version: go1.21.11
Server:
Version: 1.6.33
Revision: d2d58213f83a351ca8f528a95fbd145f5654e957
UUID: 537aa849-377b-426c-ab9a-bf4481c8f55d
步骤 5：测试镜像拉取（验证加速是否生效）
[root@all modules-load.d]# ctr images pull docker.io/library/httpd:latest --hosts-dir=/etc/containerd/certs.d
# 查看拉取的镜像
[root@all modules-load.d]# ctr i ls
REF TYPE DIGEST SIZE PLATFORMS LABELS
docker.io/library/httpd:latest application/vnd.oci.image.index.v1+json sha256:ecfd5ca1bfe1fc5e44a5836c5188bde7f397b50c7a5bb603a017543e29948a01 43.1 MiB linux/386,linux/amd64,linux/arm/v5,linux/arm/v7,linux/arm64/v8,linux/ppc64le,linux/riscv64,linux/s390x -
12. 安装 Kubeadm、Kubelet、Kubectl
各工具包作用
kubeadm：快速部署kubernetes集群的工具
kubelet：在集群中的每个节点上用来启动Pod和容器等
kubectl：负责管理kubernetes集群的命令行工具
步骤 1：添加 K8s 阿里云源
[root@all ~]#
cat <<EOF>/etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=http://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=http://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
http://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF
#快速建立yum缓存
[root@all ~]# yum makecache fast
步骤 2：安装指定版本（本文用 v1.28.0）
# 查看可用版本（可选）
[root@all ~]# yum list kubectl --showduplicates | sort -r
# 安装v1.28.0
[root@all ~]# yum -y install kubectl-1.28.0 kubelet-1.28.0 kubeadm-1.28.0
步骤 3：配置 Kubelet（与 Containerd 兼容）
# 修改kubelet的crgoup与containerd的crgoup保持一致
# kubelet使用systemd来作为cgroup驱动，使系统运行稳定，限制Pod和容器的资源使用情况，如cpu、内存等
# 注意：k8s v1.22开始，使用 kubeadm 创建集群时，默认使用systemd为cgroup驱动程序；
[root@all ~]#
cat >/etc/sysconfig/kubelet<<EOF
KUBELET_EXTRA_ARGS="--cgroup-driver=systemd" # 与Containerd cgroup一致
KUBE_PROXY_MODE="ipvs" # 启用IPVS模式
EOF
# 设置开机自启（暂不启动，初始化后自动启动）
[root@all ~]# systemctl daemon-reload
[root@all ~]# systemctl enable kubelet
Created symlink from /etc/systemd/system/multi-user.target.wants/kubelet.service to /usr/lib/systemd/system/kubelet.service.
# 验证版本
[root@all ~]# kubelet --version # 应显示v1.28.0
Kubernetes v1.28.0
13. 配置 Crictl 工具（调试容器运行时）
crictl 是CRI兼容的容器运行时命令行接口，可以使用它来检查和调试kubelet节点上的容器运行时和镜像
# 设置crictl连接containerd
[root@all ~]#
cat <<EOF | tee /etc/crictl.yaml
runtime-endpoint: unix:///run/containerd/containerd.sock
image-endpoint: unix:///run/containerd/containerd.sock
timeout: 10
debug: false
EOF
三、Master 主节点专属操作
1. 初始化 K8s 集群
步骤 1：查看并下载k8s集群所需要的镜像
# 查看k8s集群所需要的镜像
[root@master ~]# kubeadm config images list --kubernetes-version=v1.28.0 --image-repository=registry.aliyuncs.com/google_containers
registry.aliyuncs.com/google_containers/kube-apiserver:v1.28.0
registry.aliyuncs.com/google_containers/kube-controller-manager:v1.28.0
registry.aliyuncs.com/google_containers/kube-scheduler:v1.28.0
registry.aliyuncs.com/google_containers/kube-proxy:v1.28.0
registry.aliyuncs.com/google_containers/pause:3.9
registry.aliyuncs.com/google_containers/etcd:3.5.9-0
registry.aliyuncs.com/google_containers/coredns:v1.10.1
#下载所需镜像
[root@master ~]# kubeadm config images pull --kubernetes-version=v1.28.0 --image-repository=registry.aliyuncs.com/google_containers
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-apiserver:v1.28.0
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-controller-manager:v1.28.0
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-scheduler:v1.28.0
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-proxy:v1.28.0
[config/images] Pulled registry.aliyuncs.com/google_containers/pause:3.9
[config/images] Pulled registry.aliyuncs.com/google_containers/etcd:3.5.9-0
[config/images] Pulled registry.aliyuncs.com/google_containers/coredns:v1.10.1
#查看安装好的镜像
[root@master ~]# crictl images ls
IMAGE TAG IMAGE ID SIZE
registry.aliyuncs.com/google_containers/coredns v1.10.1 ead0a4a53df89 16.2MB
registry.aliyuncs.com/google_containers/etcd 3.5.9-0 73deb9a3f7025 103MB
registry.aliyuncs.com/google_containers/kube-apiserver v1.28.0 bb5e0dde9054c 34.6MB
registry.aliyuncs.com/google_containers/kube-controller-manager v1.28.0 4be79c38a4bab 33.4MB
registry.aliyuncs.com/google_containers/kube-proxy v1.28.0 ea1030da44aa1 24.6MB
registry.aliyuncs.com/google_containers/kube-scheduler v1.28.0 f6f496300a2ae 18.8MB
registry.aliyuncs.com/google_containers/pause 3.9 e6f1816883972 322kB
步骤 2：创建初始化配置文件
[root@master ~]# kubeadm config print init-defaults > kubeadm-init.yaml
步骤 3：修改配置文件（完整配置如下）
[root@master ~]# vim kubeadm-init.yaml
[root@master ~]# cat kubeadm-init.yaml
apiVersion: kubeadm.k8s.io/v1beta3
bootstrapTokens:
- groups:
- system:bootstrappers:kubeadm:default-node-token
token: abcdef.0123456789abcdef
ttl: 24h0m0s
usages:
- signing
- authentication
kind: InitConfiguration
localAPIEndpoint:
advertiseAddress: 192.168.100.130 #12行 Master节点IP
bindPort: 6443
nodeRegistration:
criSocket: unix:///var/run/containerd/containerd.sock #15行 Containerd套接字
imagePullPolicy: IfNotPresent
name: master #17行 修改Master主机名
taints: #18行 注意！去掉Null
- effect: NoSchedule #19行 添加污点
key: node-role.kubernetes.io/control-plane #20行 添加
---
apiServer:
timeoutForControlPlane: 4m0s
apiVersion: kubeadm.k8s.io/v1beta3
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controllerManager: {}
dns: {}
etcd:
local:
dataDir: /var/lib/etcd
imageRepository: registry.aliyuncs.com/google_containers #32行 修改为阿里云镜像源
kind: ClusterConfiguration
kubernetesVersion: 1.28.0 #34行 修改K8s版本
networking:
dnsDomain: cluster.local
serviceSubnet: 10.96.0.0/12 # 服务网段
podSubnet: 10.244.0.0/16 #38行 增加Pod网段（需与Calico一致）
scheduler: {}
# 末尾添加下面的代码
--- # 更改kube-proxy的代理模式，默认为iptables
apiVersion: kubeproxy.config.k8s.io/v1alpha1
kind: KubeProxyConfiguration
mode: ipvs # 启用IPVS
--- # 更改kubelet cgroup驱动为systemd
apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration
cgroupDriver: systemd # 与Containerd一致
步骤 4：初始化集群
# 执行初始化（日志保存到kubeadm-init.log）
[root@master ~]# kubeadm init --config=kubeadm-init.yaml --upload-certs | tee kubeadm-init.log
.........
# 显示如下类似的代码段即证成功
Your Kubernetes control-plane has initialized successfully!
To start using your cluster, you need to run the following as a regular user:
mkdir -p $HOME/.kube
sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
sudo chown $(id -u):$(id -g) $HOME/.kube/config
Alternatively, if you are the root user, you can run:
export KUBECONFIG=/etc/kubernetes/admin.conf
You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
https://kubernetes.io/docs/concepts/cluster-administration/addons/
Then you can join any number of worker nodes by running the following on each as root:
kubeadm join 192.168.100.128:6443 --token abcdef.0123456789abcdef \
--discovery-token-ca-cert-hash sha256:65824321c81ca722c65d6062ee804f04ce670ea818948623a07f2f4b998da406
# 如果集群初始化失败，按下面的方法解决
# 重置处理：
# 1：删除kubernetes目录中所有内容
rm -rf /etc/kubernetes/*
# 2：删除启动端口进程
pkill -9 kubelet
pkill -9 kube-controll
pkill -9 kube-schedule
# 3：重置sock文件
kubeadm reset -f --cri-socket=unix:///var/run/containerd/containerd.sock
步骤 5：配置kubectl工具（根据初始化成功后的提示进行配置）
- Kubectl 是一个用于操作Kubernetes集群的命令行工具。
- kubectl 在 $HOME/.kube 目录中查找一个名为 config 的配置文件。可以通过设置 KUBECONFIG 环境变量或设置 --kubeconfig 参数来指定其它 kubeconfig 文件。
[root@master ~]# mkdir -p $HOME/.kube
[root@master ~]# cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
[root@master ~]# chown $(id -u):$(id -g) $HOME/.kube/config
# 配置kubectl（root用户永久生效）
# 在Kubernetes集群中，admin.conf 文件是用于配置kubectl工具访问Kubernetes集群的客户端配置文件。该文件包含了连接到Kubernetes集群所需的认证信息、集群信息和上下文信息。
[root@master ~]# echo "export KUBECONFIG=/etc/kubernetes/admin.conf" >> ~/.bash_profile
[root@master ~]# source ~/.bash_profile
# 验证组件状态（应显示3个Healthy）
[root@master ~]# kubectl get cs
Warning: v1 ComponentStatus is deprecated in v1.19+
NAME STATUS MESSAGE ERROR
controller-manager Healthy ok
scheduler Healthy ok
etcd-0 Healthy ok
四、Node 节点专属操作（node1，2都做）
1. 加入 K8s 集群
# 执行Master初始化成功后输出的join命令（示例如下，需替换实际token和hash）
[root@node1,2 ~]# kubeadm join 192.168.100.130:6443 --token abcdef.0123456789abcdef \
> --discovery-token-ca-cert-hash sha256:65824321c81ca722c65d6062ee804f04ce670ea818948623a07f2f4b998da406
[preflight] Running pre-flight checks
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml'
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Starting the kubelet
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...
This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.
Run 'kubectl get nodes' on the control-plane to see this node join the cluster.
2. 验证节点状态（在 Master 执行）
# 查看集群节点状态
# 此时，k8s内部不具备网络功能，因此节点信息都是 “Not Ready” 状态
[root@master ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
master NotReady control-plane 141m v1.28.0
node1 NotReady <none> 97s v1.28.0
node2 NotReady <none> 52s v1.28.0
五、部署网络CNI组建（在master节点做）
Kubernetes 集群的网络并非内部原生实现，结构较为复杂，为了更便捷地使用集群，通常会采用第三方 CNI（Container Network Interface，容器网络接口）插件，其核心作用是实现容器跨主机网络通信，而 Pod 的 IP 地址段也被称为 CIDR。
Kubernetes 支持 flannel、Calico、canal 等多种网络插件，任选其一即可，本次选择 Calico。Calico 是一款纯三层网络解决方案，能为容器提供多节点间的访问通信：它将每个 node 节点视作路由器，每个 Pod 则是该虚拟路由器下的终端，各节点通过 BGP（Border Gateway Protocol，边界网关协议）学习路由信息，并在 node 节点生成路由规则，进而实现不同 node 节点上 Pod 的互联互通，是目前 Kubernetes 中主流的网络方案。
需要注意的是，Calico 的 calico.yaml 文件会随版本不同而有差异，需匹配对应的 Kubernetes 版本。其中 Calico 3.25 版本支持的 Kubernetes 版本为 v1.23—v1.28，相关参考及资源地址如下：
- 官方下载地址：https://docs.tigera.io/calico
- Github 访问地址：https://github.com/projectcalico/calico
- 版本匹配及系统要求参考：https://archive-os-3-25.netlify.app/calico/3.25/getting-started/kubernetes/requirements
1：下载 Calico 配置文件
[root@master ~]# wget --no-check-certificate https://docs.tigera.io/archive/v3.25/manifests/calico.yaml
--2025-11-12 15:12:05-- https://docs.tigera.io/archive/v3.25/manifests/calico.yaml
Resolving docs.tigera.io (docs.tigera.io)... 52.74.6.109, 13.215.239.219, 2406:da18:b3d:e201::258, ...
Connecting to docs.tigera.io (docs.tigera.io)|52.74.6.109|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 238089 (233K) [text/yaml]
Saving to: ‘calico.yaml’
100%[========================================================>] 238,089 94.6KB/s in 2.5s
2025-11-12 15:12:09 (94.6 KB/s) - ‘calico.yaml’ saved [238089/238089]
2：修改 Pod 网段（与集群初始化一致）
#修改Calico文件
[root@master ~]# vim calico.yaml
#找到4601行，去掉注释并修改，记得上下对齐
- name: CALICO_IPV4POOL_CIDR
value: "10.244.0.0/16"
3：部署 Calico
# 部署之前的状态
[root@master ~]# kubectl get pod -n kube-system
NAME READY STATUS RESTARTS AGE
coredns-66f779496c-9j6cx 0/1 Pending 0 3h50m
coredns-66f779496c-r47sk 0/1 Pending 0 3h50m
etcd-master 1/1 Running 0 3h50m
kube-apiserver-master 1/1 Running 0 3h50m
kube-controller-manager-master 1/1 Running 0 3h50m
kube-proxy-9hs6v 1/1 Running 0 3h50m
kube-proxy-b8c2f 1/1 Running 0 91m
kube-proxy-htjmc 1/1 Running 0 90m
kube-scheduler-master 1/1 Running 0 3h50m
# 开始部署
[root@master ~]# kubectl apply -f calico.yaml
poddisruptionbudget.policy/calico-kube-controllers configured
serviceaccount/calico-kube-controllers unchanged
serviceaccount/calico-node unchanged
configmap/calico-config unchanged
customresourcedefinition.apiextensions.k8s.io/bgpconfigurations.crd.projectcalico.org configured
.........
clusterrole.rbac.authorization.k8s.io/calico-kube-controllers unchanged
clusterrole.rbac.authorization.k8s.io/calico-node unchanged
clusterrolebinding.rbac.authorization.k8s.io/calico-kube-controllers unchanged
clusterrolebinding.rbac.authorization.k8s.io/calico-node unchanged
daemonset.apps/calico-node created
deployment.apps/calico-kube-controllers created
#部署完之后的状态
[root@master ~]# kubectl get pod -n kube-system
NAME READY STATUS RESTARTS AGE
calico-kube-controllers-658d97c59c-rr7l4 0/1 Pending 0 33s
calico-node-nhksx 0/1 Init:0/3 0 33s
calico-node-vq97r 0/1 Init:0/3 0 33s
calico-node-z2d8t 0/1 Init:0/3 0 33s
coredns-66f779496c-9j6cx 0/1 Pending 0 3h56m
coredns-66f779496c-r47sk 0/1 Pending 0 3h56m
etcd-master 1/1 Running 0 3h56m
kube-apiserver-master 1/1 Running 0 3h56m
kube-controller-manager-master 1/1 Running 0 3h56m
kube-proxy-9hs6v 1/1 Running 0 3h56m
kube-proxy-b8c2f 1/1 Running 0 96m
kube-proxy-htjmc 1/1 Running 0 96m
kube-scheduler-master 1/1 Running 0 3h56m
# 加watch实时查看部署状态
[root@master ~]# watch kubectl get pod -n kube-system
# 命令行再次查看状态
[root@master ~]# kubectl get pod -n kube-system
NAME READY STATUS RESTARTS AGE
calico-kube-controllers-658d97c59c-rr7l4 1/1 Running 0 15m
calico-node-nhksx 1/1 Running 0 15m
calico-node-vq97r 1/1 Running 0 15m
calico-node-z2d8t 1/1 Running 0 15m
coredns-66f779496c-9j6cx 1/1 Running 0 4h10m
coredns-66f779496c-r47sk 1/1 Running 0 4h10m
etcd-master 1/1 Running 0 4h10m
kube-apiserver-master 1/1 Running 0 4h10m
kube-controller-manager-master 1/1 Running 0 4h10m
kube-proxy-9hs6v 1/1 Running 0 4h10m
kube-proxy-b8c2f 1/1 Running 0 111m
kube-proxy-htjmc 1/1 Running 0 110m
kube-scheduler-master 1/1 Running 0 4h10m
4：查看节点状态
#查看节点状态
[root@master ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
master Ready control-plane 4h13m v1.28.0
node1 Ready <none> 114m v1.28.0
node2 Ready <none> 113m v1.28.0
#地址出来了
[root@master ~]# kubectl get pod -n kube-system -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
calico-kube-controllers-658d97c59c-rr7l4 1/1 Running 0 18m 10.244.166.130 node1 <none> <none>
calico-node-nhksx 1/1 Running 0 18m 192.168.100.129 node2 <none> <none>
calico-node-vq97r 1/1 Running 0 18m 192.168.100.130 master <none> <none>
calico-node-z2d8t 1/1 Running 0 18m 192.168.100.128 node1 <none> <none>
coredns-66f779496c-9j6cx 1/1 Running 0 4h14m 10.244.166.129 node1 <none> <none>
coredns-66f779496c-r47sk 1/1 Running 0 4h14m 10.244.166.131 node1 <none> <none>
etcd-master 1/1 Running 0 4h14m 192.168.100.130 master <none> <none>
kube-apiserver-master 1/1 Running 0 4h14m 192.168.100.130 master <none> <none>
kube-controller-manager-master 1/1 Running 0 4h14m 192.168.100.130 master <none> <none>
kube-proxy-9hs6v 1/1 Running 0 4h14m 192.168.100.130 master <none> <none>
kube-proxy-b8c2f 1/1 Running 0 115m 192.168.100.128 node1 <none> <none>
kube-proxy-htjmc 1/1 Running 0 114m 192.168.100.129 node2 <none> <none>
kube-scheduler-master 1/1 Running 0 4h14m 192.168.100.130 master <none> <none>

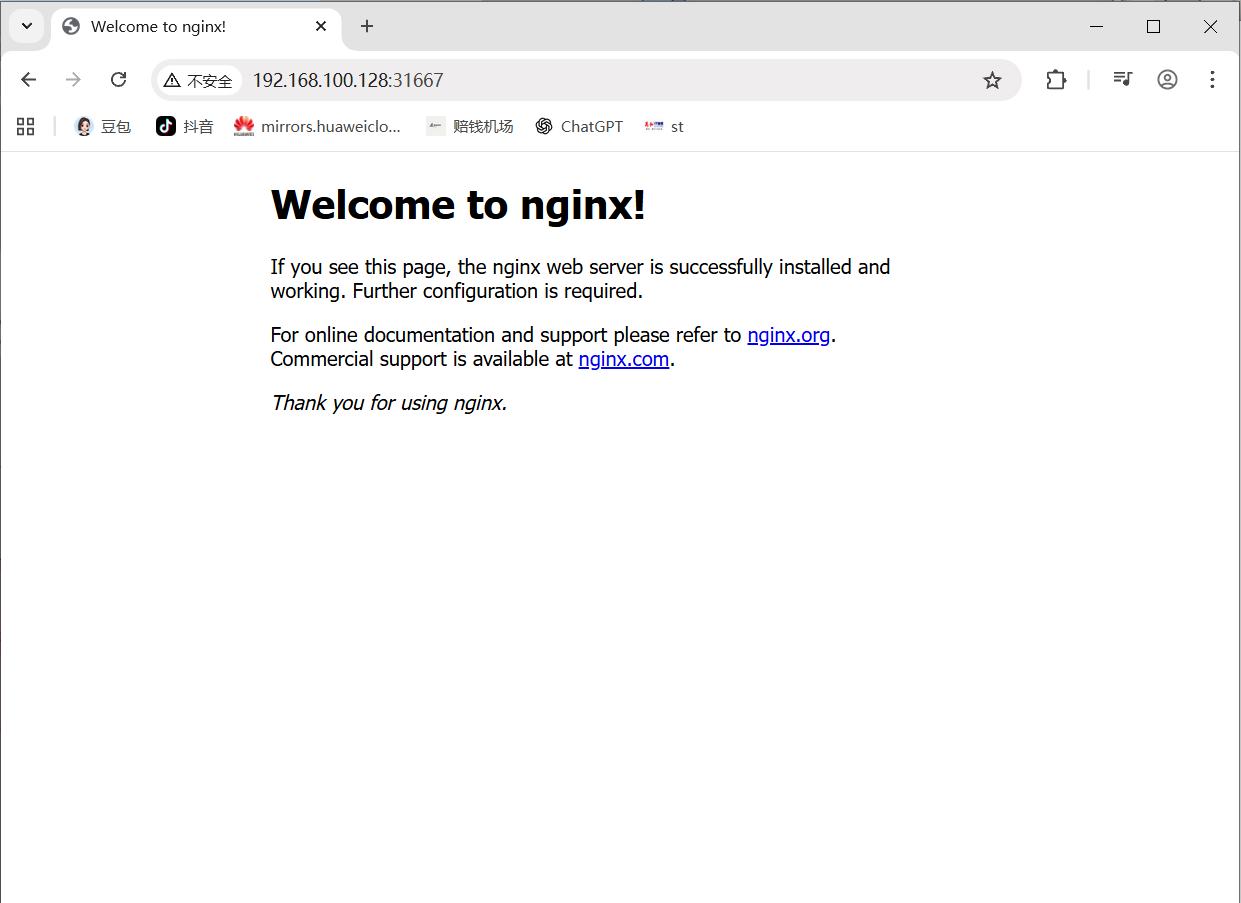

5：在主节点测试kubernetes集群
# 先查看pods，发现没有东西
[root@master ~]# kubectl get pods
No resources found in default namespace.
# 创建应用服务nginx
[root@master ~]# kubectl create deployment nginx --image=nginx --replicas=3
deployment.apps/nginx created
#再次查看pods
[root@master ~]# kubectl get pods
NAME READY STATUS RESTARTS AGE
nginx-7854ff8877-66qw4 1/1 Running 0 45s
nginx-7854ff8877-c2tbj 1/1 Running 0 45s
nginx-7854ff8877-nsrh5 1/1 Running 0 45s
[root@master ~]# kubectl get deployment
NAME READY UP-TO-DATE AVAILABLE AGE
nginx 3/3 3 3 91s
[root@master ~]# kubectl get replicasets
NAME DESIRED CURRENT READY AGE
nginx-7854ff8877 3 3 3 102s
#暴露服务端口
[root@master ~]# kubectl expose deployment nginx --port=80 --target-port=80 --type=NodePort
service/nginx exposed
[root@master ~]# kubectl get service
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 4h29m
nginx NodePort 10.108.58.103 <none> 80:31667/TCP 23s
[root@master ~]# curl http://10.108.58.103
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>
<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>
<p><em>Thank you for using nginx.</em></p>
</body>
</html>
从外部输入http://192.168.100.128:31667可得如图：
六、完成后优化操作
主节点安装kubectl命令自动补全
# 安装bash-completion工具
[root@master ~]# yum install bash-completion -y
# 执行bash_completion
[root@master ~]# source /usr/share/bash-completion/bash_completion
# 加载kubectl completion
# 在当前bash环境中永久设置命令补全
[root@master ~]# echo "source <(kubectl completion bash)" >> ~/.bashrc
[root@master ~]# source ~/.bashrc
# 这样就可以补全命令了
有“AI”的1024 = 2048，欢迎大家加入2048 AI社区
更多推荐
6
0- 0
已为社区贡献3条内容
所有评论(0)
