Containerd部署Kubernetes

Kubernetes概述

Kubernetes 是什么

• 是 Google 于 2014 年开源的容器集群管理系统，简称 K8S。
• 用于容器化应用程序的部署、扩展和管理。
• 提供容器编排、资源调度、弹性伸缩、部署管理、服务发现等一系列功能。
• 目标是让部署容器化应用简单高效。
• 官方网站：http://www.kubernetes.io

Kubernetes 特性

特性	说明
自我修复	节点故障时重启容器、保证副本数量，杀死健康检查失败的容器
弹性伸缩	基于命令、UI 或 CPU 使用情况自动扩缩容，保障业务高峰可用性并节约成本
自动部署和回滚	采用滚动更新策略，更新异常时回滚，确保业务不受升级影响
服务发现和负载均衡	为容器提供统一访问入口（内部 IP 和 DNS 名称），并实现负载均衡
机密和配置管理	管理敏感数据和应用配置，避免敏感数据暴露在镜像中
存储编排	挂载本地存储、公有云存储（如 AWS）、网络存储（如 NFS、GlusterFS、Ceph）作为集群资源
批处理	提供一次性任务、定时任务，满足批量数据处理和分析场景

Kubernetes 集群架构与组件

Kubernetes 集群由 主控节点（Master）和工作节点（Node）组成。

主控节点（Master）组件

组件	说明
kube-apiserver	集群统一入口，以 RESTful API 提供接口服务，处理资源的增删改查和监听操作
kube-controller-manager	管理各类控制器，处理集群中常规后台任务
kube-scheduler	根据调度算法为新创建的 Pod 选择 Node 节点
etcd	分布式键值存储系统，保存集群状态数据（如 Pod、Service 等对象信息）

工作节点（Node）组件

组件	说明
kubelet	Master 在 Node 上的代理，管理本机容器生命周期（创建容器、挂载数据卷等）
kube-proxy	实现 Pod 网络代理，维护网络规则和四层负载均衡
docker 或 rocket	容器引擎，负责运行容器

Kubernetes 核心概念

Pod

• 是 Kubernetes 的最小部署单元。
• 是一组容器的集合，同一个 Pod 中的容器共享网络命名空间。
• Pod 是短暂的，其生命周期由控制器管理。

Controllers（控制器）

控制器类型	说明
ReplicaSet	确保预期的 Pod 副本数量
Deployment	用于无状态应用的部署
StatefulSet	用于有状态应用的部署
DaemonSet	确保所有 Node 运行同一个 Pod
Job	处理一次性任务
CronJob	处理定时任务
作用	是更高级层次的对象，用于部署和管理 Pod

Service

• 防止 Pod 失联。
• 定义一组 Pod 的访问策略，实现服务发现和负载均衡。

其他核心概念

概念	说明
Label（标签）	附加到资源上，用于关联对象、查询和筛选
Namespaces	命名空间，将对象在逻辑上隔离
Annotations	注释，用于存储资源的额外信息

Kubernetes集群部署

环境准备（所有节点）

配置域名解析

#三个节点都要配置域名解析，并且能够相互ping通
[root@node1 ~]# cat /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.100.70 node1
192.168.100.71 node2
192.168.100.72 master

升级内核

[root@node1 ~]# yum update -y kernel

#升级完之后reboot即可

安装环境包

[root@node1 ~]# yum -y install vim lrzsz unzip wget net-tools tree bash-completion conntrack ntpdate ntp ipvsadm ipset iptables curl sysstat libseccomp git psmisc telnet unzip gcc gcc-c++ make


#关闭防火墙和内核安全机制
[root@node1 ~]# systemctl disable firewalld.service --now
[root@node1 ~]# getenforce
Disabled

关闭swap分区

[root@node1 ~]# vim /etc/fstab
#swap注释掉
[root@node1 ~]# swapoff -a
#关闭所有交换分区（swap），临时禁用系统的交换功能，常用于 Kubernetes 等场景中避免性能问题。

调整系统内核参数

[root@master ~]# cat /etc/sysctl.d/kubernetes.conf
# 开启Linux内核的网络桥接功能，同时启用iptables和ip6tables的网络包过滤功能，用于在网络桥接时进行网络包过滤
net.bridge.bridge-nf-call-iptables=1
net.bridge.bridge-nf-call-ip6tables=1
# # 开启路由转发，转发IPv4的数据包
net.ipv4.ip_forward=1
# # 尽可能避免使用交换分区，提升k8s性能
vm.swappiness=0
# # 不检查物理内存是否够用
vm.overcommit_memory=1


#立即生效
#输入命令后直接按回车就可以，最后按q退出
[root@node2 ~]# systemctl --system

调整Linux资源限制

[root@node1 ~]# ulimit -SHn 65535
[root@node1 ~]# cat >> /etc/security/limits.conf <<EOF
# 为所有用户设置文件描述符软限制
* soft nofile 655360
# 为所有用户设置文件描述符硬限制
* hard nofile 131072
# 为所有用户设置进程数软限制
* soft nproc 655350
# 为所有用户设置进程数硬限制
* hard nproc 655350
# 为所有用户设置内存锁定软限制为无限制
* soft memlock unlimited
# 为所有用户设置内存锁定硬限制为无限制
* hard memlock unlimited
EOF

配置时间同步

[root@node1 ~]# yum -y install chrony
[root@node1 ~]# systemctl restart chronyd
[root@node1 ~]# chronyc sources -v
210 Number of sources = 4

  .-- Source mode  '^' = server, '=' = peer, '#' = local clock.
 / .- Source state '*' = current synced, '+' = combined , '-' = not combined,
| /   '?' = unreachable, 'x' = time may be in error, '~' = time too variable.
||                                                 .- xxxx [ yyyy ] +/- zzzz
||      Reachability register (octal) -.           |  xxxx = adjusted offset,
||      Log2(Polling interval) --.      |          |  yyyy = measured offset,
||                                \     |          |  zzzz = estimated error.
||                                 |    |           \
MS Name/IP address         Stratum Poll Reach LastRx Last sample
===============================================================================
^+ time.cloudflare.com           3   6     7     1  +8183us[ +502ms] +/-  134ms
^+ ntp8.flashdance.cx            2   6     7     1    +10ms[ +504ms] +/-  177ms
^- stratum2-1.ntp.mow01.ru.>     2   6     7     2    +40ms[ +534ms] +/-  144ms
^* 119.91.217.108                3   6     7     3  -4335us[ +490ms] +/-   94ms
[root@node1 ~]# hwclock -s

配置IPVS功能

#添加ipvs模块和内核模块
[root@node1 ~]# cat >>/etc/modules-load.d/ipvs.conf<<EOF
> ip_vs
> ip_vs_rr
> ip_vs_wrr
> ip_vs_sh
> nf_conntrack_ipv4
> ip_tables
> ip_set
> xt_set
> ipt_set
> ipt_rpfilter
> ipt_REJECT
> ipip
> overlay
> br_netfilter
> EOF

#重启服务
[root@node1 ~]# systemctl restart systemd-modules-load
#查看内核模块
[root@node1 ~]# lsmod | grep -e ip_vs -e nf_conntrack_ipv4
nf_conntrack_ipv4      19149  0
nf_defrag_ipv4         12729  1 nf_conntrack_ipv4
ip_vs_sh               12688  0
ip_vs_wrr              12697  0
ip_vs_rr               12600  0
ip_vs                 145458  6 ip_vs_rr,ip_vs_sh,ip_vs_wrr
nf_conntrack          143411  2 ip_vs,nf_conntrack_ipv4
libcrc32c              12644  3 xfs,ip_vs,nf_conntrack

安装containerd

[root@master ~]# cd /etc/modules-load.d/
[root@master modules-load.d]# cat >>/etc/modules-load.d/containerd.conf <<EOF
> overlay
> br_netfilter
> EOF


#加载模块
[root@master modules-load.d]# modprobe overlay
[root@master modules-load.d]# modprobe br_netfilter


[root@master modules-load.d]# systemctl --system


#安装依赖包
[root@master modules-load.d]# yum install -y yum-utils device-mapper-persistent-data lvm2


#源
[root@node1 modules-load.d]# yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
Loaded plugins: fastestmirror, langpacks
adding repo from: http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
grabbing file http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo to /etc/yum.repos.d/docker-ce.repo
repo saved to /etc/yum.repos.d/docker-ce.repo

#生成 yum 缓存并加快速度
[root@node1 modules-load.d]# yum makecache fast
Loaded plugins: fastestmirror, langpacks
base                                                                       | 3.6 kB  00:00:00
docker-ce-stable                                                           | 3.5 kB  00:00:00
epel                                                                       | 4.3 kB  00:00:00
extras                                                                     | 2.9 kB  00:00:00
updates                                                                    | 2.9 kB  00:00:00
(1/2): docker-ce-stable/7/x86_64/updateinfo                                |   55 B  00:00:01
(2/2): docker-ce-stable/7/x86_64/primary_db                                | 152 kB  00:00:03
Loading mirror speeds from cached hostfile
 * base: mirrors.aliyun.com
 * extras: mirrors.aliyun.com
 * updates: mirrors.aliyun.com
Metadata Cache Created


#查看可安装的版本
[root@node1 modules-load.d]# yum list containerd.io --showduplicates | sort -r
 * updates: mirrors.aliyun.com
Loading mirror speeds from cached hostfile
Loaded plugins: fastestmirror, langpacks
 * extras: mirrors.aliyun.com
containerd.io.x86_64            1.6.9-3.1.el7                   docker-ce-stable
containerd.io.x86_64            1.6.8-3.1.el7                   docker-ce-stable
containerd.io.x86_64            1.6.7-3.1.el7                   docker-ce-stable
containerd.io.x86_64            1.6.6-3.1.el7                   docker-ce-stable
containerd.io.x86_64            1.6.4-3.1.el7                   docker-ce-stable
containerd.io.x86_64            1.6.33-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.6.32-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.6.31-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.6.28-3.2.el7                  docker-ce-stable
containerd.io.x86_64            1.6.28-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.6.27-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.6.26-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.6.25-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.6.24-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.6.22-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.6.21-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.6.20-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.6.19-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.6.18-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.6.16-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.6.15-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.6.14-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.6.13-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.6.12-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.6.11-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.6.10-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.5.11-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.5.10-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.4.9-3.1.el7                   docker-ce-stable
containerd.io.x86_64            1.4.8-3.1.el7                   docker-ce-stable
containerd.io.x86_64            1.4.6-3.1.el7                   docker-ce-stable
containerd.io.x86_64            1.4.4-3.1.el7                   docker-ce-stable
containerd.io.x86_64            1.4.3-3.2.el7                   docker-ce-stable
containerd.io.x86_64            1.4.3-3.1.el7                   docker-ce-stable
containerd.io.x86_64            1.4.13-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.4.12-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.4.11-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.4.10-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.3.9-3.1.el7                   docker-ce-stable
containerd.io.x86_64            1.3.7-3.1.el7                   docker-ce-stable
containerd.io.x86_64            1.2.6-3.3.el7                   docker-ce-stable
containerd.io.x86_64            1.2.5-3.1.el7                   docker-ce-stable
containerd.io.x86_64            1.2.4-3.1.el7                   docker-ce-stable
containerd.io.x86_64            1.2.2-3.el7                     docker-ce-stable
containerd.io.x86_64            1.2.2-3.3.el7                   docker-ce-stable
containerd.io.x86_64            1.2.13-3.2.el7                  docker-ce-stable
containerd.io.x86_64            1.2.13-3.1.el7                  docker-ce-stable
containerd.io.x86_64            1.2.10-3.2.el7                  docker-ce-stable
containerd.io.x86_64            1.2.0-3.el7                     docker-ce-stable
containerd.io.x86_64            1.2.0-2.2.rc.2.1.el7            docker-ce-stable
containerd.io.x86_64            1.2.0-2.0.rc.0.1.el7            docker-ce-stable
containerd.io.x86_64            1.2.0-1.2.beta.2.el7            docker-ce-stable
 * base: mirrors.aliyun.com
Available Packages


#安装最新版本
[root@master modules-load.d]# yum -y install containerd.io


#生成containerd的配置文件
[root@master modules-load.d]# mkdir -p /etc/containerd
[root@master modules-load.d]# containerd config default >/etc/containerd/config.toml


#修改containerd的驱动程序
#配置 containerd 使用 systemd cgroup 驱动
[root@master modules-load.d]# sed -i '/SystemdCgroup/s/false/true/g' /etc/containerd/config.toml


#修改镜像仓库地址
//61行
sandbox_image = "registry.aliyuncs.com/google_containers/pause:3.9"


#启动containerd
[root@master modules-load.d]# systemctl enable containerd
[root@master modules-load.d]# systemctl start containerd
[root@master modules-load.d]# systemctl status containerd


#查看containerd版本
[root@master modules-load.d]# ctr version
Client:
  Version:  1.6.33
  Revision: d2d58213f83a351ca8f528a95fbd145f5654e957
  Go version: go1.21.11

Server:
  Version:  1.6.33
  Revision: d2d58213f83a351ca8f528a95fbd145f5654e957
  UUID: 537aa849-377b-426c-ab9a-bf4481c8f55d



#镜像加速配置
[root@master modules-load.d]# vim /etc/containerd/config.toml

#创建镜像加速文件夹
[root@master modules-load.d]# mkdir /etc/containerd/certs.d
[root@master modules-load.d]# mkdir /etc/containerd/certs.d/docker.io
[root@master modules-load.d]# vim /etc/containerd/certs.d/docker.io/hosts.toml
[root@master modules-load.d]# cat /etc/containerd/certs.d/docker.io/hosts.toml
server = "https://docker.io"
[host."https://09def58152000fc00ff0c00057bad7e0.mirror.swr.myhuaweicloud.com"]
  capabilities = ["pull","resolve","push"]

[host."https://hub-mirror.c.163.com"]
  capabilities = ["pull","resolve","push"]

[host."https://do.nark.eu.org"]
  capabilities = ["pull","resolve","push"]

[host."https://dc.j8.work"]
  capabilities = ["pull","resolve","push"]

[host."https://docker.m.daocloud.io"]
  capabilities = ["pull","resolve","push"]

[host."https://dockerproxy.com"]
  capabilities = ["pull","resolve","push"]

[host."https://docker.mirrors.ustc.edu.cn"]
  capabilities = ["pull","resolve","push"]

[host."https://docker.nju.edu.cn"]
  capabilities = ["pull","resolve","push"]

[host."https://registry.docker-cn.com"]
  capabilities = ["pull","resolve","push"]

[host."https://hub.uuuadc.top"]
  capabilities = ["pull","resolve","push"]

[host."https://docker.anyhub.us.kg"]
  capabilities = ["pull","resolve","push"]

[host."https://dockerhub.jobcher.com"]
  capabilities = ["pull","resolve","push"]

[host."https://dockerhub.icu"]
  capabilities = ["pull","resolve","push"]

[host."https://docker.ckyl.me"]
  capabilities = ["pull","resolve","push"]

[host."https://docker.awsl9527.cn"]
  capabilities = ["pull","resolve","push"]

[host."https://mirror.baidubce.com"]
  capabilities = ["pull","resolve","push"]

[host."https://docker.1panel.live"]
  capabilities = ["pull","resolve","push"]


#重启
[root@master modules-load.d]# systemctl restart containerd


#测试下载镜像
[root@master modules-load.d]# ctr images pull docker.io/library/httpd:latest --hosts-dir=/etc/containerd/certs.d



#查看镜像
[root@node1 modules-load.d]# ctr i ls
REF                            TYPE                                    DIGEST                                                                  SIZE     PLATFORMS                                                                                              LABELS
docker.io/library/httpd:latest application/vnd.oci.image.index.v1+json sha256:ecfd5ca1bfe1fc5e44a5836c5188bde7f397b50c7a5bb603a017543e29948a01 43.1 MiB linux/386,linux/amd64,linux/arm/v5,linux/arm/v7,linux/arm64/v8,linux/ppc64le,linux/riscv64,linux/s390x -

安装kubeadm

#添加k8s软件源
[root@master modules-load.d]# cat <<EOF>/etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
 baseurl=http://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=http://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg
http://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF


#快速建立yum缓存
[root@master ~]# yum makecache fast
Loaded plugins: fastestmirror, langpacks
base                                                                       | 3.6 kB  00:00:00
docker-ce-stable                                                           | 3.5 kB  00:00:00
epel                                                                       | 4.3 kB  00:00:00
extras                                                                     | 2.9 kB  00:00:00
kubernetes                                                                 | 1.4 kB  00:00:00
updates                                                                    | 2.9 kB  00:00:00
kubernetes/primary                                                         | 137 kB  00:00:00
Loading mirror speeds from cached hostfile
 * base: mirrors.aliyun.com
 * extras: mirrors.aliyun.com
 * updates: mirrors.aliyun.com
kubernetes                                                                              1022/1022
Metadata Cache Created


#查看可安装的k8s版本
[root@node1 ~]# yum list kubectl --showduplicates | sort -r


#安装指定版的k8s
[root@master ~]# yum -y install kubectl-1.28.0 kubelet-1.28.0 kubeadm-1.28.0


#修改kubelet的crgoup与containerd的crgoup保持一致
[root@master ~]# cat >/etc/sysconfig/kubelet<<EOF
KUBELET_EXTRA_ARGS="--cgroup-driver=systemd"
KUBE_PROXY_MODE="ipvs"
EOF


#kubelet设置为开机自启动
[root@master ~]# systemctl daemon-reload
[root@master ~]# systemctl enable kubelet
Created symlink from /etc/systemd/system/multi-user.target.wants/kubelet.service to /usr/lib/systemd/system/kubelet.service.


#查看k8s版本
[root@master ~]# kubelet --version
Kubernetes v1.28.0

配置crictl工具

#设置crictl连接containerd
[root@master ~]# cat <<EOF | tee /etc/crictl.yaml
runtime-endpoint: unix:///run/containerd/containerd.sock
image-endpoint: unix:///run/containerd/containerd.sock
timeout: 10
debug: false
EOF

#结果
....
runtime-endpoint: unix:///run/containerd/containerd.sock
image-endpoint: unix:///run/containerd/containerd.sock
timeout: 10
debug: false

master节点部署

#查看k8s集群所需要的镜像
[root@master ~]# kubeadm config images list --kubernetes-version=v1.28.0 --image-repository=registry.aliyuncs.com/google_containers
registry.aliyuncs.com/google_containers/kube-apiserver:v1.28.0
registry.aliyuncs.com/google_containers/kube-controller-manager:v1.28.0
registry.aliyuncs.com/google_containers/kube-scheduler:v1.28.0
registry.aliyuncs.com/google_containers/kube-proxy:v1.28.0
registry.aliyuncs.com/google_containers/pause:3.9
registry.aliyuncs.com/google_containers/etcd:3.5.9-0
registry.aliyuncs.com/google_containers/coredns:v1.10.1


#下载所需镜像
[root@master ~]# kubeadm config images pull --kubernetes-version=v1.28.0 --image-repository=registry.aliyuncs.com/google_containers
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-apiserver:v1.28.0
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-controller-manager:v1.28.0
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-scheduler:v1.28.0
[config/images] Pulled registry.aliyuncs.com/google_containers/kube-proxy:v1.28.0
[config/images] Pulled registry.aliyuncs.com/google_containers/pause:3.9
[config/images] Pulled registry.aliyuncs.com/google_containers/etcd:3.5.9-0
[config/images] Pulled registry.aliyuncs.com/google_containers/coredns:v1.10.1

#查看安装好的镜像
[root@master ~]# crictl images ls
IMAGE                                                             TAG                 IMAGE ID            SIZE
registry.aliyuncs.com/google_containers/coredns                   v1.10.1             ead0a4a53df89       16.2MB
registry.aliyuncs.com/google_containers/etcd                      3.5.9-0             73deb9a3f7025       103MB
registry.aliyuncs.com/google_containers/kube-apiserver            v1.28.0             bb5e0dde9054c       34.6MB
registry.aliyuncs.com/google_containers/kube-controller-manager   v1.28.0             4be79c38a4bab       33.4MB
registry.aliyuncs.com/google_containers/kube-proxy                v1.28.0             ea1030da44aa1       24.6MB
registry.aliyuncs.com/google_containers/kube-scheduler            v1.28.0             f6f496300a2ae       18.8MB
registry.aliyuncs.com/google_containers/pause                     3.9                 e6f1816883972       322kB


#初始化集群自动开启IPVS
#生成初始化文件
[root@master ~]# kubeadm config print init-defaults > kubeadm-init.yaml


#修改初始化集群配置文件
[root@master ~]# vim kubeadm-init.yaml
[root@master ~]# cat kubeadm-init.yaml
apiVersion: kubeadm.k8s.io/v1beta3
bootstrapTokens:
- groups:
  - system:bootstrappers:kubeadm:default-node-token
  token: abcdef.0123456789abcdef
  ttl: 24h0m0s
  usages:
  - signing
  - authentication
kind: InitConfiguration
localAPIEndpoint:
  advertiseAddress: 192.168.100.72
  bindPort: 6443
nodeRegistration:
  criSocket: unix:///var/run/containerd/containerd.sock
  imagePullPolicy: IfNotPresent
  name: master
  taints:
  - effect: NoSchedule
    key: node-role.kubernetes.io/control-plane
---
apiServer:
  timeoutForControlPlane: 4m0s
apiVersion: kubeadm.k8s.io/v1beta3
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controllerManager: {}
dns: {}
etcd:
  local:
    dataDir: /var/lib/etcd
imageRepository: registry.aliyuncs.com/google_containers
kind: ClusterConfiguration
kubernetesVersion: 1.28.0
networking:
  dnsDomain: cluster.local
  serviceSubnet: 10.96.0.0/12
  podSubnet: 10.244.0.0/16
scheduler: {}
---
apiVersion: kubeproxy.config.k8s.io/v1alpha1
kind: KubeProxyConfiguration
mode: ipvs
---
apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration
cgroupDriver: systemd


#开始初始化集群
[root@master ~]# kubeadm init --config=kubeadm-init.yaml --upload-certs | tee kubeadm-init.log
......
To start using your cluster, you need to run the following as a regular user:

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

Alternatively, if you are the root user, you can run:

  export KUBECONFIG=/etc/kubernetes/admin.conf

You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
  https://kubernetes.io/docs/concepts/cluster-administration/addons/

Then you can join any number of worker nodes by running the following on each as root:

kubeadm join 192.168.100.72:6443 --token abcdef.0123456789abcdef \
	--discovery-token-ca-cert-hash sha256:0c6d82ad1f9b01193a1cd3291117e96fd6e160b091776fa93ec3
......



#根据上面返回的信息进行指定操作
[root@master ~]# mkdir -p $HOME/.kube
[root@master ~]# cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
[root@master ~]# chown $(id -u):$(id -g) $HOME/.kube/config



#设置环境变量
[root@master ~]# echo "export KUBECONFIG=/etc/kubernetes/admin.conf" >> ~/.bash_profile
[root@master ~]# source  ~/.bash_profile


#查看组件状态
[root@master ~]# kubectl get cs
Warning: v1 ComponentStatus is deprecated in v1.19+
NAME                 STATUS    MESSAGE   ERROR
controller-manager   Healthy   ok
scheduler            Healthy   ok
etcd-0               Healthy   ok

node节点部署

#node 1、2分别输入
#在nodeshang输入的命令为上面初始化输出的最后一条直接复制
[root@node1 ~]# kubeadm join 192.168.100.72:6443 --token abcdef.0123456789abcdef \
> --discovery-token-ca-cert-hash sha256:0c6d82ad1f9b01193a1cd3291117e96fd6e160b091776fa93ec303c64896b61f
[preflight] Running pre-flight checks
[preflight] Reading configuration from the cluster...
[preflight] FYI: You can look at this config file with 'kubectl -n kube-system get cm kubeadm-config -o yaml'
[kubelet-start] Writing kubelet configuration to file "/var/lib/kubelet/config.yaml"
[kubelet-start] Writing kubelet environment file with flags to file "/var/lib/kubelet/kubeadm-flags.env"
[kubelet-start] Starting the kubelet
[kubelet-start] Waiting for the kubelet to perform the TLS Bootstrap...

This node has joined the cluster:
* Certificate signing request was sent to apiserver and a response was received.
* The Kubelet was informed of the new secure connection details.

Run 'kubectl get nodes' on the control-plane to see this node join the cluster.

#去master查看状态
#第一个为只在node1上面输入命令后的状态
#第二个为两个都输入命令后的状态
[root@master ~]# kubectl get nodes
NAME     STATUS     ROLES           AGE    VERSION
master   NotReady   control-plane   140m   v1.28.0
node1    NotReady   <none>          36s    v1.28.0
[root@master ~]# kubectl get nodes
NAME     STATUS     ROLES           AGE    VERSION
master   NotReady   control-plane   141m   v1.28.0
node1    NotReady   <none>          97s    v1.28.0
node2    NotReady   <none>          52s    v1.28.0

部署网络CNI组建

概念

CNI 的核心作用

• 全称 Container Network Interface（容器网络接口），是 Kubernetes 集群网络的核心依赖。
• 解决 Kubernetes 原生未实现的跨主机容器通信问题，为 Pod 分配 CIDR（IP 地址段）。
• 统一网络接口标准，适配多种第三方网络插件，灵活满足集群网络需求。

主流 CNI 插件选择

Kubernetes 支持多种网络插件，按需选择即可：

• flannel：轻量简单，适合入门场景，功能相对基础。
• calico：本次选用，纯三层方案，性能强、功能全面，是主流选择。
• canal：结合 flannel 的简单性与 calico 的网络策略能力，平衡易用性和功能。

Calico 核心原理与优势

核心工作机制

• 将每个 Node 节点视为独立路由器，每个 Pod 作为该路由器下的终端设备。
• 通过 BGP（边界网关协议）实现各 Node 节点间的路由信息交换。
• 节点间自动学习路由规则，直接转发不同节点 Pod 的网络流量，无需中间转发层。

核心优势

• 纯三层网络架构，转发效率高，无额外网络开销。
• 支持网络策略（Network Policy），可精细控制 Pod 间的访问权限。
• 适配大规模集群，稳定性和扩展性强，是生产环境主流方案。

部署（Calico）

#下载Calico文件
[root@master ~]# wget --no-check-certificate https://docs.tigera.io/archive/v3.25/manifests/calico.yaml
--2025-11-12 15:12:05--  https://docs.tigera.io/archive/v3.25/manifests/calico.yaml
Resolving docs.tigera.io (docs.tigera.io)... 52.74.6.109, 13.215.239.219, 2406:da18:b3d:e201::258, ...
Connecting to docs.tigera.io (docs.tigera.io)|52.74.6.109|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 238089 (233K) [text/yaml]
Saving to: ‘calico.yaml’

100%[========================================================>] 238,089     94.6KB/s   in 2.5s

2025-11-12 15:12:09 (94.6 KB/s) - ‘calico.yaml’ saved [238089/238089]




#修改Calico文件
[root@master ~]# vim calico.yaml
#找到4601行，去掉注释并修改，记得上下对齐
- name: CALICO_IPV4POOL_CIDR
  value: "10.244.0.0/16"


#部署之前的状态
[root@master ~]# kubectl get pod -n kube-system
NAME                             READY   STATUS    RESTARTS   AGE
coredns-66f779496c-9j6cx         0/1     Pending   0          3h50m
coredns-66f779496c-r47sk         0/1     Pending   0          3h50m
etcd-master                      1/1     Running   0          3h50m
kube-apiserver-master            1/1     Running   0          3h50m
kube-controller-manager-master   1/1     Running   0          3h50m
kube-proxy-9hs6v                 1/1     Running   0          3h50m
kube-proxy-b8c2f                 1/1     Running   0          91m
kube-proxy-htjmc                 1/1     Running   0          90m
kube-scheduler-master            1/1     Running   0          3h50m


#部署
[root@master ~]# kubectl apply -f calico.yaml
poddisruptionbudget.policy/calico-kube-controllers configured
serviceaccount/calico-kube-controllers unchanged
serviceaccount/calico-node unchanged
configmap/calico-config unchanged
customresourcedefinition.apiextensions.k8s.io/bgpconfigurations.crd.projectcalico.org configured
customresourcedefinition.apiextensions.k8s.io/bgppeers.crd.projectcalico.org configured
customresourcedefinition.apiextensions.k8s.io/blockaffinities.crd.projectcalico.org configured
customresourcedefinition.apiextensions.k8s.io/caliconodestatuses.crd.projectcalico.org configured
customresourcedefinition.apiextensions.k8s.io/clusterinformations.crd.projectcalico.org configured
customresourcedefinition.apiextensions.k8s.io/felixconfigurations.crd.projectcalico.org configured
customresourcedefinition.apiextensions.k8s.io/globalnetworkpolicies.crd.projectcalico.org configured
customresourcedefinition.apiextensions.k8s.io/globalnetworksets.crd.projectcalico.org configured
customresourcedefinition.apiextensions.k8s.io/hostendpoints.crd.projectcalico.org configured
customresourcedefinition.apiextensions.k8s.io/ipamblocks.crd.projectcalico.org configured
customresourcedefinition.apiextensions.k8s.io/ipamconfigs.crd.projectcalico.org configured
customresourcedefinition.apiextensions.k8s.io/ipamhandles.crd.projectcalico.org configured
customresourcedefinition.apiextensions.k8s.io/ippools.crd.projectcalico.org configured
customresourcedefinition.apiextensions.k8s.io/ipreservations.crd.projectcalico.org configured
customresourcedefinition.apiextensions.k8s.io/kubecontrollersconfigurations.crd.projectcalico.org configured
customresourcedefinition.apiextensions.k8s.io/networkpolicies.crd.projectcalico.org configured
customresourcedefinition.apiextensions.k8s.io/networksets.crd.projectcalico.org configured
clusterrole.rbac.authorization.k8s.io/calico-kube-controllers unchanged
clusterrole.rbac.authorization.k8s.io/calico-node unchanged
clusterrolebinding.rbac.authorization.k8s.io/calico-kube-controllers unchanged
clusterrolebinding.rbac.authorization.k8s.io/calico-node unchanged
daemonset.apps/calico-node created
deployment.apps/calico-kube-controllers created


#部署完之后的状态
[root@master ~]# kubectl get pod -n kube-system
NAME                                       READY   STATUS     RESTARTS   AGE
calico-kube-controllers-658d97c59c-rr7l4   0/1     Pending    0          33s
calico-node-nhksx                          0/1     Init:0/3   0          33s
calico-node-vq97r                          0/1     Init:0/3   0          33s
calico-node-z2d8t                          0/1     Init:0/3   0          33s
coredns-66f779496c-9j6cx                   0/1     Pending    0          3h56m
coredns-66f779496c-r47sk                   0/1     Pending    0          3h56m
etcd-master                                1/1     Running    0          3h56m
kube-apiserver-master                      1/1     Running    0          3h56m
kube-controller-manager-master             1/1     Running    0          3h56m
kube-proxy-9hs6v                           1/1     Running    0          3h56m
kube-proxy-b8c2f                           1/1     Running    0          96m
kube-proxy-htjmc                           1/1     Running    0          96m
kube-scheduler-master                      1/1     Running    0          3h56m

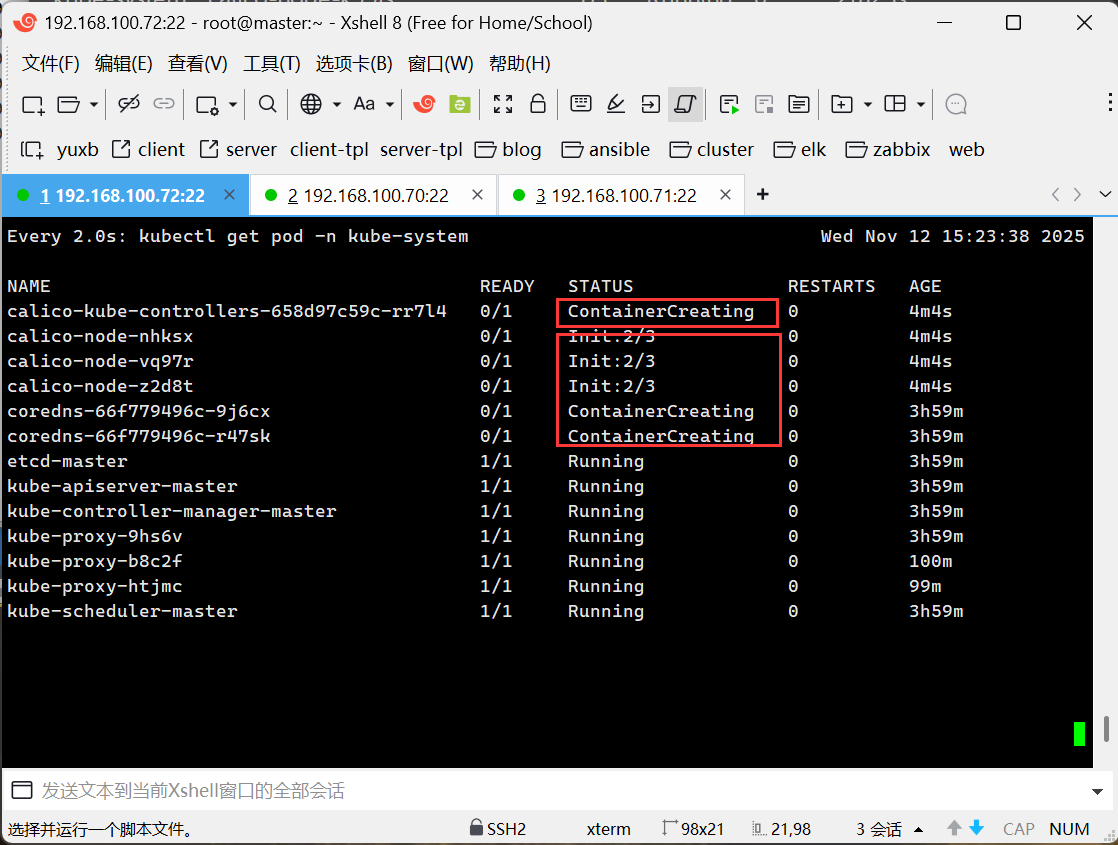

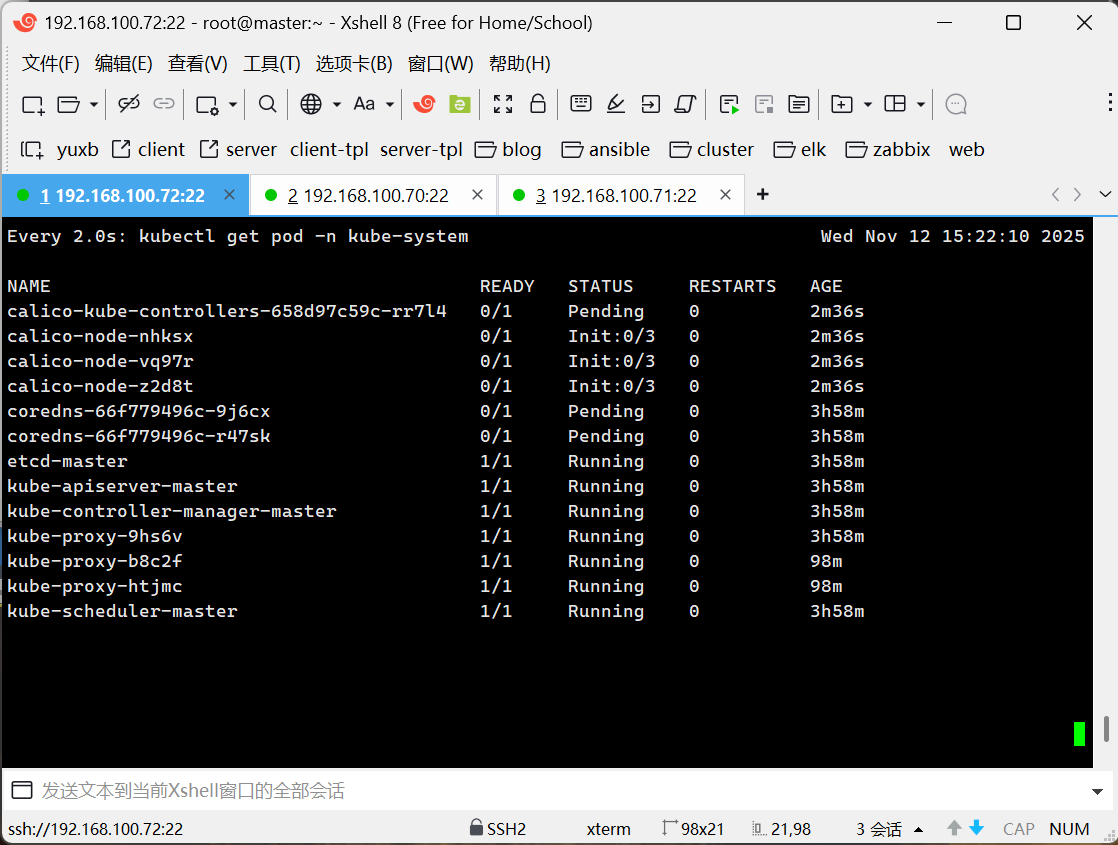

[root@master ~]# watch kubectl get pod -n kube-system
#watch实时查看部署状态
#如下图

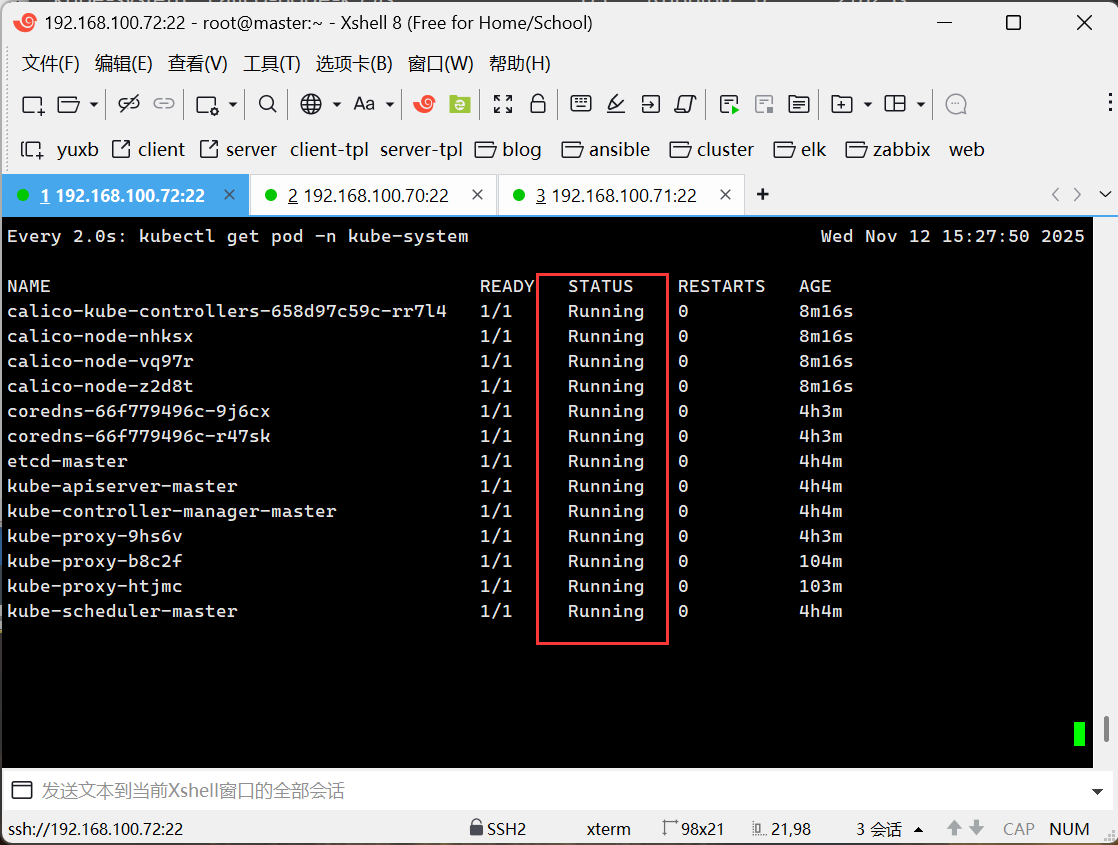

#全部running就可以了

#命令行再次查看状态
[root@master ~]# kubectl get pod -n kube-system
NAME                                       READY   STATUS    RESTARTS   AGE
calico-kube-controllers-658d97c59c-rr7l4   1/1     Running   0          15m
calico-node-nhksx                          1/1     Running   0          15m
calico-node-vq97r                          1/1     Running   0          15m
calico-node-z2d8t                          1/1     Running   0          15m
coredns-66f779496c-9j6cx                   1/1     Running   0          4h10m
coredns-66f779496c-r47sk                   1/1     Running   0          4h10m
etcd-master                                1/1     Running   0          4h10m
kube-apiserver-master                      1/1     Running   0          4h10m
kube-controller-manager-master             1/1     Running   0          4h10m
kube-proxy-9hs6v                           1/1     Running   0          4h10m
kube-proxy-b8c2f                           1/1     Running   0          111m
kube-proxy-htjmc                           1/1     Running   0          110m
kube-scheduler-master                      1/1     Running   0          4h10m



#查看节点状态
[root@master ~]# kubectl get nodes
NAME     STATUS   ROLES           AGE     VERSION
master   Ready    control-plane   4h13m   v1.28.0
node1    Ready    <none>          114m    v1.28.0
node2    Ready    <none>          113m    v1.28.0


#地址出来了
[root@master ~]# kubectl get pod -n kube-system -o wide
NAME                                       READY   STATUS    RESTARTS   AGE     IP               NODE     NOMINATED NODE   READINESS GATES
calico-kube-controllers-658d97c59c-rr7l4   1/1     Running   0          18m     10.244.166.130   node1    <none>           <none>
calico-node-nhksx                          1/1     Running   0          18m     192.168.100.71   node2    <none>           <none>
calico-node-vq97r                          1/1     Running   0          18m     192.168.100.72   master   <none>           <none>
calico-node-z2d8t                          1/1     Running   0          18m     192.168.100.70   node1    <none>           <none>
coredns-66f779496c-9j6cx                   1/1     Running   0          4h14m   10.244.166.129   node1    <none>           <none>
coredns-66f779496c-r47sk                   1/1     Running   0          4h14m   10.244.166.131   node1    <none>           <none>
etcd-master                                1/1     Running   0          4h14m   192.168.100.72   master   <none>           <none>
kube-apiserver-master                      1/1     Running   0          4h14m   192.168.100.72   master   <none>           <none>
kube-controller-manager-master             1/1     Running   0          4h14m   192.168.100.72   master   <none>           <none>
kube-proxy-9hs6v                           1/1     Running   0          4h14m   192.168.100.72   master   <none>           <none>
kube-proxy-b8c2f                           1/1     Running   0          115m    192.168.100.70   node1    <none>           <none>
kube-proxy-htjmc                           1/1     Running   0          114m    192.168.100.71   node2    <none>           <none>
kube-scheduler-master                      1/1     Running   0          4h14m   192.168.100.72   master   <none>           <none>

命令补全工具

[root@master ~]# yum install bash-completion -y
Loaded plugins: fastestmirror, langpacks
Loading mirror speeds from cached hostfile
 * base: mirrors.aliyun.com
 * extras: mirrors.aliyun.com
 * updates: mirrors.aliyun.com
Package 1:bash-completion-2.1-8.el7.noarch already installed and latest version
Nothing to do


[root@master ~]# source /usr/share/bash-completion/bash_completion


#加载kubectl completion
#进去文件里面，编辑把下面那段话加到最后面
[root@master ~]# vim .bashrc
source <(kubectl completion bash)

[root@master ~]# source ~/.bashrc

#可以补全命令了

主节点测试kubernetes集群

#查看pods，发现没有
[root@master ~]# kubectl get pods
No resources found in default namespace.

#创建应用服务nginx
[root@master ~]# kubectl get pods
No resources found in default namespace.
[root@master ~]# kubectl create deployment nginx --image=nginx --replicas=3
deployment.apps/nginx created
[root@master ~]# watch kubectl get pods


#再次查看pods
[root@master ~]# kubectl get pods
NAME                     READY   STATUS    RESTARTS   AGE
nginx-7854ff8877-66qw4   1/1     Running   0          45s
nginx-7854ff8877-c2tbj   1/1     Running   0          45s
nginx-7854ff8877-nsrh5   1/1     Running   0          45s



#查看集群中 Deployment 资源状态，确认nginx应用部署情况
[root@master ~]# kubectl get deployment
NAME    READY   UP-TO-DATE   AVAILABLE   AGE
nginx   3/3     3            3           91s
#查看 Deployment 关联的 ReplicaSet（控制器）状态
[root@master ~]# kubectl get replicasets
NAME               DESIRED   CURRENT   READY   AGE
nginx-7854ff8877   3         3         3       102s


#查看 Pod 详细信息（包含 IP、运行节点等）
[root@master ~]# kubectl get pods -o wide
NAME                     READY   STATUS    RESTARTS   AGE     IP               NODE    NOMINATED NODE   READINESS GATES
nginx-7854ff8877-66qw4   1/1     Running   0          5m57s   10.244.104.1     node2   <none>           <none>
nginx-7854ff8877-c2tbj   1/1     Running   0          5m57s   10.244.104.2     node2   <none>           <none>
nginx-7854ff8877-nsrh5   1/1     Running   0          5m57s   10.244.166.132   node1   <none>           <none>


#将 nginx Deployment 暴露为 Kubernetes Service，实现对 Pod 的稳定访问
#通过kubectl expose命令创建 Service，解决 Pod 动态变化（IP 可能因重建改变）导致的访问问题，为一组 nginx Pod 提供固定访问入口。
#暴露服务端口
[root@master ~]# kubectl expose deployment nginx --port=80 --target-port=80 --type=NodePort
service/nginx exposed

[root@master ~]# kubectl get service
NAME         TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)        AGE
kubernetes   ClusterIP   10.96.0.1       <none>        443/TCP        4h29m
nginx        NodePort    10.108.58.101   <none>        80:32104/TCP   23s



[root@master ~]# curl http://10.108.58.101
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
html { color-scheme: light dark; }
body { width: 35em; margin: 0 auto;
font-family: Tahoma, Verdana, Arial, sans-serif; }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>

<p><em>Thank you for using nginx.</em></p>
</body>
</html>


#核心作用
#服务发现：为动态变化的 Pod 提供固定访问入口（Service IP 和节点端口），无需关心 Pod 的具体 IP。
#负载均衡：Service 会自动将请求分发到关联的 3 个 nginx Pod，实现负载分担。
#外部访问：通过NodePort类型，允许集群外的设备（如物理机、其他服务器）通过节点 IP+32104 端口访问 nginx 服务。

案例：Kubernetes 的自我修复

#master节点查看Pod状态
#发现node2有两个pod
[root@master ~]# kubectl get pods -o wide
NAME                     READY   STATUS    RESTARTS   AGE     IP               NODE    NOMINATED NODE   READINESS GATES
nginx-7854ff8877-66qw4   1/1     Running   0          5m57s   10.244.104.1     node2   <none>           <none>
nginx-7854ff8877-c2tbj   1/1     Running   0          5m57s   10.244.104.2     node2   <none>           <none>
nginx-7854ff8877-nsrh5   1/1     Running   0          5m57s   10.244.166.132   node1   <none>           <none>

#去node2删除一个pod
[root@node2 ~]# crictl ps | grep nginx
e195187f04f7c       d261fd19cb632       20 minutes ago      Running             nginx               0                   cbe44236102a4       nginx-7854ff8877-c2tbj
649b17e74c87e       d261fd19cb632       20 minutes ago      Running             nginx               0                   e49ba1b11d739       nginx-7854ff8877-66qw4
[root@node2 ~]# crictl rm -f e195187f04f7c
e195187f04f7c
e195187f04f7c

#再次回到master和node2查看状态
[root@master ~]# kubectl get pods -o wide
NAME                     READY   STATUS    RESTARTS   AGE   IP               NODE    NOMINATED NODE   READINESS GATES
nginx-7854ff8877-66qw4   1/1     Running   0          33m   10.244.104.1     node2   <none>           <none>
nginx-7854ff8877-c2tbj   1/1     Running   1          33m   10.244.104.2     node2   <none>           <none>
nginx-7854ff8877-nsrh5   1/1     Running   0          33m   10.244.166.132   node1   <none>           <none>
[root@node2 ~]# crictl ps | grep nginx
73c1d3f7d84bb       d261fd19cb632       50 seconds ago      Running             nginx               1                   cbe44236102a4       nginx-7854ff8877-c2tbj
649b17e74c87e       d261fd19cb632       33 minutes ago      Running             nginx               0                   e49ba1b11d739       nginx-7854ff8877-66qw4
#发现自动生成了一个pod，但是id不一样

master ~]# kubectl get pods -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
nginx-7854ff8877-66qw4 1/1 Running 0 33m 10.244.104.1 node2
nginx-7854ff8877-c2tbj 1/1 Running 1 33m 10.244.104.2 node2
nginx-7854ff8877-nsrh5 1/1 Running 0 33m 10.244.166.132 node1
[root@node2 ~]# crictl ps | grep nginx
73c1d3f7d84bb d261fd19cb632 50 seconds ago Running nginx 1 cbe44236102a4 nginx-7854ff8877-c2tbj
649b17e74c87e d261fd19cb632 33 minutes ago Running nginx 0 e49ba1b11d739 nginx-7854ff8877-66qw4
#发现自动生成了一个pod，但是id不一样
