前言，之前因为开发原生小程序的时候，就遇到了需要生成海报的场景。当时虽然说通过canvas自己纯手搓出来了海报，满足了需求。但是那一行行的代码，写的也是心力交瘁，而且代码看着也确实费劲，借鉴能力不强，给别的同学看了，还是得自己摸索着写，心智负担毛都没省。哎！感兴趣的可以看看原文章小程序生成分享海报，带小程序码，并保存图片。闲言少叙，今天带来的是一款挺好用的海报生成插件Painter,支持原生小程序和uniapp,Painter传送门

其实海报的痛点就是保真还原，如果能做到这点，那就属于一款好用的插件了。呐，Painter，就是。

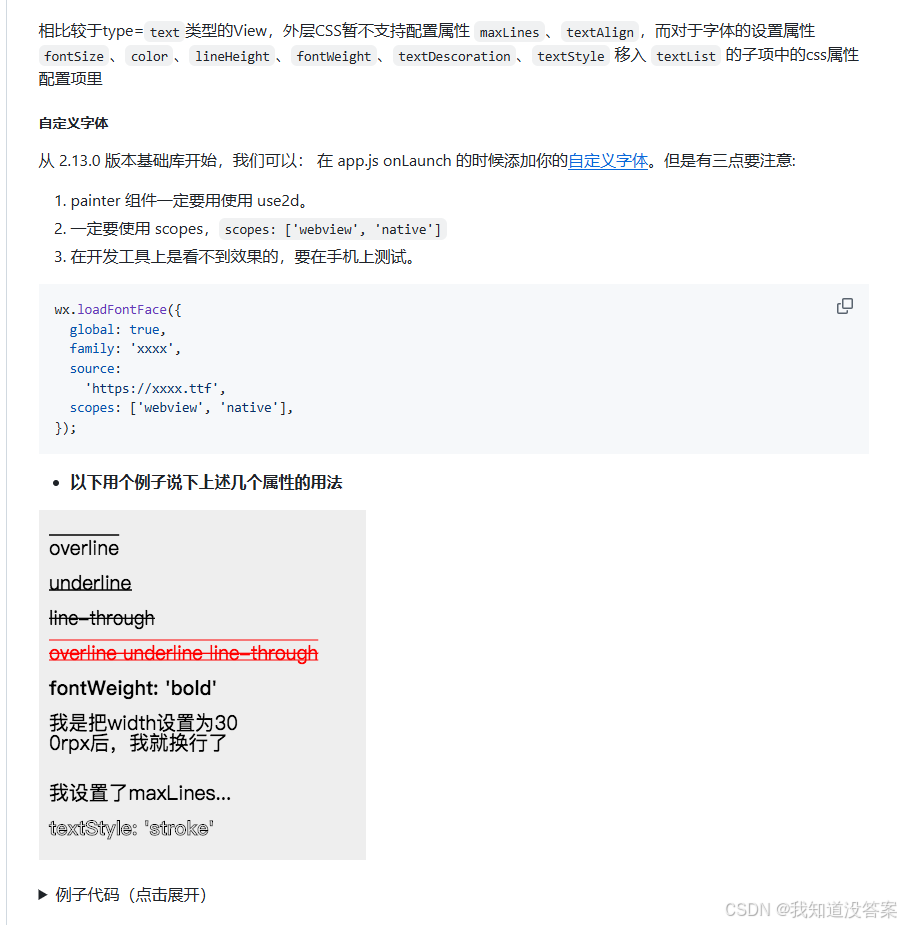

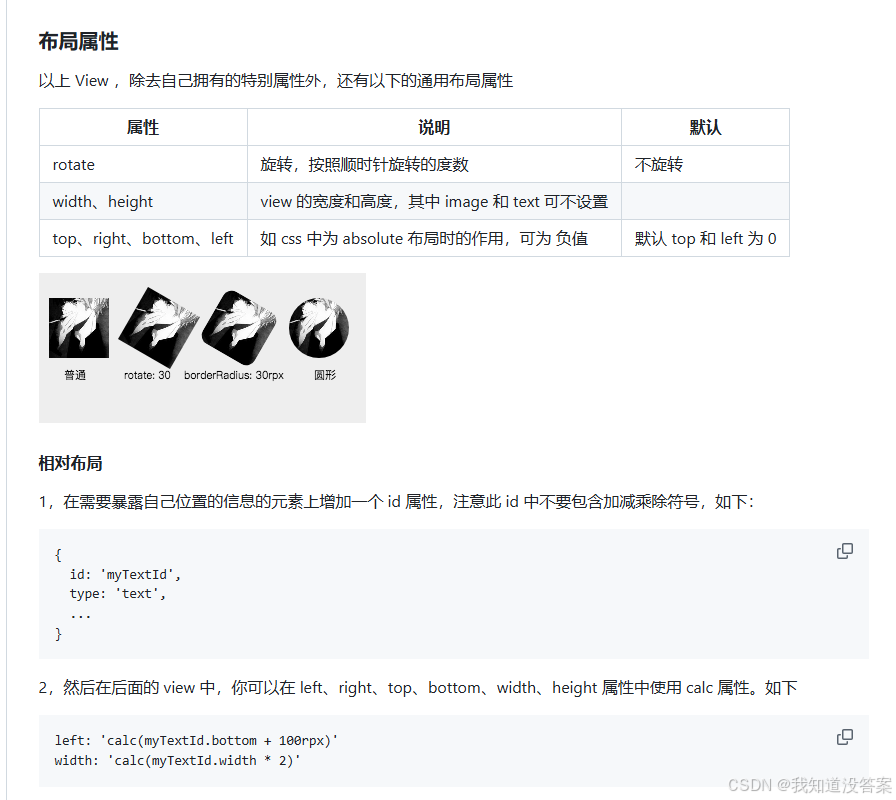

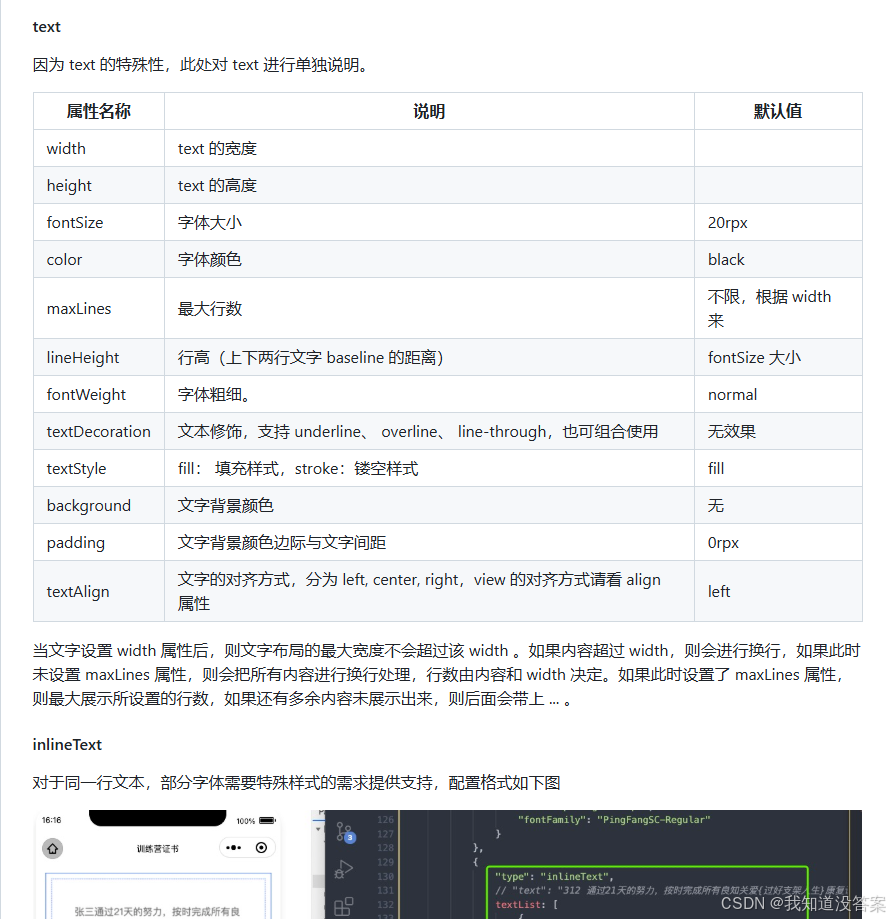

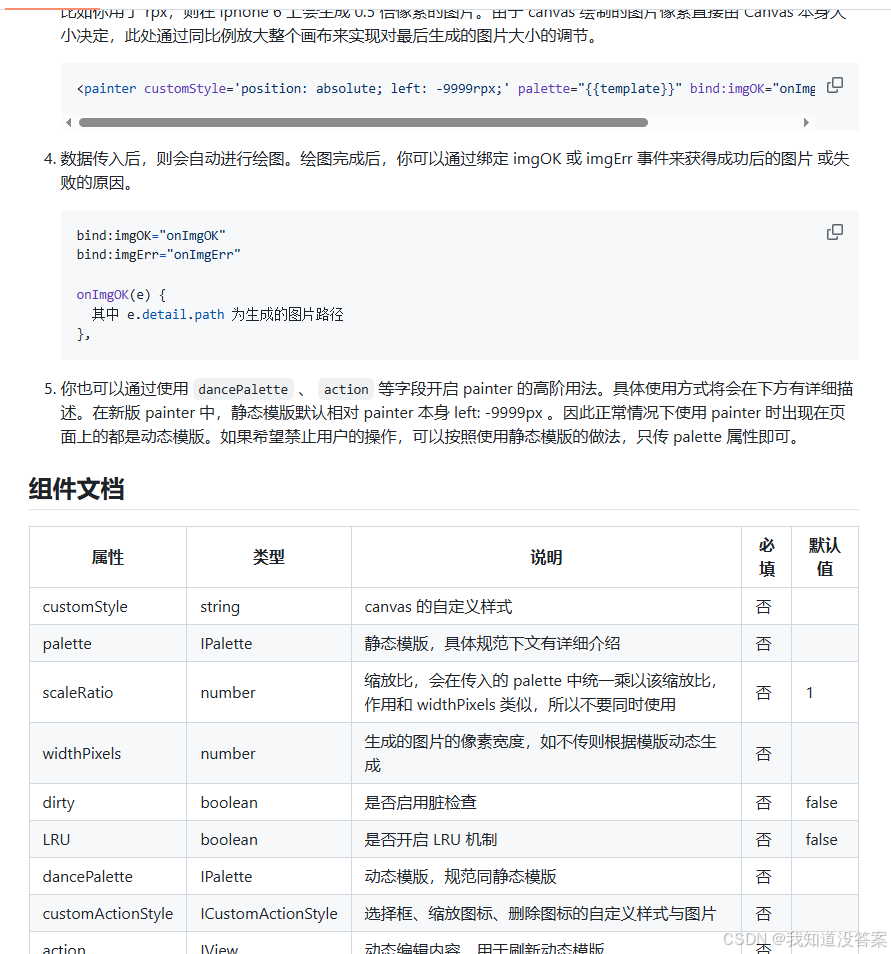

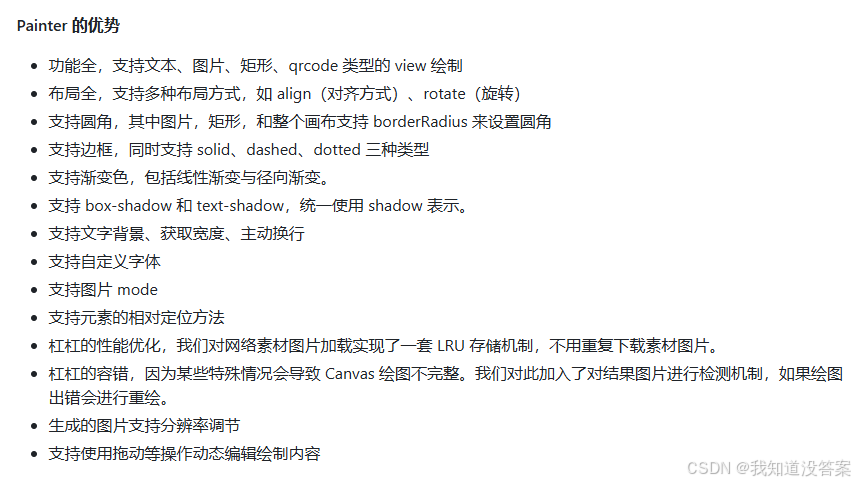

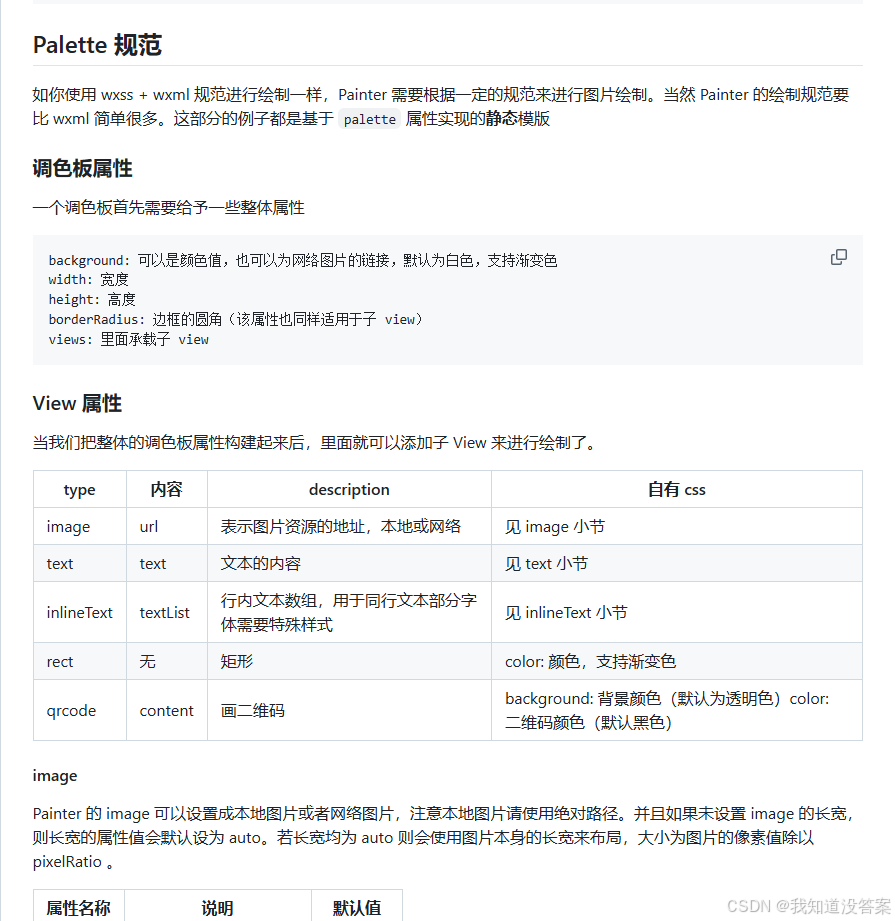

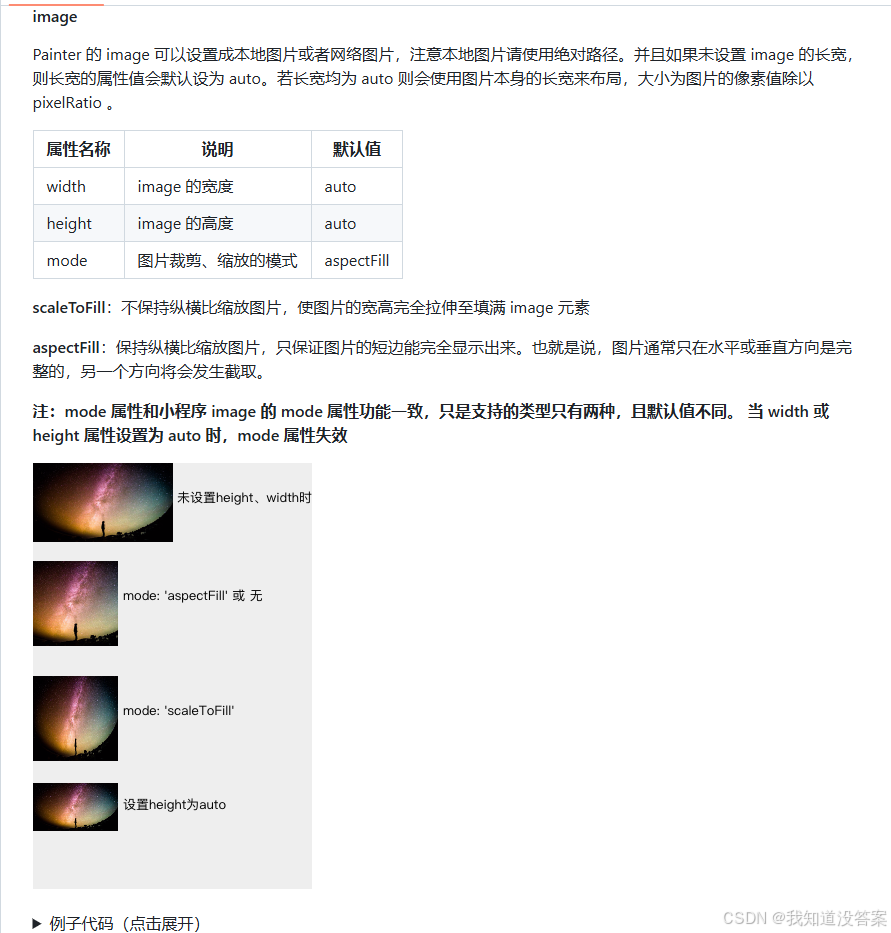

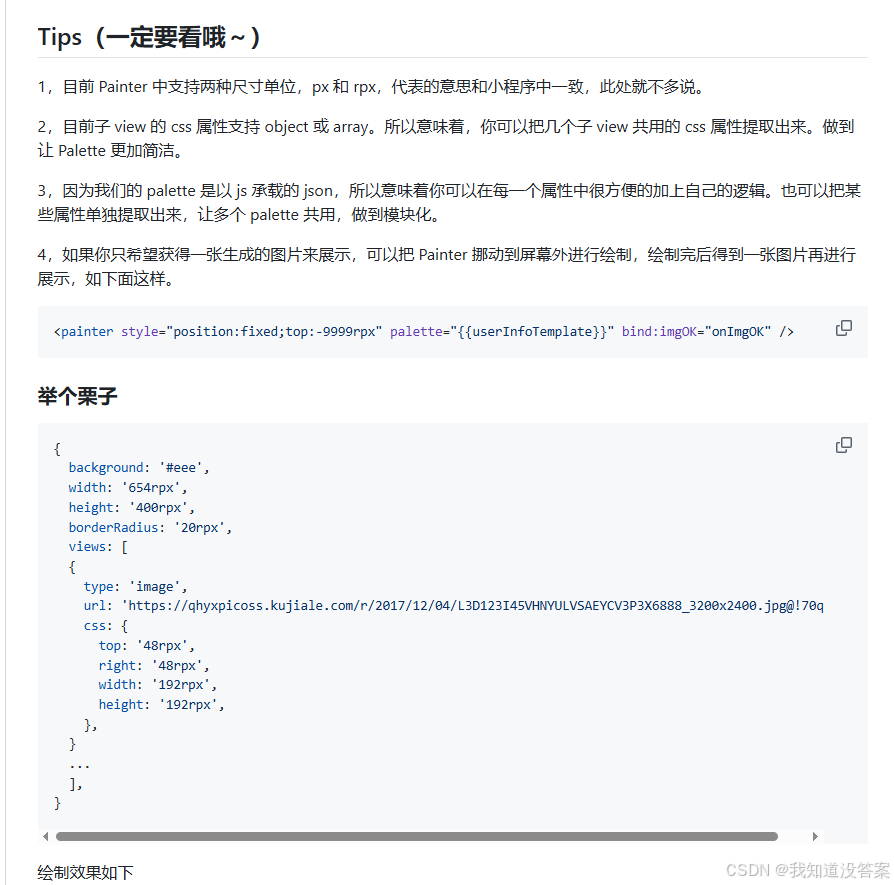

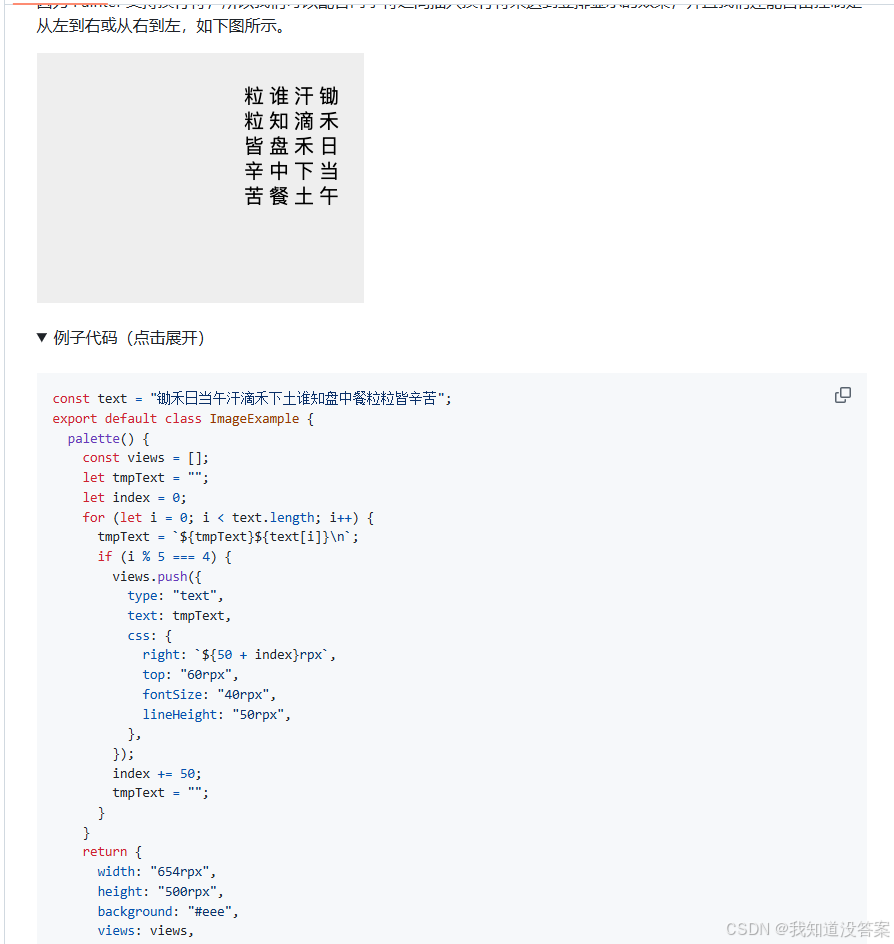

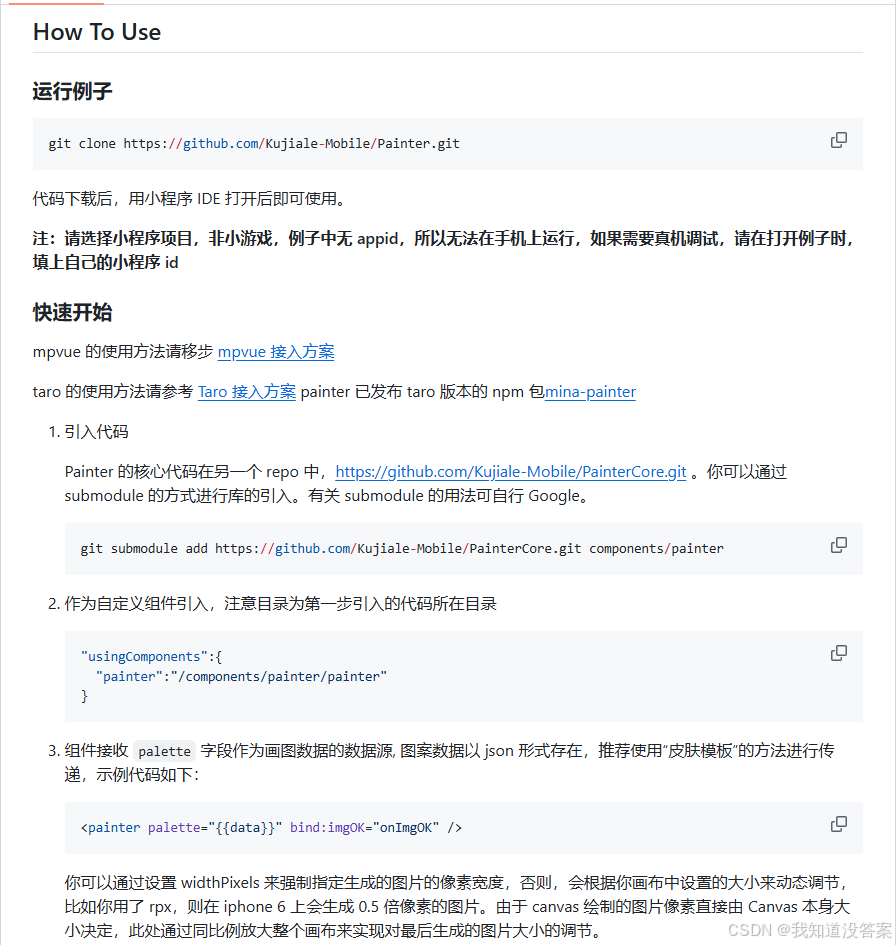

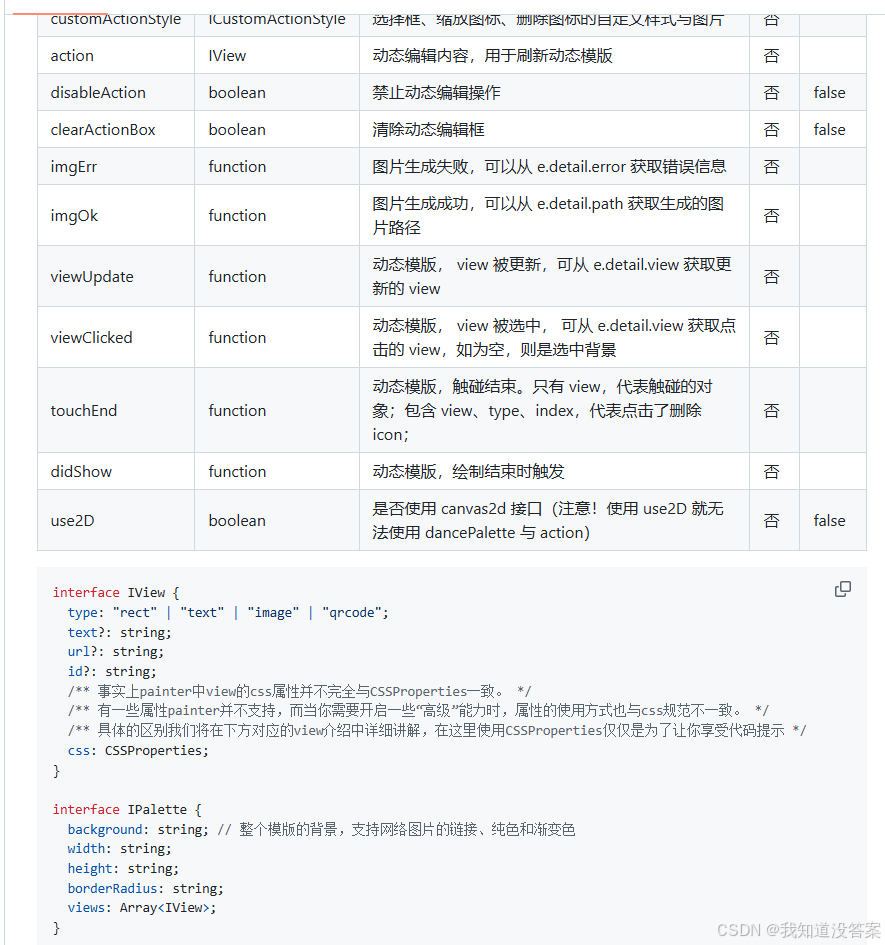

说的花里胡哨的，怎么用呢？别急，看图说话：算了官网说的太多了，你自己看吧。我来说我怎么用的吧。

先克隆git clone https://github.com/Kujiale-Mobile/Painter.git；

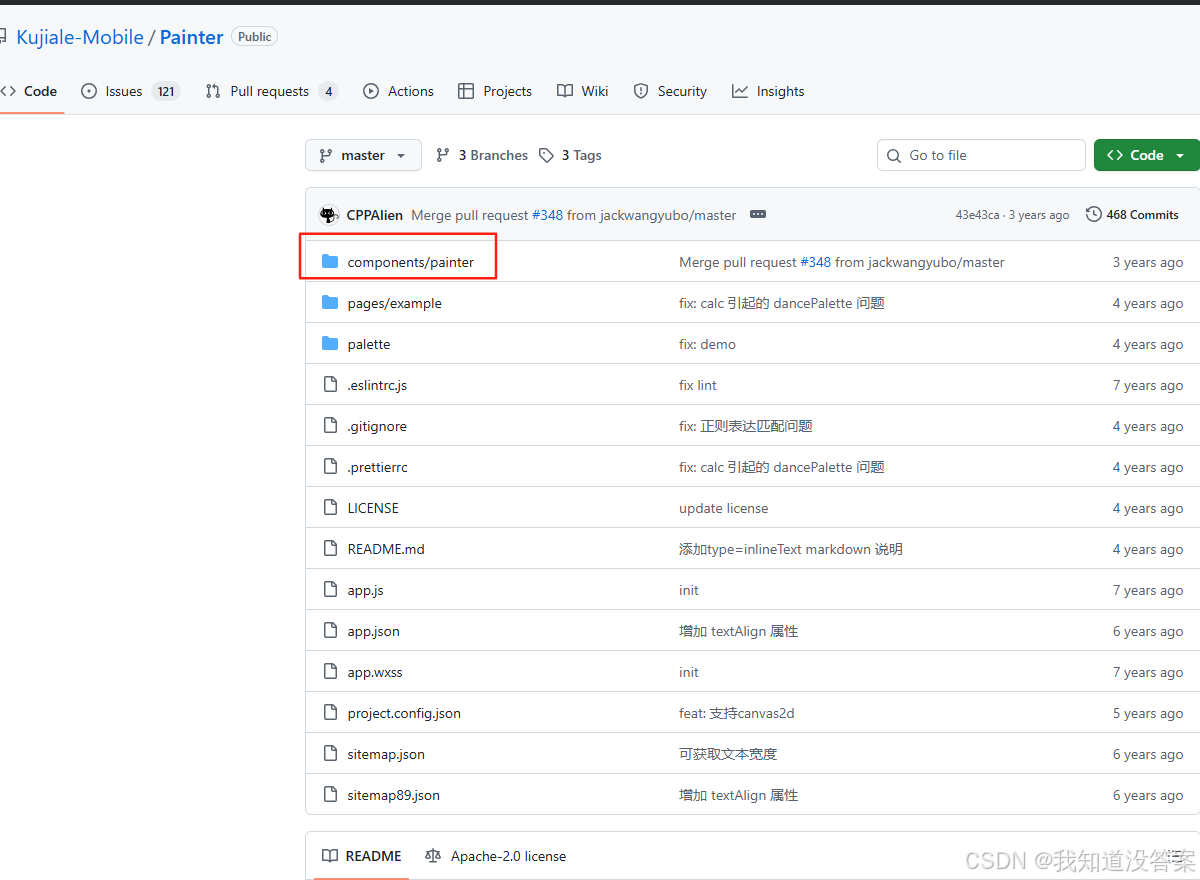

克隆下来的项目，找到components/painter,如图，然后把它整个复制到你小程序的components文件夹中

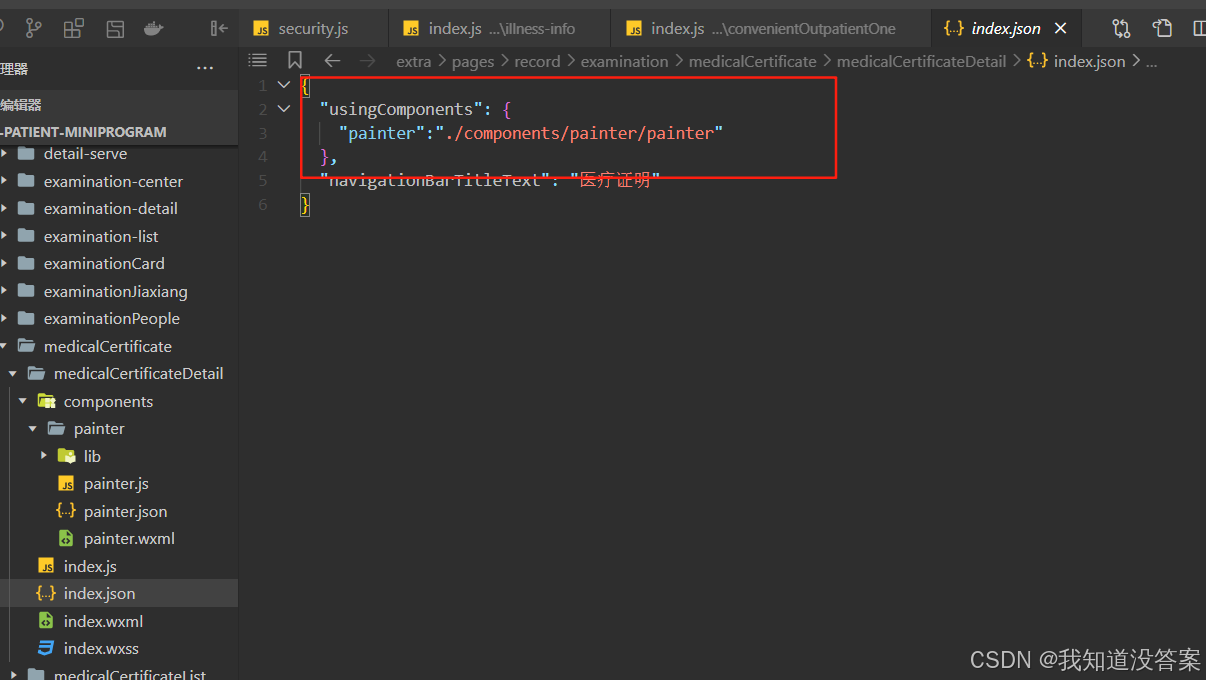

在你要用的页面引入，类似这样：

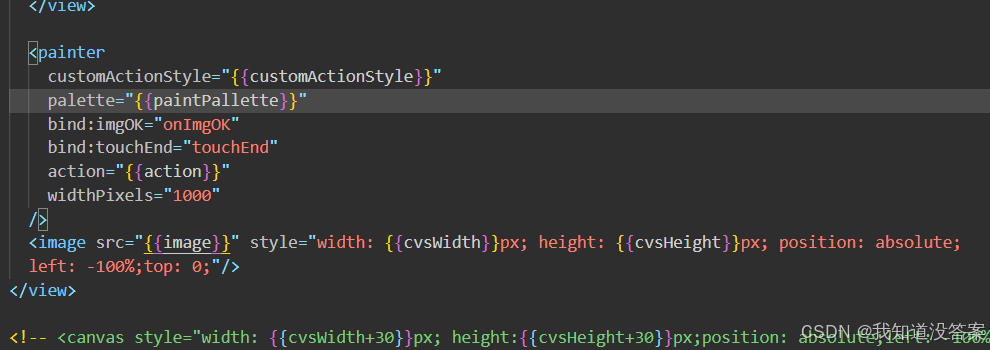

在页面中写入，组件和承载容器image

<painter
    customActionStyle="{{customActionStyle}}"
    palette="{{paintPallette}}"
    bind:imgOK="onImgOK"
    bind:touchEnd="touchEnd"
    action="{{action}}"
    widthPixels="1000"
  />
  <image src="{{image}}" style="width: {{cvsWidth}}px; height: {{cvsHeight}}px; position: absolute;left: -100%;top: 0;"/>

最后就是js了，为了能够逻辑连贯，直接把我自己的页面的js都放上去吧


import { request } from '../../../../../../utils/request';
import { toastMsg } from '../../../../../../utils/toast';
Page({

  /**
   * 页面的初始数据
   */
  data: {
    cvsWidth:0,
    cvsHeight:0,
    zmid:'',
    detail:'',
    paintPallette:'',
    customActionStyle: {
      border: {
        borderColor: '#1A7AF8',
      },
      scale: {
        textIcon: '/palette/switch.png',
        imageIcon: '/palette/scale.png',
      },
      delete: {
        icon: '/palette/close.png',
      },
    },
    qrCodeUrl:'',
  },

  /**
   * 生命周期函数--监听页面加载
   */
  onLoad(options) {
    if(options&&options.zmid){
      this.setData({
        zmid:options.zmid
      })
    }
    if(options&&options.scene){
      let zmid = decodeURIComponent(options.scene);
      this.setData({
        zmid:zmid
      })
    }

    this.getDetail()
  },
  async getDetail(){
    wx.showLoading({
      title: '加载中···',
    })
    const {data} = await request.get(`/feeCenter/hisMedicalCertQueryOne/${this.data.zmid}`)
    wx.hideLoading()
    this.setData({
      detail:data
    })
  },
  onImgOK(e) {
    this.imagePath = e.detail.path;
    this.setData({
      image: this.imagePath,
    });
    wx.hideLoading()
    this.saveImage(this.imagePath);
  },
  saveImage() {
    if (this.imagePath && typeof this.imagePath === 'string') {
      this.isSave = false;
      wx.saveImageToPhotosAlbum({
        filePath: this.imagePath,
        success(res){
          toastMsg("保存成功，可到相册查看")
        }
      });
    }
  },
  touchEnd({ detail }) {
    let needRefresh = detail.index >= 0 && detail.index <= this.data.template.views.length;
    if (needRefresh) {
      this.history.push({
        ...detail,
      });
      if (this.data.template.views[detail.index].id === detail.view.id) {
        this.data.template.views.splice(detail.index, 1);
      } else {
        this.data.template.views.splice(detail.index, 0, detail.view);
      }
    } else {
      if (!this.data.template || !this.data.template.views) {
        return;
      }
      for (let view of this.data.template.views) {
        if (view.id === detail.view.id) {
          this.history.push({
            view: {
              ...detail.view,
              ...view,
            },
          });
          view.css = detail.view.css;
          break;
        }
      }
    }
    this.future.length = 0;
    const props = {
      paintPallette: this.data.template,
    };
    if (needRefresh) {
      props.template = this.data.template;
    }
    this.setData(props);
  },
  async saveDownImg(){
    wx.showLoading({
      title: '加载中···',
    })
    const {data} = await request.get(`/feeCenter/createQrCode/${this.data.detail.zmid}`)
    if(data){
      this.setData({
        qrCodeUrl:data
      })
      let that = this;
      const query = wx.createSelectorQuery().in(this);
      query.select('#medical_content').fields({
        size: true,
        scrollOffset: true
      }, data => {
        let width = data.width;
        let height = data.height;
        that.setData({
          cvsWidth: width,
          cvsHeight:height+43
        })
      }).exec();
      setTimeout(() => {
        console.log("宽高",that.data.cvsWidth,that.data.cvsHeight)
        that.startDraw()
      }, 500);
    }

  },
  startDraw() {
    var msgBoxHeight = 0;
    var firstHeight = 0;
    var endHeight = 0;
    const query = wx.createSelectorQuery().in(this);
    query.select('#medical_msg_box').fields({
      size: true,
      scrollOffset: true
    }, data => {
      msgBoxHeight = data.height+16
    }).exec();
    query.select('#first_zhenduan').fields({
      size: true,
      scrollOffset: true
    }, data => {
      firstHeight = data.height
    }).exec();
    query.select('#last_yijian').fields({
      size: true,
      scrollOffset: true
    }, data => {
      endHeight = data.height
    }).exec();
    setTimeout(() => {
      console.log(msgBoxHeight,firstHeight,endHeight)
      let templateObj = {
        width: this.data.cvsWidth+'px',
        height: this.data.cvsHeight+'px',
        background: '#ffffff',
        views: [
          {
            type: 'rect',
            css: {
              width:this.data.cvsWidth+'px',
              height:this.data.cvsHeight+'px',
              color: '#FFFFFF',
              boxShadow: 'inset 0rpx -2rpx 2rpx 0rpx rgba(255,255,255,0.5)',
              borderRadius: '16rpx',
              padding: '40rpx 36rpx',
            },
          },
          {
            type: 'text',
            text: "某某妇产科医院",
            css: [{
              fontFamily: 'PingFangSC, PingFang SC',
              fontWeight: '400',
              fontSize: '32rpx',
              color: '#333333',
              lineHeight: '44rpx',
              textAlign: 'center',
              top:'40rpx',
              left:'140rpx',
            }],
          },
          {
            type: 'text',
            text: "医疗证明书",
            css: [{
              fontFamily: 'PingFangSC, PingFang SC',
              fontWeight: '600',
              fontSize: '36rpx',
              color: '#333333',
              lineHeight: '50rpx',
              textAlign: 'center',
              top:'94rpx',
              left:'254rpx',
            }],
          },
          {
            type: 'rect',
            css: {
              width:'182rpx',
              height:'144rpx',
              color: '#EFF6FF',
              borderRadius: '8rpx',
              top:'124rpx',
              left:'36rpx'
            },
          },
          {
            type: 'text',
            text: '扫码认证',
            css: [{
              fontFamily: 'PingFangSC, PingFang SC',
              fontWeight: '400',
              fontSize: '24rpx',
              width:'30rpx',
              color: '#384D6C',
              lineHeight: '28rpx',
              top:'138rpx',
              left:'184rpx',
            }],
          },
          {
            type: 'image',
            url: this.data.qrCodeUrl,
            css: {
              top: '140rpx',
              left: '52rpx',
              width: '111rpx',
              height: '111rpx',
              borderRadius:'50%'
            },
          },
          {
            type: 'text',
            text: this.data.detail.kjsj,
            css: [{
              fontFamily: 'PingFangSC, PingFang SC',
              fontWeight: '400',
              fontSize: '26rpx',
              color: '#8A8A8A',
              lineHeight: '36rpx',
              textAlign: 'center',
              top:'230rpx',
              right:'36rpx',
            }],
          },
          {
            type: 'rect',
            css: {
              width: '614rpx',
              height: msgBoxHeight+'px',
              color: '#ffffff',
              left: '36rpx',
              top: `284rpx`,
              borderRadius: '12rpx',
              borderWidth: '2rpx',
              borderColor: '#D4D4D4',
              borderStyle: 'solid',
              borderTop:'none'
            },
          },
          {
            type: 'text',
            text: "姓名："+this.data.detail.brxm,
            css: [{
              fontFamily: 'PingFangSC, PingFang SC',
              fontWeight: '400',
              fontSize: '28rpx',
              color: '#333333',
              lineHeight: '40rpx',
              top:'316rpx',
              left:'72rpx',
            }],
          },
          {
            type: 'text',
            text: "性别："+this.data.detail.brxb,
            css: [{
              fontFamily: 'PingFangSC, PingFang SC',
              fontWeight: '400',
              fontSize: '28rpx',
              color: '#333333',
              lineHeight: '40rpx',
              top:'316rpx',
              left:'380rpx',
            }],
          },
          {
            type: 'text',
            text: "年龄："+this.data.detail.brnl,
            css: [{
              fontFamily: 'PingFangSC, PingFang SC',
              fontWeight: '400',
              fontSize: '28rpx',
              color: '#333333',
              lineHeight: '40rpx',
              top:'372rpx',
              left:'72rpx',
            }],
          },
          {
            type: 'text',
            text: "病案号："+this.data.detail.bahm,
            css: [{
              fontFamily: 'PingFangSC, PingFang SC',
              fontWeight: '400',
              fontSize: '28rpx',
              color: '#333333',
              lineHeight: '40rpx',
              top:'372rpx',
              left:'380rpx',
            }],
          },
          {
            type: 'rect',
            css: {
              width: '614rpx',
              height: '2rpx',
              color: '#D4D4D4',
              left: '36rpx',
              top: `444rpx`,
            },
          },
          {
            type: 'text',
            text: "初步诊断：",
            css: [{
              fontFamily: 'PingFangSC, PingFang SC',
              fontWeight: '400',
              fontSize: '26rpx',
              color: '#333333',
              lineHeight: '36rpx',
              top:'478rpx',
              left:'72rpx',
            }],
          },
          {
            type: 'text',
            text: this.data.detail.zdmc,
            css: [{
              fontFamily: 'PingFangSC, PingFang SC',
              fontWeight: '400',
              fontSize: '28rpx',
              color: '#333333',
              lineHeight: '36rpx',
              top:'526rpx',
              left:'72rpx',
              width:'542rpx',
            }],
          },
          {
            type: 'rect',
            css: {
              width: '614rpx',
              height: '2rpx',
              color: '#D4D4D4',
              left: '36rpx',
              top: (276+firstHeight)+'px',
            },
          },
          {
            type: 'text',
            text: "处理意见：",
            css: [{
              fontFamily: 'PingFangSC, PingFang SC',
              fontWeight: '400',
              fontSize: '26rpx',
              color: '#333333',
              lineHeight: '36rpx',
              top:(293+firstHeight)+'px',
              left:'72rpx',
            }],
          },
          {
            type: 'text',
            text: this.data.detail.clyj,
            css: [{
              fontFamily: 'PingFangSC, PingFang SC',
              fontWeight: '400',
              fontSize: '28rpx',
              color: '#333333',
              lineHeight: '36rpx',
              top:(312+firstHeight)+'px',
              left:'72rpx',
              width:'542rpx',
            }],
          },
          {
            type: 'text',
            text: "医生签名："+this.data.detail.kjys,
            css: [{
              fontFamily: 'PingFangSC, PingFang SC',
              fontWeight: '400',
              fontSize: '24rpx',
              color: '#333333',
              lineHeight: '40rpx',
              top:(328+firstHeight+endHeight)+'px',
              left:'72rpx',
            }],
          },
          {
            type: 'text',
            text: "医院盖章：",
            css: [{
              fontFamily: 'PingFangSC, PingFang SC',
              fontWeight: '400',
              fontSize: '24rpx',
              color: '#333333',
              lineHeight: '40rpx',
              top:(328+firstHeight+endHeight)+'px',
              left:'388rpx',
            }],
          },
          {
            type: 'text',
            text: "开具时间："+this.data.detail.kjsj,
            css: [{
              fontFamily: 'PingFangSC, PingFang SC',
              fontWeight: '400',
              fontSize: '24rpx',
              color: '#333333',
              lineHeight: '40rpx',
              top:(348+firstHeight+endHeight)+'px',
              left:'72rpx',
            }],
          },
          {
            type: 'image',
            url: 'https://womanhospital-public-oss.gjwlyy.com/resource/img/yiliaozhengmingzhang.png',
            css: {
              bottom: '50rpx',
              right: '70rpx',
              width: '200rpx',
              height: '200rpx',
            },
          },
        ],
      }
      this.setData({
        paintPallette:templateObj
      })
    }, 500);

    // let that = this;
    // // 创建wxml2canvas对象
    // let drawMyImage = new Wxml2Canvas(
    //   {
    //     element: "canvasId", // canvas的id,
    //     obj: that, // 传入当前组件的this
    //     width: that.data.cvsWidth*2, // canvas画布宽度
    //     height: that.data.cvsHeight*2, // canvas画布高度
    //     background: "#FFFFFF", // 生成图片的背景色
    //     progress(percent) {
    //       // 进度
    //       // console.log(percent);
    //     },
    //     finish(url) {
    //       // 生成的图片
    //       wx.hideLoading();
    //       that.savePoster(url);
    //     },
    //     error(res) {
    //       wx.hideLoading()
    //       // 失败原因
    //       console.log(res);
    //     },
    //   },
    //   this
    // );
    // let data = {
    //   // 获取wxml数据
    //   list: [
    //     {
    //       type: "wxml",
    //       class: ".medical_content .draw_medical_content", // draw_pnode要绘制的wxml元素根类名， draw_node单个元素的类名（所有要绘制的单个元素都要添加该类名）
    //       limit: ".medical_content", // 要绘制的wxml元素根类名，也就是指定要绘制哪些父级中的元素
    //       x: 15,
    //       y: 0,
    //     },
    //   ],
    // };
    // // 绘制canvas
    // drawMyImage.draw(data, this);
  },
  savePoster(url) {
    const that = this;
    wx.saveImageToPhotosAlbum({
      filePath: url,
      success: function () {
        wx.showToast({
          title: "保存成功",
          icon: "none",
          duration: 1500,
        });
      },
      fail(err) {
        if (
          err.errMsg === "saveImageToPhotosAlbum:fail:auth denied" ||
          err.errMsg === "saveImageToPhotosAlbum:fail auth deny" ||
          err.errMsg === "saveImageToPhotosAlbum:fail authorize no response"
        ) {
          wx.showModal({
            title: "提示",
            content: "需要您授权保存相册",
            showCancel: false,
            success: (modalSuccess) => {
              wx.openSetting({
                success(settingdata) {
                  if (settingdata.authSetting["scope.writePhotosAlbum"]) {
                    wx.saveImageToPhotosAlbum({
                      filePath: that.data.imgUrl,
                      success: function () {
                        wx.showToast({
                          title: "保存成功",
                          icon: "success",
                          duration: 2000,
                        });
                      },
                    });
                  } else {
                    wx.showToast({
                      title: "授权失败，请稍后重新获取",
                      icon: "none",
                      duration: 1500,
                    });
                  }
                },
              });
            },
          });
        }
      },
    });
  },

  /**
   * 生命周期函数--监听页面初次渲染完成
   */
  onReady() {

  },

  /**
   * 生命周期函数--监听页面显示
   */
  onShow() {

  },

  /**
   * 生命周期函数--监听页面隐藏
   */
  onHide() {

  },

  /**
   * 生命周期函数--监听页面卸载
   */
  onUnload() {

  },

  /**
   * 页面相关事件处理函数--监听用户下拉动作
   */
  onPullDownRefresh() {

  },

  /**
   * 页面上拉触底事件的处理函数
   */
  onReachBottom() {

  },
})

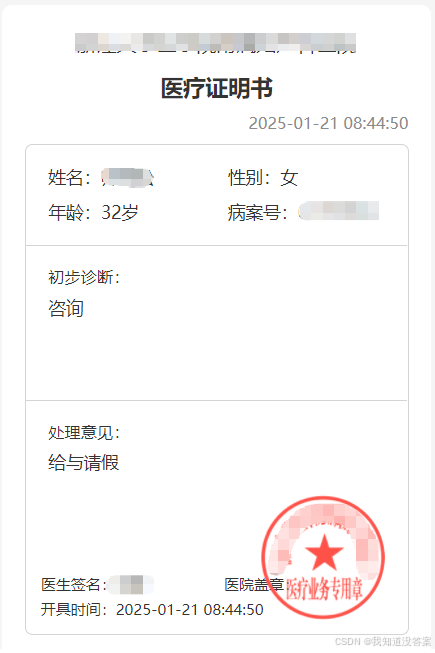

6.对应效果图
