昇腾AI创新大赛-算子挑战赛（S5赛季）【挑战性能命题】Lcm赛题
具体描述是：参考算子：torch.lcm算子输入取值范围：N∈[1,200]算子输入特征说明:输入x2应与x1 Shape一致，如果不一致，则对应的维度为1，可以广播成与x1 Shape一致，需要考虑广播实现。N~N3均可能为非32的整倍数，需要考虑非对齐场景。int64类型数据取值会超出int32取值范围，注意不要使用Cast强转int64到int32参考实现是。
·
题目
具体描述是：

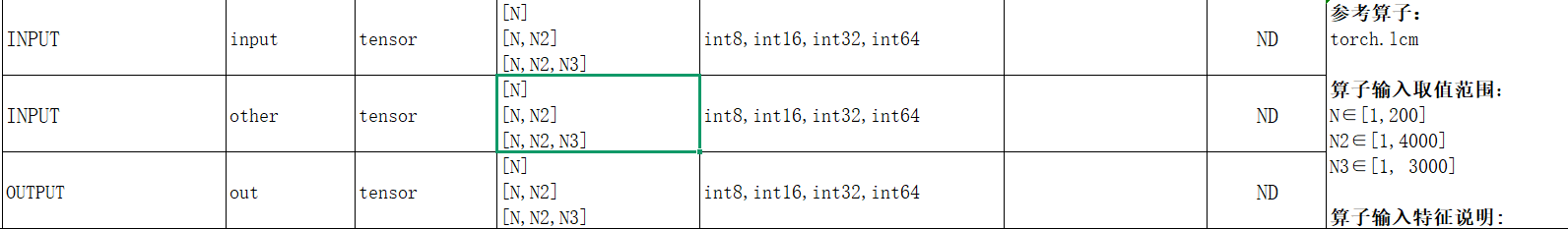

参考算子：
torch.lcm
算子输入取值范围：
N∈[1,200]
N2∈[1,4000]
N3∈[1, 3000]
算子输入特征说明:
输入x2应与x1 Shape一致，如果不一致，则对应的维度为1，可以广播成与x1 Shape一致，需要考虑广播实现。
N~N3均可能为非32的整倍数，需要考虑非对齐场景。
int64类型数据取值会超出int32取值范围，注意不要使用Cast强转int64到int32
参考实现是torch.lcm
分析
运算本身
首先基本计算是 l c m ( x , y ) = x ∗ y / h c d ( x , y ) lcm(x,y)=x*y/hcd(x,y) lcm(x,y)=x∗y/hcd(x,y)
乘法部分我们可以调用向量接口。
关键就是计算 g c d gcd gcd。这里只能用类辗转相除的做法来。这样实现的话，对于每对 x , y x,y x,y，辗转相除的过程，进行的操作都是不同的。很难用向量接口，只能逐个计算。
广播
实际上还有一个隐藏难点，广播。就是可能出现两个张量大小不同的情况，但此时不一定无法计算。如果满足广播的条件，也就是x在一个维度可以是任意值，y要么这个维度大小是1，要么没有这个维度，就可以广播。
广播有两种实现，一种是我们全都交给一个核，然后这个核心获得全部数据，也就是不进行tiling，然后枚举结果张量每个维度的下标，相当于遍历整个结果张量，然后用广播规则去计算这个结果位置，分别是由x,y张量的哪两个位置运算得到的。
这样优点是简洁，缺点是慢，毕竟没有利用多核。
另一种实现是，对结果张量tiling，每个核心分配到结果张量的一段区间，然后我们枚举这个区间的下标，仍然去计算每个位置，是由xy的哪两个位置计算出来的。
（理论上还有一种，是对于xy进行tiling，也就是计算出每个核心，需要的x,y的区间，然后分配给核心，但这太难算）
溢出
x ∗ y x*y x∗y这里可能会溢出，然后这个处理器的溢出规则，和c++,torch的规则不太一样，需要手动去尝试，找到规则，然后特判。具体来说，int32和in64都需要先让他们自然溢出，然后取绝对值。
优化
求gcd，辗转相除里的取模运算太多了，取模实际上是一个很慢的东西，需要的时钟周期比乘法加法多一个数量级。考虑减少取模运算，那么有没有不用取模的求gcd算法呢，还真有。
就是二进制gcd/stein算法，可以全程只用if+位运算。具体可以看
这篇博客
大概实现就是这样
inline int gcd(int a, int b)
{
register int az=__builtin_ctz(a),bz=__builtin_ctz(b),z=az>bz?bz:az,diff;
b>>=bz;
while(a)
{
a>>=az;
diff=b-a;
az=__builtin_ctz(diff);
if(a<b)b=a;
a=diff<0?-diff:diff;
}
return b<<z;
}
这里的__builtin都是优化过的库函数，不是 O ( l o g ) O(log) O(log)而是 O ( 1 ) O(1) O(1)的
然后由于ascendC是继承了很多C标准库，所以这个也能用。
另外，对于多次查询，求gcd这种问题，一个经典的优化是，打表。可以把一些比较小的 ( x , y ) (x,y) (x,y)的结果预处理出来。
网上找的开源实现更进一步，他没有用 g c d [ x ] [ y ] gcd[x][y] gcd[x][y]保存预处理的 g c d ( x , y ) gcd(x,y) gcd(x,y)，因为这样的话数据量还是有点大了，他是用的位运算，表的数据量只有 64 个 u i n t 64 64个uint64 64个uint64，实际上是把小于 64 64 64的每个数字用一个二进制位来表示，这样仍然存了 64 ∗ 64 64*64 64∗64的信息，查表时用位运算即可
有tiling的实现
op_kernel/lcm.cpp
#include "kernel_operator.h"
using namespace AscendC;
constexpr uint64_t pre[65] = {0, 1ull,3ull,5ull,11ull,17ull,39ull,65ull,139ull,261ull,531ull,1025ull,2095ull,4097ull,8259ull,16405ull,32907ull,65537ull,131367ull,262145ull,524827ull,1048645ull,2098179ull,4194305ull,8390831ull,16777233ull,33558531ull,67109125ull,134225995ull,268435457ull,536887863ull,1073741825ull,2147516555ull,4294968325ull,8590000131ull,17179869265ull,34359871791ull,68719476737ull,137439215619ull,274877911045ull,549756338843ull,1099511627777ull,2199024312423ull,4398046511105ull,8796095120395ull,17592186061077ull,35184376283139ull,70368744177665ull,140737496778927ull,281474976710721ull,562949970199059ull,1125899906908165ull,2251799847243787ull,4503599627370497ull,9007199321981223ull,18014398509483025ull,36028797153190091ull,72057594038190085ull,144115188344291331ull,288230376151711745ull,576460752840837695ull,1152921504606846977ull,2305843010287435779ull,4611686018428436805ull,9223372039002292363ull};
template<typename T> class BruteForce {
public:
__aicore__ inline BruteForce() {}
__aicore__ inline void Init(GM_ADDR x1, GM_ADDR x2, GM_ADDR y, uint32_t n1[3], uint32_t n2[3], uint32_t ny[3], uint32_t size, uint32_t length,uint32_t abs_flag,uint32_t dim_num) {
//ASSERT(GetBlockNum() != 0 && "block dim can not be zero!");
uint32_t total1 = 1, total2 = 1, totaly = 1;
for (int i = 0; i < dim_num; ++i) {
this->n1[i] = n1[i];
this->n2[i] = n2[i];
this->ny[i] = ny[i];
total1 *= n1[i];
total2 *= n2[i];
totaly *= ny[i];
}
x1Gm.SetGlobalBuffer((__gm__ T*)x1, total1);
x2Gm.SetGlobalBuffer((__gm__ T*)x2, total2);
const unsigned num_cores = GetBlockNum();
unsigned L = GetBlockIdx() * length;
unsigned R = (GetBlockIdx() + 1) * length;
if (R > size) {
R = size;
}
this->L = L;
this->R = R ;
yGm.SetGlobalBuffer((__gm__ T*)y, totaly);
this->abs_flag=abs_flag;
this->dim_num=dim_num;
}
__aicore__ inline void Process() {
if (L >= R) return; // 空区间直接返回
// --------------------------
// 1. 初始化：仅计算一次初始索引（含除法/取模，仅执行1次）
// --------------------------
uint32_t indices[3]; // 5维索引
uint32_t temp = L;
// 初始计算L对应的5维索引（仅此处用除法/取模）
for (int j = dim_num-1; j >= 0; --j) {
indices[j] = temp % ny[j];
temp = temp / ny[j];
}
// 初始计算idx1和idx2（x1和x2的索引）
uint32_t idx1 = 0, idx2 = 0;
for (int j = 0; j < dim_num; ++j) {
idx1 = idx1 * n1[j] + (indices[j] % n1[j]);
idx2 = idx2 * n2[j] + (indices[j] % n2[j]);
}
// --------------------------
// 2. 处理第一个元素（i=L）
// --------------------------
int64_t a = x1Gm.GetValue(idx1);
int64_t b = x2Gm.GetValue(idx2);
if (a == 0 || b == 0) {
yGm.SetValue(L, 0);
} else {
a = (a > 0 ? a : -a);
b = (b > 0 ? b : -b);
int64_t aa = a, bb = b;
int64_t shift = ScalarGetSFFValue<1>(a | b);
a >>= ScalarGetSFFValue<1>(a);
do {
b >>= ScalarGetSFFValue<1>(b);
if (a <= 64 && b <= 64) {
a = 64 - ScalarCountLeadingZero(pre[a] & pre[b]);
break;
}
if (a > b) {
a ^= b ^= a ^= b;
}
b -= a;
} while (b);
a = (a << shift);
T ans = aa / a * bb;
if (ans < 0 && abs_flag) {
ans = -ans;
}
yGm.SetValue(L, ans);
}
// --------------------------
// 3. 处理剩余元素（i从L+1到R-1）：纯加法/乘法增量更新
// --------------------------
for (int i = L + 1; i < R; ++i) {
// --------------------------
// 3.1 增量更新indices（用加法+进位，无除法/取模）
// --------------------------
int carry = 1; // 从最后一维开始+1（模拟i递增1）
for (int j = dim_num-1; j >= 0 && carry; --j) {
indices[j] += carry; // 当前维度+1
if (indices[j] >= ny[j]) {
// 溢出：归零并向前进位
indices[j] = 0;
carry = 1;
} else {
// 未溢出：停止进位
carry = 0;
}
}
uint32_t idx1 = 0, idx2 = 0;
for (int j = 0; j < dim_num; ++j) {
int ind=indices[j];
idx1 = idx1 * n1[j] + (ind>=n1[j]?ind%n1[j]:ind); // 广播映射x1
idx2 = idx2 * n2[j] + (ind>=n2[j]?ind%n2[j]:ind); // 广播映射x2
}
// --------------------------
// 3.3 计算并写入当前元素（逻辑同前）
// --------------------------
a = x1Gm.GetValue(idx1);
b = x2Gm.GetValue(idx2);
if (a == 0 || b == 0) {
yGm.SetValue(i, 0);
} else {
a = (a > 0 ? a : -a);
b = (b > 0 ? b : -b);
int64_t aa = a, bb = b;
int64_t shift = ScalarGetSFFValue<1>(a | b);
a >>= ScalarGetSFFValue<1>(a);
do {
b >>= ScalarGetSFFValue<1>(b);
if (a <= 64 && b <= 64) {
a = 64 - ScalarCountLeadingZero(pre[a] & pre[b]);
break;
}
if (a > b) {
a ^= b ^= a ^= b;
}
b -= a;
} while (b);
a = (a << shift);
T ans = aa / a * bb;
if (ans < 0 && abs_flag) {
ans = -ans;
}
yGm.SetValue(i, ans);
}
}
}
private:
GlobalTensor<T> x1Gm, x2Gm, yGm;
uint32_t n1[3], n2[3], ny[3];
uint32_t L, R;
uint32_t abs_flag;
uint32_t dim_num;
};
template<typename T> class LCMKernalFast {
public:
__aicore__ inline LCMKernalFast() {}
__aicore__ inline void Init(GM_ADDR x1, GM_ADDR x2, GM_ADDR y, uint32_t size, uint32_t length,uint32_t abs_flag) {
//ASSERT(GetBlockNum() != 0 && "block dim can not be zero!");
const unsigned num_cores = GetBlockNum();
unsigned L = GetBlockIdx() * length;
unsigned R = (GetBlockIdx() + 1) * length;
if (R > size) {
R = size;
}
this->L = 0;
this->R = R - L;
x1Gm.SetGlobalBuffer((__gm__ T*)x1 + L, length);
x2Gm.SetGlobalBuffer((__gm__ T*)x2 + L, length);
yGm.SetGlobalBuffer((__gm__ T*)y + L, length);
this->abs_flag=abs_flag;
}
__aicore__ inline void Process() {
for (int i = L; i < R; ++i) {
int64_t a = x1Gm.GetValue(i);
int64_t b = x2Gm.GetValue(i);
if (a == 0||b==0){
yGm.SetValue(i, 0);
}
else {
a = (a > 0 ? a : -a);
b = (b > 0 ? b : -b);
int64_t aa=a,bb=b;
int64_t shift = ScalarGetSFFValue<1>(a | b);
a >>= ScalarGetSFFValue<1>(a);
do {
b >>= ScalarGetSFFValue<1>(b);
if(a <= 64 && b <= 64){
a = 64 - ScalarCountLeadingZero(pre[a] & pre[b]);
break;
}
if (a > b) {
a ^= b ^= a ^= b;
}
b -= a;
} while (b);
a =(a<<shift);
T ans=aa/a*bb;
if (ans<0 && abs_flag) {
ans=-ans;
}
yGm.SetValue(i, ans);
}
}
}
private:
GlobalTensor<T> x1Gm, x2Gm, yGm;
uint32_t L, R;
uint32_t abs_flag;
};
extern "C" __global__ __aicore__ void lcm(GM_ADDR input, GM_ADDR other, GM_ADDR out, GM_ADDR workspace, GM_ADDR tiling) {
GET_TILING_DATA(tiling_data, tiling);
if (tiling_data.status == 0) {
BruteForce<DTYPE_INPUT> op;
op.Init(input, other, out, tiling_data.n1, tiling_data.n2, tiling_data.ny,tiling_data.size,tiling_data.length,tiling_data.abs_flag,tiling_data.dim_num);
op.Process();
}
else {
LCMKernalFast<DTYPE_INPUT> op;
op.Init(input, other, out, tiling_data.size, tiling_data.length,tiling_data.abs_flag);
op.Process();
}
}
op_host/lcm.cpp
#include "lcm_tiling.h"
#include "register/op_def_registry.h"
#include "tiling/platform/platform_ascendc.h"
#include <iostream>
#include <algorithm>
namespace optiling {
static ge::graphStatus TilingFunc(gert::TilingContext* context)
{
LcmTilingData tiling;
auto ascendcPlatform = platform_ascendc::PlatformAscendC(context->GetPlatformInfo());
auto num_cores = ascendcPlatform.GetCoreNum();
uint32_t sizeofdatatype,tot=16;
auto dt = context->GetInputTensor(0)->GetDataType();
if (dt == ge::DT_INT16) {
sizeofdatatype = 2;
}
else if (dt == ge::DT_INT8) {
sizeofdatatype = 1;
tot=64;
}
else if (dt == ge::DT_INT32) {
sizeofdatatype = 4;
tiling.set_abs_flag(1);
}
else {
sizeofdatatype = 8;
tiling.set_abs_flag(1);
}
const uint32_t alignment = tot / sizeofdatatype;
const gert::StorageShape* x1_shape = context->GetInputShape(0);
auto dim1 = x1_shape->GetStorageShape().GetDimNum();
uint32_t n1[3] = {1, 1, 1};
for (int i = 0; i < dim1; ++i) {
n1[i] = x1_shape->GetStorageShape().GetDim(i);
}
const gert::StorageShape* x2_shape = context->GetInputShape(1);
auto dim2 = x2_shape->GetStorageShape().GetDimNum();
uint32_t n2[3] = {1, 1, 1};
for (int i = 0; i < dim2; ++i) {
n2[i + (dim1 - dim2)] = x2_shape->GetStorageShape().GetDim(i);
}
int dim = std::max(dim1, dim2);
tiling.set_dim_num(dim);
uint32_t ny[3] = {1, 1, 1};
uint32_t size = 1;
for (int i = 0; i < dim; ++i) {
ny[i] = std::max(n1[i], n2[i]);
size *= ny[i];
}
tiling.set_n1(n1);
tiling.set_n2(n2);
tiling.set_ny(ny);
//std::cout << "n1: " << n1[0] << " " << n1[1] << " " << n1[2] << " " << n1[3] << " " << n1[4] << " " << std::endl;
//std::cout << "n2: " << n2[0] << " " << n2[1] << " " << n2[2] << " " << n2[3] << " " << n2[4] << " " << std::endl;
//std::cout << "ny: " << ny[0] << " " << ny[1] << " " << ny[2] << " " << ny[3] << " " << ny[4] << " " << std::endl;
int status = 2;
for (int i = 0; i < 3; ++i) {
if (n1[i] != n2[i]) {
status = 0;
}
}
if(size <= num_cores * alignment) status = 0;
tiling.set_status(status);
tiling.set_size(size);
unsigned length = (size - 1) / num_cores + 1;
while (length % alignment != 0) length += 1;
tiling.set_length(length);
if (status == 0) {
//std::cout<<"Broadcast"<<std::endl;
context->SetBlockDim(num_cores);
}
else {
//std::cout << "Multicore" << std::endl;
context->SetBlockDim(num_cores);
}
tiling.SaveToBuffer(context->GetRawTilingData()->GetData(), context->GetRawTilingData()->GetCapacity());
context->GetRawTilingData()->SetDataSize(tiling.GetDataSize());
return ge::GRAPH_SUCCESS;
}
}
namespace ge {
static ge::graphStatus InferShape(gert::InferShapeContext* context) {
const gert::Shape* x1_shape = context->GetInputShape(0);
const gert::Shape* x2_shape = context->GetInputShape(1);
gert::Shape* y_shape = context->GetOutputShape(0);
// 1. 计算广播后的维度（与TilingFunc中ny的逻辑一致）
int dim1 = x1_shape->GetDimNum();
int dim2 = x2_shape->GetDimNum();
int max_dim = std::max(dim1, dim2);
std::vector<int64_t> broadcast_dims; // 存储广播后的维度
for (int i = 0; i < max_dim; ++i) {
int64_t d1 = (i >= max_dim - dim1) ? x1_shape->GetDim(i - (max_dim - dim1)) : 1;
int64_t d2 = (i >= max_dim - dim2) ? x2_shape->GetDim(i - (max_dim - dim2)) : 1;
if (d1 != d2 && d1 != 1 && d2 != 1) {
std::cerr << "Broadcast failed: incompatible dims " << d1 << " vs " << d2 << std::endl;
return ge::GRAPH_FAILED;
}
broadcast_dims.push_back(std::max(d1, d2));
}
// 2. 关键修改：通过默认构造+AddDim添加维度（避开initializer_list）
gert::Shape new_shape; // 默认构造空Shape
new_shape.SetDimNum(broadcast_dims.size());
for (int i=0;i<broadcast_dims.size();i++) {
new_shape.SetDim(i,broadcast_dims[i]); // 逐个添加维度（假设Shape类有AddDim方法）
}
*y_shape = new_shape; // 赋值给输出形状
return ge::GRAPH_SUCCESS;
}
static ge::graphStatus InferDataType(gert::InferDataTypeContext *context)
{
const auto inputDataType = context->GetInputDataType(0);
context->SetOutputDataType(0, inputDataType);
return ge::GRAPH_SUCCESS;
}
}
namespace ops {
class Lcm : public OpDef {
public:
explicit Lcm(const char* name) : OpDef(name)
{
this->Input("input")
.ParamType(REQUIRED)
.DataType({ge::DT_INT8, ge::DT_INT16, ge::DT_INT32, ge::DT_INT64})
.Format({ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND})
.UnknownShapeFormat({ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND});
this->Input("other")
.ParamType(REQUIRED)
.DataType({ge::DT_INT8, ge::DT_INT16, ge::DT_INT32, ge::DT_INT64})
.Format({ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND})
.UnknownShapeFormat({ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND});
this->Output("out")
.ParamType(REQUIRED)
.DataType({ge::DT_INT8, ge::DT_INT16, ge::DT_INT32, ge::DT_INT64})
.Format({ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND})
.UnknownShapeFormat({ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND});
this->SetInferShape(ge::InferShape).SetInferDataType(ge::InferDataType);
this->AICore()
.SetTiling(optiling::TilingFunc);
this->AICore().AddConfig("ascend910b");
}
};
OP_ADD(Lcm);
}
op_host/lcm_tiling.h
#include "register/tilingdata_base.h"
namespace optiling {
BEGIN_TILING_DATA_DEF(LcmTilingData)
TILING_DATA_FIELD_DEF_ARR(uint32_t, 3, n1);
TILING_DATA_FIELD_DEF_ARR(uint32_t, 3, n2);
TILING_DATA_FIELD_DEF_ARR(uint32_t, 3, ny);
TILING_DATA_FIELD_DEF(uint32_t, status);
TILING_DATA_FIELD_DEF(uint32_t, size);
TILING_DATA_FIELD_DEF(uint32_t, length);
TILING_DATA_FIELD_DEF(uint32_t, abs_flag);
TILING_DATA_FIELD_DEF(uint32_t, dim_num);
END_TILING_DATA_DEF;
REGISTER_TILING_DATA_CLASS(Lcm, LcmTilingData)
}
无tiling的实现
op_kernel/lcm.cpp
#include "kernel_operator.h"
using namespace AscendC;
constexpr uint64_t pre[65] = {0, 1ull,3ull,5ull,11ull,17ull,39ull,65ull,139ull,261ull,531ull,1025ull,2095ull,4097ull,8259ull,16405ull,32907ull,65537ull,131367ull,262145ull,524827ull,1048645ull,2098179ull,4194305ull,8390831ull,16777233ull,33558531ull,67109125ull,134225995ull,268435457ull,536887863ull,1073741825ull,2147516555ull,4294968325ull,8590000131ull,17179869265ull,34359871791ull,68719476737ull,137439215619ull,274877911045ull,549756338843ull,1099511627777ull,2199024312423ull,4398046511105ull,8796095120395ull,17592186061077ull,35184376283139ull,70368744177665ull,140737496778927ull,281474976710721ull,562949970199059ull,1125899906908165ull,2251799847243787ull,4503599627370497ull,9007199321981223ull,18014398509483025ull,36028797153190091ull,72057594038190085ull,144115188344291331ull,288230376151711745ull,576460752840837695ull,1152921504606846977ull,2305843010287435779ull,4611686018428436805ull,9223372039002292363ull};
template<typename T> class BruteForce {
public:
__aicore__ inline BruteForce() {}
__aicore__ inline void Init(GM_ADDR x1, GM_ADDR x2, GM_ADDR y, uint32_t n1[5], uint32_t n2[5], uint32_t ny[5]) {
ASSERT(GetBlockNum() != 0 && "block dim can not be zero!");
uint32_t total1 = 1, total2 = 1, totaly = 1;
for (int i = 0; i < 5; ++i) {
this->n1[i] = n1[i];
this->n2[i] = n2[i];
this->ny[i] = ny[i];
total1 *= n1[i];
total2 *= n2[i];
totaly *= ny[i];
}
x1Gm.SetGlobalBuffer((__gm__ T*)x1, total1);
x2Gm.SetGlobalBuffer((__gm__ T*)x2, total2);
yGm.SetGlobalBuffer((__gm__ T*)y, totaly);
}
__aicore__ inline void Process() {
for (uint32_t i0 = 0; i0 < ny[0]; ++i0) {
for (uint32_t i1 = 0; i1 < ny[1]; ++i1) {
for (uint32_t i2 = 0; i2 < ny[2]; ++i2) {
for (uint32_t i3 = 0; i3 < ny[3]; ++i3) {
for (uint32_t i4 = 0; i4 < ny[4]; ++i4) {
uint32_t indices[5] = {i0, i1, i2, i3, i4};
uint32_t idx1 = 0, idx2 = 0, idxy = 0;
for (int j = 0; j < 5; ++j) {
idx1 = idx1 * n1[j] + indices[j] % n1[j];
idx2 = idx2 * n2[j] + indices[j] % n2[j];
idxy = idxy * ny[j] + indices[j];
}
int64_t a = x1Gm.GetValue(idx1);
int64_t b = x2Gm.GetValue(idx2);
if (a < 0) {
a = -a;
}
if (b < 0) {
b = -b;
}
int64_t aa=a,bb=b;
while (b) {
int64_t A = b;
int64_t B = a % b;
a = A;
b = B;
}
T ans=aa/a*bb;
if constexpr (std::is_same<T, int64_t>::value) {
if(ans<0)ans=-ans;
}
if constexpr (std::is_same<T, int32_t>::value) {
if(ans<0)ans=-ans;
}
yGm.SetValue(idxy, ans);
}
}
}
}
}
}
private:
GlobalTensor<T> x1Gm, x2Gm, yGm;
uint32_t n1[5], n2[5], ny[5];
};
template<typename T> class GCDKernalFast {
public:
__aicore__ inline GCDKernalFast() {}
__aicore__ inline void Init(GM_ADDR x1, GM_ADDR x2, GM_ADDR y, uint32_t size, uint32_t length) {
ASSERT(GetBlockNum() != 0 && "block dim can not be zero!");
const unsigned num_cores = GetBlockNum();
unsigned L = GetBlockIdx() * length;
unsigned R = (GetBlockIdx() + 1) * length;
if (R > size) {
R = size;
}
this->L = 0;
this->R = R - L;
x1Gm.SetGlobalBuffer((__gm__ T*)x1 + L, length);
x2Gm.SetGlobalBuffer((__gm__ T*)x2 + L, length);
yGm.SetGlobalBuffer((__gm__ T*)y + L, length);
}
__aicore__ inline void Process() {
for (int i = L; i < R; ++i) {
int64_t a = x1Gm.GetValue(i);
int64_t b = x2Gm.GetValue(i);
a = (a > 0 ? a : -a);
b = (b > 0 ? b : -b);
int64_t aa=a,bb=b;
if (a == 0){
yGm.SetValue(i, b);
}
else if (b == 0) {
yGm.SetValue(i, a);
}
else {
int64_t shift = ScalarGetSFFValue<1>(a | b);
a >>= ScalarGetSFFValue<1>(a);
do {
b >>= ScalarGetSFFValue<1>(b);
if(a <= 64 && b <= 64){
a = 64 - ScalarCountLeadingZero(pre[a] & pre[b]);
break;
}
if (a > b) {
a ^= b ^= a ^= b;
}
b -= a;
} while (b);
a =(a<<shift);
T ans=aa/a*bb;
if constexpr (std::is_same<T, int64_t>::value) {
if(ans<0)ans=-ans;
}
if constexpr (std::is_same<T, int32_t>::value) {
if(ans<0)ans=-ans;
}
yGm.SetValue(i, ans);
}
}
}
private:
GlobalTensor<T> x1Gm, x2Gm, yGm;
uint32_t L, R;
};
extern "C" __global__ __aicore__ void lcm(GM_ADDR input, GM_ADDR other, GM_ADDR out, GM_ADDR workspace, GM_ADDR tiling) {
GET_TILING_DATA(tiling_data, tiling);
if (tiling_data.status == 0) {
BruteForce<DTYPE_INPUT> op;
op.Init(input, other, out, tiling_data.n1, tiling_data.n2, tiling_data.ny);
op.Process();
}
else {
GCDKernalFast<DTYPE_INPUT> op;
op.Init(input, other, out, tiling_data.size, tiling_data.length);
op.Process();
}
// BruteForce<DTYPE_INPUT> op;
// op.Init(input, other, out, tiling_data.n1, tiling_data.n2, tiling_data.ny);
// op.Process();
}
op_host/lcm.cpp
#include "lcm_tiling.h"
#include "register/op_def_registry.h"
#include "tiling/platform/platform_ascendc.h"
#include <iostream>
#include <algorithm>
namespace optiling {
static ge::graphStatus TilingFunc(gert::TilingContext* context)
{
LcmTilingData tiling;
auto ascendcPlatform = platform_ascendc::PlatformAscendC(context->GetPlatformInfo());
auto num_cores = ascendcPlatform.GetCoreNum();
uint32_t sizeofdatatype = 2;
auto dt = context->GetInputTensor(0)->GetDataType();
if (dt == ge::DT_INT16) {
sizeofdatatype = 2;
}
else if (dt == ge::DT_INT32) {
sizeofdatatype = 4;
}
else {
sizeofdatatype = 8;
}
const uint32_t alignment = 64 / sizeofdatatype;
const gert::StorageShape* x1_shape = context->GetInputShape(0);
auto dim1 = x1_shape->GetStorageShape().GetDimNum();
uint32_t n1[5] = {1, 1, 1, 1, 1};
for (int i = 0; i < dim1; ++i) {
n1[i] = x1_shape->GetStorageShape().GetDim(i);
}
const gert::StorageShape* x2_shape = context->GetInputShape(1);
auto dim2 = x2_shape->GetStorageShape().GetDimNum();
uint32_t n2[5] = {1, 1, 1, 1, 1};
for (int i = 0; i < dim2; ++i) {
n2[i + (dim1 - dim2)] = x2_shape->GetStorageShape().GetDim(i);
}
int dim = std::max(dim1, dim2);
uint32_t ny[5] = {1, 1, 1, 1, 1};
uint32_t size = 1;
for (int i = 0; i < dim; ++i) {
ny[i] = std::max(n1[i], n2[i]);
size *= ny[i];
}
tiling.set_n1(n1);
tiling.set_n2(n2);
tiling.set_ny(ny);
std::cout << "n1: " << n1[0] << " " << n1[1] << " " << n1[2] << " " << n1[3] << " " << n1[4] << " " << std::endl;
std::cout << "n2: " << n2[0] << " " << n2[1] << " " << n2[2] << " " << n2[3] << " " << n2[4] << " " << std::endl;
std::cout << "ny: " << ny[0] << " " << ny[1] << " " << ny[2] << " " << ny[3] << " " << ny[4] << " " << std::endl;
int status = 2;
for (int i = 0; i < 5; ++i) {
if (n1[i] != n2[i]) {
status = 0;
}
}
if(size <= num_cores * alignment) status = 0;
tiling.set_status(status);
tiling.set_size(size);
unsigned length = (size - 1) / num_cores + 1;
while (length % alignment != 0) length += 1;
tiling.set_length(length);
if (status == 0) {
context->SetBlockDim(1);
}
else {
std::cout << "Multicore" << std::endl;
context->SetBlockDim(num_cores);
}
tiling.SaveToBuffer(context->GetRawTilingData()->GetData(), context->GetRawTilingData()->GetCapacity());
context->GetRawTilingData()->SetDataSize(tiling.GetDataSize());
return ge::GRAPH_SUCCESS;
}
}
namespace ge {
static ge::graphStatus InferShape(gert::InferShapeContext* context)
{
const gert::Shape* x1_shape = context->GetInputShape(0);
gert::Shape* y_shape = context->GetOutputShape(0);
*y_shape = *x1_shape;
return GRAPH_SUCCESS;
}
static ge::graphStatus InferDataType(gert::InferDataTypeContext *context)
{
const auto inputDataType = context->GetInputDataType(0);
context->SetOutputDataType(0, inputDataType);
return ge::GRAPH_SUCCESS;
}
}
namespace ops {
class Lcm : public OpDef {
public:
explicit Lcm(const char* name) : OpDef(name)
{
this->Input("input")
.ParamType(REQUIRED)
.DataType({ge::DT_INT8, ge::DT_INT16, ge::DT_INT32, ge::DT_INT64})
.Format({ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND})
.UnknownShapeFormat({ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND});
this->Input("other")
.ParamType(REQUIRED)
.DataType({ge::DT_INT8, ge::DT_INT16, ge::DT_INT32, ge::DT_INT64})
.Format({ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND})
.UnknownShapeFormat({ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND});
this->Output("out")
.ParamType(REQUIRED)
.DataType({ge::DT_INT8, ge::DT_INT16, ge::DT_INT32, ge::DT_INT64})
.Format({ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND})
.UnknownShapeFormat({ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND, ge::FORMAT_ND});
this->SetInferShape(ge::InferShape).SetInferDataType(ge::InferDataType);
this->AICore()
.SetTiling(optiling::TilingFunc);
this->AICore().AddConfig("ascend910b");
}
};
OP_ADD(Lcm);
}
op_host/lcm_tiling.h
#include "register/tilingdata_base.h"
namespace optiling {
BEGIN_TILING_DATA_DEF(LcmTilingData)
TILING_DATA_FIELD_DEF_ARR(uint32_t, 5, n1);
TILING_DATA_FIELD_DEF_ARR(uint32_t, 5, n2);
TILING_DATA_FIELD_DEF_ARR(uint32_t, 5, ny);
TILING_DATA_FIELD_DEF(uint32_t, status);
TILING_DATA_FIELD_DEF(uint32_t, size);
TILING_DATA_FIELD_DEF(uint32_t, length);
END_TILING_DATA_DEF;
REGISTER_TILING_DATA_CLASS(Lcm, LcmTilingData)
}
环境配置
运行脚本安装的ascendC不是在用户目录下的，所以重启就没了。需要每次重启之后都重新运行脚本安装
创建算子工程
可以用msoopgen一件创建，具体见文档
大概用法是
msopgen gen -i {*.json} -f {framework type} -c {Compute Resource} -lan cpp -out {Output Path}
其中.json文件是算子工程的配置文件，需要声明算子的名称，参数的名称，类型
[
{
"op": "BitwiseLeftShift",
"language": "cpp",
"input_desc": [
{
"name": "input",
"param_type": "required",
"format": [
"ND",
"ND",
"ND",
"ND"
],
"type": [
"int8",
"int16",
"int32",
"int64"
]
},
{
"name": "other",
"param_type": "required",
"format": [
"ND",
"ND",
"ND",
"ND"
],
"type": [
"int8",
"int16",
"int32",
"int64"
]
}
],
"output_desc": [
{
"name": "out",
"param_type": "required",
"format": [
"ND",
"ND",
"ND",
"ND"
],
"type": [
"int8",
"int16",
"int32",
"int64"
]
}
]
}
]
-c格式为ai_core-{soc version}，如果用的是910b，就是ai_core-910B
-o可以没有，没有的话就默认在当前目录创建工程
编译
算子工程目录下有个build.sh，直接运行即可。成功后会得到一个可执行文件build_out/custom_opp_euleros_aarch64.run，
运行后会把当前算子安装到ascendC算子库里。
这里注意，这种方式同时只能安装一个算子，因为安装时的名称都是一样的，后面的会覆盖前面的。
测试
比赛给的压缩包里，首先运行init_pybind.sh，安装环境，这个只用安装一次就行了。
后面进入对应赛题的文件夹，例如Lcm赛题就是case_910b/Lcm，里面有一个run.sh脚本，执行bash run.sh x，即可运行test_op.py里定义的第x个测试用例。如果运行时检测不到算子的.wheel文件，会先编译得到并安装。
如果修改了算子实现，想重新测试，需要删掉dist和build两个文件夹，否则不会重新安装.wheel，也就无法测试最新实现
有“AI”的1024 = 2048，欢迎大家加入2048 AI社区
更多推荐
4
0- 0
已为社区贡献5条内容
所有评论(0)
