K8s Taint污点与Toleration容忍
语法： kubectl taint nodes NODE_NAME TAINT_KEY=TAINT_VALUE:EFFECT （TAINT_KEY自定义名称，TAINT_VALUE自定义值，EFFECT是指定的三种污点类型NoSchedule、NoExecute、PreferNoSchedule）应用场景一：k8s集群如果某节点出现故障，Pod默认是300秒后退出该节点，可以利用toleratio
·
记得关注一下博主，博主每天都会更新IT技术，让你有意想不到的小收获哦^_^
文章目录
提示：kubernetes官网Taint与Toleration污点和容忍文档说明 https://kubernetes.io/docs/concepts/scheduling-eviction/taint-and-toleration/

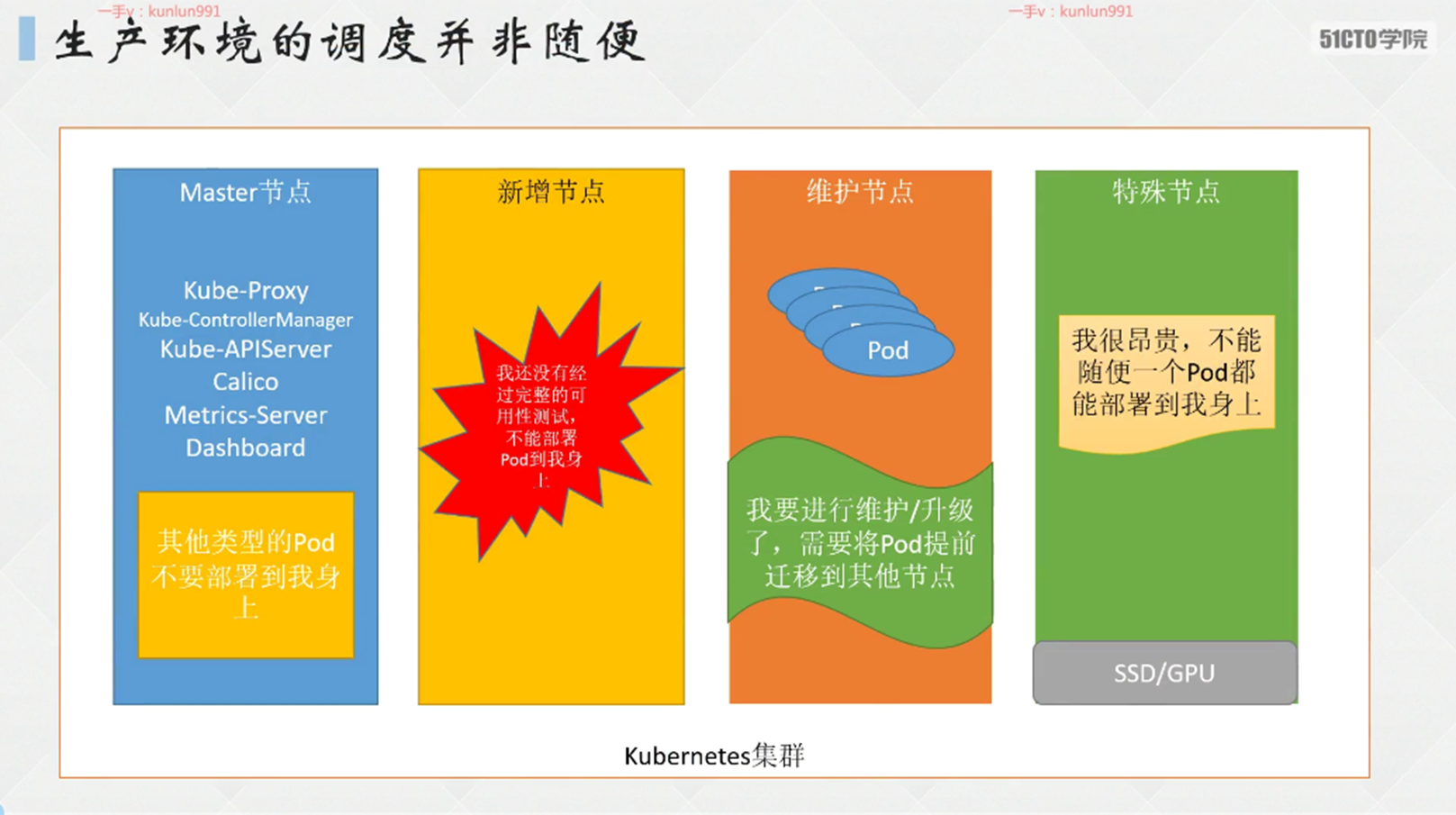

Taint与Toleration污点和容忍是一种设计理念，Taint在K8s集群上任意节点打上污点，让不能容忍这个污点的Pod不能部署在打了污点的K8s集群节点上。Toleration是让Pod容忍节点能部署到具有污点的K8s集群节点上，可以让一些需要特殊配置的Pod能够部署到具有污点的K8s集群节点。
一、Taint参数说明（节点配置）
创建一个污点（一个节点可以创建多个污点）
语法： kubectl taint nodes NODE_NAME TAINT_KEY=TAINT_VALUE:EFFECT （TAINT_KEY自定义名称，TAINT_VALUE自定义值，EFFECT是指定的三种污点类型NoSchedule、NoExecute、PreferNoSchedule）
kubectl taint k8s-master01 ssd=true:PreferNoSchedule
kubectl taint k8s-master01 k8s-master02 k8s-master03 ssd=true:PreferNoSchedule
### Taint参数说明
NoSchedule # 禁止调度到该节点，已经在该节点上的Pod不受影响
NoExecute # 禁止调度到该节点，已经部署在该节点上的Pod，如果不符合这个污点，Pod立刻会被该节点驱逐出去或过一段时间以后再被驱逐出去
PreferNoSchedule # 尽量避免将Pod调度到指定的节点上，如果没有更合适的节点，可以部署到该节点
二、Toleration参数说明（Pod配置）
1、方式一：完全匹配
tolerations:
- key: "TAINT_KEY"
operator: "Equal"
value: "TAINT_VALUE"
effect: "NoSchedule"
2、方式二：不完全匹配
tolerations:
- key: "TAINT_KEY"
operator: "Exists"
effect: "NoSchedule"
# 或者
tolerations:
- key: "TAINT_KEY"
operator: "Equal"
value: "TAINT_VALUE"
3、方式三：大范围匹配（不推荐key配置成K8s集群的内置Taint污点）
tolerations:
- key: "TAINT_KEY"
operator: "Exists"
# 或者
tolerations:
- effect: "NoSchedule"
operator: "Exists"
4、方式四：匹配所有（不推荐）
tolerations:
- operator: "Exists"
5、方式五：Toleration配置了NoExectue类型并且设置了tolerationSeconds参数代表Pod在规定时间内自动退出具有该污点的节点
应用场景一：k8s集群如果某节点出现故障，Pod默认是300秒后退出该节点，可以利用tolerationSeconds参数让Pod快速退出故障节点
应用场景二：k8s集群如果出现网络抖动比较严重，可以延长容忍时长，默认300秒
tolerations:
- key: "TAINT_KEY"
operator: "Equal"
value: "TAINT_VALUE"
effect: "NoExectue"
tolerationSeconds: 3600
三、Taint 常用命令
### 创建Taint污点，ssd=true自定义
kubectl taint nodes k8s-node01 ssd=true:NoExecute
### 查看节点Taint污点
kubectl describe node k8s-node01 | grep -A 3 Taints
kubectl get nodes -o=custom-columns=NAME:.metadata.name,TAINTS:.spec.taints
### 基于key删除节点污点
kubectl taint nodes k8s-node01 ssd-
### 基于key + Effect删除节点污点
kubectl taint nodes k8s-node01 ssd:NoExecute-
### 基于key + value + Effect删除节点污点
kubectl taint nodes k8s-node01 ssd=true:NoExecute-
### 修改节点污点（只能修改value值）
kubectl taint nodes k8s-node01 ssd=false:NoExecute --overwrite
四、Taint与Toleration案例
1、节点设置Taint污点NoSchedule类型（已部署在该节点上的Pod不会被驱逐)
### 查看k8s-node01节点已运行的Pod
kubectl get pods -A -owide | grep k8s-node01
### 在k8s-node01节点打上一个类型NoSchedule的污点
kubectl taint nodes k8s-node01 system=node:NoSchedule
### 查看k8s-node01和k8s-node02节点污点
kubectl describe node k8s-node01 k8s-node02 | grep -A 3 Taints
kubectl get nodes -o=custom-columns=NAME:.metadata.name,TAINTS:.spec.taints
### 过300秒后再查看k8s-node01节点已运行的Pod是否会被驱逐，NoSchedule参数默认不驱逐已部署在该节点的Pod
kubectl get pods -A -owide | grep k8s-node01
### 创建Deployment（设置toleration容忍完全匹配taint污点健值对）
mkdir -p /data/yaml/taint
cat > /data/yaml/taint/nginx-deploy-noschedule.yaml << 'EOF'
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: nginx-deploy
name: nginx-deploy
namespace: default
spec:
replicas: 6
selector:
matchLabels:
app: nginx-pod
template:
metadata:
labels:
app: nginx-pod
spec:
containers:
- image: registry.cn-shenzhen.aliyuncs.com/dockerghost/nginx:1.26
name: nginx
tolerations:
- key: "system"
operator: "Equal"
value: "node"
effect: "NoSchedule"
EOF
kubectl create -f /data/yaml/taint/nginx-deploy-noschedule.yaml
### 查看此时Pod节点可以部署到k8s-node01节点上
kubectl get pods -n default -owide
### 删除污点
kubectl taint nodes k8s-node01 system=node:NoSchedule-
kubectl get nodes -o=custom-columns=NAME:.metadata.name,TAINTS:.spec.taints
2、节点设置Taint污点NoExecute类型（此时会驱逐没有容忍该污点的Pod)
提示：如果calico-node没有被驱逐出去，说明calico-node的Pod设置了tolerations容忍了类型NoExecute的污点，可以通过kubectl get pods calico-node-rzj4b -n kube-system -oyaml | egrep "effect|operator"查看calico-node容器是否设置了tolerations参数容忍
### 查看k8s-node02节点已运行的Pod
kubectl get pods -A -owide | grep k8s-node02
### 在 k8s-node02节点打上一个类型的NoExecute污点
kubectl taint nodes k8s-node02 disk=ssd:NoExecute
### 查看k8s-node02节点污点
kubectl describe node k8s-node02 | grep -A 3 Taints
kubectl get nodes -o=custom-columns=NAME:.metadata.name,TAINTS:.spec.taints
### 过300秒后再查看 k8s-node02节点已运行的Pod是否被驱逐出去
kubectl get pods -A -owide | grep k8s-node02
### 创建Deployment（设置toleration容忍匹配所有taint污点NoExecute类型）
mkdir -p /data/yaml/taint
cat > /data/yaml/taint/nginx-deploy-noexecute.yaml << 'EOF'
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: nginx-deploy
name: nginx-deploy
namespace: default
spec:
replicas: 6
selector:
matchLabels:
app: nginx-pod
template:
metadata:
labels:
app: nginx-pod
spec:
containers:
- image: registry.cn-shenzhen.aliyuncs.com/dockerghost/nginx:1.26
name: nginx
tolerations:
- effect: "NoExecute"
operator: "Exists"
EOF
kubectl create -f /data/yaml/taint/nginx-deploy-noexecute.yaml
### 查看此时Pod节点可以部署到k8s-node02节点上
kubectl get pods -n default -owide
### 删除节点污点
kubectl taint nodes k8s-node02 disk=ssd:NoExecute-
kubectl get nodes -o=custom-columns=NAME:.metadata.name,TAINTS:.spec.taints
3、节点设置Taint污点NoSchedule类型并打标，Pod同时设置nodeSelector参数与tolerations参数
注意：如果Pod同时配置nodeSelector和tolerations参数，nodeSelector参数优先级大于tolerations参数；如果tolerations容忍完全不匹配taint污点健值对，但又设置了nodeSelector参数，此时Pod会因参数冲突导致Pod无法部署在nodeSelector参数指定的节点上
### 在k8s-node01和k8s-node02节点打上一个类型NoSchedule污点
kubectl taint nodes k8s-node01 k8s-node02 ssd=true:NoSchedule
### 查看k8s-node01和k8s-node02节点污点
kubectl describe node k8s-node01 k8s-node02 | grep -A 3 Taints
kubectl get nodes -o=custom-columns=NAME:.metadata.name,TAINTS:.spec.taints
### 在k8s-node01、k8s-node02、k8s-node03节点打上一个标签（disktype=ssd自定义）
kubectl label node k8s-node01 k8s-node02 k8s-node03 disktype=ssd
### 查看k8s集群节点标签
kubectl get nodes --show-labels | grep disktype=ssd
kubectl get nodes --show-labels -l disktype=ssd
### 创建Deployment（Pod配置nodeSelector参数和tolerations参数，使tolerations容忍完全匹配taint污点健值对）
mkdir -p /data/yaml/taint
cat > /data/yaml/taint/nginx-deploy-podnoschedule.yaml << 'EOF'
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: nginx-deploy
name: nginx-deploy
spec:
replicas: 6
selector:
matchLabels:
app: nginx-pod
template:
metadata:
labels:
app: nginx-pod
spec:
containers:
- image: registry.cn-shenzhen.aliyuncs.com/dockerghost/nginx:1.26
name: nginx
nodeSelector:
disktype: "ssd"
tolerations:
- key: "ssd"
operator: "Equal"
value: "true"
effect: "NoSchedule"
EOF
kubectl create -f /data/yaml/taint/nginx-deploy-podnoschedule.yaml
### 查看此时Pod节点可以部署到k8s-node01 k8s-node02、k8s-node03节点上
kubectl get pods -n default -owide
### 删除节点污点
kubectl taint nodes k8s-node01 k8s-node02 ssd=true:NoSchedule-
kubectl get nodes -o=custom-columns=NAME:.metadata.name,TAINTS:.spec.taints
### 删除节点标签
kubectl label nodes k8s-node01 k8s-node02 k8s-node03 disktype-
kubectl get nodes --show-labels -l disktype=ssd
4、节点设置NoExecute污点并打标，Pod同时设置nodeSelector参数与tolerations参数
注意：如果Pod同时配置nodeSelector和tolerations参数，nodeSelector参数优先级大于tolerations参数；如果tolerations容忍完全不匹配taint污点健值对，但又设置了nodeSelector参数，此时Pod会因参数冲突导致Pod无法部署在nodeSelector参数指定的节点上
### 在k8s-node01和k8s-node02节点打上一个类型NoExecute污点
kubectl taint nodes k8s-node01 k8s-node02 ssd=true:NoExecute
### 查看k8s-node01和k8s-node02节点污点
kubectl describe node k8s-node01 k8s-node02 | grep -A 3 Taints
kubectl get nodes -o=custom-columns=NAME:.metadata.name,TAINTS:.spec.taints
### 在k8s-node01、k8s-node02、k8s-node03节点打上一个标签（disktype=ssd自定义）
kubectl label node k8s-node01 k8s-node02 k8s-node03 disktype=ssd
### 查看k8s集群节点标签
kubectl get nodes --show-labels | grep disktype=ssd
kubectl get nodes --show-labels -l disktype=ssd
### 创建Deployment的yaml文件，配置nodeSelector参数和tolerations参数
cat > /data/yaml/nginx-deploy.yaml << 'EOF'
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: nginx-deploy
name: nginx-deploy
spec:
replicas: 6
selector:
matchLabels:
app: nginx-deploy
template:
metadata:
labels:
app: nginx-deploy
spec:
containers:
- image: registry.cn-shenzhen.aliyuncs.com/dockerghost/nginx:1.26
name: nginx
nodeSelector:
disktype: "ssd"
tolerations:
- key: "ssd"
operator: "Equal"
value: "true"
effect: "NoExecute"
EOF
### 创建Deployment（Pod配置nodeSelector参数和tolerations参数，使tolerations容忍完全匹配taint污点健值对）
mkdir -p /data/yaml/taint
cat > /data/yaml/taint/nginx-deploy-podnoexecute.yaml << 'EOF'
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: nginx-deploy
name: nginx-deploy
spec:
replicas: 6
selector:
matchLabels:
app: nginx-pod
template:
metadata:
labels:
app: nginx-pod
spec:
containers:
- image: registry.cn-shenzhen.aliyuncs.com/dockerghost/nginx:1.26
name: nginx
nodeSelector:
disktype: "ssd"
tolerations:
- key: "ssd"
operator: "Equal"
value: "true"
effect: "NoExecute"
EOF
kubectl create -f /data/yaml/taint/nginx-deploy-podnoexecute.yaml
### 查看此时Pod节点可以部署到k8s-node01 k8s-node02、k8s-node03节点上
kubectl get pods -n default -owide
### 删除节点污点
kubectl taint nodes k8s-node01 k8s-node02 ssd=true:NoSchedule-
kubectl get nodes -o=custom-columns=NAME:.metadata.name,TAINTS:.spec.taints
### 删除节点标签
kubectl label nodes k8s-node01 k8s-node02 k8s-node03 disktype-
kubectl get nodes --show-labels -l disktype=ssd
五、K8s集群内置Taint和Pod默认Ttoleration策略
1、k8s集群内置Taint污点
node.kubernetes.io/not-ready # 节点未准备好，相当于节点状态Ready的值为False
node.kubernetes.io/unreachable # Node Controller访问不到节点，相当于节点状态Ready值变为Unknown值
node.kubernetes.io/out-of-disk # 节点磁盘耗尽
node.kubernetes.io/memory-pressure # 节点存在内存压力
node.kubernetes.io/disk-pressure # 节点存在薇盘压力
node.kubernetes.io/network-unavailable # 节点网终不可达
node.kubernetes.io/unschedulable # 节点不可调度
node.cloudprovider.kubernetes.io/uninitialized # 如果Kubelet启动时指定了一个外部的cloudprovider，它将给当前节点添加一个Taint将其标记为不可用。在coud-controller-manager的一个controller初始化这个节点后，Kubelet将删除这个Taint
2、创建Pod默认的Ttoleration容忍策略
### 创建Deployment
kubectl create deploy nginx-deploy --image=registry.cn-shenzhen.aliyuncs.com/dockerghost/nginx:1.26 -n default
### 查看Deployment和Pod
kubectl get deploy -n default
kubectl get pods -n default
### 查看Pod默认的Toleration容忍策略
kubectl get pods nginx-deploy-6988f8548f-swkfv -n default -oyaml
..............................
tolerations:
- effect: NoExecute
key: node.kubernetes.io/not-ready # 节点未准备好，相当于节点状态Ready的值为False
operator: Exists
tolerationSeconds: 300 # 默认5分钟后强制驱逐已存在的Pod
- effect: NoExecute
key: node.kubernetes.io/unreachable # Node Controller访问不到节点，相当于节点状态Ready值变为Unknown值
operator: Exists
tolerationSeconds: 300 # 默认5分钟后强制驱逐已存在的Pod
..............................
六、模拟K8s集群节点宕机快速迁移Pod
### 节点宕机由状态Ready值变为Unknown（False）值中间是由kube-controller-manager服务--node-monitor-grace-period参数设置检查时长
[root@k8s-master01 ~]# cat /usr/lib/systemd/system/kube-controller-manager.service | grep "node-monitor-grace-period"
--node-monitor-grace-period=40s \
### 在k8s-node01和k8s-node02节点打上一个类型NoExecute污点和一个标签
kubectl taint nodes k8s-node01 k8s-node02 ssd=true:NoExecute
kubectl label nodes k8s-node01 k8s-node02 disktype=ssd
### 查看k8s-node01和k8s-node02节点污点和标签
kubectl get nodes -o=custom-columns=NAME:.metadata.name,TAINTS:.spec.taints
kubectl get nodes --show-labels -l disktype=ssd
### 创建Deployment（Nginx容器配置当k8s-node02节点宕机toleration容忍10秒后自动迁移到别的节点）
mkdir -p /data/yaml/taint
cat > /data/yaml/taint/nginx-deploy.yaml << 'EOF'
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: nginx-deploy
name: nginx-deploy
spec:
replicas: 1
selector:
matchLabels:
app: nginx-pod
template:
metadata:
labels:
app: nginx-pod
spec:
containers:
- image: registry.cn-shenzhen.aliyuncs.com/dockerghost/nginx:1.26
name: nginx
nodeSelector:
disktype: "ssd"
tolerations:
- key: "ssd"
operator: "Equal"
value: "true"
effect: "NoExecute"
- effect: NoExecute
key: node.kubernetes.io/not-ready
operator: Exists
tolerationSeconds: 10
- effect: NoExecute
key: node.kubernetes.io/unreachable
operator: Exists
tolerationSeconds: 10
EOF
kubectl create -f /data/yaml/taint/nginx-deploy.yaml
kubectl get pods -owide -n default
### 创建Deployment（redis容器配置toleration容忍，但使用内置的容忍时间，默认300秒）
cat > /data/yaml/taint/redis-deploy.yaml << 'EOF'
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: redis-deploy
name: redis-deploy
spec:
replicas: 1
selector:
matchLabels:
app: redis-pod
template:
metadata:
labels:
app: redis-pod
spec:
containers:
- image: registry.cn-shenzhen.aliyuncs.com/dockerghost/redis:latest
name: redis
nodeSelector:
disktype: "ssd"
tolerations:
- key: "ssd"
operator: "Equal"
value: "true"
effect: "NoExecute"
EOF
kubectl create -f /data/yaml/taint/redis-deploy.yaml
kubectl get pods -owide -n default
### 此时nginx容器和redis容器正好都部署在k8s-node02节点上
[root@k8s-master01 ~]# kubectl get pods -owide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
nginx-deploy-67745bdcf8-jfsst 1/1 Running 0 2m31s 172.30.58.244 k8s-node02 <none> <none>
redis-deploy-6d549cd6bd-xdb5x 1/1 Running 0 50s 172.30.58.245 k8s-node02 <none> <none>
### 登录k8s-node02节点关机模拟异常宕机
init 0
### 登录master管理节点查看节点状态，此时k8s-node02节点状态变成了NotReady
[root@k8s-master01 ~]# kubectl get nodes
NAME STATUS ROLES AGE VERSION
k8s-master01 Ready <none> 14d v1.28.15
k8s-master02 Ready <none> 14d v1.28.15
k8s-master03 Ready <none> 14d v1.28.15
k8s-node01 Ready <none> 14d v1.28.15
k8s-node02 NotReady <none> 14d v1.28.15
### 登录master管理节点查看Pod状态，因为redis容器比nginx容器容忍时长，所以nginx容器迁移到k8s-node02节点，而redis容器还在等待容忍时长
[root@k8s-master01 ~]# kubectl get pods -owide -n default
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
nginx-deploy-67745bdcf8-jfsst 1/1 Terminating 0 4m20s 172.30.58.244 k8s-node02 <none> <none>
nginx-deploy-67745bdcf8-np7hl 1/1 Running 0 19s 172.30.85.203 k8s-node01 <none> <none>
redis-deploy-6d549cd6bd-xdb5x 1/1 Running 0 2m39s 172.30.58.245 k8s-node02 <none> <none>
### 删除节点污点
kubectl taint nodes k8s-node01 k8s-node02 ssd=true:NoExecute-
kubectl get nodes -o=custom-columns=NAME:.metadata.name,TAINTS:.spec.taints
### 删除节点标签
kubectl label nodes k8s-node01 k8s-node02 disktype-
kubectl get nodes --show-labels -l disktype=ssd
有“AI”的1024 = 2048，欢迎大家加入2048 AI社区
更多推荐
27
0- 0
已为社区贡献2条内容
所有评论(0)
