一、决策树

GiNi系数和熵的纯度的评价标准，基尼指数是信息熵中﹣logP 在P = 1处一阶泰勒展开后的结果。所以两者都可以用来度量数据集的纯度，用于描述决策树节点的纯度
相关增益越大，分类越好，但对于多叉树，如果不限制分裂多少支，一次分裂就可以将信息熵降为0
因此需要平衡分裂情况与信息增益，信息增益率：信息增益 除以 类别 本身的熵作为惩罚措施

二、相关代码

import pandas as pd
import numpy as np
from sklearn.datasets import load_iris
from sklearn.tree import DecisionTreeClassifier
from sklearn.tree import export_graphviz
from sklearn.tree import DecisionTreeRegressor
from sklearn.model_selection import train_test_split
from sklearn.metrics import accuracy_score
import matplotlib.pyplot as plt
import matplotlib as mpl

iris = load_iris()
data = pd.DataFrame(iris.data)
data.columns = iris.feature_names
data['Species'] = load_iris().target
print(data)

x = data.iloc[:, 2:4]  # 花瓣长度和宽度
y = data.iloc[:, -1]

x_train, x_test, y_train, y_test = train_test_split(x, y, train_size=0.75, random_state=42)    # 分割训练集和测试集

tree_clf = DecisionTreeClassifier(max_depth=8, criterion='gini')      # 决策树的训练
tree_clf.fit(x_train, y_train)
y_test_hat = tree_clf.predict(x_test)
print("acc score:", accuracy_score(y_test, y_test_hat))

print(tree_clf.feature_importances_)

export_graphviz(
    tree_clf,
    out_file="./iris_tree.dot",
    feature_names=iris.feature_names[2:4],
    class_names=iris.target_names,
    rounded=True,
    filled=True
)
print(tree_clf.predict_proba([[5, 1.5]]))
print(tree_clf.predict([[5, 1.5]]))

depth = np.arange(1, 15)
err_list = []
for d in depth:      #  不同深度树的容错率
    print(d)
    clf = DecisionTreeClassifier(criterion='gini', max_depth=d)
    clf.fit(x_train, y_train)
    y_test_hat = clf.predict(x_test)
    result = (y_test_hat == y_test)
    if d == 1:
        print(result)
    err = 1 - np.mean(result)
    print(100 * err)
    err_list.append(err)
    print(d, ' 错误率：%.2f%%' % (100 * err))

mpl.rcParams['font.sans-serif'] = ['SimHei']
plt.figure(facecolor='w')
plt.plot(depth, err_list, 'ro-', lw=2)
plt.xlabel('决策树深度', fontsize=15)
plt.ylabel('错误率', fontsize=15)
plt.title('决策树深度和过拟合', fontsize=18)
plt.grid(True)
plt.show()

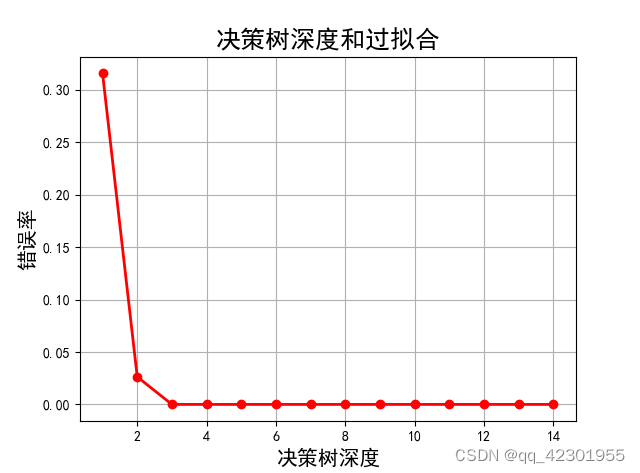

为了得到最合适的深度，不同深度的错误率统计：

三、Graphviz生成决策树

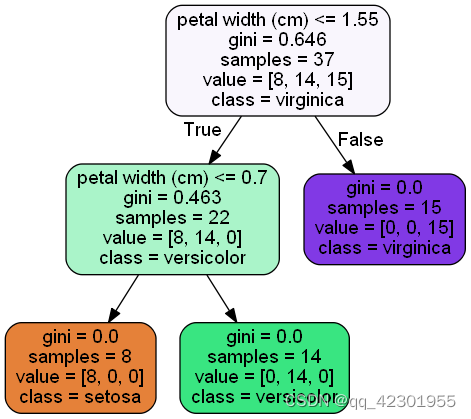

调用命令，借助dot文件生成如下图决策树：
./dot -Tpng ~/PycharmProjects/mlstudy/bjsxt/iris_tree.dot -o ~/PycharmProjects/mlstudy/bjsxt/iris_tree.png
