check_blister_mixed.hdev

说明：

这个案例很有意思，既运用了Blob分析定位+决策判断，也运用了高斯混合模型进行训练分类；把这个案例反复读几遍，抠细节，体会整个解题思路；

* This example demonstrates an application from the pharmaceutical
* industry. The task is to check the content of manually filled
* blisters. The first image (reference) shows the combination, that
* is requested. The subsequent images are then checked for this
* setup drawn from the reference image. To perform this task we use
* the gmm classifier, which will be trained with the reference image
* in the beginning and is then used to classify the different pill
* types in subsequent blister images.
*
dev_close_window ()
read_image (Image, 'blister/blister_mixed_reference')
dev_open_window_fit_image (Image, 0, 0, -1, -1, WindowHandle)
set_display_font (WindowHandle, 14, 'mono', 'true', 'false')
dev_update_off ()
dev_display (Image)
dev_set_draw ('margin')
*
* First, we extract the content of the blister and pass
* this information on to the gmm classifier
disp_message (WindowHandle, 'Train gmm classifier on pill types', 'window', -1, -1, 'black', 'true')
*这是一个特征提取的函数，halcon自带的，里面的思路比较简单，分别提取几个药片的主要特征，提供给gmm
*学习，三种主要特征，三个类，以及后面用于仿射变换的参数
extract_pill_types (Image, Chambers, ChambersUnion, Classes, PhiRef, RowRef, ColumnRef, PillTypeCount)
NumClasses := |PillTypeCount|
*创建一个高斯混合模型
create_class_gmm (3, 3, [1,5], 'spherical', 'normalization', 10, 42, GMMHandle)
*把图片和对应的特征放到模型中
add_samples_image_class_gmm (Image, Classes, GMMHandle, 0)
*训练这个模型
train_class_gmm (GMMHandle, 100, 0.001, 'training', 0.0001, Centers, Iter)
*
*
* Then, the subsequent blisters are tested for their right combination
Count := 12
for FileIndex := 1 to Count by 1
    *
    * Align image read
    read_image (Image, 'blister/blister_mixed_' + FileIndex$'02')
    threshold (Image, Region, 90, 255)
    connection (Region, ConnectedRegions)
    select_shape (ConnectedRegions, SelectedRegions, 'area', 'and', 5000, 9999999)
    shape_trans (SelectedRegions, RegionTrans, 'convex')
    orientation_region (RegionTrans, Phi)
    if (abs(Phi) > rad(90))
        Phi := rad(180) + Phi
    endif
    area_center (RegionTrans, Area1, Row, Column)
    vector_angle_to_rigid (Row, Column, Phi, RowRef, ColumnRef, PhiRef, HomMat2D)
    affine_trans_image (Image, ImageAffinTrans, HomMat2D, 'constant', 'false')
    *上面都是在对一张新图进行Blob分析+定位
    *下面这句表示要抠出分类的区域
    reduce_domain (ImageAffinTrans, ChambersUnion, ImageReduced)
    decompose3 (ImageAffinTrans, ImageR, ImageG, ImageB)
    *
    * Classify pill type for each chamber
    *用训练好的模型对区域进行分类
    classify_image_class_gmm (ImageReduced, ClassRegions, GMMHandle, 0.005)
    *
    count_obj (ClassRegions, Number)
    gen_empty_obj (FinalClasses)
    connection (Chambers, ChambersRemaining)
    for Index := Number to 1 by -1
        dev_clear_window ()
        *从分类的结果中选出一个指定类
        select_obj (ClassRegions, Region, Index)
        *与抠出来的总区域做交集--确保得到的是药品区域
        intersection (ChambersRemaining, Region, Region)
        *根据面积和宽度筛选掉一部分--这时候太长和太短以及面积太小和太大的均筛选掉了
        select_shape (Region, PillsOfOneType, ['area','width'], 'and', [200,40], [3000,68])
        *用整个大区域减去特征区域
        difference (ChambersUnion, PillsOfOneType, RegionDifference)
        *打散
        connection (RegionDifference, ConnectedRegions)
        *根据面积选出已经推断的区域
        select_shape (ConnectedRegions, SelectedRegions, 'area', 'and', 0, 7868)
        *凸性转换（这里相当于填充）
        shape_trans (SelectedRegions, SelectedRegions, 'convex')
        *某个类别的所有药品联合起来
        union1 (SelectedRegions, SelectedRegions)
        *差分得到还没有推断的区域
        difference (ChambersRemaining, SelectedRegions, ChambersRemaining)
        *推断的结果开始叠加起来
        concat_obj (SelectedRegions, FinalClasses, FinalClasses)
    endfor
    *
    *

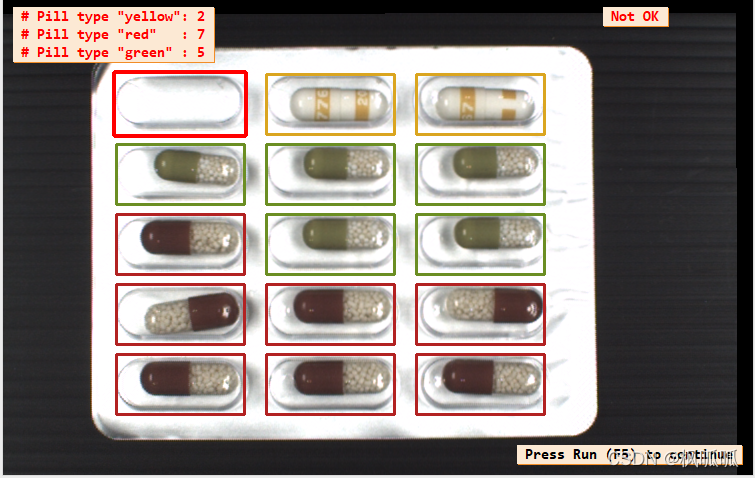

    * Check for right combination
    gen_empty_obj (MissingPills)
    gen_empty_obj (WrongPills)
    gen_empty_obj (WrongNumberOfPills)
    *差分要推断的区域和最终的结果区域，如果有多的说明是错误的或缺少的
    difference (ChambersUnion, FinalClasses, LeftOvers)
    area_center (LeftOvers, Area, Row1, Column1)
    if (Area > 0)
        connection (LeftOvers, LeftOvers)
        count_obj (LeftOvers, Number)
        for Index := 1 to Number by 1
            select_obj (LeftOvers, ObjectSelected, Index)
            *计算图片中某个区域的均值和方差
            intensity (ObjectSelected, ImageB, Mean, Deviation)
            if (Deviation > 40)
                concat_obj (WrongPills, ObjectSelected, WrongPills)
            else
                concat_obj (MissingPills, ObjectSelected, MissingPills)
            endif
        endfor
    endif
    *
    * Compute histogram
    CountFinalClass := []
    for Index := 1 to NumClasses by 1
        select_obj (FinalClasses, ObjectSelected, Index)
        connection (ObjectSelected, ObjectSelected)
        count_obj (ObjectSelected, Size)
        CountFinalClass := [CountFinalClass,Size]
    endfor
    *

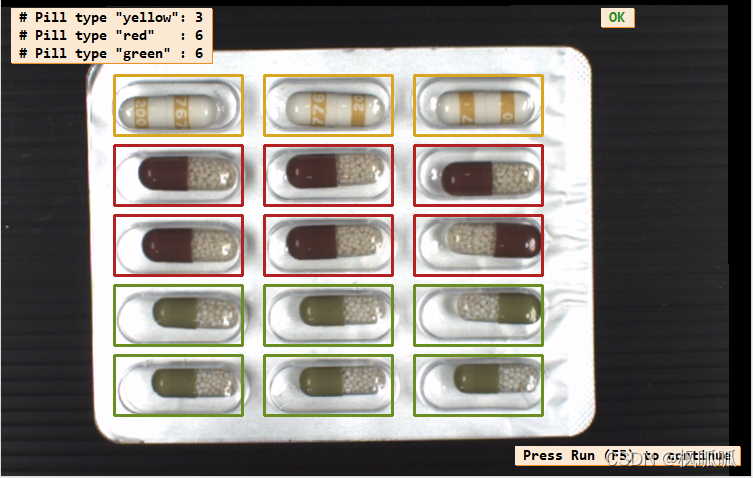

    * Display classification results and output allover statistic
    display_results (ImageAffinTrans, LeftOvers, FinalClasses, WrongPills, CountFinalClass, PillTypeCount, WindowHandle)
    if (FileIndex < Count)
        disp_continue_message (WindowHandle, 'black', 'true')
    endif
    stop ()
endfor
*
*
* Clear classifier handle
clear_class_gmm (GMMHandle)
