1、聚合的分类

聚合（aggregations）可以实现对文档数据的统计、分析、运算。（类比MySQL的聚合函数）ES聚合常见的有三类：

• 桶（Bucket）聚合：用来对文档做分组

常用：
TermAggregation：按照文档字段值分组
Date Histogram：按照日期阶梯分组，例如一周为一组，或者一月为一组

• 度量（Metric）聚合：用以计算一些值，比如：最大值、最小值、平均值等

常用：
Avg：求平均值
Max：求最大值
Min：求最小值
Stats：同时求max、min、avg、sum等

• 管道（pipeline）聚合：基于其它聚合的结果为基础做聚合

根据这些分类的介绍，可以得出，参与聚合的字段类型必须是：

keyword
数值
日期
布尔

2、DSL实现bucket聚合

DSL写bucket聚合，主要有三要素：

• 聚合名称
• 聚合类型
• 聚合字段

语法

统计所有数据中的酒店品牌有几种，此时可以根据酒店品牌的名称做聚合

GET /hotel/_search
{
  "size": 0,  // 设置size为0，结果中不包含文档，只包含聚合结果
  "aggs": { // 定义聚合
    "brandAgg": { //给聚合起个名字
      "terms": { // 聚合的类型，按照品牌值聚合，所以选择term
        "field": "brand", // 参与聚合的字段
        "size": 20 // 希望获取的聚合结果数量
      }
    }
  }
}

Bucket聚合-聚合结果排序

默认情况下，Bucket聚合会统计Bucket内的文档数量，记为_count，并且按照_count降序排序。想修改排序方式就加order字段：

GET /hotel/_search
{
  "size": 0,
  "aggs": {
    "brandAgg": {
      "terms": {
        "field": "brand",
        "order": {
          "_count": "asc" // 按照_count升序排列
        },
        "size": 20
      }
    }
  }
}

Bucket聚合-限定聚合范围

默认情况下，Bucket聚合是对索引库的所有文档做聚合，想修改这个范围可以加query条件，query与aggs同级：

GET /hotel/_search
{
  "query": {
    "range": {
      "price": {
        "lte": 200 // 只对200元以下的文档聚合
      }
    }
  },
  "size": 0,
  "aggs": {
    "brandAgg": {
      "terms": {
        "field": "brand",
        "size": 20
      }
    }
  }
}

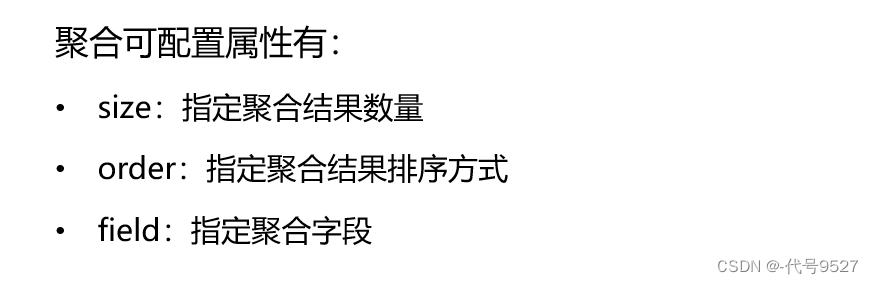

小结：

3、DSL实现Metrics 聚合

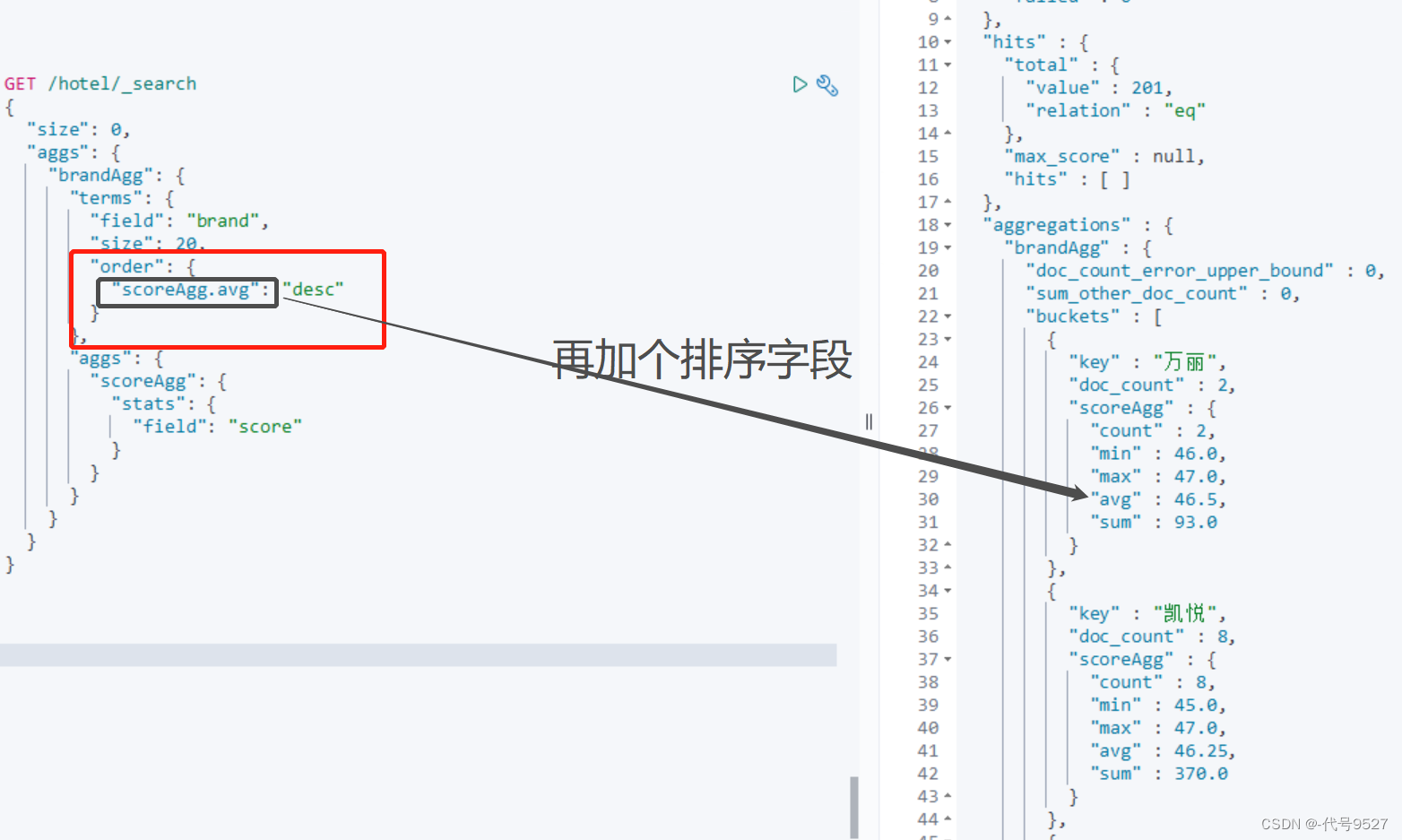

例：获取每个品牌的用户评分的min、max、avg等值.

首先确定用Metrics的stats聚合，其次是对每个品牌来求min、max，则要先按品牌bucket聚合：

GET /hotel/_search
{
  "size": 0,
  "aggs": {
    "brandAgg": {
      "terms": {
        "field": "brand",
        "size": 20
      },
      "aggs": { // 是上面brands聚合的子聚合，也就是分组后对每组分别计算，聚合的嵌套！
        "score_stats": { // 聚合名称
          "stats": { // 聚合类型，这里stats可以计算min、max、avg等
            "field": "score" // 聚合字段，这里是score
          }
        }
      }
    }
  }
}

4、RestClient实现聚合

对比DSL语句，看JavaRestClient发送聚合请求：

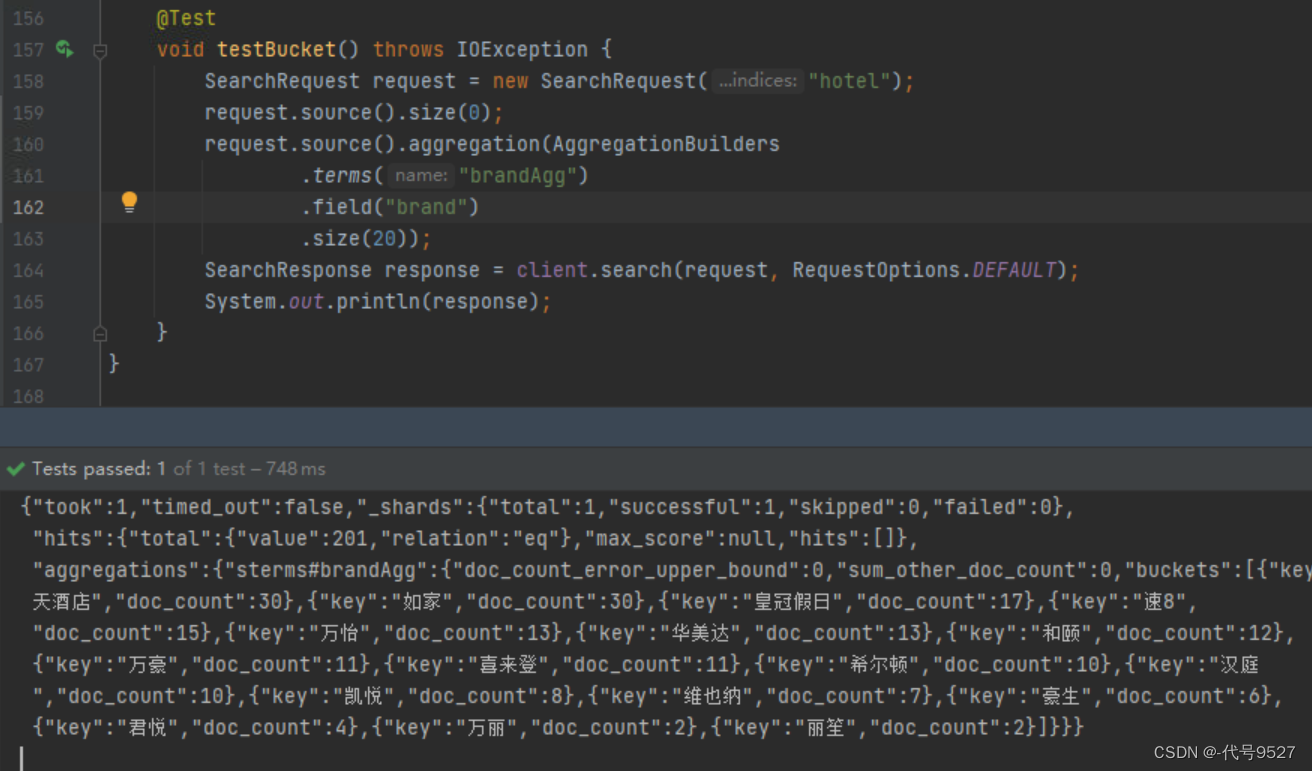

UT里试试：

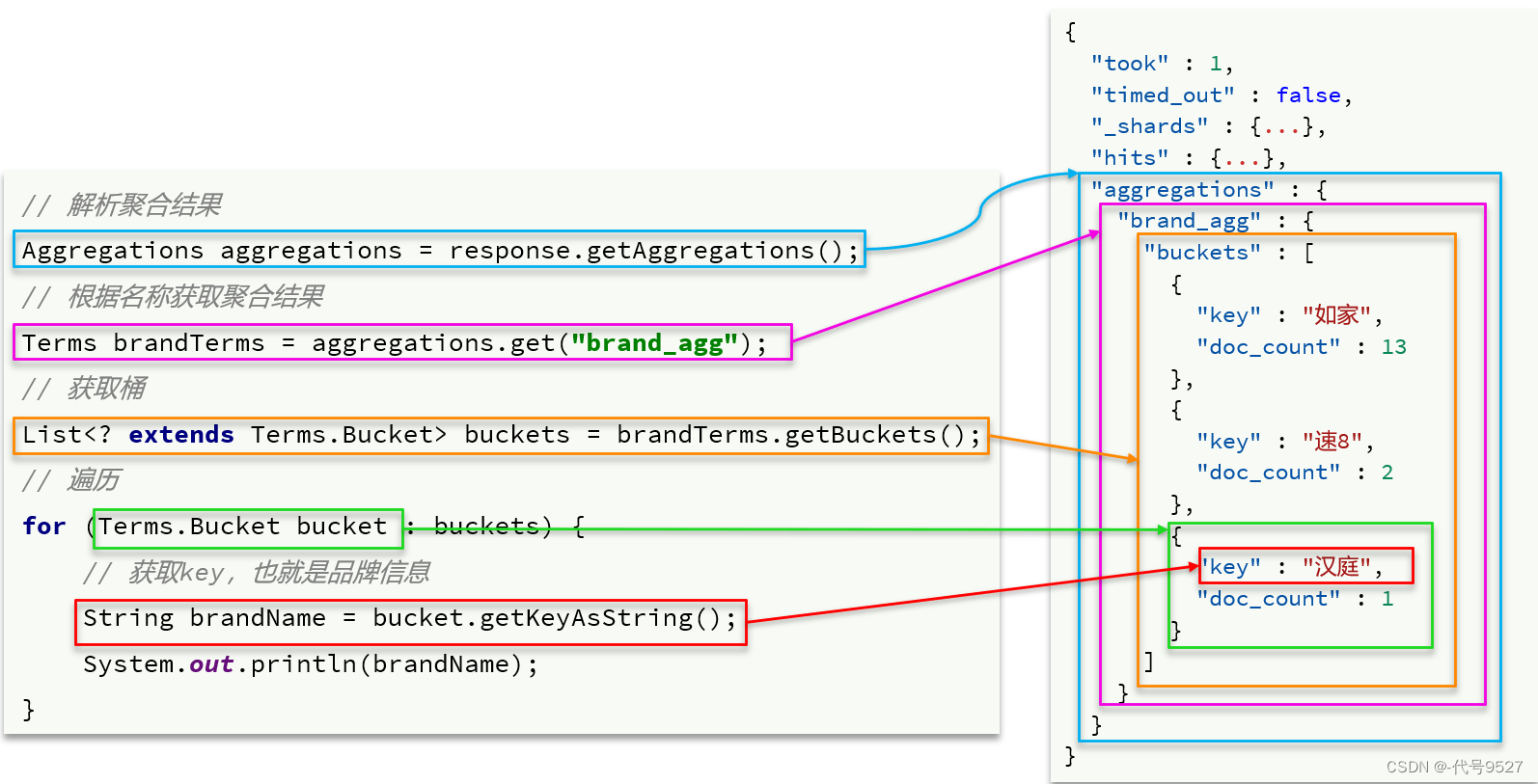

再进行响应结果处理：

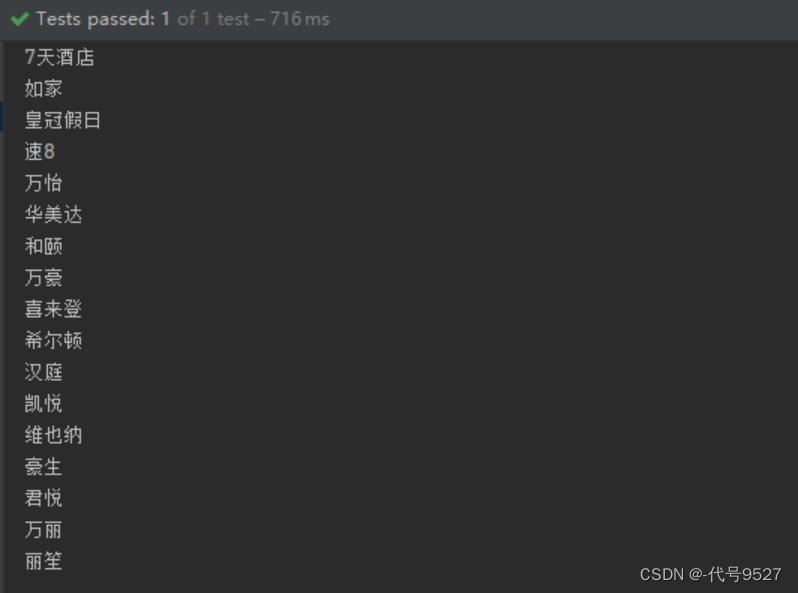

测试代码：

@Test
void testBucket() throws IOException {
    SearchRequest request = new SearchRequest("hotel");
    request.source().size(0);
    request.source().aggregation(AggregationBuilders
            .terms("brandAgg")
            .field("brand")
            .size(20));
    SearchResponse response = client.search(request, RequestOptions.DEFAULT);
    Aggregations aggregations = response.getAggregations();
    Terms brandTerms = aggregations.get("brandAgg");
    List<? extends Terms.Bucket> buckets = brandTerms.getBuckets();
    for (Terms.Bucket bucket : buckets) {
        String brandName = bucket.getKeyAsString();
        System.out.println(brandName);
    }

}

5、需求：返回过滤条件的信息

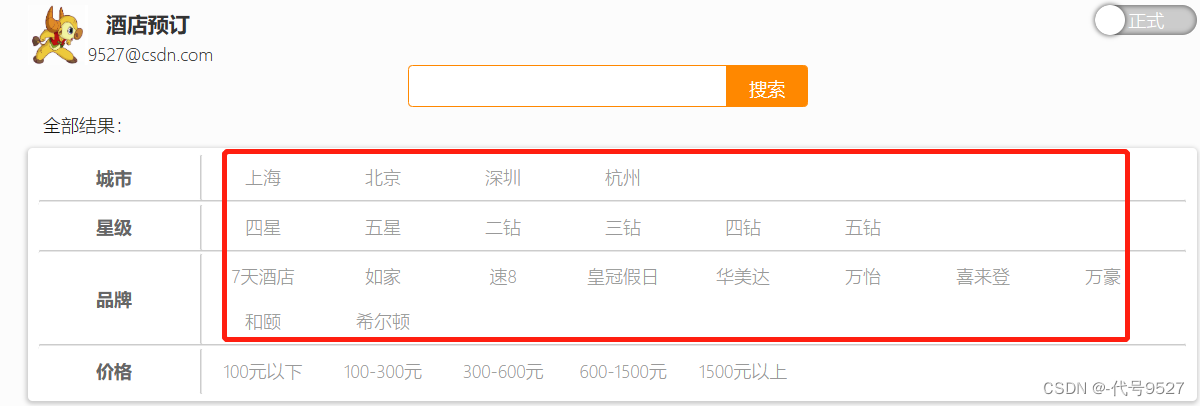

搜索页面的品牌、城市等信息不应该是在前端页面写死，而是通过聚合索引库中的酒店数据得来的：

看到这个格式，最先想到的数据格式应该是Map

/**
 * 查询城市、星级、品牌的聚合结果
 * * @return 聚合结果，格式：{"城市": ["上海", "北京"], "品牌": ["如家", "希尔顿"]}
*/
Map<String, List<String>> filters();

接下来开始写Service层实现：

public interface IHotelService extends IService<Hotel> {

    Map<String, List<String>> filters();

}

实现这个接口：

@Service
public class HotelService extends ServiceImpl<HotelMapper, Hotel> implements IHotelService {

    @Resource
    RestHighLevelClient client;

    @Override
    public Map<String, List<String>> filters() {
        try {
            SearchRequest request = new SearchRequest("hotel");
            //聚合
            buildAggregation(request);
            SearchResponse response = client.search(request,RequestOptions.DEFAULT);
            //获取总的聚合结果
            Aggregations aggregations = response.getAggregations();
            //获取品牌聚合信息
            List<String> brandFilterList = getAggByName(aggregations, "brandAgg");
            Map<String,List<String>> filterMap = new HashMap<>();
            filterMap.put("品牌",brandFilterList);
            //获取城市聚合信息
            List<String> cityFilterList = getAggByName(aggregations,"cityAgg");
            filterMap.put("城市",cityFilterList);
            //获取星级聚合信息
            List<String> startFilterList = getAggByName(aggregations,"starNameAgg");
            filterMap.put("星级",startFilterList);
            return filterMap;
        } catch (IOException e) {
            throw new RuntimeException();
        }
    }

    /**
     * 聚合DSL拼接
     * @param request
     */
    private void buildAggregation(SearchRequest request) {
        request.source().size(0);
        request.source().aggregation(AggregationBuilders
                .terms("brandAgg")
                .field("brand")
                .size(100)
        );
        request.source().aggregation(AggregationBuilders
                .terms("cityAgg")
                .field("city")
                .size(100)
        );
        request.source().aggregation(AggregationBuilders
                .terms("starNameAgg")
                .field("starName")
                .size(100)
        );
    }

    /**
     * 聚合结果解析
     * @param aggregations 聚合结果
     * @param name AggName
     * @return
     */
    private List<String> getAggByName(Aggregations aggregations,String name) {
        Terms brandTerms = aggregations.get(name);
        List<? extends Terms.Bucket> buckets = brandTerms.getBuckets();
        List<String> filterList = buckets.stream()
                .map(t -> {
                    String brandKey = t.getKeyAsString();
                    return brandKey;
                }).collect(Collectors.toList());
        return filterList;

    }
}

上面的client这个Bean，在启动类中进行处理：

@SpringBootApplication
public class HotelDemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(HotelDemoApplication.class, args);
    }

    @Bean
    public RestHighLevelClient client(){
        return new RestHighLevelClient(RestClient.builder(
                HttpHost.create("http://10.4.130.220:9200")
        ));
    }

}

单元测试看下效果：

@SpringBootTest
class HotelDemoApplicationTests {

    @Resource
    IHotelService hotelService;

    @Test
    void testFilter(){
        Map<String, List<String>> filters = hotelService.filters();
        System.out.println(filters);
    }

}

跑下单元测试：

6、带过滤条件的聚合

还是上面的需求，看下项目中前端页面的传参：

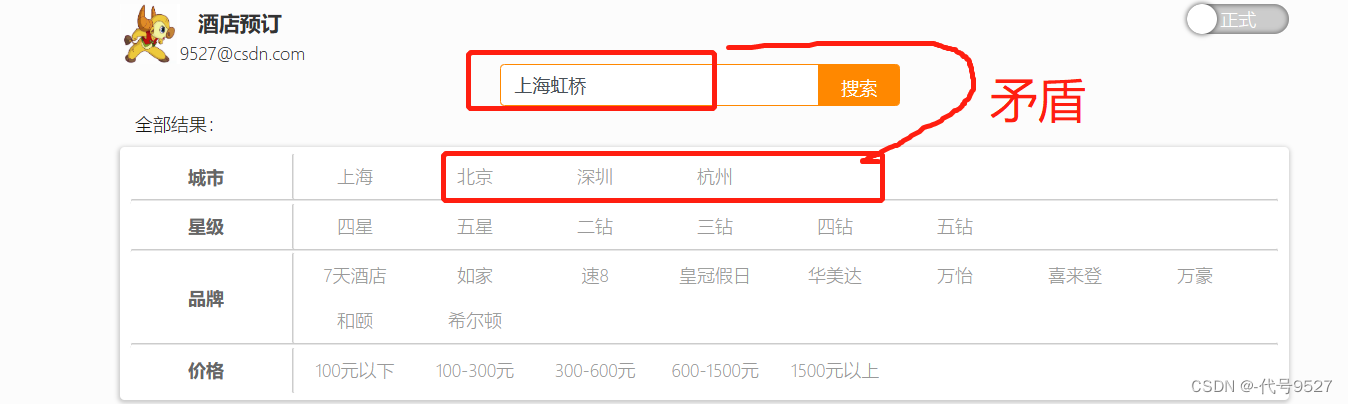

这里获取筛选信息的接口有传参，是因为，如果筛选项是对索引库全部数据进行聚合，就会出现这个场景;

即，我已经搜了上海虹桥了，但底下的城市过滤项还有其他城市，因此要对聚合加过滤条件。

• 接参dto类：

@Data
public class RequestParam {

    private String key;

    private Integer page;  //pageNum

    private Integer size;  //pageSize

    private String sortBy;

    private String brand;

    private String starName;

    private String city;

    private Integer minPrice;

    private Integer maxPrice;

    private String location;
}

• 定义接口

@RestController
@RequestMapping("/hotel")
public class HotelSearchController {

    @Resource
    IHotelService hotelService;

    @PostMapping("/filters")
    public Map<String, List<String>> getFiltersOption(@RequestBody RequestParam requestParam){
        return hotelService.filters(requestParam);
    }
}

• Service接口

public interface IHotelService extends IService<Hotel> {
    Map<String, List<String>> filters(RequestParam requestParam);
}

• 接口实现，新加形参和过滤条件，先过滤再聚合

@Service
public class HotelService extends ServiceImpl<HotelMapper, Hotel> implements IHotelService {

    @Resource
    RestHighLevelClient client;

	//过滤条件DSL构建
    private void buildBasicQuery(RequestParam requestParam, SearchRequest request) {
        //BoolQuery原始查询条件，原始算分
        BoolQueryBuilder booleanQuery = QueryBuilders.boolQuery();
        //关键字
        String key = requestParam.getKey();
        if (!isEmpty(key)) {
            booleanQuery.must(QueryBuilders.matchQuery("all", key));
        } else {
            booleanQuery.must(QueryBuilders.matchAllQuery());
        }
        //城市
        if (!isEmpty(requestParam.getCity())) {
            booleanQuery.filter(QueryBuilders.termQuery("city", requestParam.getCity()));
        }
        //品牌
        if (!isEmpty(requestParam.getBrand())) {
            booleanQuery.filter(QueryBuilders.termQuery("brand", requestParam.getBrand()));
        }
        //星级
        if (!isEmpty(requestParam.getStarName())) {
            booleanQuery.filter(QueryBuilders.termQuery("startName", requestParam.getStarName()));
        }
        //价格
        if (requestParam.getMaxPrice() != null && requestParam.getMinPrice() != null) {
            booleanQuery.filter(QueryBuilders.rangeQuery("price")
                    .lte(requestParam.getMaxPrice())
                    .gte(requestParam.getMinPrice()));
        }

        //function score算分控制
        FunctionScoreQueryBuilder functionScoreQuery = QueryBuilders.functionScoreQuery(
                booleanQuery,  //第一个参数传入booleanQuery为原始查询，对应原始的相关性算分
                new FunctionScoreQueryBuilder.FilterFunctionBuilder[]{  //第二个形参，function score数组，里面有个function score元素
                        new FunctionScoreQueryBuilder.FilterFunctionBuilder(  //function score元素对象，第一个参数传入筛选字段
                                QueryBuilders.termQuery("isAD", true),   //不再用酒店品牌筛选，而是isAD字段
                                ScoreFunctionBuilders.weightFactorFunction(10)  //算分函数，用默认的乘法，权重为10
                        )
                });
        request.source().query(functionScoreQuery);


    }

    @Override
    public Map<String, List<String>> filters(RequestParam requestParam) {
        try {
            SearchRequest request = new SearchRequest("hotel");
            //复合查询过滤
            buildBasicQuery(requestParam,request);
            //对过滤后的数据聚合
            buildAggregation(request);
            SearchResponse response = client.search(request,RequestOptions.DEFAULT);
            //获取总的聚合结果
            Aggregations aggregations = response.getAggregations();
            //获取品牌聚合信息
            List<String> brandFilterList = getAggByName(aggregations, "brandAgg");
            Map<String,List<String>> filterMap = new HashMap<>();
            filterMap.put("品牌",brandFilterList);
            //获取城市聚合信息
            List<String> cityFilterList = getAggByName(aggregations,"cityAgg");
            filterMap.put("城市",cityFilterList);
            //获取星级聚合信息
            List<String> startFilterList = getAggByName(aggregations,"starNameAgg");
            filterMap.put("星级",startFilterList);
            return filterMap;
        } catch (IOException e) {
            throw new RuntimeException();
        }
    }

    /**
     * 聚合DSL拼接
     * @param request
     */
    private void buildAggregation(SearchRequest request) {
        request.source().size(0);
        request.source().aggregation(AggregationBuilders
                .terms("brandAgg")
                .field("brand")
                .size(100)
        );
        request.source().aggregation(AggregationBuilders
                .terms("cityAgg")
                .field("city")
                .size(100)
        );
        request.source().aggregation(AggregationBuilders
                .terms("starNameAgg")
                .field("starName")
                .size(100)
        );
    }

    /**
     * 聚合结果解析
     * @param aggregations 聚合结果
     * @param name AggName
     * @return
     */
    private List<String> getAggByName(Aggregations aggregations,String name) {
        Terms brandTerms = aggregations.get(name);
        List<? extends Terms.Bucket> buckets = brandTerms.getBuckets();
        List<String> filterList = buckets.stream()
                .map(t -> {
                    String brandKey = t.getKeyAsString();
                    return brandKey;
                }).collect(Collectors.toList());
        return filterList;

    }
}

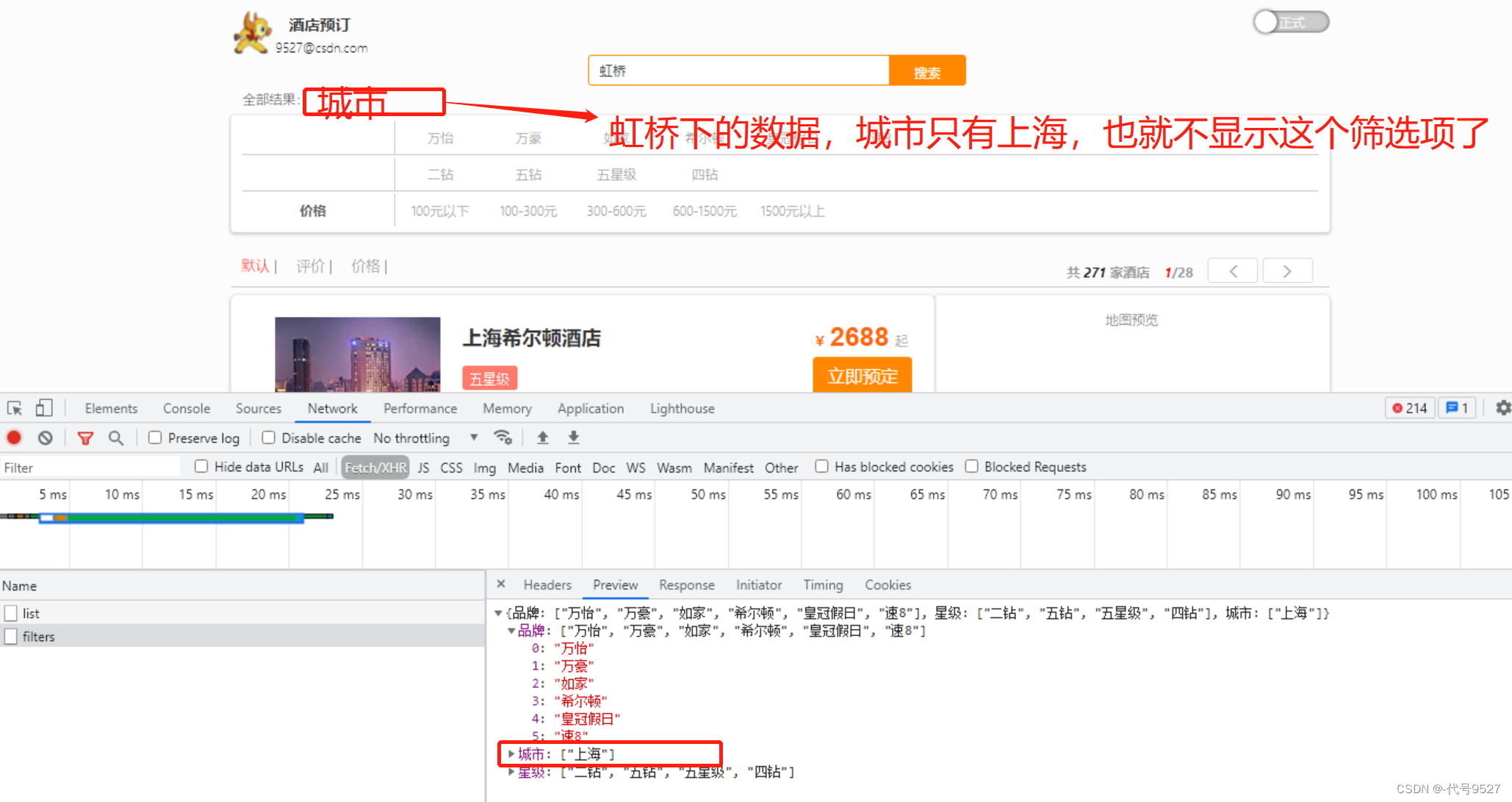

看下效果：

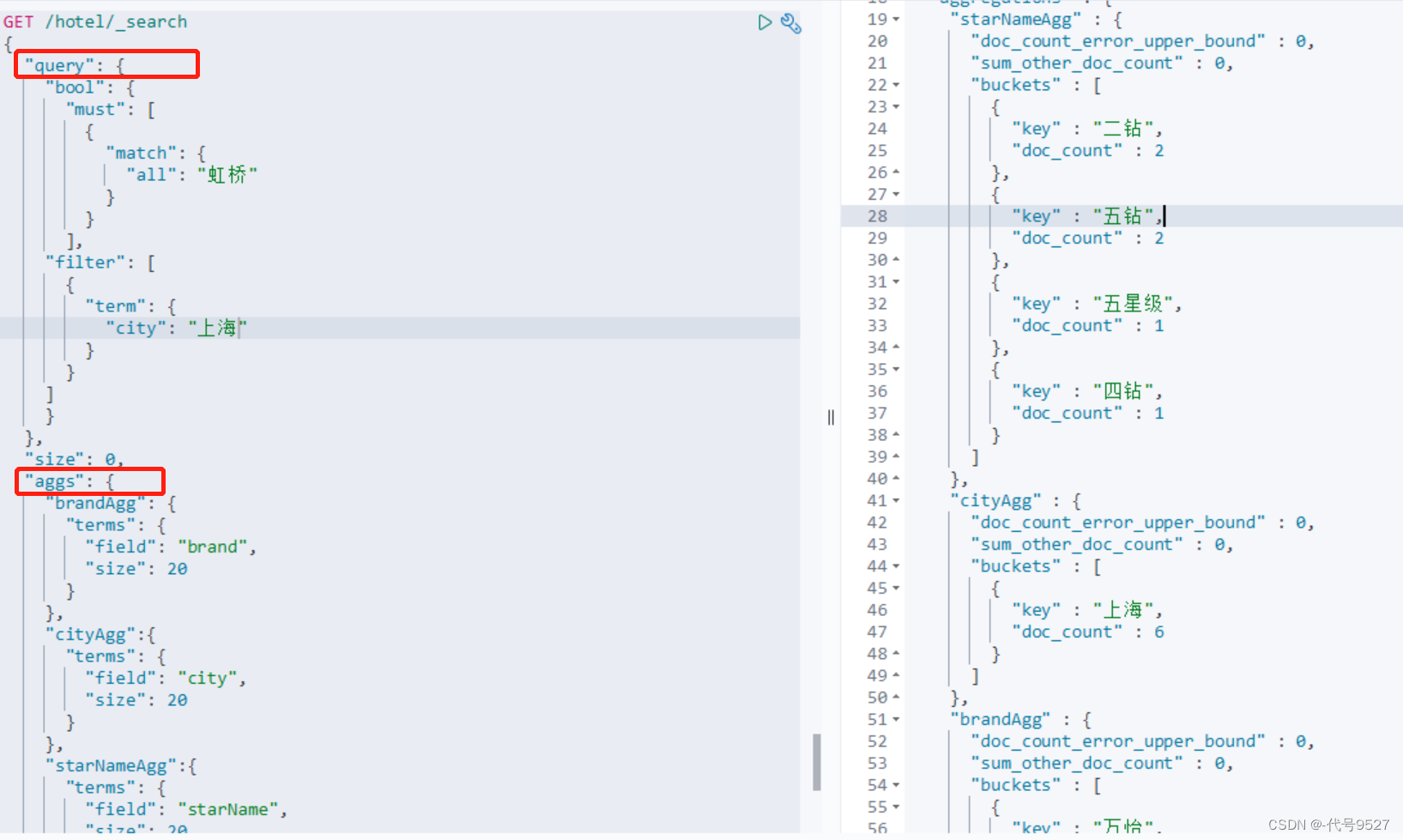

最后，代码有点长，以上这个需求的底层DSL其实就是这个：
