【数字图像处理】编码解码jpeg和png图片（C语言实现）
摘要：在本篇文章中本人将简单阐述图片编码的原理与实现方法。同时通过 windows平台下 mingw编译的libjpeg，libpng, zlib 第三方库，然后实现两种图片的编码与解码。（一）写在前面前一段时间本人一直在进行Opencv有关的学习，可是在学完了一堆又一堆的函数之后，发现自己对于图像处理的知识其实本质上还是什么都不会。我相信真正图像处理一定不是仅仅调用几个函数就可以了事的，一...
·
摘要：在本篇文章中本人将简单阐述图片编码的原理与实现方法。同时
通过 windows平台下 mingw编译的libjpeg，libpng, zlib 第三方库，然后实现两种图片的编码与解码。
（一）写在前面
前一段时间本人一直在进行Opencv有关的学习，可是在学完了一堆又一堆的函数之后，发现自己对于图像处理的知识其实本质上还是什么都不会。我相信真正图像处理一定不是仅仅调用几个函数就可以了事的，一些东西如果不自己敲一遍恐怕永远也无法懂得其真正的原理。所以我打算从最底层自己敲出一个轻量级的图像处理库出来。可能一开始我的代码并不可靠效率可能也赶不上那些开源库的效率，但是我坚信这个轮子造的一定是有意义的。
截止目前为之，这个图像处理的库已经可以支持jpeg,png,bmp三种图片格式的编码和解码。同时对于一些图片的常见几何变化，灰度变换，颜色识别等功能都已经分别进行了实现。而且截止目前仍然具有跨平台的特性。稍作修改便可以运行在
X86_LINUX,ARN_LINUX,STM32
等平台上面。
下面的计划就是进一步的扩展界面显示的功能。比较凄惨的是找了半天也没有找到合适又简单的C语言跨平台图像库，这个再自己写又好像不太现实，所以决定开始导入QT作为图像显示的载体。
我目前已经将这个项目开源于github
LiteCV
（二）基础知识

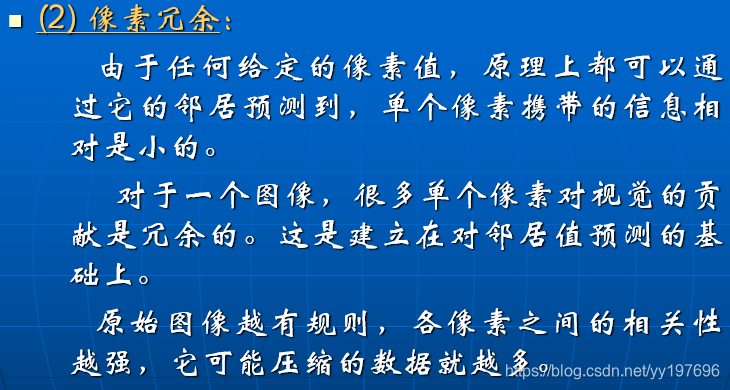

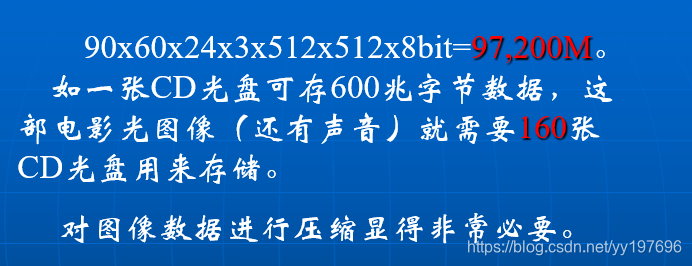

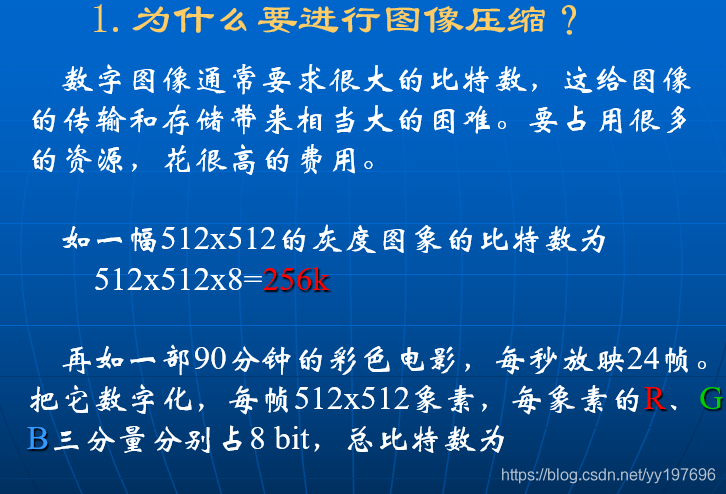

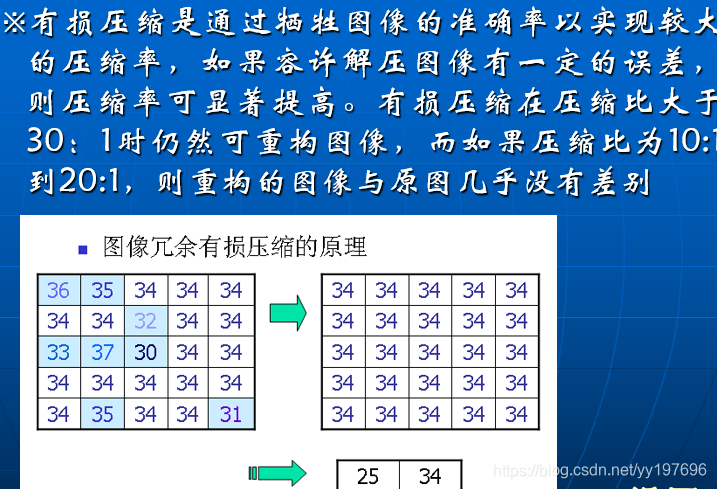

（1）图像的压缩与解码

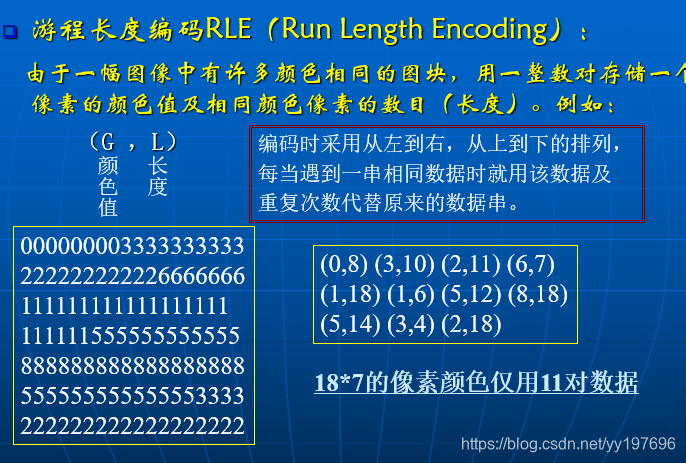

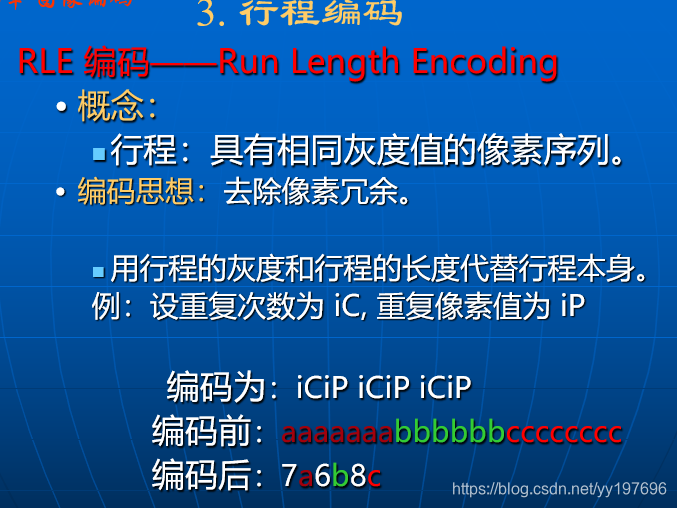

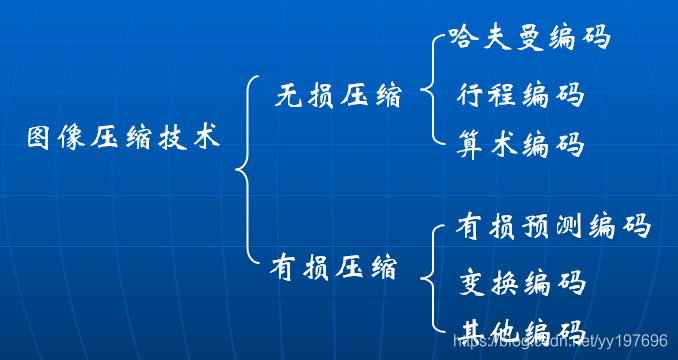

（2）常用的图像压缩方法

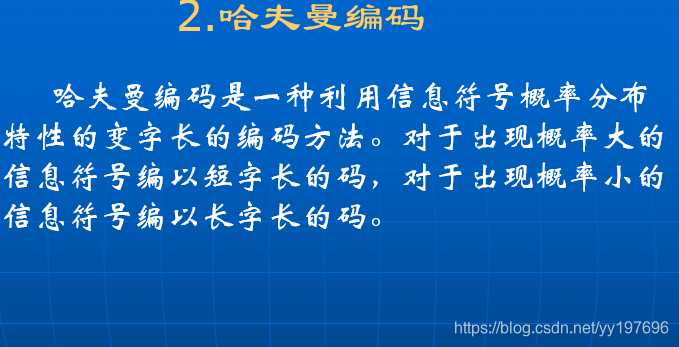

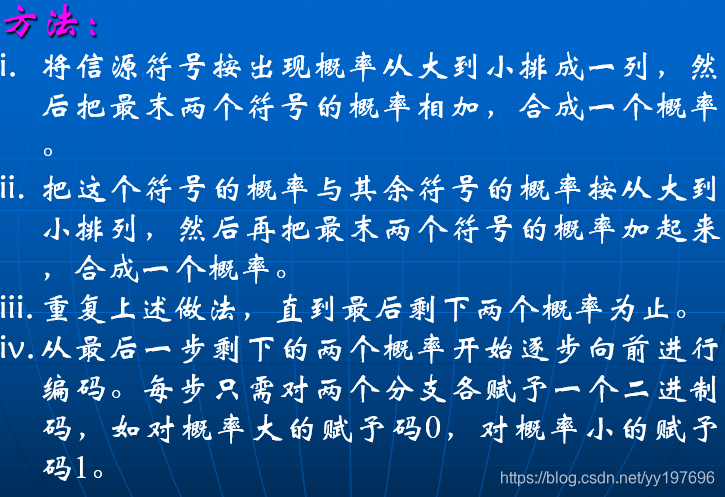

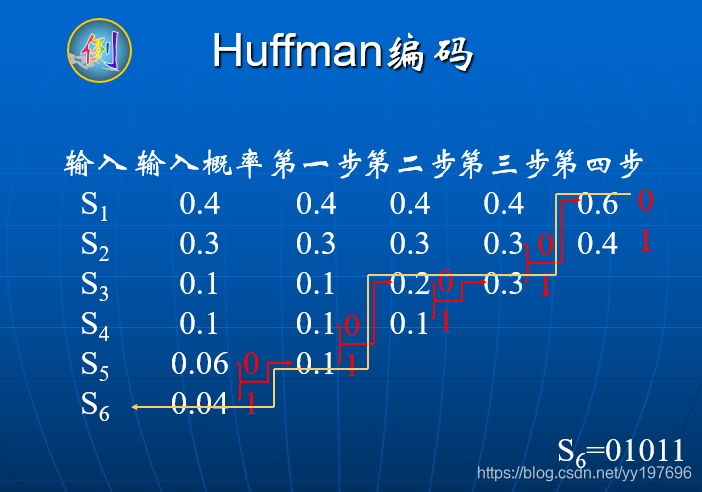

1.哈夫曼编码

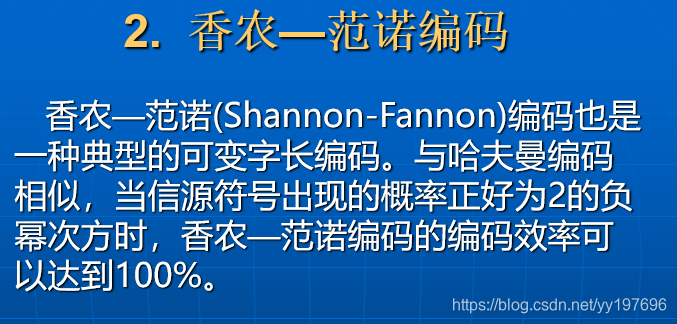

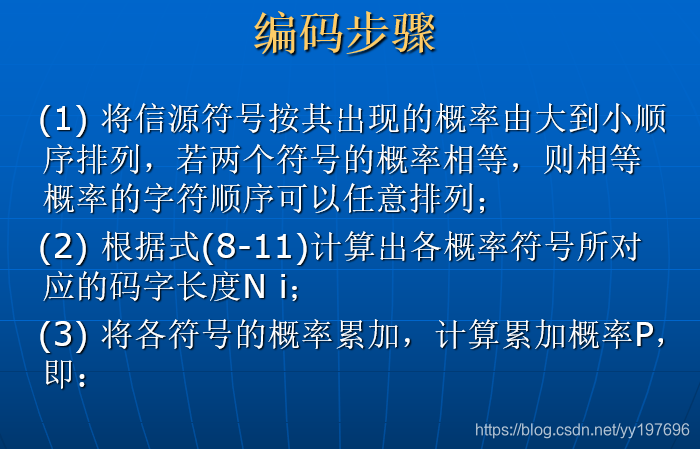

2.香农范诺编码

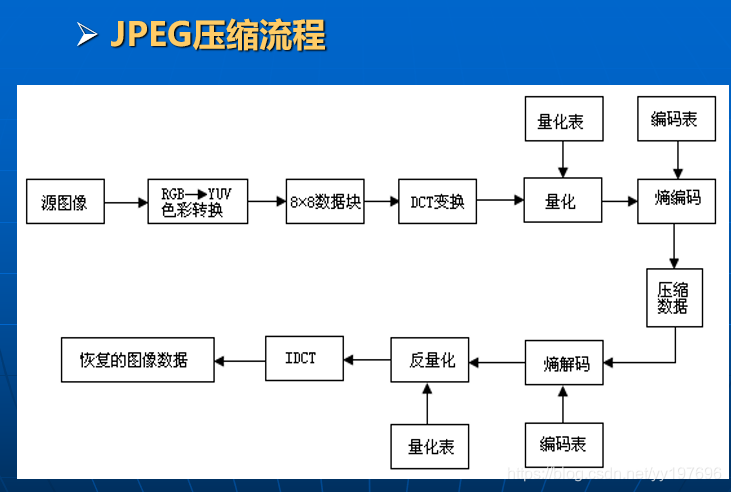

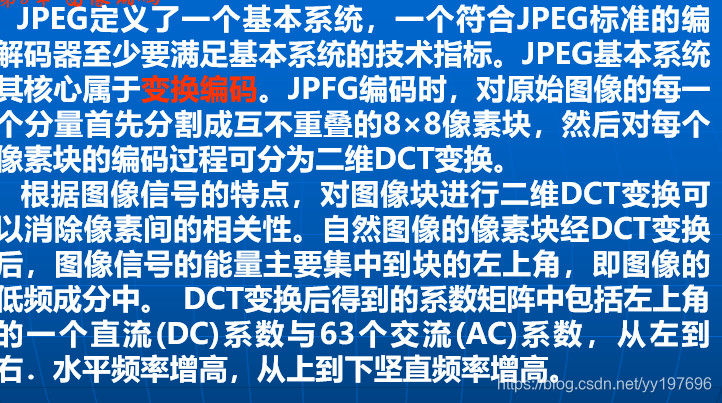

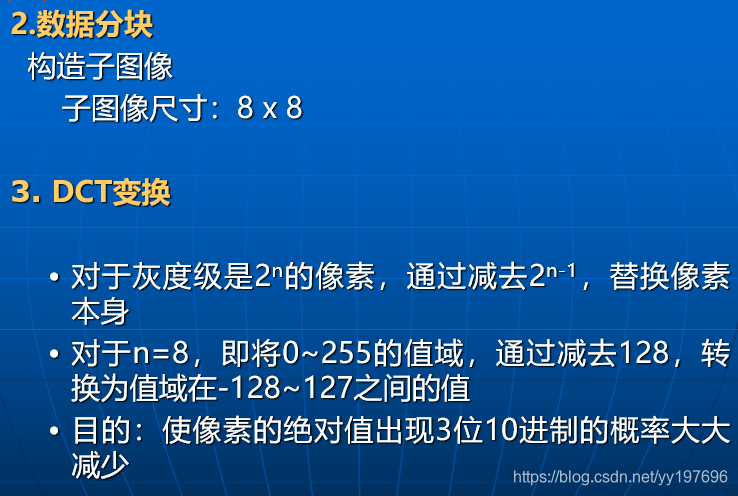

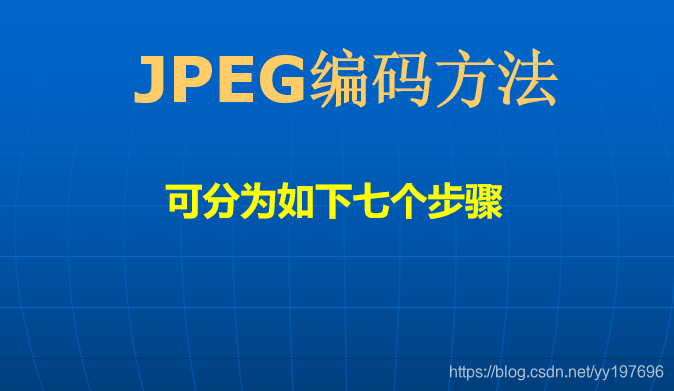

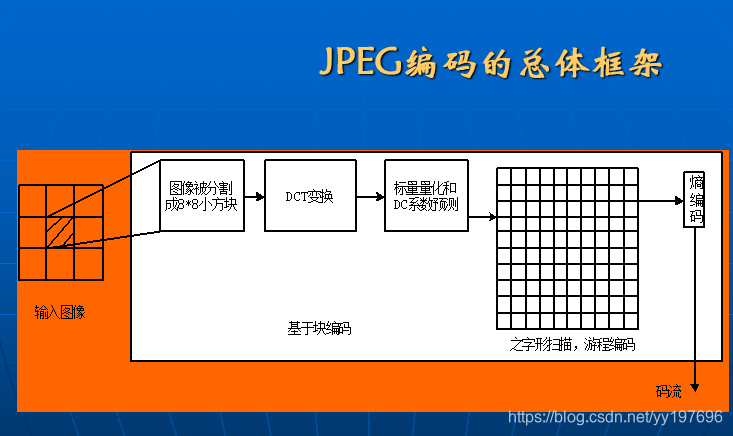

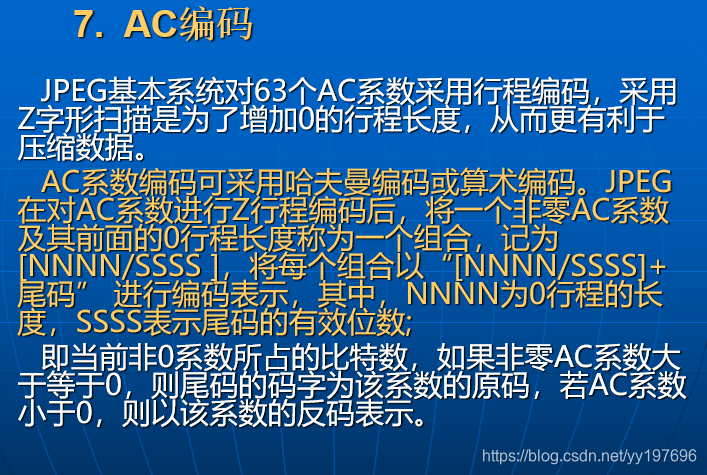

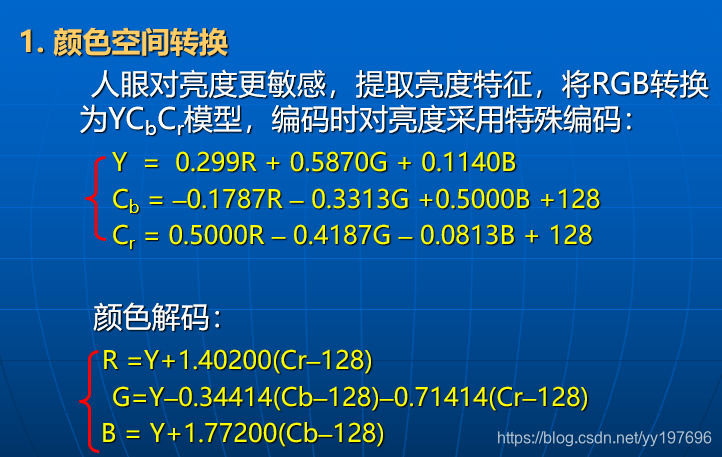

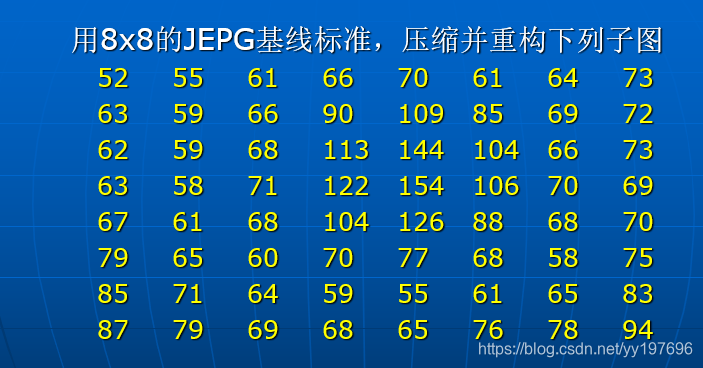

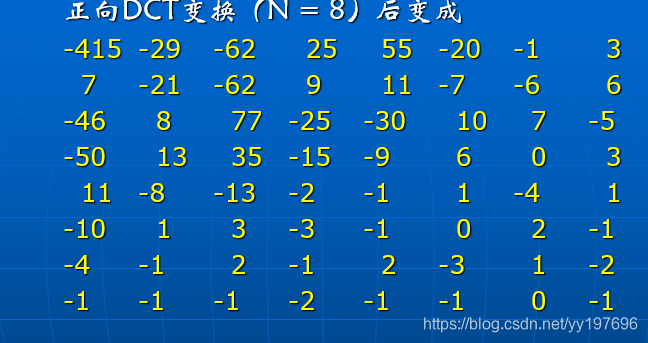

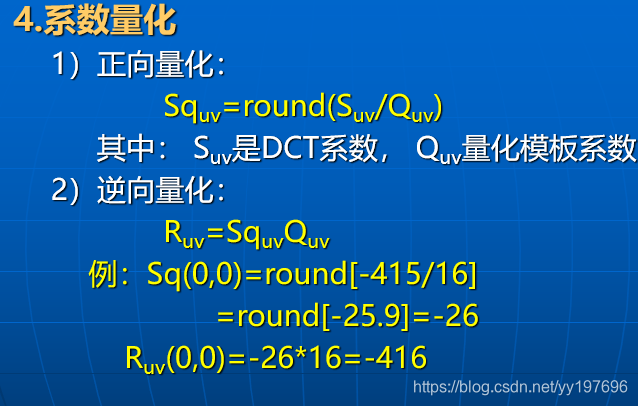

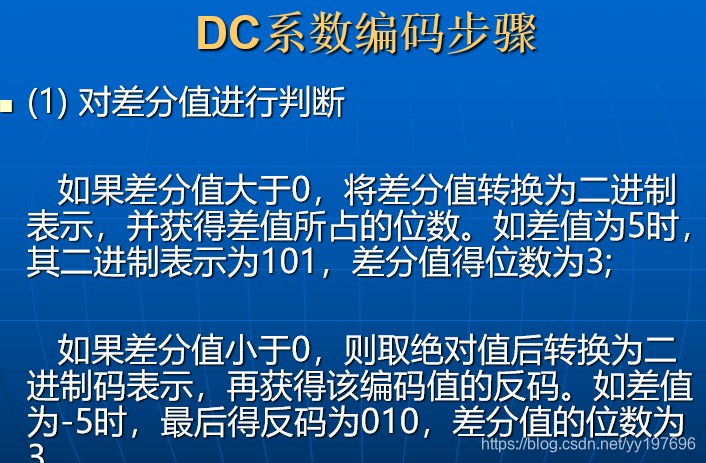

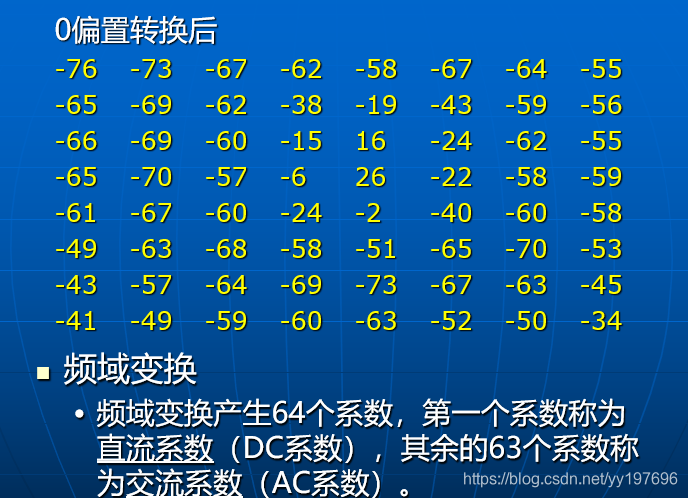

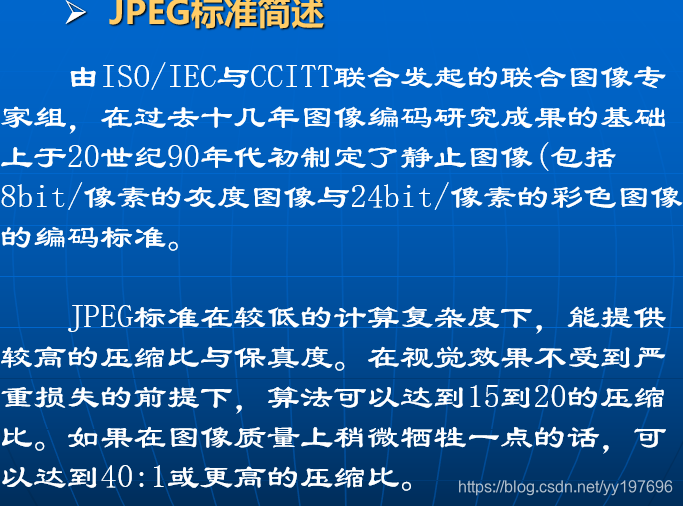

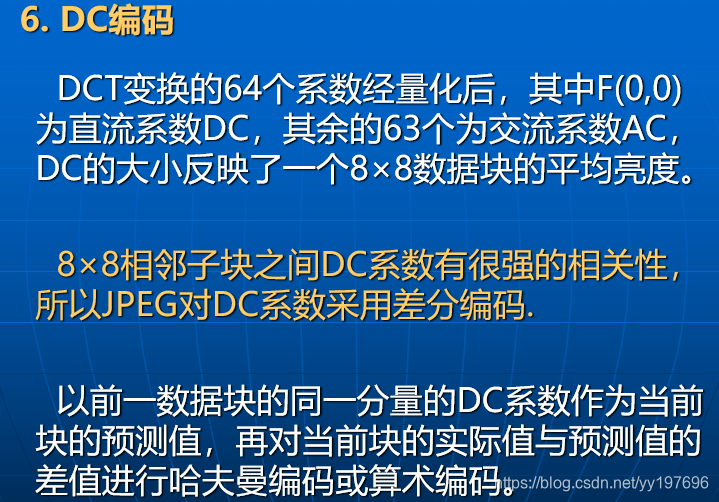

（2）静止图像压缩编码标准（JPEG）
看了那么多PPT个人感觉还是没有完全搞明白JPEG是个什么东西，感觉主要就是往频域做了一步变化，然后就是一顿骚操作，看起开似乎要自己写是不可能了，确实有些复杂。那就只能调用库文件了，好在这几个库都是开源的跨平台的时候直接编译一下就好了。
关于库的编译我就不细说了，不像opencv编译的时候那么多坑，装一个cmake就可以轻松编译成功了。要是实在懒得去编译可以到我的gihub代码仓库里面找一下，是有那几个第三方库的源码和库文件的。
（三）软件实现
jpeg.c
/*
* @Descripttion: 向licvcore 提供jpegJ读写接口
* @version: V 2.0
* @Author: Yueyang
* @email: 1700695611@qq.com
* @Date: 2020-11-10 22:18:19
* @LastEditors: Yueyang
* @LastEditTime: 2020-11-10 22:40:47
*/
#ifndef JPEG_C
#define JPEG_C
#ifdef USE_JPEG
#include "jconfig.h"
#include "jmorecfg.h"
#include <jpeglib.h>
#include <setjmp.h>
#include "cv.h"
/**
* @name:
* @msg: 将RGB数据编码并写JPG图片
* @param
* char *filepath 图片路径
* JSAMPLE *image_buffer RGB数据指针
* int quality 图片质量
* int image_width 图片高度
* int image_height 图片宽度
* @return 0 (right) or -1(something wrong)
*/
BYTE Write_Jpeg(BYTE *filepath,JSAMPLE *image_buffer, LONG quality,LONG image_width,LONG image_height)
{
struct jpeg_compress_struct cinfo;
struct jpeg_error_mgr jerr;
FILE *outfile;
JSAMPROW row_pointer[1];
int row_stride;
cinfo.err = jpeg_std_error(&jerr);
/* Now we can initialize the JPEG compression object. */
jpeg_create_compress(&cinfo);
if ((outfile = fopen(filepath, "wb")) == NULL) {
LILOG("can't open");
return -1;
}
jpeg_stdio_dest(&cinfo, outfile);
cinfo.image_width = image_width;
cinfo.image_height = image_height;
cinfo.input_components = 3;
cinfo.in_color_space = JCS_RGB;
jpeg_set_defaults(&cinfo);
jpeg_set_quality(&cinfo, quality, TRUE);
jpeg_start_compress(&cinfo, TRUE);
row_stride = (image_width * 3 + 3) & ~3;
int i=0,j=0;
for(i=0;i<image_height;i++)
for(j=0;j<image_width;j++)
{
BYTE temp=image_buffer[3*image_width*i+3*j];
image_buffer[3*image_width*i+3*j]=image_buffer[3*image_width*i+3*j+2];
image_buffer[3*image_width*i+3*j+2]=temp;
}
while (cinfo.next_scanline < cinfo.image_height) {
row_pointer[0] = &image_buffer[(cinfo.image_height-cinfo.next_scanline) * row_stride];
(void)jpeg_write_scanlines(&cinfo, row_pointer, 1);
}
jpeg_finish_compress(&cinfo);
fclose(outfile);
jpeg_destroy_compress(&cinfo);
}
struct my_error_mgr {
struct jpeg_error_mgr pub;
jmp_buf setjmp_buffer;
};
typedef struct my_error_mgr *my_error_ptr;
METHODDEF(void)
my_error_exit(j_common_ptr cinfo)
{
my_error_ptr myerr = (my_error_ptr)cinfo->err;
(*cinfo->err->output_message) (cinfo);
longjmp(myerr->setjmp_buffer, 1);
}
/**
* @name: Read_Jpeg
* @msg: 读取一个JPG图片
* @param char* filepath 图片路径
* LONG* wdith 返回图片的宽度
* LONG* height 返回图片的高度
* @return 数据指针
*/
BYTE* Read_Jpeg(char* filepath,LONG* width,LONG* height)
{
BYTE *imgData;
struct jpeg_decompress_struct cinfo;
struct my_error_mgr jerr;
FILE *infile;
JSAMPARRAY buffer;
int row_stride;
if ((infile = fopen(filepath, "rb")) == NULL) {
LILOG("can't open");
}
cinfo.err = jpeg_std_error(&jerr.pub);
jerr.pub.error_exit = my_error_exit;
if (setjmp(jerr.setjmp_buffer)) {
LILOG("ERROR");
jpeg_destroy_decompress(&cinfo);
fclose(infile);
}
jpeg_create_decompress(&cinfo);
jpeg_stdio_src(&cinfo, infile);
jpeg_read_header(&cinfo, TRUE);
jpeg_start_decompress(&cinfo);
row_stride = (cinfo.output_width * 3 );
imgData=(BYTE*)malloc(cinfo.output_height*cinfo.output_width*3);
buffer =malloc(row_stride*1);
while (cinfo.output_scanline < cinfo.output_height) {
jpeg_read_scanlines(&cinfo, (JSAMPARRAY)&buffer,1);
char *p = (char*)buffer;
for (int x = 0; x <cinfo.output_width; x++)
{
*(imgData+(cinfo.output_height-cinfo.output_scanline)*row_stride+3*x+2) = *p++;
*(imgData+(cinfo.output_height-cinfo.output_scanline)*row_stride+3*x+1) = *p++;
*(imgData+(cinfo.output_height-cinfo.output_scanline)*row_stride+3*x+0) = *p++;
}
}
*width=cinfo.output_width;
*height=cinfo.output_height;
free(buffer);
(void)jpeg_finish_decompress(&cinfo);
jpeg_destroy_decompress(&cinfo);
fclose(infile);
return imgData;
}
#endif //USE_JPEG
#endif // !JPE_CG
png.c
/*
* @Descripttion: 向licvcore 提供png读写接口
* @version: V 2.0
* @Author: Yueyang
* @email: 1700695611@qq.com
* @Date: 2020-11-10 22:18:19
* @LastEditors: Yueyang
* @LastEditTime: 2020-11-10 22:41:48
*/
#ifndef LI_PNG_C
#define LI_PNG_C
#ifdef USE_PNG
#include "png.h"
#include "cv.h"
#define PNG_BYTES_TO_CHECK 8
#define HAVE_ALPHA 1
#define NOT_HAVE_ALPHA 0
typedef struct _pic_data pic_data;
struct _pic_data {
int width, height; //长宽
int bit_depth; //位深度
int alpha_flag; //是否有透明通道
unsigned char *rgba;//实际rgb数据
};
BYTE check_is_png(FILE **fp, const char *filename) //检查是否png文件
{
char checkheader[PNG_BYTES_TO_CHECK]; //查询是否png头
*fp = fopen(filename, "rb");
if (*fp == NULL) {
LILOG("open failed ...1\n");
return -1;
}
if (fread(checkheader, 1, PNG_BYTES_TO_CHECK, *fp) != PNG_BYTES_TO_CHECK) //读取png文件长度错误直接退出
return 0;
return png_sig_cmp(checkheader, 0, PNG_BYTES_TO_CHECK); //0正确, 非0错误
}
/**
* @name: Read_Png
* @msg: 读取一个png图片
* @param char* filepath 图片路径
* LONG* wdith 返回图片的宽度
* LONG* height 返回图片的高度
* BYTE* withalpha 是否带有alpha通道
* @return 数据指针 注：一定返回一个24位的数据指针
*/
BYTE* Read_Png(BYTE *filename,LONG* width,LONG* height) //取出png文件中的rgb数据
{
pic_data *out =(pic_data*)malloc(sizeof(pic_data));
png_structp png_ptr; //png文件句柄
png_infop info_ptr;//png图像信息句柄
int ret;
FILE *fp;
if (check_is_png(&fp, filename) != 0) {
LILOG("file is not png ...\n");
return NULL;
}
png_ptr = png_create_read_struct(PNG_LIBPNG_VER_STRING, NULL, NULL, NULL);
info_ptr = png_create_info_struct(png_ptr);
setjmp(png_jmpbuf(png_ptr));
rewind(fp);
png_init_io(png_ptr, fp);
png_read_png(png_ptr, info_ptr, PNG_TRANSFORM_EXPAND, 0); //读取文件信息
int channels, color_type;
channels = png_get_channels(png_ptr, info_ptr); //通道数量
color_type = png_get_color_type(png_ptr, info_ptr);//颜色类型
out->bit_depth = png_get_bit_depth(png_ptr, info_ptr);//位深度
out->width = png_get_image_width(png_ptr, info_ptr);//宽
out->height = png_get_image_height(png_ptr, info_ptr);//高
*width=out->width;
*height=out->height;
if(color_type == PNG_COLOR_TYPE_PALETTE)
png_set_palette_to_rgb(png_ptr);//要求转换索引颜色到RGB
if(color_type == PNG_COLOR_TYPE_GRAY && out->bit_depth < 8)
png_set_expand_gray_1_2_4_to_8(png_ptr);//要求位深度强制8bit
if(out->bit_depth == 16)
png_set_strip_16(png_ptr);//要求位深度强制8bit
if(png_get_valid(png_ptr,info_ptr,PNG_INFO_tRNS))
png_set_tRNS_to_alpha(png_ptr);
if(color_type == PNG_COLOR_TYPE_GRAY || color_type == PNG_COLOR_TYPE_GRAY_ALPHA)
png_set_gray_to_rgb(png_ptr);//灰度必须转换成RG
int i, j, k;
int size, pos = 0;
int temp;
png_bytepp row_pointers; //实际存储rgb数据的buf
row_pointers = png_get_rows(png_ptr, info_ptr); //也可以分别每一行获取png_get_rowbytes();
size = out->width * out->height; //申请内存先计算空间
if (channels == 4 || color_type == PNG_COLOR_TYPE_RGB_ALPHA) { //判断是24位还是32位
out->alpha_flag = HAVE_ALPHA; //记录是否有透明通道
size *= (sizeof(unsigned char) * 4); //size = out->width * out->height * channel
out->rgba = (png_bytep)malloc(size);
if (NULL == out->rgba) {
LILOG("malloc rgba faile ...\n");
png_destroy_read_struct(&png_ptr, &info_ptr, 0);
fclose(fp);
return NULL;
}
//从row_pointers里读出实际的rgb数据
for (i = out->height-1; i >0; i --) {
for (j = 0; j < 4 * out->width; j += 4) {
out->rgba[pos++] = row_pointers[i][j+2];
out->rgba[pos++] = row_pointers[i][j+1];
out->rgba[pos++] = row_pointers[i][j+0];
out->rgba[pos++] = row_pointers[i][j+3];
}
}
}
else if (channels == 3 || color_type == PNG_COLOR_TYPE_RGB) { //判断颜色深度是24位还是32位
out->alpha_flag = NOT_HAVE_ALPHA;
size *= (sizeof(unsigned char) * 4);
out->rgba = (png_bytep)malloc(size);
if (NULL == out->rgba) {
LILOG("malloc rgba faile ...\n");
png_destroy_read_struct(&png_ptr, &info_ptr, 0);
fclose(fp);
return NULL;
}
//从row_pointers里读出实际的rgb数据
temp = (3 * out->width);
for (i = 0; i < out->height; i ++) {
for (j = 0; j < temp; j += 3) {
out->rgba[pos++] = row_pointers[i][j+2];
out->rgba[pos++] = row_pointers[i][j+1];
out->rgba[pos++] = row_pointers[i][j+0];
pos++;
}
}
} else return NULL;
//6:销毁内存
png_destroy_read_struct(&png_ptr, &info_ptr, 0);
fclose(fp);
//此时， 我们的out->rgba里面已经存储有实际的rgb数据了
//处理完成以后free(out->rgba)
return out->rgba;
}
/**
* @name: Write_Png
* @msg: 写一个png图片
* @param BYTE* png_file_name 文件名称
* BYTE* pixels 数据指针
* int width 图像宽度
* int height 图像高度
* int withalpha 是否带有alpha通道
* @return 0成功 -1失败
*/
BYTE Write_Png(BYTE* png_file_name, BYTE* pixels , LONG width, LONG height)
{
pic_data *out=malloc(sizeof(pic_data));
out->bit_depth=8;
out->rgba=pixels;
out->alpha_flag=HAVE_ALPHA;
out->height=height;
out->width=width;
png_structp png_ptr;
png_infop info_ptr;
png_byte color_type;
png_bytep * row_pointers;
FILE *fp = fopen(png_file_name, "wb");
if (NULL == fp) {
LILOG("open failed ...2");
return -1;
}
//1: 初始化libpng结构体
png_ptr = png_create_write_struct(PNG_LIBPNG_VER_STRING, 0, 0, 0);
if (!png_ptr) {
LILOG("png_create_write_struct failed ...");
return -1;
}
//2: 初始化png_infop结构体 ，
//此结构体包含了图像的各种信息如尺寸，像素位深, 颜色类型等等
info_ptr = png_create_info_struct(png_ptr);
if (!info_ptr) {
LILOG("png_create_info_struct failed ...\n");
return -1;
}
//3: 设置错误返回点
if (setjmp(png_jmpbuf(png_ptr))) {
LILOG("error during init_io ...\n");
return -1;
}
//4:绑定文件IO到Png结构体
png_init_io(png_ptr, fp);
if (setjmp(png_jmpbuf(png_ptr))) {
LILOG("error during init_io ...\n");
return -1;
}
if (out->alpha_flag == HAVE_ALPHA) color_type = PNG_COLOR_TYPE_RGB_ALPHA;
else color_type = PNG_COLOR_TYPE_RGB;
//5：设置以及写入头部信息到Png文件
png_set_IHDR(png_ptr, info_ptr, out->width, out->height, out->bit_depth,
color_type, PNG_INTERLACE_NONE, PNG_COMPRESSION_TYPE_BASE, PNG_FILTER_TYPE_BASE);
png_write_info(png_ptr, info_ptr);
if (setjmp(png_jmpbuf(png_ptr))) {
LILOG("error during init_io ...\n");
return -1;
}
int channels, temp;
int i, j, pos = 0;
if (out->alpha_flag == HAVE_ALPHA) {
channels = 4;
temp = (4 * out->width);
} else {
channels = 3;
temp = (3 * out->width);
}
row_pointers = (png_bytep*)malloc(out->height * sizeof(png_bytep));
for (i = out->height-1; i >=0; i--) {
row_pointers[i] = (png_bytep)malloc(temp* sizeof(unsigned char));
for (j = 0; j < temp; j += channels) {
if (channels == 4) {
row_pointers[i][j+2] = out->rgba[pos++];
row_pointers[i][j+1] = out->rgba[pos++];
row_pointers[i][j+0] = out->rgba[pos++];
row_pointers[i][j+3] = out->rgba[pos++];
} else {
row_pointers[i][j+2] = out->rgba[pos++];
row_pointers[i][j+1] = out->rgba[pos++];
row_pointers[i][j+0] = out->rgba[pos++];
}
}
}
png_write_image(png_ptr, (png_bytepp)row_pointers);
if (setjmp(png_jmpbuf(png_ptr))) {
return -1;
}
//7: 写入尾部信息
png_write_end(png_ptr, NULL);
//8:释放内存 ,销毁png结构体
for (i = 0; i < out->height; i ++)
free(row_pointers[i]);
free(row_pointers);
png_destroy_write_struct(&png_ptr, &info_ptr);
fclose(fp);
return 0;
}
#endif //USE_PNG
#endif // !LI_PAINTER_C
(四)效果展示
/*
* @Descripttion: 底层图片IO测试
* @version: V 2.0
* @Author: Yueyang
* @email: 1700695611@qq.com
* @Date: 2020-10-26 19:35:49
* @LastEditors: Yueyang
* @LastEditTime: 2020-11-04 15:50:21
*/
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <malloc.h>
#include "bmp.h"
#include "cv.h"
#include "li_image.h"
int main()
{
//加载保存销毁图片
Li_Image* out=Li_Load_Image("./picture/whu_rgb888.bmp",LI_BMP_888);
Li_Save_Image("./picture/1.bmp",out);
Li_Destroy_Image(out);
Li_Image* out3=Li_Load_Image("./picture/whu_gray.bmp",LI_BMP_8);
Li_Save_Image("./picture/2.bmp",out3);
Li_Destroy_Image(out3);
Li_Image* out4=Li_Load_Image("./picture/whu_rgba.bmp",LI_BMP_32);
Li_Save_Image("./picture/3.bmp",out4);
Li_Destroy_Image(out4);
Li_Image* out1=Li_Load_Image("./picture/whu_png.png",LI_PNG);
Li_Save_Image("./picture/1.png",out1);
Li_Destroy_Image(out1);
Li_Image* out2=Li_Load_Image("./picture/whu_jpg.jpg",LI_JPEG);
Li_Save_Image("./picture/1.jpg",out2);
Li_Destroy_Image(out2);
//创建图片并操作像素
BYTE* ptr=NULL;
Li_Image* out7 =Li_Create_Image(300,300,LI_DEP_24U,LI_BMP_888);
ptr=out7->at(out7,10,10);
if(ptr!=NULL){
memset(ptr,0xFF,1);
memset(ptr+1,0,1);
memset(ptr+2,0,1);
}
Li_Save_Image("./picture/1.bmp",out3);
Li_Destroy_Image(out7);
Li_Image* out8 =Li_Load_Image("./picture/whu_jpg.jpg",LI_JPEG);
ptr=out8->at(out8,10,10);
if(ptr!=NULL){
memset(ptr,0xFF,1);
memset(ptr+1,0,1);
memset(ptr+2,0,1);
}
Li_Save_Image("./picture/2.jpg",out8);
Li_Destroy_Image(out8);
Li_Image* out5 =Li_Load_Image("./picture/whu_png.png",LI_PNG);
ptr=out5->at(out5,10,10);
if(ptr!=NULL){
memset(ptr,0xFF,1);
memset(ptr+1,0,1);
memset(ptr+2,0,1);
}
Li_Save_Image("./picture/2.png",out5);
Li_Image* out6=Li_Copy_Image(out5);
Li_Save_Image("./picture/3.png",out6);
LILOG("over");
return 0;
}
左边是png图片读取为BMP同时显示，右边是JPEG经过高倍压缩再解压后的图片。
有“AI”的1024 = 2048，欢迎大家加入2048 AI社区
更多推荐
16
0- 0
已为社区贡献7条内容
所有评论(0)
