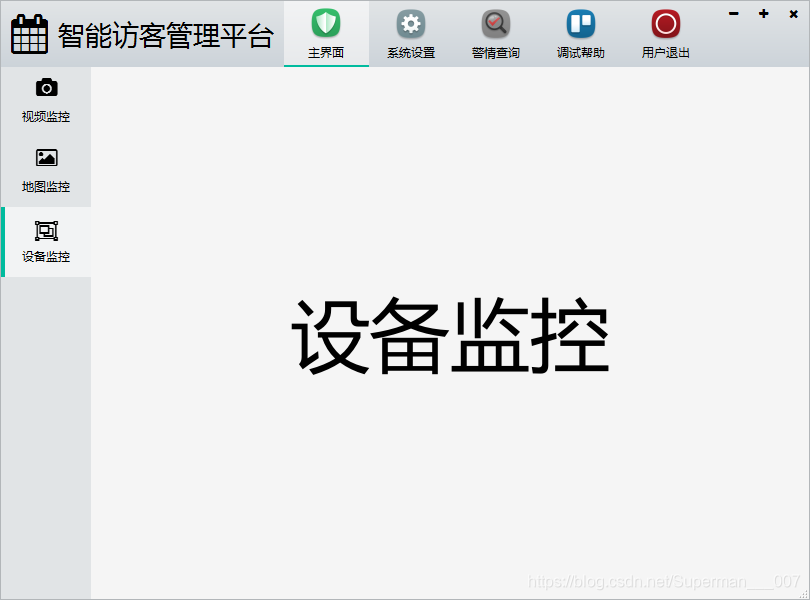

界面效果:

资源文件 :  Qt编写主界面顶部和左侧导航代码及资源文件 (http://www.qtcn.org/bbs/read-htm-tid-65515.html)

1.工程目录

2.main.cpp

#include "uidemo08.h"
#include "appinit.h"
#include <QApplication>
#include <QTextCodec>
#include <QFile>

int main(int argc, char *argv[])
{
    QApplication a(argc, argv);

#if (QT_VERSION <= QT_VERSION_CHECK(5,0,0))
#if _MSC_VER
    QTextCodec *codec = QTextCodec::codecForName("gbk");
#else
    QTextCodec *codec = QTextCodec::codecForName("utf-8");
#endif
    QTextCodec::setCodecForLocale(codec);
    QTextCodec::setCodecForCStrings(codec);
    QTextCodec::setCodecForTr(codec);
#else
    QTextCodec *codec = QTextCodec::codecForName("utf-8");
    QTextCodec::setCodecForLocale(codec);
#endif

    //加载样式表
    QFile file(":/qss/psblack.css");
    if (file.open(QFile::ReadOnly)) {
        QString qss = QLatin1String(file.readAll());
        QString paletteColor = qss.mid(20, 7);
        qApp->setPalette(QPalette(QColor(paletteColor)));
        qApp->setStyleSheet(qss);
        file.close();
    }

    a.setFont(QFont("Microsoft Yahei", 9));
    AppInit::Instance()->start();

    UIDemo08 w;
    w.show();

    return a.exec();
}

3.uidemo08.h

#ifndef UIDEMO08_H
#define UIDEMO08_H

#include <QWidget>

class QToolButton;

namespace Ui {
class UIDemo08;
}

class UIDemo08 : public QWidget
{
    Q_OBJECT

public:
    explicit UIDemo08(QWidget *parent = 0);
    ~UIDemo08();

private:
    Ui::UIDemo08 *ui;

    QList<int> pixCharMain;
    QList<QToolButton *> btnsMain;

    QList<int> pixCharConfig;
    QList<QToolButton *> btnsConfig;

private slots:
    void initForm();
    void buttonClick();
    void initLeftMain();
    void initLeftConfig();
    void leftMainClick();
    void leftConfigClick();

private slots:
    void on_btnMenu_Min_clicked();
    void on_btnMenu_Max_clicked();
    void on_btnMenu_Close_clicked();
};

#endif // UIDEMO08_H

4.uidemo08.cpp

#pragma execution_character_set("utf-8")

#include "uidemo08.h"
#include "ui_uidemo08.h"
#include "iconhelper.h"

UIDemo08::UIDemo08(QWidget *parent) :
    QWidget(parent),
    ui(new Ui::UIDemo08)
{
    ui->setupUi(this);
    this->initForm();
    this->initLeftMain();
    this->initLeftConfig();
}

UIDemo08::~UIDemo08()
{
    delete ui;
}

void UIDemo08::initForm()
{
    this->setProperty("form", true);
    this->setProperty("canMove", true);
    this->setWindowFlags(Qt::FramelessWindowHint | Qt::WindowSystemMenuHint | Qt::WindowMinMaxButtonsHint);

    IconHelper::Instance()->setIcon(ui->labIco, QChar(0xf073), 30);
    IconHelper::Instance()->setIcon(ui->btnMenu_Min, QChar(0xf068));
    IconHelper::Instance()->setIcon(ui->btnMenu_Max, QChar(0xf067));
    IconHelper::Instance()->setIcon(ui->btnMenu_Close, QChar(0xf00d));

    //ui->widgetMenu->setVisible(false);
    ui->widgetTitle->setProperty("form", "title");
    ui->widgetTop->setProperty("nav", "top");
    ui->labTitle->setText("智能访客管理平台");
    ui->labTitle->setFont(QFont("Microsoft Yahei", 20));
    this->setWindowTitle(ui->labTitle->text());

    ui->stackedWidget->setStyleSheet("QLabel{font:60pt;}");

    QSize icoSize(32, 32);
    int icoWidth = 85;

    //设置顶部导航按钮
    QList<QToolButton *> tbtns = ui->widgetTop->findChildren<QToolButton *>();
    foreach (QToolButton *btn, tbtns) {
        btn->setIconSize(icoSize);
        btn->setMinimumWidth(icoWidth);
        btn->setCheckable(true);
        connect(btn, SIGNAL(clicked()), this, SLOT(buttonClick()));
    }

    ui->btnMain->click();

    ui->widgetLeftMain->setProperty("flag", "left");
    ui->widgetLeftConfig->setProperty("flag", "left");
    ui->page1->setStyleSheet(QString("QWidget[flag=\"left\"] QAbstractButton{min-height:%1px;max-height:%1px;}").arg(60));
    ui->page2->setStyleSheet(QString("QWidget[flag=\"left\"] QAbstractButton{min-height:%1px;max-height:%1px;}").arg(20));
}

void UIDemo08::buttonClick()
{
    QToolButton *b = (QToolButton *)sender();
    QString name = b->text();

    QList<QToolButton *> tbtns = ui->widgetTop->findChildren<QToolButton *>();
    foreach (QToolButton *btn, tbtns) {
        if (btn == b) {
            btn->setChecked(true);
        } else {
            btn->setChecked(false);
        }
    }

    if (name == "主界面") {
        ui->stackedWidget->setCurrentIndex(0);
    } else if (name == "系统设置") {
        ui->stackedWidget->setCurrentIndex(1);
    } else if (name == "警情查询") {
        ui->stackedWidget->setCurrentIndex(2);
    } else if (name == "调试帮助") {
        ui->stackedWidget->setCurrentIndex(3);
    } else if (name == "用户退出") {
        exit(0);
    }
}

void UIDemo08::initLeftMain()
{
    pixCharMain << 0xf030 << 0xf03e << 0xf247;
    btnsMain << ui->tbtnMain1 << ui->tbtnMain2 << ui->tbtnMain3;

    int count = btnsMain.count();
    for (int i = 0; i < count; i++) {
        btnsMain.at(i)->setCheckable(true);
        btnsMain.at(i)->setToolButtonStyle(Qt::ToolButtonTextUnderIcon);
        connect(btnsMain.at(i), SIGNAL(clicked(bool)), this, SLOT(leftMainClick()));
    }

    IconHelper::Instance()->setStyle(ui->widgetLeftMain, btnsMain, pixCharMain, 15, 35, 25, "left", 4);

    ui->tbtnMain1->click();
}

void UIDemo08::initLeftConfig()
{
    pixCharConfig << 0xf031 << 0xf036 << 0xf249 << 0xf055 << 0xf05a << 0xf249;
    btnsConfig << ui->tbtnConfig1 << ui->tbtnConfig2 << ui->tbtnConfig3 << ui->tbtnConfig4 << ui->tbtnConfig5 << ui->tbtnConfig6;

    int count = btnsConfig.count();
    for (int i = 0; i < count; i++) {
        btnsConfig.at(i)->setCheckable(true);
        btnsConfig.at(i)->setToolButtonStyle(Qt::ToolButtonTextBesideIcon);
        connect(btnsConfig.at(i), SIGNAL(clicked(bool)), this, SLOT(leftConfigClick()));
    }

    IconHelper::Instance()->setStyle(ui->widgetLeftConfig, btnsConfig, pixCharConfig, 10, 20, 15, "left", 5);

    ui->tbtnConfig1->click();
}

void UIDemo08::leftMainClick()
{
    QToolButton *b = (QToolButton *)sender();
    QString name = b->text();

    int count = btnsMain.count();
    for (int i = 0; i < count; i++) {
        if (btnsMain.at(i) == b) {
            btnsMain.at(i)->setChecked(true);
            btnsMain.at(i)->setIcon(QIcon(IconHelper::Instance()->getPixmap(btnsMain.at(i), false)));
        } else {
            btnsMain.at(i)->setChecked(false);
            btnsMain.at(i)->setIcon(QIcon(IconHelper::Instance()->getPixmap(btnsMain.at(i), true)));
        }
    }

    ui->lab1->setText(name);
}

void UIDemo08::leftConfigClick()
{
    QToolButton *b = (QToolButton *)sender();
    QString name = b->text();

    int count = btnsConfig.count();
    for (int i = 0; i < count; i++) {
        if (btnsConfig.at(i) == b) {
            btnsConfig.at(i)->setChecked(true);
            btnsConfig.at(i)->setIcon(QIcon(IconHelper::Instance()->getPixmap(btnsConfig.at(i), false)));
        } else {
            btnsConfig.at(i)->setChecked(false);
            btnsConfig.at(i)->setIcon(QIcon(IconHelper::Instance()->getPixmap(btnsConfig.at(i), true)));
        }
    }

    ui->lab2->setText(name);
}

void UIDemo08::on_btnMenu_Min_clicked()
{
    showMinimized();
}

void UIDemo08::on_btnMenu_Max_clicked()
{
    static bool max = false;
    static QRect location = this->geometry();

    if (max) {
        this->setGeometry(location);
    } else {
        location = this->geometry();
        this->setGeometry(qApp->desktop()->availableGeometry());
    }

    this->setProperty("canMove", max);
    max = !max;
}

void UIDemo08::on_btnMenu_Close_clicked()
{
    close();
}

5.iconhelper.h

#ifndef ICONHELPER_H
#define ICONHELPER_H

#include <QtCore>
#include <QtGui>
#if (QT_VERSION > QT_VERSION_CHECK(5,0,0))
#include <QtWidgets>
#endif

//图形字体处理类
class IconHelper : public QObject
{
    Q_OBJECT

public:
    static IconHelper *Instance();
    explicit IconHelper(QObject *parent = 0);

    void setIcon(QLabel *lab, QChar c, quint32 size = 12);
    void setIcon(QAbstractButton *btn, QChar c, quint32 size = 12);
    QPixmap getPixmap(const QString &color, QChar c, quint32 size = 12,
                      quint32 pixWidth = 10, quint32 pixHeight = 10);

    //根据按钮获取该按钮对应的图标
    QPixmap getPixmap(QToolButton *btn, bool normal);

    //指定导航面板样式,不带图标
    static void setStyle(QWidget *widget, const QString &type = "left", int borderWidth = 3,
                         const QString &borderColor = "#029FEA",
                         const QString &normalBgColor = "#292F38",
                         const QString &darkBgColor = "#1D2025",
                         const QString &normalTextColor = "#54626F",
                         const QString &darkTextColor = "#FDFDFD");

    //指定导航面板样式,带图标和效果切换
    void setStyle(QWidget *widget, QList<QToolButton *> btns, QList<int> pixChar,
                  quint32 iconSize = 9, quint32 iconWidth = 10, quint32 iconHeight = 10,
                  const QString &type = "left", int borderWidth = 3,
                  const QString &borderColor = "#029FEA",
                  const QString &normalBgColor = "#292F38",
                  const QString &darkBgColor = "#1D2025",
                  const QString &normalTextColor = "#54626F",
                  const QString &darkTextColor = "#FDFDFD");

    //指定导航按钮样式,带图标和效果切换
    void setStyle(QFrame *frame, QList<QToolButton *> btns, QList<int> pixChar,
                  quint32 iconSize = 9, quint32 iconWidth = 10, quint32 iconHeight = 10,
                  const QString &normalBgColor = "#2FC5A2",
                  const QString &darkBgColor = "#3EA7E9",
                  const QString &normalTextColor = "#EEEEEE",
                  const QString &darkTextColor = "#FFFFFF");

protected:
    bool eventFilter(QObject *watched, QEvent *event);

private:
    static IconHelper *self;    //对象自身
    QFont iconFont;             //图形字体
    QList<QToolButton *> btns;  //按钮队列
    QList<QPixmap> pixNormal;   //正常图片队列
    QList<QPixmap> pixDark;     //加深图片队列
};
#endif // ICONHELPER_H

6.iconhelper.cpp

#include "iconhelper.h"

IconHelper *IconHelper::self = 0;
IconHelper *IconHelper::Instance()
{
    if (!self) {
        QMutex mutex;
        QMutexLocker locker(&mutex);
        if (!self) {
            self = new IconHelper;
        }
    }

    return self;
}

IconHelper::IconHelper(QObject *) : QObject(qApp)
{
    int fontId = QFontDatabase::addApplicationFont(":/image/fontawesome-webfont.ttf");
    QStringList fontName = QFontDatabase::applicationFontFamilies(fontId);

    if (fontName.count() > 0) {
        iconFont = QFont(fontName.at(0));
    } else {
        qDebug() << "load fontawesome-webfont.ttf error";
    }
}

void IconHelper::setIcon(QLabel *lab, QChar c, quint32 size)
{
    iconFont.setPixelSize(size);
    lab->setFont(iconFont);
    lab->setText(c);
}

void IconHelper::setIcon(QAbstractButton *btn, QChar c, quint32 size)
{
    iconFont.setPixelSize(size);
    btn->setFont(iconFont);
    btn->setText(c);
}

QPixmap IconHelper::getPixmap(const QString &color, QChar c, quint32 size,
                              quint32 pixWidth, quint32 pixHeight)
{
    QPixmap pix(pixWidth, pixHeight);
    pix.fill(Qt::transparent);

    QPainter painter;
    painter.begin(&pix);
    painter.setRenderHints(QPainter::Antialiasing | QPainter::TextAntialiasing);
    painter.setPen(QColor(color));
    painter.setBrush(QColor(color));

    iconFont.setPixelSize(size);
    painter.setFont(iconFont);
    painter.drawText(pix.rect(), Qt::AlignCenter, c);
    painter.end();

    return pix;
}

QPixmap IconHelper::getPixmap(QToolButton *btn, bool normal)
{
    QPixmap pix;
    int index = btns.indexOf(btn);

    if (index >= 0) {
        if (normal) {
            pix = pixNormal.at(index);
        } else {
            pix = pixDark.at(index);
        }
    }

    return pix;
}

void IconHelper::setStyle(QWidget *widget, const QString &type, int borderWidth, const QString &borderColor,
                          const QString &normalBgColor, const QString &darkBgColor,
                          const QString &normalTextColor, const QString &darkTextColor)
{
    QString strBorder;
    if (type == "top") {
        strBorder = QString("border-width:%1px 0px 0px 0px;padding:%1px %2px %2px %2px;")
                .arg(borderWidth).arg(borderWidth * 2);
    } else if (type == "right") {
        strBorder = QString("border-width:0px %1px 0px 0px;padding:%2px %1px %2px %2px;")
                .arg(borderWidth).arg(borderWidth * 2);
    } else if (type == "bottom") {
        strBorder = QString("border-width:0px 0px %1px 0px;padding:%2px %2px %1px %2px;")
                .arg(borderWidth).arg(borderWidth * 2);
    } else if (type == "left") {
        strBorder = QString("border-width:0px 0px 0px %1px;padding:%2px %2px %2px %1px;")
                .arg(borderWidth).arg(borderWidth * 2);
    }

    QStringList qss;
    qss.append(QString("QWidget[flag=\"%1\"] QAbstractButton{border-style:none;border-radius:0px;padding:5px;color:%2;background:%3;}")
               .arg(type).arg(normalTextColor).arg(normalBgColor));

    qss.append(QString("QWidget[flag=\"%1\"] QAbstractButton:hover,"
                       "QWidget[flag=\"%1\"] QAbstractButton:pressed,"
                       "QWidget[flag=\"%1\"] QAbstractButton:checked{"
                       "border-style:solid;%2border-color:%3;color:%4;background:%5;}")
               .arg(type).arg(strBorder).arg(borderColor).arg(darkTextColor).arg(darkBgColor));

    widget->setStyleSheet(qss.join(""));
}

void IconHelper::setStyle(QWidget *widget, QList<QToolButton *> btns, QList<int> pixChar,
                          quint32 iconSize, quint32 iconWidth, quint32 iconHeight,
                          const QString &type, int borderWidth, const QString &borderColor,
                          const QString &normalBgColor, const QString &darkBgColor,
                          const QString &normalTextColor, const QString &darkTextColor)
{
    int btnCount = btns.count();
    int charCount = pixChar.count();
    if (btnCount <= 0 || charCount <= 0 || btnCount != charCount) {
        return;
    }

    QString strBorder;
    if (type == "top") {
        strBorder = QString("border-width:%1px 0px 0px 0px;padding:%1px %2px %2px %2px;")
                .arg(borderWidth).arg(borderWidth * 2);
    } else if (type == "right") {
        strBorder = QString("border-width:0px %1px 0px 0px;padding:%2px %1px %2px %2px;")
                .arg(borderWidth).arg(borderWidth * 2);
    } else if (type == "bottom") {
        strBorder = QString("border-width:0px 0px %1px 0px;padding:%2px %2px %1px %2px;")
                .arg(borderWidth).arg(borderWidth * 2);
    } else if (type == "left") {
        strBorder = QString("border-width:0px 0px 0px %1px;padding:%2px %2px %2px %1px;")
                .arg(borderWidth).arg(borderWidth * 2);
    }

    //如果图标是左侧显示则需要让没有选中的按钮左侧也有加深的边框,颜色为背景颜色
    QStringList qss;
    if (btns.at(0)->toolButtonStyle() == Qt::ToolButtonTextBesideIcon) {
        qss.append(QString("QWidget[flag=\"%1\"] QAbstractButton{border-style:solid;border-radius:0px;%2border-color:%3;color:%4;background:%5;}")
                   .arg(type).arg(strBorder).arg(normalBgColor).arg(normalTextColor).arg(normalBgColor));
    } else {
        qss.append(QString("QWidget[flag=\"%1\"] QAbstractButton{border-style:none;border-radius:0px;padding:5px;color:%2;background:%3;}")
                   .arg(type).arg(normalTextColor).arg(normalBgColor));
    }

    qss.append(QString("QWidget[flag=\"%1\"] QAbstractButton:hover,"
                       "QWidget[flag=\"%1\"] QAbstractButton:pressed,"
                       "QWidget[flag=\"%1\"] QAbstractButton:checked{"
                       "border-style:solid;%2border-color:%3;color:%4;background:%5;}")
               .arg(type).arg(strBorder).arg(borderColor).arg(darkTextColor).arg(darkBgColor));

    qss.append(QString("QWidget#%1{background:%2;}").arg(widget->objectName()).arg(normalBgColor));

    qss.append(QString("QWidget>QToolButton{border-width:0px;}"));
    qss.append(QString("QWidget>QToolButton{background-color:%1;color:%2;}")
               .arg(normalBgColor).arg(normalTextColor));
    qss.append(QString("QWidget>QToolButton:hover,QWidget>QToolButton:pressed,QWidget>QToolButton:checked{background-color:%1;color:%2;}")
               .arg(darkBgColor).arg(darkTextColor));

    widget->setStyleSheet(qss.join(""));

    for (int i = 0; i < btnCount; i++) {
        //存储对应按钮对象,方便鼠标移上去的时候切换图片
        QPixmap pixNormal = getPixmap(normalTextColor, QChar(pixChar.at(i)), iconSize, iconWidth, iconHeight);
        QPixmap pixDark = getPixmap(darkTextColor, QChar(pixChar.at(i)), iconSize, iconWidth, iconHeight);

        btns.at(i)->setIcon(QIcon(pixNormal));
        btns.at(i)->setIconSize(QSize(iconWidth, iconHeight));
        btns.at(i)->installEventFilter(this);

        this->btns.append(btns.at(i));
        this->pixNormal.append(pixNormal);
        this->pixDark.append(pixDark);
    }
}

void IconHelper::setStyle(QFrame *frame, QList<QToolButton *> btns, QList<int> pixChar,
                          quint32 iconSize, quint32 iconWidth, quint32 iconHeight,
                          const QString &normalBgColor, const QString &darkBgColor,
                          const QString &normalTextColor, const QString &darkTextColor)
{
    int btnCount = btns.count();
    int charCount = pixChar.count();
    if (btnCount <= 0 || charCount <= 0 || btnCount != charCount) {
        return;
    }

    QStringList qss;
    qss.append(QString("QFrame>QToolButton{border-style:none;border-width:0px;}"));
    qss.append(QString("QFrame>QToolButton{background-color:%1;color:%2;}")
               .arg(normalBgColor).arg(normalTextColor));
    qss.append(QString("QFrame>QToolButton:hover,QFrame>QToolButton:pressed,QFrame>QToolButton:checked{background-color:%1;color:%2;}")
               .arg(darkBgColor).arg(darkTextColor));

    frame->setStyleSheet(qss.join(""));

    for (int i = 0; i < btnCount; i++) {
        //存储对应按钮对象,方便鼠标移上去的时候切换图片
        QPixmap pixNormal = getPixmap(normalTextColor, QChar(pixChar.at(i)), iconSize, iconWidth, iconHeight);
        QPixmap pixDark = getPixmap(darkTextColor, QChar(pixChar.at(i)), iconSize, iconWidth, iconHeight);

        btns.at(i)->setIcon(QIcon(pixNormal));
        btns.at(i)->setIconSize(QSize(iconWidth, iconHeight));
        btns.at(i)->installEventFilter(this);

        this->btns.append(btns.at(i));
        this->pixNormal.append(pixNormal);
        this->pixDark.append(pixDark);
    }
}

bool IconHelper::eventFilter(QObject *watched, QEvent *event)
{
    if (watched->inherits("QToolButton")) {
        QToolButton *btn = (QToolButton *)watched;
        int index = btns.indexOf(btn);
        if (index >= 0) {
            if (event->type() == QEvent::Enter) {
                btn->setIcon(QIcon(pixDark.at(index)));
            } else if (event->type() == QEvent::Leave) {
                if (btn->isChecked()) {
                    btn->setIcon(QIcon(pixDark.at(index)));
                } else {
                    btn->setIcon(QIcon(pixNormal.at(index)));
                }
            }
        }
    }

    return QObject::eventFilter(watched, event);
}

7.appinit.h

#ifndef APPINIT_H
#define APPINIT_H

#include <QObject>

class AppInit : public QObject
{
    Q_OBJECT
public:
    static AppInit *Instance();
    explicit AppInit(QObject *parent = 0);

    void start();

protected:
    bool eventFilter(QObject *obj, QEvent *evt);

private:
    static AppInit *self;

signals:

public slots:
};

#endif // APPINIT_H

8.appinit.cpp

#include "appinit.h"
#include "qmutex.h"
#include "qapplication.h"
#include "qevent.h"
#include "qwidget.h"

AppInit *AppInit::self = 0;
AppInit *AppInit::Instance()
{
    if (!self) {
        QMutex mutex;
        QMutexLocker locker(&mutex);
        if (!self) {
            self = new AppInit;
        }
    }

    return self;
}

AppInit::AppInit(QObject *parent) : QObject(parent)
{
}

bool AppInit::eventFilter(QObject *obj, QEvent *evt)
{
    QWidget *w = (QWidget *)obj;
    if (!w->property("canMove").toBool()) {
        return QObject::eventFilter(obj, evt);
    }

    static QPoint mousePoint;
    static bool mousePressed = false;

    QMouseEvent *event = static_cast<QMouseEvent *>(evt);
    if (event->type() == QEvent::MouseButtonPress) {
        if (event->button() == Qt::LeftButton) {
            mousePressed = true;
            mousePoint = event->globalPos() - w->pos();
            return true;
        }
    } else if (event->type() == QEvent::MouseButtonRelease) {
        mousePressed = false;
        return true;
    } else if (event->type() == QEvent::MouseMove) {
        if (mousePressed && (event->buttons() && Qt::LeftButton)) {
            w->move(event->globalPos() - mousePoint);
            return true;
        }
    }

    return QObject::eventFilter(obj, evt);
}

void AppInit::start()
{
    qApp->installEventFilter(this);
}

9.界面的控件布局设计.
